Rosemount 8800 Dual Vortex Flow Meter: 1oo2 / 2oo2 Voting Redundancy for SIL 3 Safety Systems (1/2"-12")

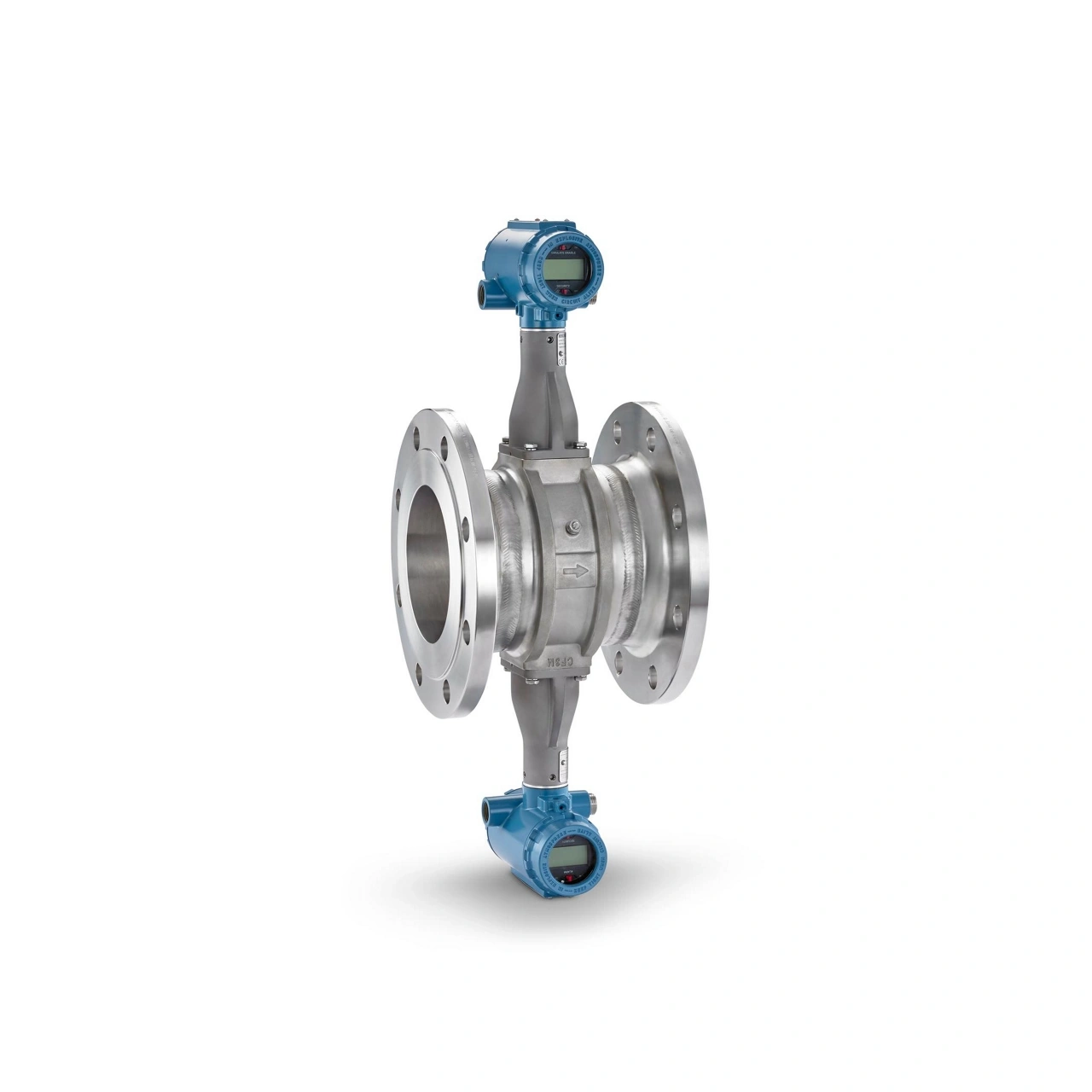

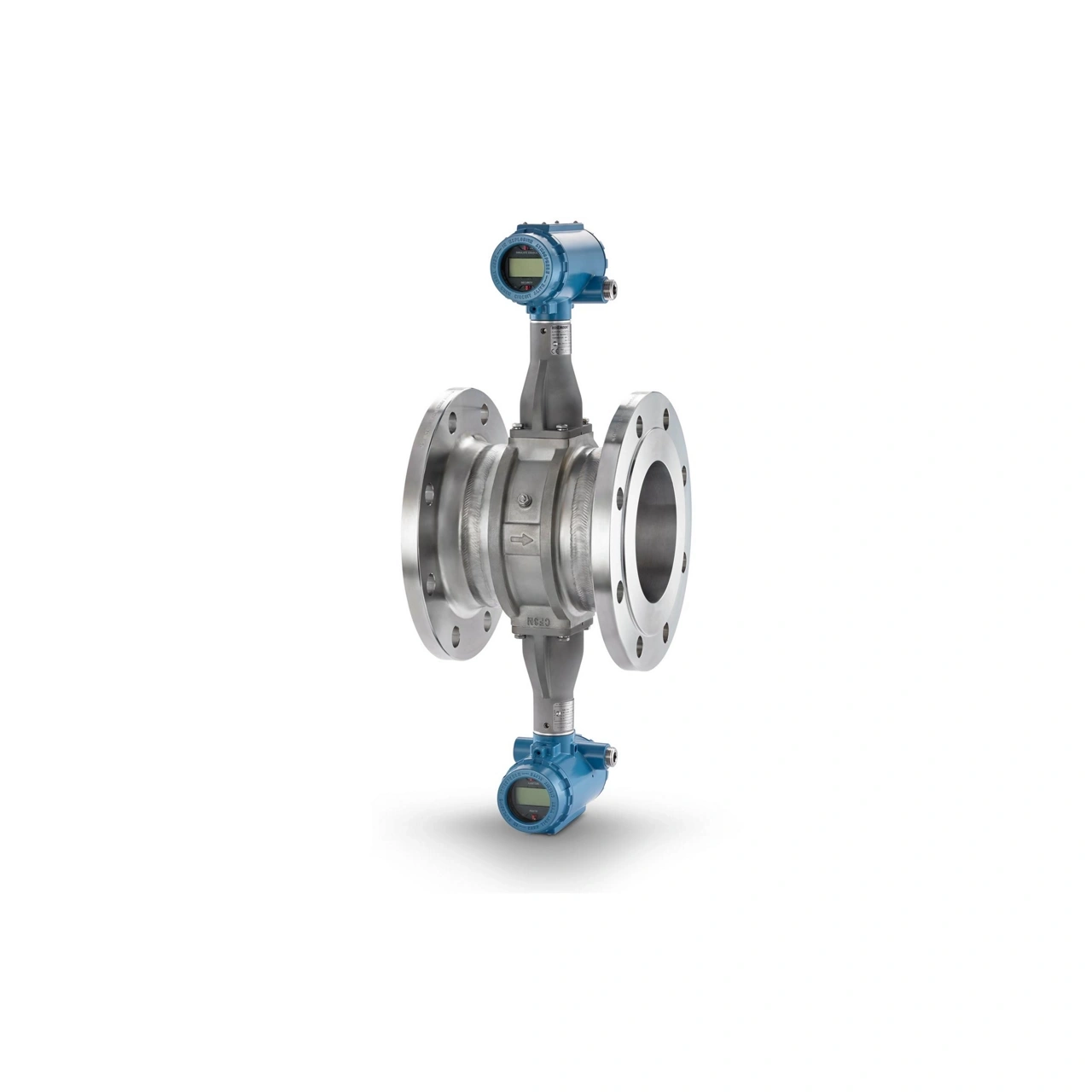

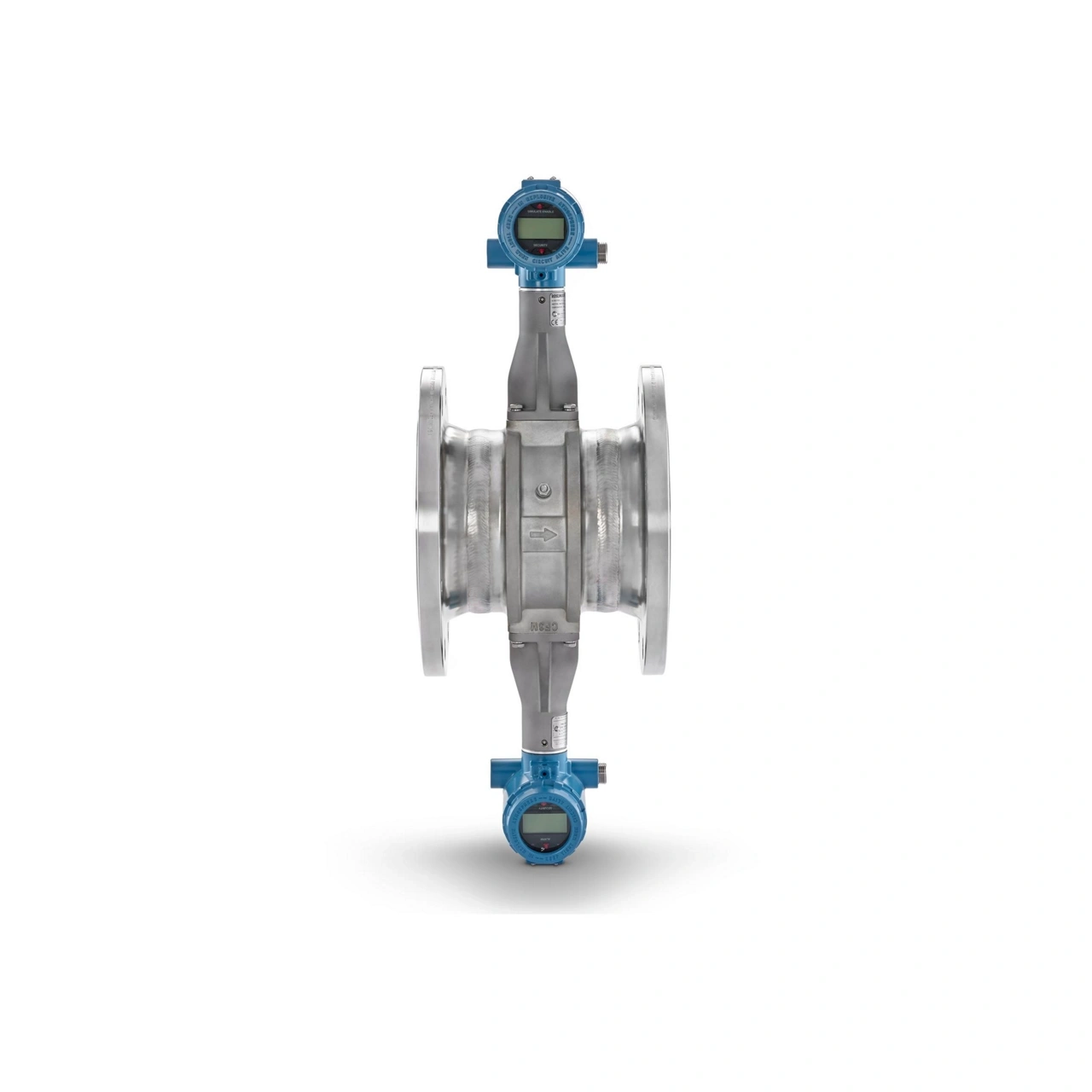

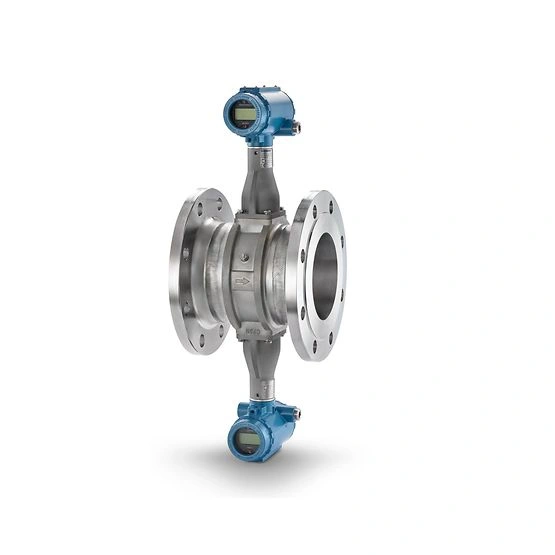

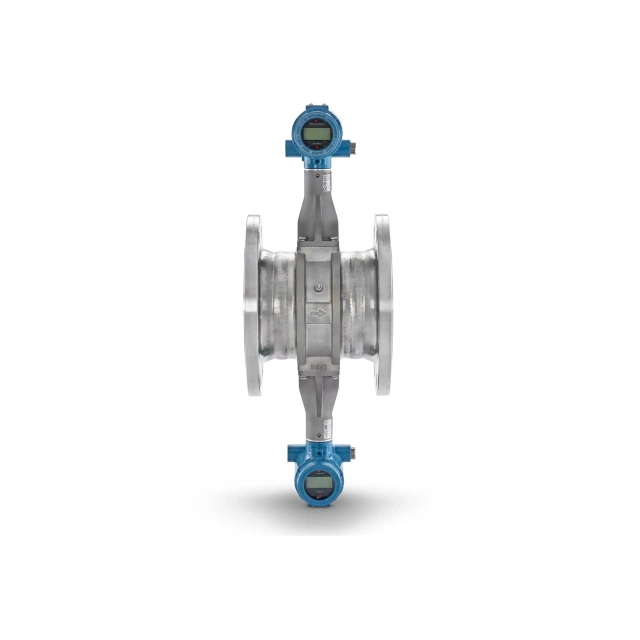

The Rosemount 8800 Dual Vortex Flow Meter is engineered for critical steam boilers, ethylene headers, and toxic gas lines where single instrument faults trigger false emergency shutdowns costing chemical plants tens of thousands of dollars per hour. By embedding two independent piezo-electric sensors and dual electronics transmitters within a single gasket-free body, it delivers 1oo2 (One-out-of-Two) or 2oo2 (Two-out-of-Two) trip voting logic directly to your DCS or SIS logic solver. Available for line sizes from 1/2″ to 12″ (DN15 to DN300), it handles pressures up to ANSI Class 1500 (PN 160) and temperatures from -330°F to 800°F (-200°C to 427°C).
How Rosemount 8800 Dual Sensor Redundancy Prevents Unscheduled Shutdowns
1. 1oo2 vs. 2oo2 Voting Logic Stops False Alarm Spurious Trips
In high-pressure steam distribution or exothermic reaction loops, single-channel transmitter faults—such as signal wire fatigue or terminal moisture—frequently cause false high-flow readings. In 2oo2 voting mode, the DCS requires both independent transmitter channels of the 8800 Dual Vortex to register an out-of-spec condition before closing emergency trip valves. This eliminates spurious plant trips while retaining immediate 1oo2 safety shutdown capability when true emergency events occur.
2. Compact Single Meter Body Cuts Piping Footprint & Installation Costs
Installing two standalone vortex meters in series to achieve flow redundancy requires long straight pipe runs (up to 35D upstream), double flange sets, and extra piping supports. The Rosemount 8800 Dual Vortex integrates both sensor assemblies into a standard single face-to-face body dimension. This saves up to 50% in straight pipe footprint, eliminates two potential flange leak points, and significantly reduces installation labor during plant turnarounds.
3. Non-Wetted Online Sensor Replacement Under Operating Line Pressure
Unlike traditional flowmeters where sensor servicing requires line depressurization, the 8800 Dual Vortex isolates both piezo-electric sensors behind a solid, gasket-free metal wall. Instrument technicians can safely unbolt and replace either sensor element or transmitter head while the line is fully pressurized with 750°F superheated steam or hazardous chemicals—zero process interruption, zero downtime.
4. Optional Critical Process Valve (CPA) for High-Risk Secondary Containment
For lethal, toxic, or high-pressure gas service, the CPA option adds an integrated valve manifold above the primary sensor isolation seal. This allows maintenance teams to safely vent trapped cavity fluid, check secondary seal integrity, and perform online diagnostic checks before pulling electronics—adding a crucial layer of personnel safety in hazardous areas.
Rosemount 8800 Dual Vortex Technical Specifications Matrix
| Parameter / Metric | Verified Specification Limits | Practical Engineering Benefit |
|---|---|---|
| Redundancy Voting | 1oo2 (Safety-first) or 2oo2 (Uptime-first) SIL 3 voting logic | Eliminates single-point instrument failure risks in safety loops |
| Turndown Ratio Options | • Single Bar Duals: 38:1 turndown • Dual Bar Duals: 15:1 turndown (due to downstream turbulence) |
Single bar maximizes low-flow rangeability; dual bar ensures full physical hydraulic isolation |
| Volumetric & Mass Accuracy | • Liquid Volumetric: ±0.65% of rate • Gas & Steam Volumetric: ±1.0% of rate • MultiVariable Steam Mass (MTA/MCA): ±1.2% at 150 psia • MultiVariable Steam Mass (MPA): ±1.3% (30 to 2000 psia) |
Provides dual calibrated signal channels for accurate energy balance and custody transfer |
| Line Sizes & Flange Ratings | • Sizes: 1/2″ to 12″ (DN15 to DN300) • ANSI Class 150 to 1500 | DIN PN 10 to PN 160 | JIS 10K to 40K |
Fits standard piping specifications without custom adapter spools |
| Wetted Metallurgy Options | • Stainless Steel: 316 / 316L and CF3M • Nickel Alloy: Hastelloy C-22 and CW2M • High-Temp Carbon Steel: A105 and WCB • Low-Temp Carbon Steel: LF2 and LCC • Duplex: UNS S32760 and 6A |
Prevents pitting and stress corrosion cracking in sour gas or corrosive media |
| Output Protocols | • Dual independent 4-20 mA with HART® 5 / 7 • FOUNDATION Fieldbus ITK6 (2 AI, 1 LAS, 1 Integrator, 1 PID) • Modbus RS-485 (device status + 4 variables) |
Wires directly into redundant Safety Logic Solvers or primary/backup DCS cards |
Architecture Comparison: Rosemount 8800 Dual vs. Quad vs. Two In-Line Meters
| Engineering Metric | Rosemount 8800 Dual Vortex | Rosemount 8800 Quad Vortex | Two Standalone Meters in Series |
|---|---|---|---|
| Transmitter Channels | 2 Independent Transmitters | 4 Independent Transmitters | 2 Standalone Meters |
| SIS Voting Architecture | 1oo2 or 2oo2 Voting (SIL 3) | 2oo3 Voting + Extra Control Loop | 1oo2 or 2oo2 Voting |
| Required Pipe Run Footprint | Compact Single Body (Standard Face-to-Face) | Extended Quad Face-to-Face Body | Excessive (Requires Double Pipe Length + Upstream Run) |
| Flange Leak Risk Points | Low (2 Flange Joints) | Low (2 Flange Joints) | High (4 Flange Joints) |
| Primary Target Application | Boiler steam feeds, SIL 2/3 redundant process loops | Ultra-critical SIL 3 loops with continuous online verification | Legacy revamps with pre-existing dual spool pieces |
Explore Complementary Rosemount Flow Instrumentation
For standard non-redundant utility steam or liquid applications, visit the Rosemount 8800 Flanged Vortex Flow Meter.
For SIL 3 applications requiring 2-out-of-3 trip voting plus a dedicated non-tripping process channel, review the Rosemount 8800 Quad Vortex Flow Meter. For compact wafer-style mounting between flanges, check the Rosemount 8800 Wafer Vortex Flow Meter.
Frequently Asked Questions: Rosemount 8800 Dual Vortex Technical Procurement
Q1: What is the practical difference between 1oo2 and 2oo2 voting logic in a Dual Vortex meter?
A1: 1oo2 (One-out-of-Two) voting prioritizes safety shutdown: if either sensor detects an out-of-spec condition, the safety system trips. 2oo2 (Two-out-of-Two) voting prioritizes uptime: both sensors must agree before triggering a trip, preventing false plant shutdowns caused by single transmitter or cable faults.
Q2: Why does the Dual Shedder Bar Dual model have a narrower 15:1 turndown than the Single Bar Dual (38:1)?

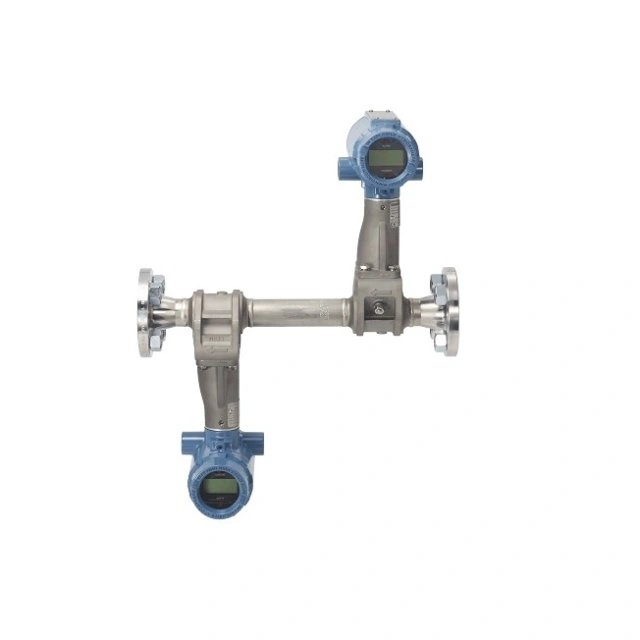

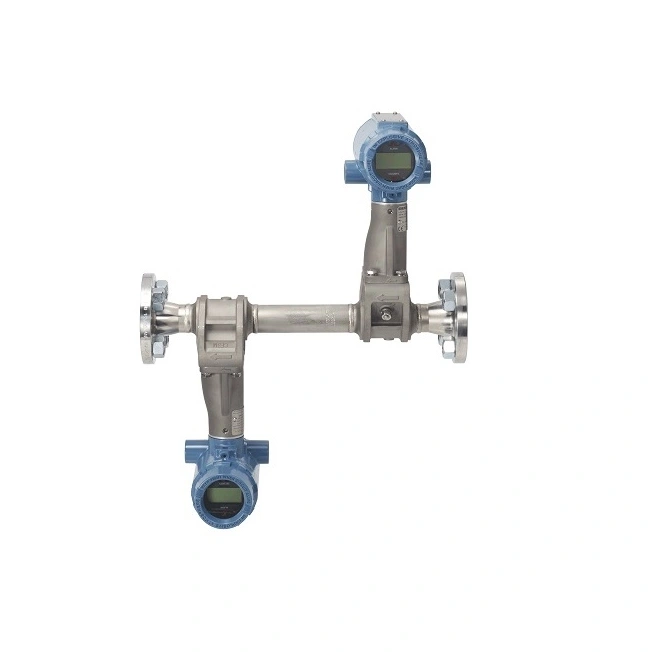

A2: The Single Bar Dual shares one shedder bar with dual sensors, maintaining a clean vortex street for a wide 38:1 turndown. The Dual Bar Dual uses two separate physical shedder bars in series; turbulence created by the upstream bar limits lower-range vortex stability, narrowing turndown to 15:1 in exchange for complete mechanical isolation.
Q3: Can maintenance engineers swap out a Dual Vortex sensor channel while the steam line is under pressure?
A3: Yes. Because Rosemount 8800 sensors are non-wetted and located outside the process fluid cavity, instrument technicians can unbolt and replace either transmitter channel without draining pipes, breaking process seals, or interrupting plant operations.
