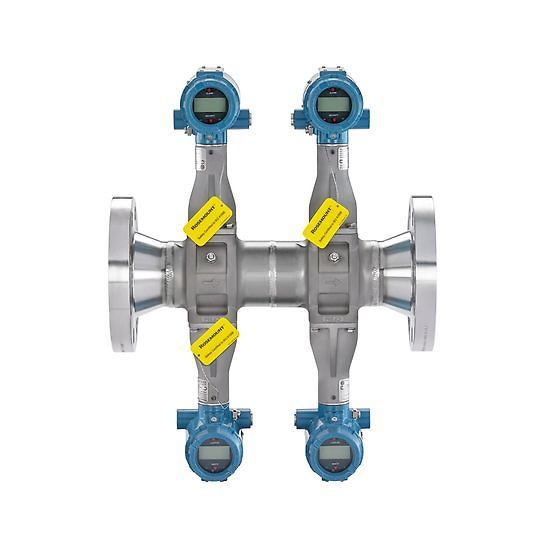

Rosemount 8800 Quad Vortex Flow Meter: SIL 3 Redundant Measurement for Critical SIS Loops (2"-14")
The Rosemount 8800 Quad Vortex Flow Meter is built specifically for high-consequence safety loops, high-pressure steam headers, and hazardous chemical feeds where a single instrument failure causes catastrophic nuisance trips costing $50,000+ per hour in unplanned downtime. Featuring a patented dual shedder bar and four independent sensor channels with quadrupole transmitters, this meter delivers IEC 61508 SIL 3 safety compliance with 2oo3 (2-out-of-3) voting logic. Available in line sizes from 2″ to 14″ (DN50 to DN350) and operating in extreme temperatures from -330°F to 800°F (-200°C to 427°C), it guarantees uninterrupted flow measurement and online sensor replacement under full process pressure.
How the Rosemount 8800 Quad Vortex Prevents Plant Shutdowns & False Trips
1. Dual Shedder Bars & Quad Sensors for 2oo3 Safety Voting
In critical processes like ethylene cracking or boiler feed steam, false trips from a faulty flow sensor cause immediate plant shutdowns. The 8800 Quad integrates two physical shedder bars cast into a single body, generating shedding frequencies for four isolated piezo-electric sensors and four output channels. This complete physical and signal isolation enables your DCS/SIS to run 2oo3 (2-out-of-3) trip voting logic, eliminating false trips caused by single-channel electrical noise or sensor wire damage.
2. Zero Shutdown Risk: Replace Sensors Online Under Full Line Pressure
Shutting down a main steam header to swap a damaged flow sensor costs tens of thousands of dollars in lost plant output. The 8800 Quad houses non-wetted sensor elements isolated from the process stream. Instrument technicians can safely remove and replace any of the four sensing elements while the line is running at 800°F (427°C) and 1,500 psi, completely avoiding costly production interruptions.
3. CriticalProcess™ Valve (CPA Option) for Secondary Seal Verification
When handling toxic gases or high-pressure utility steam, flange gasket integrity is vital for plant safety. The optional CriticalProcess™ Valve (CPA) adds an extra block valve safety barrier above the primary seal. Maintenance personnel can manually cycle the CPA valve to vent residual process pressure and check secondary containment integrity before removing sensor hardware.
4. ADSP Vibration Filtering & Internal Signal Calibration
Heavy pipe vibration from nearby pumps or compressors often distorts pulse signals in standard flow meters. The 8800 Quad combines a mass-balanced sensor design with Adaptive Digital Signal Processing (ADSP) and visual digital filtering to isolate true vortex frequencies from mechanical noise. Furthermore, built-in internal signal generators allow engineers to verify electronic loops in the field without carrying external frequency calibrators.
Rosemount 8800 Quad Vortex Technical Specifications
| Technical Index | Verified Specification Limits | Practical Engineering Benefit |
|---|---|---|
| Volumetric Accuracy | • Liquid Volumetric: ±0.65% of rate • Gas & Steam Volumetric: ±1.0% of rate |
High-precision tracking across wide utility steam dynamic ranges |
| Turndown Ratio | 15:1 dynamic turndown range | Prevents signal dropouts during low-demand night shifts |
| Safety Integrity Level | IEC 61508 Certified SIL 3 Capable (with 2oo3 voting logic) | Meets strict OSHA 1910 PSM and European Seveso III safety standards |
| Output Protocols | • 4-20 mA with HART® 5 / 7 (optional pulse) • FOUNDATION Fieldbus ITK6 (2 AI, 1 LAS, 1 PID, 1 Integrator) • Modbus RS-485 (device status + 4 variables) |
Seamless connection with Emerson DeltaV SIS, Yokogawa ProSafe, and Triconex Systems |
| Line Sizes & Flange Ratings | • Line Sizes: 2″ to 14″ (DN50 to DN350) • ANSI Class 150 to 1500 | DIN PN 10 to PN 160 | JIS 10K to 40K |
Fits high-pressure main steam lines and toxic chemical pipe racks |
| Wetted Metallurgy Options | • Stainless Steel: 316 / 316L and CF3M • Nickel Alloy: Hastelloy C-22 and CW2M • Carbon Steel: High-Temp A105/WCB and Low-Temp LF2/LCC • Duplex Stainless: UNS S32760 and 6A |
NACE MR0175 compliant metallurgy prevents sour gas stress cracking |
Safety Cost Analysis: Rosemount 8800 Quad vs. Dual Vortex vs. Differential Pressure (DP) Orifice
| System Architecture Factor | Rosemount 8800 Quad Vortex | Dual Vortex Meter | Traditional DP Orifice Plate |
|---|---|---|---|
| Redundancy & Voting | Full 2oo3 Voting (Dual shedder + 4 channels) | 1oo2 Voting Only (1 shedder + 2 channels) | No physical redundancy (Single plate) |
| SIL Certification | SIL 3 Capable (IEC 61508 certified) | SIL 2 Capable | Requires multiple transmitters & manifolds |
| Leak Path Risk | Zero Gasket Leak Paths (All-welded body) | Zero Gasket Leak Paths | High (Impulse lines, 5-valve manifolds, flanges) |
| Online Maintenance Cost | $0 Line Shutdown (Online sensor swap under pressure) | Requires bypass or line shutdown | High (Impulse line flushing & heat trace upkeep) |
| Permanent Pressure Drop | Low (Single meter body profile) | Low | Very High (Continuous energy loss on steam) |
Complementary Safety Instrumentation Solutions
For full temperature and pressure mass flow compensation on steam lines, link this meter with the SIL 2/3 certified Rosemount 3051S In-Line Pressure Transmitter.
If your installation line suffers from low flow velocity and requires an internal neck-down, explore the Rosemount 8800 Reducer Vortex Flow Meter.
For standard non-redundant steam lines, check the Rosemount 8800 Wafer Vortex Flow Meter.
Frequently Asked Questions: Rosemount 8800 Quad Vortex Procurement
Q1: How does the Rosemount 8800 Quad Vortex support 2oo3 voting in SIL 3 applications?
A1: The 8800 Quad integrates two independent shedder bars and four isolated piezo-electric sensor elements connected to four separate transmitter channels. This architecture enables 2-out-of-3 (2oo3) trip voting logic inside Safety Instrumented Systems (SIS), ensuring uninterrupted operation even during single-sensor maintenance or fault.
Q2: Can you replace a sensor element on the 8800 Quad without stopping main steam production?
A2: Yes. The non-wetted sensor design isolates mechanical elements from the process fluid. Technicians can replace any of the individual sensing units under full operating line pressure and temperature without breaking primary containment seals.
Q3: What is the primary advantage of the Critical Process Valve (CPA) option on critical toxic gas lines?
A3: The CPA option adds a dedicated block valve safety barrier above the primary seal. It allows maintenance personnel to verify secondary containment integrity, vent residual process pressure, and perform safe sensor swaps on toxic gas or high-pressure steam headers without plant shutdowns.
