In industrial process automation, achieving reliable flow measurement in wastewater treatment requires instrumentation capable of withstanding aggressive, non-homogeneous fluids. Because they provide obstruction-free operation, the electromagnetic flow meter—commonly referred to as a magnetic flow meter—is the industry standard for conductive fluid lines.
However, deploying a standard magnetic flow meter for heavy slurry systems containing lime, abrasive sludge, grit, or organic grease often introduces a frustrating failure mode: chronic electromagnetic flow meter signal drift, zero-point fluctuations, and erratic output readings.
At Hanyu Instruments, our engineering team focuses on diagnosing these boundary-layer failure modes to bridge the gap between factory-standard limitations and rugged field realities. Understanding the root causes of this measurement instability is essential for successful electromagnetic flow meter troubleshooting, reducing maintenance overhead, and ensuring accurate process control.Before diving into the failure modes, you can review our full range of
When diagnosing an abrasive slurry flow meter applications failure, engineers must analyze the complex physical and electrochemical boundary layer interactions occurring inside the sensor flow tube.
Wastewater matrices often contain fats, oils, grease (FOG), or mineral precipitates. Over time, these materials form a stubborn layer of electrode coating in magnetic flow meters. As this film thickens, it insulates the electrodes from the conductive process fluid, severely weakening the induced voltage signal ($E = B \cdot v \cdot D$). This causes the distributed control system (DCS) to report a continuous downward drift in flow rates.
When hard, solid particulates strike the face of the measuring electrodes, they generate localized frictional electrochemical noise. This is particularly severe in slurry wastewater flow measurement lines operating at lower velocities with high-density solids. The resulting voltage spikes disrupt the transmitter's low-frequency DC square-wave excitation signal, leading to unstable readings and shifting zeros.

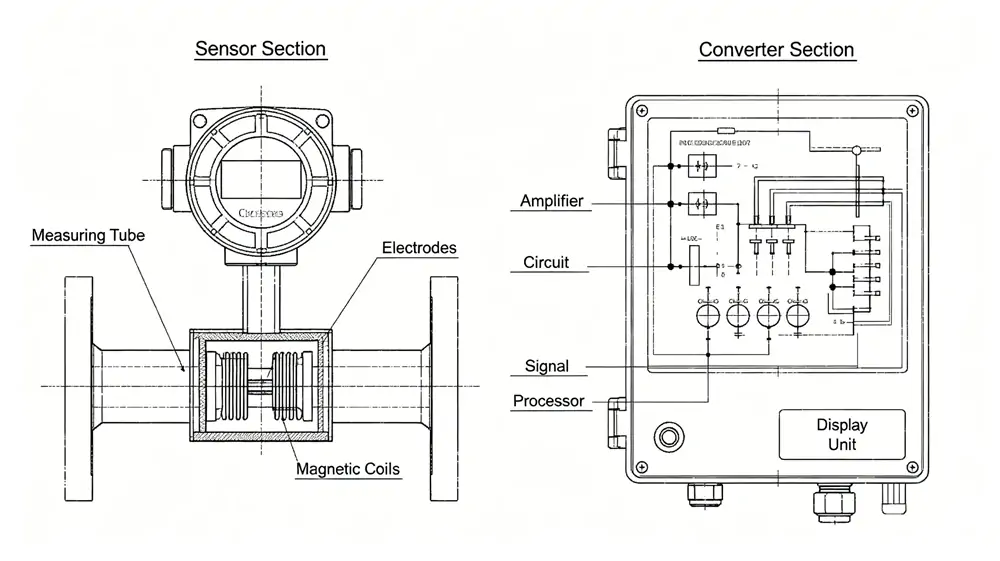

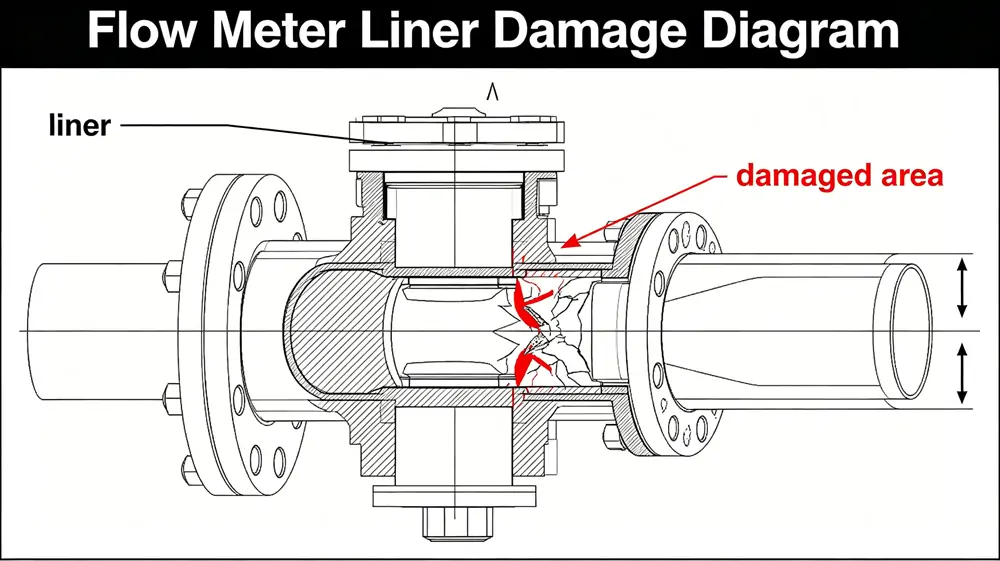

A reliable slurry flow meter relies heavily on its internal liner (typically PTFE, PFA, or soft rubber). In lines subject to transient vacuum conditions—such as downstream of a discharge pump—poorly bonded liners can pull away, collapse, or deform. This alters the internal diameter ($D$), introduces localized turbulence at the electrode plane, and manifests as unexplainable signal drift.
For systems handling high-density solids, reviewing specialized industrial electromagnetic flow meter specifications can help engineers identify heavily reinforced lining designs that prevent vacuum-induced failure. To perfectly counter this exact operational challenge, the
+-----------------------------------------------------------------------+
| TYPICAL MAG METER FOR SLUDGE SIGNAL PATH |
| |
| Fluid Velocity (v) -> Induced Voltage -> Electrode -> Transmitter -> |
| |
| *Slurry Noise / Coating Interrupts the Voltage Signal at Electrode* |
+-----------------------------------------------------------------------+
Permanently eliminating how to prevent magmeter drift requires shifting from reactive field maintenance to proactive hardware specification and rigorous supply chain quality verification.
To successfully manage a mag meter for sludge, line velocity must be tightly controlled. To prevent sedimentation (which accelerates coating) while preventing excessive liner erosion, maintain a process velocity between 2.0 m/s and 3.5 m/s. This velocity range provides sufficient kinetic energy for the fluid to self-clean the electrodes naturally without accelerating liner wear.
Standard 316L stainless steel electrodes quickly polarize or corrode in harsh wastewater matrices. Upgrading the design to Hastelloy C, Titanium, or Tantalum offers vastly superior electrochemical stability. Furthermore, specifying bullet-nosed or pointed electrodes rather than flush-mounted designs allows flowing solids to shear off particulate buildup, minimizing surface-strike noise.
For abrasive wastewater with potential vacuum risks, PTFE liners must be mechanically reinforced, or replaced with high-durability PFA or vulcanized hard rubber. Validating these components off-site through independent verification hubs (like

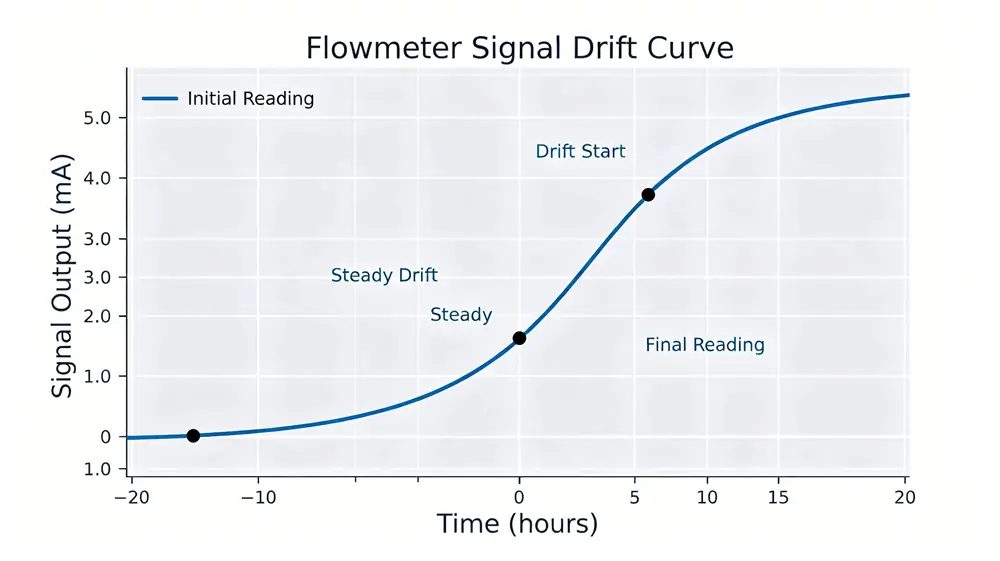

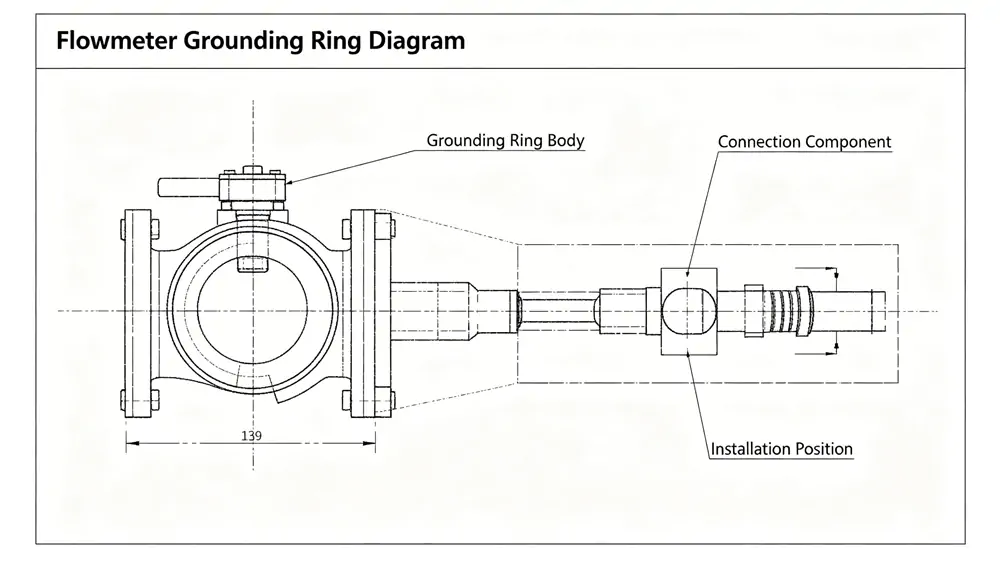

Slurry noise dramatically amplifies stray currents in the pipeline. The flow meter must have a dedicated, low-resistance ground connection directly to the process fluid. In plastic or lined piping systems, this requires the installation of high-grade grounding rings on both ends of the meter spool to stabilize the voltage baseline.
If an online meter on a sludge line begins exhibiting erratic behavior, implement this systematic diagnostic sequence before breaking the pipe spool:
Measure Electrode Impedance: Isolate the transmitter and measure the resistance between each electrode and the ground plane. A massive discrepancy or an infinitely high resistance reading confirms non-conductive electrode insulation.
Execute a High-Frequency Drive: Modern digital transmitters allow you to increase the coil excitation frequency (shifting from standard 6.25 Hz up to 25 Hz or higher). Higher frequencies effectively modulate out the low-frequency slurry noise caused by particulate friction.
Inspect Transmitter Zero-Point: Shut off the flow completely to achieve a true static fluid state. If the transmitter output fails to stabilize at zero, check for pipeline vibration or grounding ring degradation.
When sourcing electromagnetic flow meters for heavy sludge and slurry applications, a standard commercial-grade configuration will inevitably fail. For abrasive and high-solid wastewater applications, our application engineers prioritize:
PTFE or reinforced PFA liner construction for superior wear and vacuum resistance.
Hastelloy C or Titanium electrodes to prevent premature chemical polarization.
Empty pipe detection software to eliminate false readings during line maintenance.
High-frequency excitation technology to filter out electrochemical friction noise.
IP68 protection for submerged or flooded field installations.
Dedicated grounding rings to establish a rock-solid electrical baseline.
Low-conductivity signal compensation to maintain transmitter sensitivity.
The optimized instrumentation profile recommended by our review board for long-term zero-point stability is detailed below:
| Component | Standard Configuration (Prone to Drift) | Hanyu Optimized Slurry Configuration (Recommended) |
| Electrode Material | 316L Stainless Steel | Hastelloy C276 / Tantalum |
| Electrode Design | Flush-Mounted / Flat | Bullet-Nosed / Pointed Profile |
| Liner Material | Standard PTFE | Reinforced PFA / Thick Hard Rubber |
| Excitation Frequency | Low Frequency 6.25 Hz | Dual-Frequency / High-Frequency 25Hz+ |
| Grounding Method | Pipeline Bonding Wire | Dual Matching Material Grounding Rings |
Magnetic flow meters remain the premier solution for flow measurement in wastewater treatment, but heavy slurries demand rigorous physical and electrical isolation parameters. By enforcing strict material verification, optimizing velocity profiles, selecting hardened configurations, and utilizing independent quality audits before installation, instrumentation engineers can secure long-term zero-point stability and eliminate the headache of operational measurement drift.
This guide was compiled by our senior application engineering team, specializing in heavy industrial automation, process control optimization, and electromagnetic flow meter diagnostics.
Application Experience: Over 15 years of field deployment in municipal sludge treatment, chemical processing lines, and mining tailing monitoring.
Test Lab Mention: All technical benchmarks and material validation protocols referenced are backed by rigorous data from our independent product testing facility, ensuring cross-vendor reliability.
Standards Mention: All engineering guidelines adhere strictly to international instrumentation frameworks, including AWWA, CE, ATEX/IECEx explosion-proof mandates, and ISO 9001 quality management manufacturing baselines.
