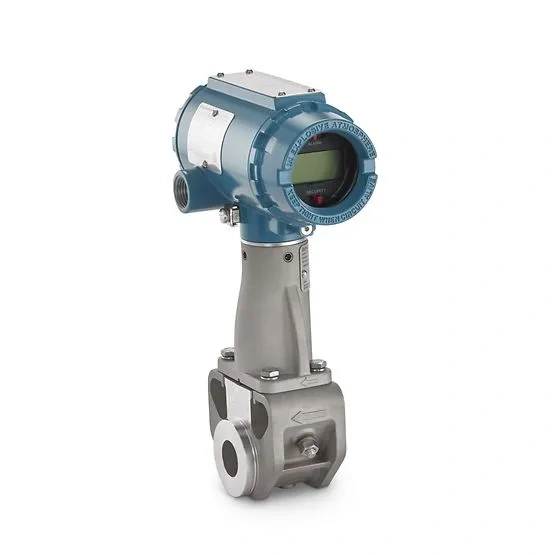

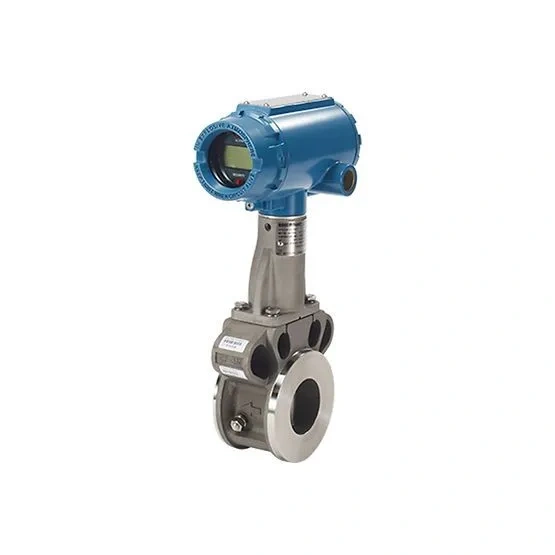

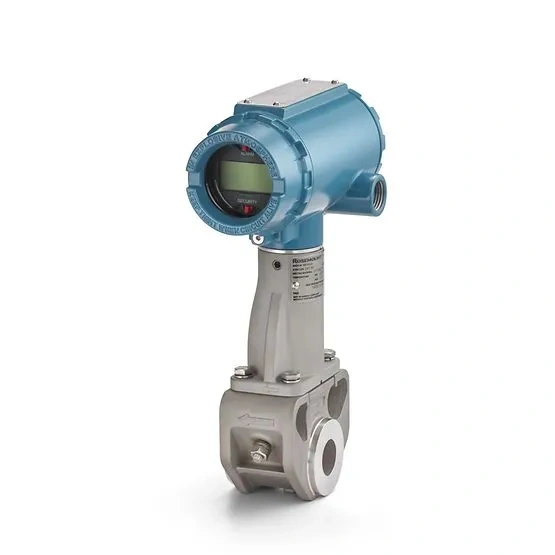

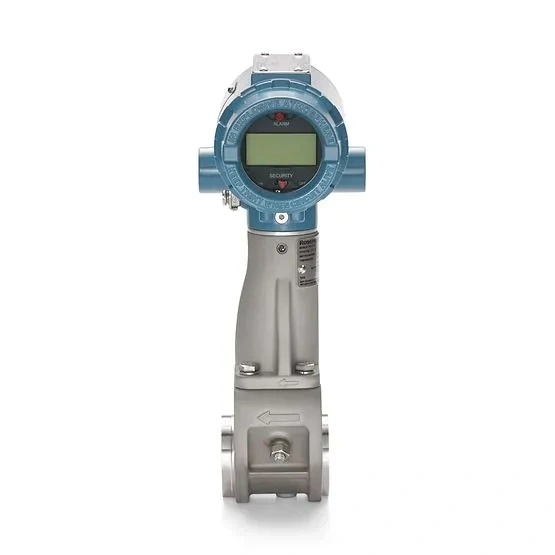

Rosemount 8800 Wafer Vortex Flow Meter (1/2" to 8" | SIL 2 Certified)
Engineered for utility plant managers and processing engineers suffering from unplanned steam losses and pipe vibration drift, the Rosemount 8800 Wafer Vortex Flow Meter provides a lightweight, cost-effective solution designed for fast alignment in tight piping spaces. By replacing failure-prone internal O-rings with a gasket-free, non-clog body design, the 8800 Wafer eliminates potential leak points across process temperatures from -330°F to 800°F (-200°C to 427°C). Its unique isolated sensor geometry allows field technicians to replace flow and temperature sensors online without breaking process seals or halting line production, ensuring maximum uptime and lowered total cost of ownership.
Rosemount 8800 Wafer Vortex Architecture & Maintenance-Free Engineering Features
1. Gasket-Free Non-Clog Body: Zero Process Leak Points
Conventional vortex designs feature fluid-wetted sensor cavities and internal seals that degrade under continuous steam water-hammer and thermal expansion, leading to hazardous fugitive emissions and expensive maintenance downtime. The Rosemount 8800 Wafer Vortex Flow Meter features an all-welded, cast meter body without internal ports, seals, or gaskets. This solid-state design prevents process fluid accumulation and guarantees zero leak paths in critical steam and utility headers.
2. Non-Wetted Isolated Sensors: Safe Online Replacement Under Full Line Pressure
Shutting down a continuous processing loop just to replace a sensor element severely impacts plant yield. The isolated sensor design of the Rosemount 8800 physically segregates the acoustic sensing element from the process media. Maintenance teams can remove and replace both the vortex velocity sensor and the optional integral temperature sensor without depressurizing the line, bleeding impulse tubing, or breaking primary process seals.
3. Mass-Balanced Sensor & Adaptive Digital Signal Processing (ADSP) Vibration Immunity
Low-frequency mechanical vibration from adjacent pumps and compressors often interferes with shedding frequency detection, introducing measurement errors during start-ups. The 8800 Wafer pairs a mass-balanced mechanical sensor with Adaptive Digital Signal Processing (ADSP) featuring visual filtering. The system dynamically isolates Karman vortex frequencies from structural line noise, delivering stable, drift-free output signals across an extended 38:1 turndown ratio.
4. Smart Fluid Diagnostics & Internal Signal Verification
To eliminate manual bench-testing, every Rosemount 8800 meter includes a standard internal signal generator that simplifies electronics verification directly in the field. Furthermore, integrated Smart Fluid Diagnostics automatically monitor phase integrity, alerting operators if a liquid-to-gas phase change (such as cavitation, flashing, or line voiding) occurs in the piping system before pump or meter damage takes place.
Verified Rosemount 8800 Wafer Technical Specifications Matrix
| Technical Parameter | Verified Specification Limits | Plant Operational Value |
|---|---|---|
| Flow Accuracy Limits | • Liquids: ±0.65% of volumetric rate • Gas & Steam: ±1.0% of volumetric rate • Steam Mass (MultiVariable MPA): ±1.3% of rate (30 to 2000 psia) |
Prevents fuel waste and ensures accurate steam utility allocation billing |
| Dynamic Turndown Ratio | 38:1 wide tracking ratio | Captures accurate flow during low-demand night shifts and seasonal turn-downs |
| Line Sizes & Body Style | 1/2" to 8" (DN15 to DN200) Compact Wafer Alignment Style | Lightweight, easy-to-install footprint ideal for space-constrained skid packages |
| Operating Temperature Window | -330°F to 800°F (-200°C to 427°C) | Handles cryogenic fluids up to high-temperature superheated steam service |
| Flange Compatibility Ratings | • ANSI Class 150 to 1500 • DIN PN 10 to PN 160 • JIS 10K to 40K (Raised Face, Flat Face, RTJ) |
Universal mechanical fitment with global high-pressure industrial piping standards |
| Wetted Metallurgy Options | • Stainless Steel: 316 / 316L and CF3M • Nickel Alloy: Hastelloy C-22 and CW2M • High/Low Temp Carbon Steel: A105, WCB, LF2, LCC • Duplex Stainless Steel: UNS S32760 and 6A |
Maximum corrosion resistance against sour gas (NACE), aggressive acids, and condensate |
| Protocol & Output Architecture | • 4-20 mA with HART® 5 or 7 (plus scalable pulse output) • FOUNDATION Fieldbus ITK6 (2 AI, 1 PID, 1 Integrator, 1 LAS block) • Modbus RS-485 (Device status + 4 dynamic variables) |
Seamless digital telemetry integration into DCS, SCADA, and PLC control networks |
| Functional Safety Compliance | Standard 8800 meter capable of SIL 2 Applications (IEC 61508) | Pre-certified for Safety Instrumented Systems (SIS) and critical emergency shutdowns |
Steam & Utility Measurement Comparison: Rosemount 8800 Wafer vs. Legacy DP & Turbine Meters
| Performance Indicator | Rosemount 8800 Wafer Vortex | Differential Pressure (Orifice Plate) | Turbine Flow Meter |
|---|---|---|---|
| Process Leak Vulnerability | Zero Leak Points (Gasket-Free Body) | High (Multiple impulse line fittings & manifold seals) | Moderate (Flange body gaskets required) |
| Moving Components & Wear | Zero moving parts (Cast shedder bar) | Zero moving parts (Orifice edge degrades over time) | High mechanical wear (Rotor bearings fail in steam) |
| In-Situ Sensor Maintenance | Online replacement without breaking process seals | Requires process shutdown & impulse line bleeding | Requires complete line depressurization & removal |
| Vibration Suppression | High (Mass-balanced sensor + ADSP filtering) | Moderate (DP transmitter software dampening) | Low (Rotor mechanical jitter causes signal noise) |
| Safety Capability Rating | SIL 2 Capable Standard | Varies by transmitter setup | Rarely SIL 2 certified for steam service |
Process Integration & System Interoperability
For saturated and superheated steam lines where dynamic pressure shifts alter real-time mass calculations, pair the Rosemount 8800 Wafer with the Rosemount 3051S In-Line Pressure Transmitter to build a comprehensive mass-flow energy loop.
If your plant processes high-volume conductive water streams where zero pressure drop is required, cross-evaluate with the Endress+Hauser Proline Promag W 400 Flowmeter. For direct mass, density, and temperature measurement in viscous chemical or fuel blending lines without velocity dependencies, select the Emerson Micro Motion G200M Compact Coriolis Flow Meter.
Rosemount 8800 Wafer Vortex Flow Meter Technical Procurement FAQ
Q1: How does the Rosemount 8800 Wafer Vortex Meter eliminate process leak points in steam applications?
A1: The Rosemount 8800 Wafer Vortex Meter uses an all-welded, gasket-free meter body without internal seals, O-rings, or ports. This solid-state design prevents seal degradation and gasket blowouts under extreme thermal cycling, eliminating fugitive emissions and unplanned steam system shutdowns.
Q2: Can the isolated sensors on a Rosemount 8800 Wafer Vortex Flow Meter be replaced online under full pipeline pressure?
A2: Yes. The isolated sensor design physically isolates the piezo-crystal sensor from the process fluid. Field maintenance teams can safely replace both flow and temperature sensors without breaking process seals, depressurizing the system, or shutting down line operations.
Q3: Is the standard Rosemount 8800 Wafer Vortex Flow Meter certified for SIL 2 safety applications?
A3: Yes, the standard Rosemount 8800 Wafer Vortex Flow Meter is IEC 61508 certified for functional safety, making it suitable for integration into Safety Instrumented Systems (SIS) up to SIL 2 capability.
