The Rosemount 3051CFC is a premier industrial flow monitoring solution designed for closed-loop control and custody transfer applications. This compact orifice flow meter utilizes either a standard ASME/ISO corner tap orifice or a patented 4-hole conditioning plate that fits seamlessly between raised-face flanges. By integrating the primary element directly with the transmitter, the system reduces potential leak points by up to 70%.
Equipped with Bluetooth flow transmitter capabilities, the 3051CFC allows for maintenance without physical connections. The device supports WirelessHART flow meter configurations, delivering >99% data reliability for remote monitoring. For enhanced safety, the SIL 2/3 certified architecture includes plugged impulse line diagnostics to detect piping issues before they impact process quality.
| Feature | Specification Details |
| Line Size Range | 0.5 to 12 in. (15 to 300 mm) |
| Rangedown | Up to 150:1 (8:1 flow turndown) |
| Stability | 10-year installed stability |
| Safety | SIL 2/3 certified to IEC 61508 |
| Communication | HART, WirelessHART, FOUNDATION Fieldbus, PROFIBUS |
| Power Module | Up to 10-year life (SmartPower™) |

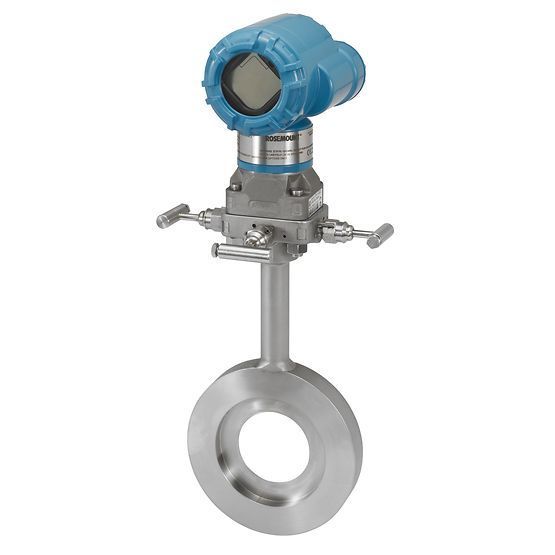

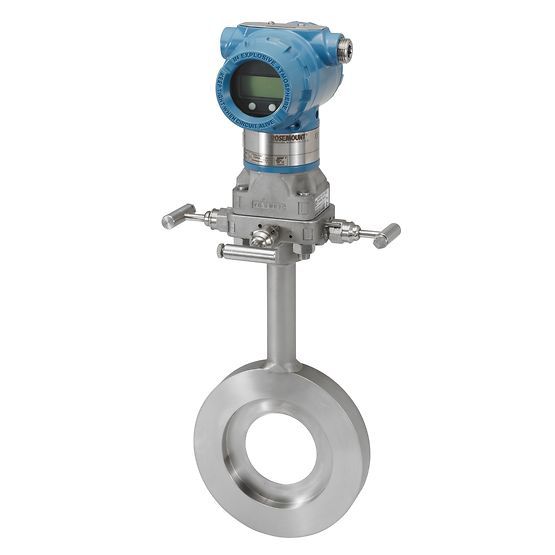

Standard Compact Orifice: Best for general-purpose gas, liquid, and steam service where cost-efficiency is a priority.

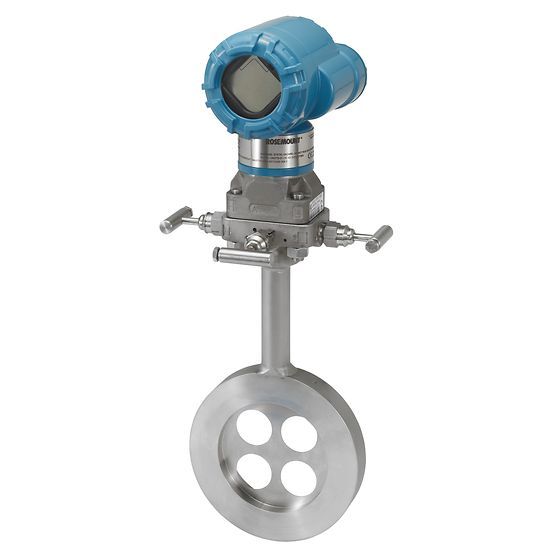

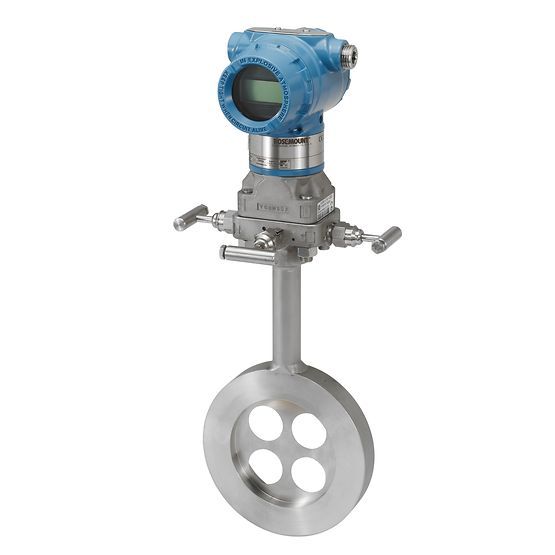

4-Hole Conditioning Plate: Ideal for applications with limited straight pipe runs, as the patented design provides accurate differential pressure flow measurement in turbulent conditions.

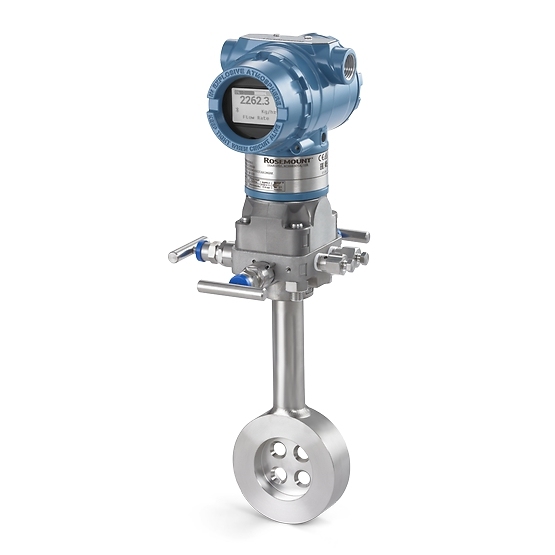

Protocol Choice: Select WirelessHART for cost-effective installation without wiring costs, or 4-20 mA HART for traditional wired systems.
Flange Fitting: The 3051CFC is designed to fit between standard raised-face flanges, simplifying the physical installation process.

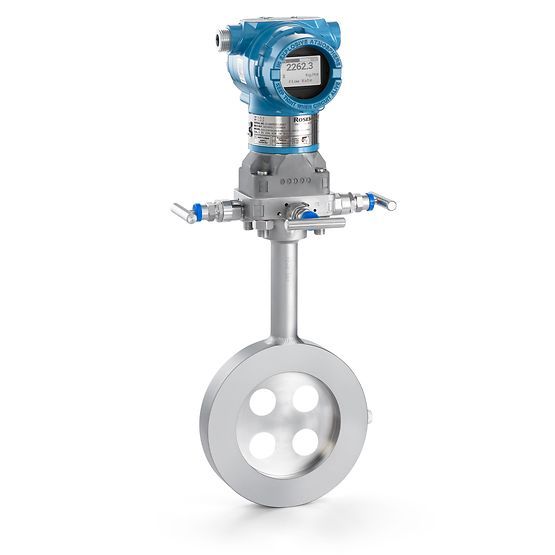

Display Orientation: Utilize the graphical, back-lit display with quick service buttons to streamline commissioning in the field.
Safety Compliance: Ensure the installation meets NACE® or hazardous location requirements as specified in the full certifications list.
Wireless Monitoring: Use the user-selectable wireless update rate (1 sec to 60 min) to balance data needs with Power Module life.
Diagnostic Alerts: Regularly check Loop Integrity Diagnostics via Bluetooth to identify electrical issues without opening the enclosure.
Impulse Lines: Monitor for plugging using the built-in plugged impulse line diagnostics to reduce unplanned downtime.
Q: What pipe sizes is the Rosemount 3051CFC compatible with?
A: This flow meter is designed for line sizes ranging from 0.5 to 12 inches (15 to 300 mm).
Q: Can the 3051CFC be used for steam service?
A: Yes, the primary element is engineered to deliver reliable and accurate flow measurement for gas, liquid, and steam service.
Q: How does Bluetooth® connectivity benefit the user?
A: Bluetooth® connectivity allows you to perform maintenance and service tasks without a physical connection or a separate configuration tool.
Q: What is the expected battery life for wireless models?
A: The SmartPower™ module provides up to 10 years of maintenance-free operation and is field-replaceable.
Q: Does it include diagnostics for piping issues?
A: Yes, it features Plugged Impulse Line diagnostics to detect piping issues before they impact the process quality.
