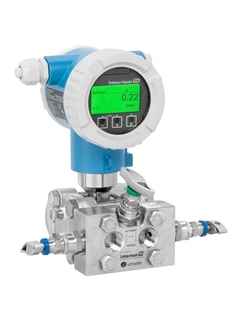

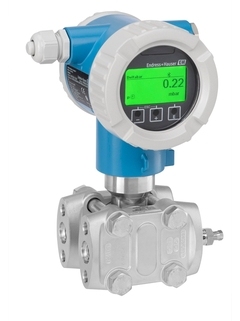

The Original Endress+Hauser Deltabar PMD75B is a high-accuracy (0.035%) smart differential pressure transmitter engineered for demanding process automation. Equipped with proprietary Heartbeat Technology, it delivers continuous advanced diagnostics, including the real-time detection of plugged impulse lines, to prevent unexpected downtime.
The Endress+Hauser Deltabar PMD75B represents the pinnacle of industrial differential pressure (DP) sensing technology, systematically replacing legacy instrumentation with cloud-ready, predictive intelligence. Specifically engineered for extreme environments across chemical processing, oil & gas refining, and critical power generation, this high-precision differential pressure transmitter bridges the gap between raw process telemetry and asset lifecycle management.
Unlike traditional transmitters that simply output standard loops, the PMD75B features an advanced digital processing architecture integrated with proprietary Heartbeat Technology. This provides continuous, non-invasive internal health checks and dynamically monitors the integrity of the process boundary layer—permanently eliminating the risks of catastrophic measurement drift or unexpected loop failures.
| Metrological / Structural Feature | Engineered Performance Details |
|---|---|
| Reference Accuracy | Standard: ±0.05% | Platinum Option: Ultra-precise ±0.035% |
| Measuring Range Limits | 10 mbar to 250 bar (0.15 psi to 3750 psi) continuous span flexibility |
| Long-Term Stability | ±0.05% of URL (Upper Range Limit) per 5-year operational interval |
| Process Temperature Envelope | -40°C to +110°C (-40°F to +230°F) structural media tolerance |
| Static Pressure Rating | Up to 420 bar (6,300 psi) maximum operational line limit |
| Communication Stack | 4-20mA HART, PROFIBUS PA, PROFINET (Ethernet-APL native support), Secure Bluetooth® |
| Wetted Process Materials | 316L Stainless Steel, Alloy C, Tantalum, Monel, Gold-coated configurations |
Review how the upgraded PMD75B framework enhances predictive safety and field connectivity relative to the legacy PMD75 architecture:
| Functional Dimension | Legacy Deltabar PMD75 | Next-Gen Deltabar PMD75B (Optimized) |
|---|---|---|
| Diagnostics Capability | Reactive Basic Error Codes (Post-Fault Only) | Proactive Heartbeat Technology (Predictive Maintenance) |
| Commissioning Method | Manual Local Display / Hardwired HART Terminal | Wireless Bluetooth App / Automated Guided Wizards |
| Network Convergence | Standard Legacy Fieldbus Infrastructure | High-Speed Ethernet-APL / PROFINET System Integration |
| Functional Safety Integration | Unassisted SIL Compliance Verification | Software-Guided SIL Commissioning & Proof Testing |
A primary point of failure in high-density flow and DP level monitoring is line fouling. Follow this operational workflow to execute predictive diagnostics using the PMD75B's embedded software suite without breaking process seals:
Launch the Endress+Hauser SmartBlue App on an authorized mobile device or tablet. Connect via the integrated, high-security Bluetooth® interface to the target PMD75B transmitter spool. Ensure encryption passcodes match the localized physical nameplate configurations.
Navigate to the Diagnostics Menu and sub-select the Heartbeat Monitoring console. Activate the internal process noise analysis algorithm. The transmitter will immediately begin tracking high-frequency variations within the differential pressure sensor membrane module.
Observe the calculated damping coefficients and process fluctuation standard deviations. A significant drop in high-frequency process noise relative to the pre-established baseline parameters confirms an incremental restriction or complete blockage inside the impulse piping lines.
Generate an automated, tamper-proof Heartbeat Verification Report directly through the app interface. If an asset anomaly is identified, schedule a targeted preventative impulse line flush during the next convenient maintenance window, entirely eliminating sudden process trip events.
A: It uses advanced algorithms to continuously analyze the high-frequency fluctuation spectrum (process noise) of the DP sensor element. When impulse lines become clogged, these process noise variations drop significantly compared to the baseline, triggering a predictive maintenance alert.
A: Ethernet-APL (Advanced Physical Layer) allows high-speed, long-distance data transmission directly into IP networks over simple standard 2-wire field cables, bringing full cloud-connectivity and fast industrial Ethernet directly into hazardous industrial fields.
A: Yes. When ordered with the upgraded platinum accuracy specification of up to ±0.035% and certified high long-term stability, it complies fully with strict metrological parameters required for custody transfer and mass balance calculation lines.
A: Yes. The PMD75B permits engineers to safely initiate and execute software-guided SIL proof testing sequences from a secure distance using the SmartBlue App, drastically lowering the risk to field teams working in hazardous or hard-to-reach areas.
