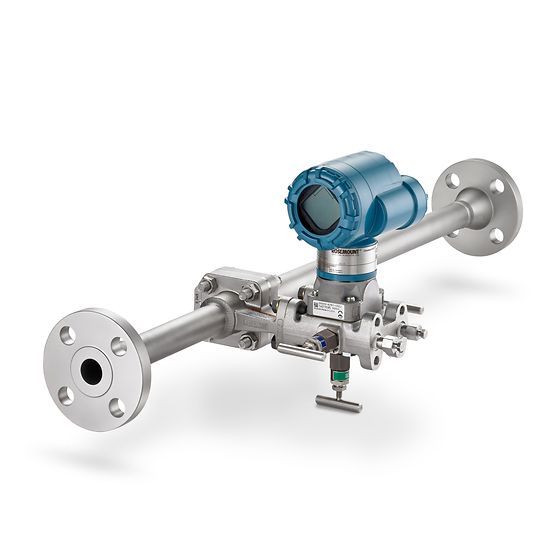

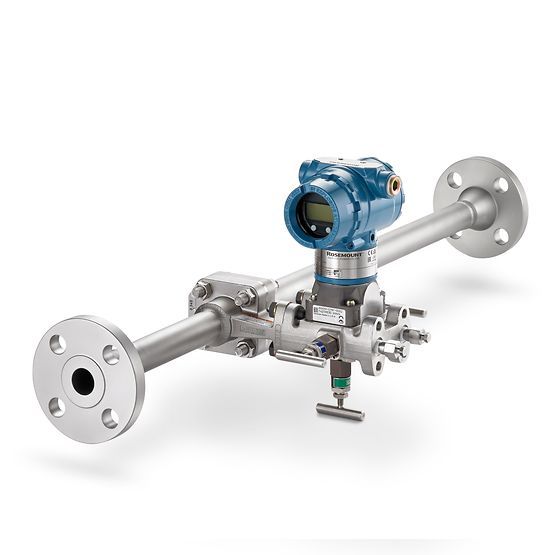

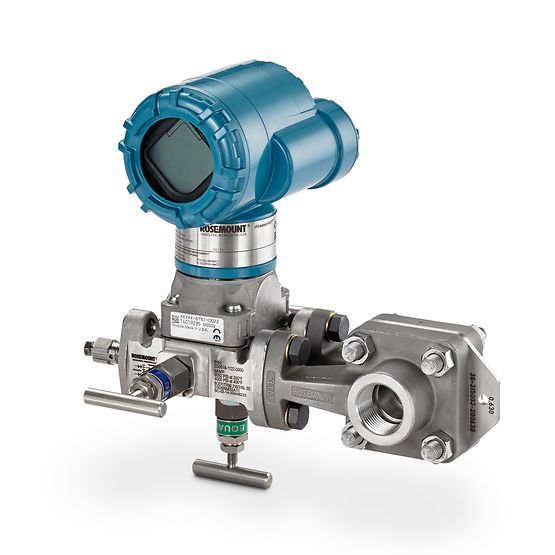

The Rosemount 3051CFP is a specialized integral orifice flow meter engineered specifically for high-accuracy requirements in line sizes from 0.5 to 1.5 inches (15–40 mm). By utilizing a self-centering orifice plate within a dedicated meter run, this differential pressure flow meter eliminates the centering errors common in small-bore piping, ensuring superior repeatability and precision.
This Bluetooth industrial sensor allows technicians to perform maintenance and configuration wirelessly, bypassing the need for physical tool connections. Integrated with WirelessHART flow transmitter technology, the 3051CFP delivers over 99% data reliability. Furthermore, its SIL 2/3 certified architecture provides advanced plugged impulse line diagnostics, proactively detecting piping obstructions before they compromise process safety or quality.
| Feature | Specification Details |
| Line Size Range | 0.5 to 1.5 in. (15 to 40 mm) |
| Rangedown | Up to 150:1 (8:1 flow turndown) |
| Accuracy & Stability | 10-year installed stability |
| Connectivity | Bluetooth®, WirelessHART®, HART®, FOUNDATION™ Fieldbus |
| Wetted Materials | 316L SST, Alloy C-276, Alloy 400 |
| Safety Certification | SIL 2/3 certified to IEC 61508 |
Material Selection: Use standard 316L SST for general service, or upgrade to Alloy C-276 for highly corrosive process fluids.
Protocol Choice: Choose WirelessHART to eliminate wiring costs in remote areas, or use 4-20 mA HART for traditional control loops.
Software Options: Opt for the totalizing flow meter configuration to transform your pressure transmitter into a full-function flow computer.
Leak Prevention: Each unit is factory leak-tested and calibrated, reducing potential on-site leak points by 70%.
Orientation: Ensure the self-centering plate is correctly aligned within the meter run to maintain the specified accuracy.
Commissioning: Utilize the graphical, back-lit display and quick service buttons for streamlined, multi-language setup in any lighting condition.
Wireless Health: Monitor the SmartPower™ module, which provides up to 10 years of maintenance-free life and is field-replaceable.
Loop Integrity: Use built-in diagnostics to monitor electrical loop health and impulse line status to prevent unplanned downtime.
Wireless Range: Maintain clear line-of-sight or appropriate mesh spacing within the 225m internal antenna range for optimal signal strength.
Setting up the Rosemount 3051CFP is designed to be a streamlined process, minimizing potential errors in small line size applications. Follow these expert steps for a successful deployment:
Step 1: Selection & Alignment – Choose the correct self-centering orifice plate for your specific line size, ranging from 0.5 to 1.5 inches (15–40 mm). The self-centering design is engineered to facilitate highly accurate flow measurement by eliminating manual centering errors.
Step 2: Meter Run Integration – Integrate the orifice assembly into the meter run. Every Rosemount complete flow assembly is factory leak-tested and calibrated, which reduces potential leak points by up to 70% compared to traditional field-built installations.
Step 3: Wireless Configuration – Activate the Bluetooth® connectivity to perform maintenance and service tasks without needing a physical connection or separate configuration tools.
Step 4: Rapid Commissioning – Use the Quick Service Buttons and the graphical, back-lit display (supporting 8 languages) to finish commissioning quickly, even in low-light environments.
Step 5: Advanced Diagnostics Check – Verify the Plugged Impulse Line and Loop Integrity diagnostics through the transmitter interface to ensure the system is free of obstructions before full-scale operation.
Q: Why is the self-centering orifice plate important for small line sizes?
A: In small pipes (0.5–1.5 in), even a minor misalignment can cause significant errors. The self-centering design ensures the plate is perfectly aligned, providing high accuracy and repeatability.
Q: Can the Rosemount 3051CFP be used for safety-instrumented systems (SIS)?
A: Yes, it is SIL 2/3 certified to IEC 61508 by an independent third party, making it suitable for critical safety applications.
Q: Does this flow meter support wireless maintenance?
A: Absolutely. It features Bluetooth® connectivity, allowing you to perform configuration and service tasks wirelessly without a physical connection.
Q: How does the 3051CFP minimize the risk of leaks?
A: The complete flow assemblies are factory leak-tested and calibrated, which can reduce potential leak points by up to 70%.
Q: What is the expected lifespan of the wireless power module?
A: The SmartPower™ module provides up to 10 years of maintenance-free operation and is field-replaceable.
