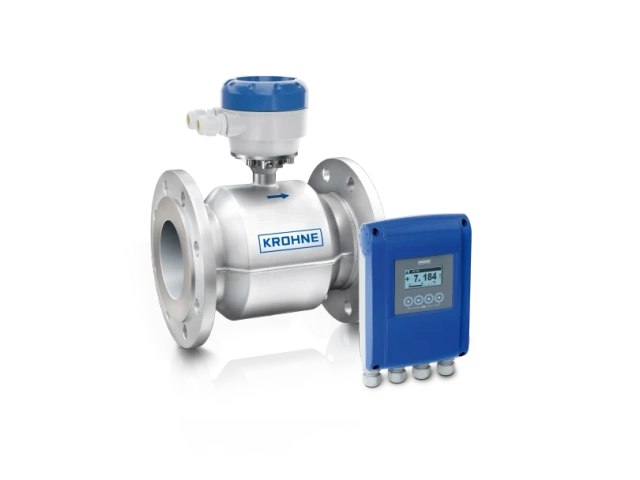

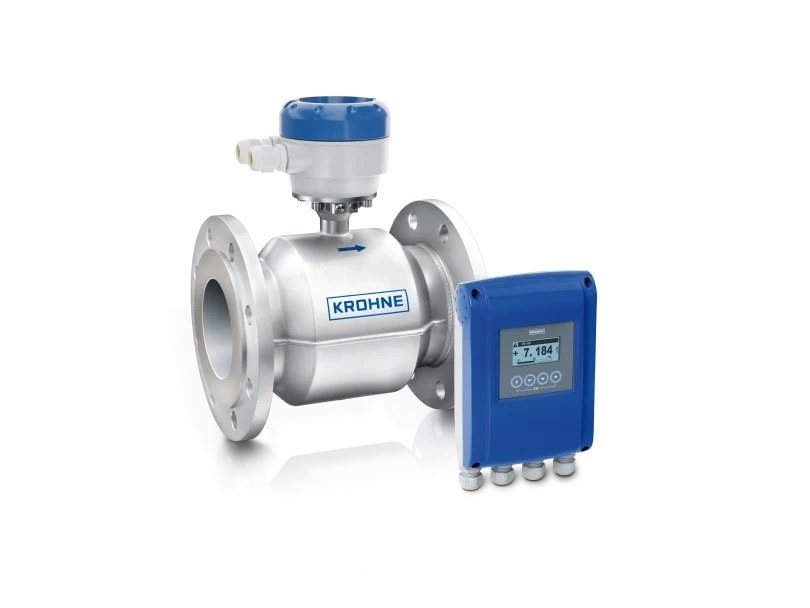

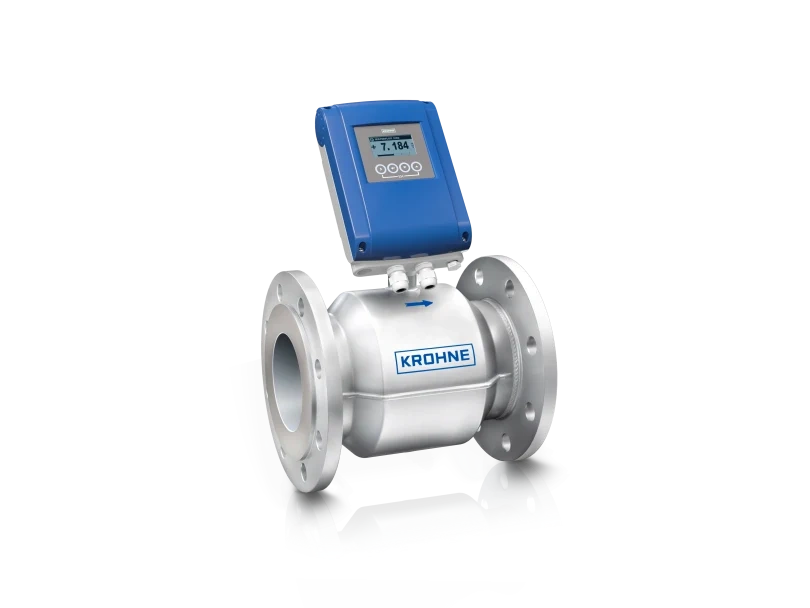

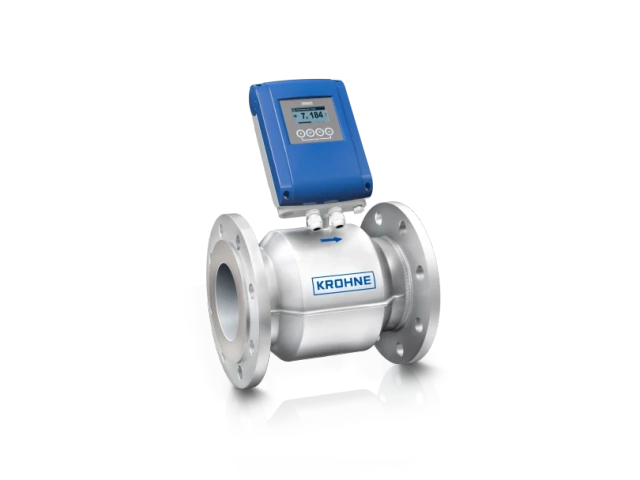

KROHNE WATERFLUX 3100: Flanged Electromagnetic Flowmeter for Standard Water Utilities

Standard Volumetric Water Measurement with Velocity Profile Optimization

In standard water utility networks, commercial abstraction wells, and raw water intake lines, maintaining consistent reading baselines during low-demand night shifts is notoriously difficult. The KROHNE WATERFLUX 3100 is a highly reliable electromagnetic flowmeter tailored specifically to bridge this operational gap without inflating procurement budgets.

While typical mechanical turbine meters suffer continuous mechanical friction, wear, and subsequent accuracy loss, this solid-state flow tube leverages a unique rectangular and reduced cross-section sensor geometry. This smart mechanical architecture conditions the incoming velocity profile natively, pushing liquid closer to the measuring electrodes. The design ensures a highly sensitive 1000:1 turndown ratio that tracks minimal flow rates with a certified standard measurement accuracy of ±0.3% of measured value.

For water processing plants utilizing multi-tier pipe arrangements where primary differential pressure drops or steam header balancing must be monitored alongside general water transport lines, deploying compact multivariable units like the [Rosemount 3051SFC Conditioning Orifice Flow Meter] delivers an uncompromised mechanical layout.

Space-Saving Infrastructure Design and Advanced Process Diagnostics

Zero Pipe Footprint (0D/0D) for Restricted Mechanical Layouts

Densely engineered pumping manifolds and subterranean pipeline vaults rarely afford long straight pipe runs to establish uniform fluid velocity. The WATERFLUX 3100 bypasses this physical bottleneck entirely:

• No Inlet/Outlet Pipe Runs Needed: Thanks to the internal rectangular flow profiling that dampens incoming fluid turbulence, the meter is practically independent of installation environment interferences. It permits a true 0D upstream / 0D downstream straight run installation directly behind pipe bends, slide valves, or cross-section reducers.

• Extensive Process Diagnostics: The integrated transmitter continuously checks for pipeline faults, capturing real-time fluctuations in fluid conductivity, electrode errors, ambient temperature jumps, and process temperature swings to protect against dry-pipe situations.

• Global Maritime Qualifications: Holding structural type certificates from premier marine classification societies including DNV, ABS, LR, and CCS, it is fully ready for demanding on-board ballast loops. For harsh marine installations or coastal intake stations, pairing your water loop with a rugged [Rosemount 3051S In-Line Pressure Transmitter] secures absolute pipeline structural protection.

Rilsan Coated Sensor Tube for Complete Potable Water Protection

Public health parameters command absolute chemical non-toxicity in public drinking water grids. The WATERFLUX 3100 addresses this via an internal Polyamide Polymer 11 (Rilsan® coating). This high-grade, bio-sourced liner exhibits an ultra-smooth internal bore that actively discourages the growth of biofilm, scale development, or fat scaling. Backed by extensive international potable water standards including ACS, DVGW, NSF, TZW, KTW, and WRAS, it guarantees complete compliance for regulatory billing and municipal consumer lines.

📊 KROHNE WATERFLUX 3100 Comprehensive Specifications

1. Measurement & Performance Metrics

2. Mechanical, Material & Process Limits

3. Transmitter Outputs & SCADA Communication

🛠 Expert Engineering Guide: Selection, Installation, and Maintenance

How to Correctly Size Your WATERFLUX 3100 Assembly?

1. Piping Interface Matching: Choose male G-threads (G1 to G2) for ultra-compact auxiliary skids, chemical dilution lines, or commercial sub-metering boxes. For municipal distribution loops and raw water mains, select the heavy flanged variants spanning up to DN600.

2. Safety Loop Alert: The WATERFLUX 3100 is highly optimized for cost-effective standard water infrastructure. If your treatment plant engineering calls for high-pressure hazardous chemical dosing loops or safety instrumented shutdown circuits requiring active functional safety metrics, you must integrate the safety-certified [KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter] instead.

Installation Best Practices for 0D/0D Constraints

• Gasket Centering Rules: While the 0D/0D technology eliminates straight pipe run constraints, take care during flange bolt torquing to ensure gaskets are mounted perfectly concentric. A gasket edge protruding directly into the rectangular sensor inlet will generate severe asymmetrical vortex profiles that can shift electrode calibration lines.

• Eliminating Entrained Air Alarms: Mount the flowmeter on low points of your pipeline manifold or vertically with an upward flow direction. Avoid installing the device at the apex of a piping layout, as entrained air bubbles accumulating inside the rectangular tube will trigger dry-pipe or low-conductivity diagnostic alerts.

• Stray Earth Current Control: The sensor must share a common electrical potential with the metered fluid. If installing within non-conductive plastic or lined pipe networks, ensure that grounding electrodes are connected correctly to isolate the microvolt velocity signals from stray earth noise.

Zero-Interruption Field Upkeep and Diagnostic Verification

Because the full-bore rectangular tube features absolutely zero impellers, paddles, or internal obstructions, the WATERFLUX 3100 is entirely maintenance-free, exhibits no mechanical wear, and generates zero pressure loss.

To satisfy annual regulatory water authority audits or grid balance reports, field technicians do not need to pull the meter from the active line or shut down delivery pumps. Simply interface the handheld OPTICHECK service tool with the transmitter module. The diagnostic system performs an in-situ electronic health validation, checking core magnetic coil resistance, electrode baseline health, and amplifier circuit drift against factory data. It generates an audit-ready compliance PDF instantly, keeping your network active. For minor auxiliary dosing loops where an electronic meter exceeds space or budget boundaries, the mechanical [KROHNE H250 M40 Rotameter] remains the ideal low-flow choice.

KROHNE WATERFLUX 3100: Standard Water Flowmeter FAQ

• Q: Why is the rectangular sensor design of the WATERFLUX 3100 beneficial for drinking water distribution?

  • A: The rectangular reduced cross-section of the sensor tube conditions the fluid velocity profile natively. It slightly restricts and accelerates low-velocity liquid across the plane of the measuring electrodes, allowing the meter to achieve a wide 1000:1 turndown ratio and capture subtle night-time water consumption rates that mechanical turbine meters miss.

• Q: Can the WATERFLUX 3100 be installed in tight valve spaces without straight inlet runs?

  • A: Yes. Because the optimized rectangular internal profile stabilizes fluid turbulence and eliminates velocity profile skewing, the flowmeter is virtually unaffected by upstream disturbances. This enables a true 0D upstream and 0D downstream straight run installation directly behind pipe elbows or slide valves.

• Q: What material properties make the Rilsan liner suitable for drinking water?

  • A: The Polyamide Polymer 11 (Rilsan) liner provides an exceptionally smooth, wear-resistant surface that prevents the accumulation of scale, bio-fouling, and fatty deposits. It complies fully with premium global drinking water certifications, including NSF, WRAS, and ACS, ensuring zero chemical leaching into the water supply.

• Q: Can the device calibration be audited on-site without removing the flowmeter from the pipe?

  • A: Absolutely. By utilizing the handheld OPTICHECK service tool connected directly to the converter, field technicians can run a complete in-situ health check. The tool validates magnetic coil resistance, electrode insulation layers, and electronic calibration drift against original factory records, printing an official audit certificate without interrupting the active water supply.
