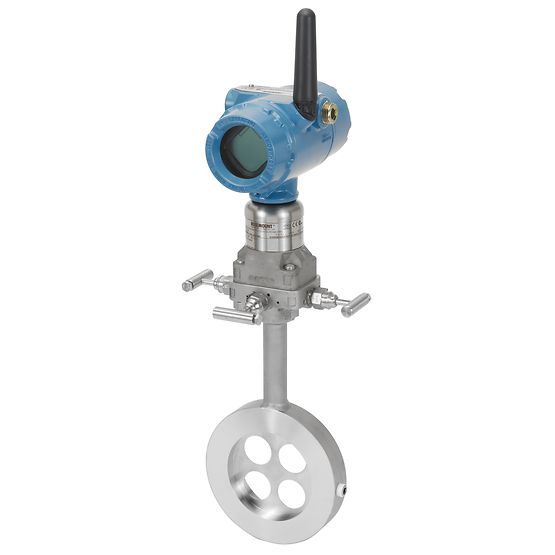

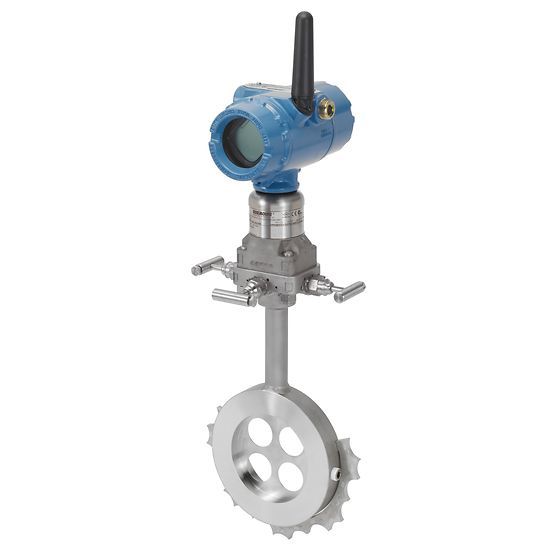

The Rosemount 3051SFC Wireless Compact Conditioning Orifice Plate Flow Meter delivers a best-in-class, cost-effective solution for precision multivariable measurements via a secure WirelessHART® network. This advanced flow meter features a patented 4-hole conditioning orifice plate designed to maintain high accuracy even in turbulent flow conditions. By significantly reducing pipe straight-run requirements—needing only two pipe diameters (2D) upstream and downstream—it offers unmatched installation flexibility and reduces total piping costs.
Engineered with the Ultra for Flow performance class, the 3051SFC achieves an optimized ±0.04% of reading accuracy. The device is built upon the all-welded, resilient SuperModule™ sensor platform, which provides industry-leading accuracy and stability in the harshest process environments. To ensure long-term peace of mind, this transmitter is backed by an up to 15-year limited warranty and offers a 200:1 rangedown to handle wide variations in flow rates.
The WirelessHART® technology ensures secure data transmission with greater than 99% reliability without the infrastructure costs of traditional wiring. Powering the device is the SmartPower™ module, providing up to 10 years of maintenance-free operation with the convenience of field replacement without removing the transmitter. This easy installation allows for the quick instrumentation of measurement points across any facility.
To streamline commissioning, every flow meter arrives fully configured, leak-tested, and ready to install right out of the box. The integrated technology eliminates unnecessary pipe penetrations, resulting in a trouble-free solution with fewer potential leak points. Additionally, the orifice plate includes self-centering mechanisms that simplify the installation process and ensure optimal measurement alignment.
| Feature | Specification Details |
| Accuracy | ±0.04% of reading (Ultra for Flow) |
| Straight Run Requirements | Only 2D upstream and downstream |
| Communication Protocol | WirelessHART® |
| Line Size Range | 2 to 12 in. (50 to 300 mm) |
| Warranty | Up to 15-year limited warranty |
| Rangedown | Up to 200:1 (14:1 flow turndown) |
| Power Module Life | Up to 10-year life, field replaceable |
| Wireless Range | Up to 1 km (High-gain remote) |
Q: What is the straight pipe run requirement for the Rosemount 3051SFC Wireless?
A: Its innovative conditioning orifice plate requires only two pipe diameters (2D) upstream and downstream, significantly reducing pipe straight-run requirements.
Q: How accurate is this wireless flow meter?
A: The Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy.
Q: Does it perform well in turbulent flow conditions?
A: Yes, the patented 4-hole design enables accurate flow measurement even in turbulent flow profiles.
Q: What is the expected life of the power module?
A: The SmartPower™ module provides up to 10 years of maintenance-free operation and is field-replaceable without transmitter removal.
Q: What line sizes are available for this product?
A: This flow meter is suitable for line sizes ranging from 2 to 12 inches (50 to 300 mm).
