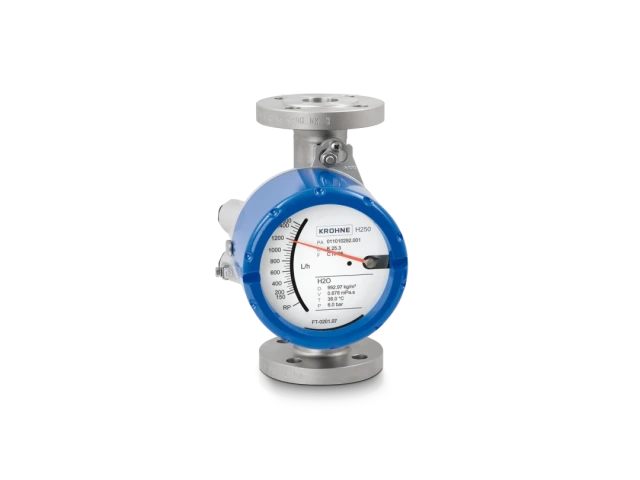

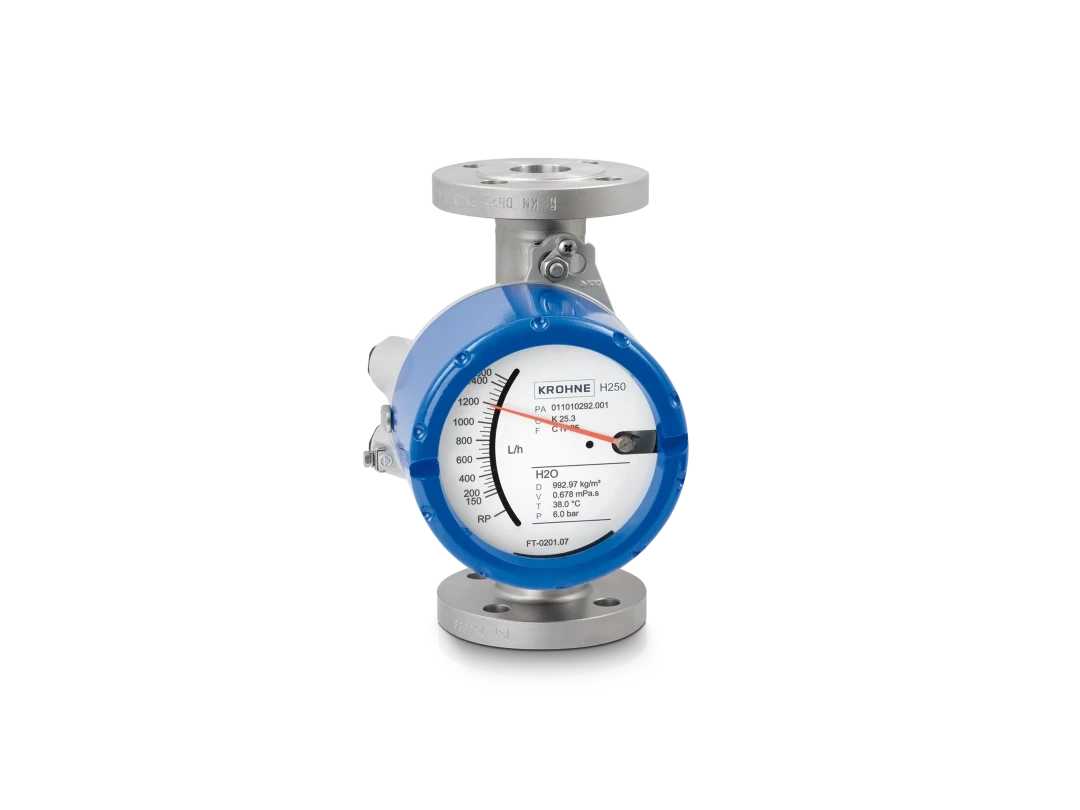

KROHNE H250 M40 Metal Tube Variable Area Flowmeter

The KROHNE H250 M40 is the global industry standard metal tube variable area flowmeter for reliable liquid, gas, and steam measurement. Featuring a rugged all-metal construction, it handles extreme process environments from cryogenic -196°C up to +400°C, and high pressures reaching 1000 barg. Its standout modular M40 indicator allows seamless on-site upgrades from purely mechanical local indication to advanced digital fieldbus communication (HART 7, Profibus-PA, FF) without line interruption. Certified to SIL 2 for safety-instrumented systems, the H250 M40 ensures uncompromised reliability and zero-maintenance local flow monitoring without auxiliary power.

Quick Facts: Why Choose KROHNE H250 M40?

• Power-Free Local Reading: Purely mechanical magnetic coupling indicates flow accurately even during total power failures.
• Flexible Piping Layouts: Optional spring-loaded versions allow for horizontal or descending pipe installations (up to DN150 / 6").
• Process Upgradeability: Add limit switches, LCD totalizers, or 4-20mA/HART modules on-site without stopping your production line.
• Extreme Durability: Robust wetted parts available in 316L, Alloy C276, Hastelloy, or Titanium to withstand highly corrosive media.

Overview: The Ultimate Modular Rotameter for Modern Industry

In process plants and OEM skids where space is constrained and operating environments are brutal, electronic flowmeters often fail or drive up installation costs. The KROHNE H250 M40 variable area flowmeter solves these challenges by combining the timeless reliability of mechanical float measurement with smart diagnostic capabilities. Its unique 0D/0D straight pipe run requirements mean it can be bolted directly after elbows or valves without losing accuracy. From chemical injection loops to power plant steam lines, the H250 M40 provides peace of mind through functional simplicity and rugged engineering.

Technical Specifications

1. Performance Parameters

2. Process & Environmental Limits

3. Materials & Construction

4. Communication & Safety

Technology Comparison: H250 M40 vs. Alternative Meters

Choosing the right flowmeter layout depends on your footprint, precision requirements, and media constraints. Here is how the KROHNE H250 M40 stands against other high-end alternatives:

Typical Industrial Applications

• Chemical & Petrochemical: Dosing loops for aggressive additives, nitrogen inertization systems, and high-pressure catalyst feeds up to 1000 barg.
• Oil & Gas Industry: Wellhead injection skids, offshore drilling platform coolant loops, and gas lines prone to sudden pressure surges.
• Power Plants: Monitoring clean boiler feedwater loops, auxiliary steam distribution, and oil circulation in heavy turbine bearings.
• Hygienic & Pharmaceutical: Demineralized water flow lines, aseptic gas purging, and CIP system tracking. (Note: For heavy culinary or milk processing lines, we recommend pairing this with our 3A/EHEDG certified KROHNE OPTIFLUX 6400).

Selection & Operation Guide

The Spring-Loaded Advantage: Standard glass or metal rotameters rely entirely on gravity, forcing you to design vertical upward piping loops. When choosing the H250 M40, specifying the optional spring-loaded float bypasses this issue completely, letting you mount the meter horizontally or in descending lines (up to DN150) for compact skid packaging.

Preventing Gas Oscillations (Float Bounce)

When measuring compressible gases at lower pressures, downstream piping volume can cause the mechanical float to chatter or jump rapidly. Expert Maintenance Pro-Tip: Always include the integrated Ceramic or Piston Damping module for gas processing applications. Damping absorbs sudden pressure shocks, eliminates indicator jitter, prevents structural wear on internal components, and keeps your local pointer perfectly stable.

Frequently Asked Questions (FAQ)

Q: Can the H250 M40 be installed in horizontal pipelines?

A: Yes. While traditional variable area flowmeters require vertical upward flow, the KROHNE H250 M40 features a specialized spring-loaded float configuration that allows accurate operation in both horizontal and descending pipes up to DN150 (6 inches).

Q: Does this variable area flowmeter require electrical power?

A: No. The primary local pointer relies on a sophisticated mechanical magnetic coupling system that functions autonomously. External power is only required if you choose to install optional electronic modules like 4-20mA, HART, or fieldbus outputs.

Q: How does the Continuous Float Monitoring (CFM) system work?

A: The M40 indicator utilizes built-in CFM diagnostics to monitor float movement continuously. If the float gets stuck due to solid particulates or is damaged by a pressure spike, the system triggers a NAMUR NE 107 status alarm via HART, alerting technicians before a process shutdown occurs.

Q: Is the H250 M40 suitable for safety-critical plant loops?

A: Absolutely. The H250 M40 is SIL 2 certified according to IEC 61508. It is widely specified in Safety Instrumented Systems (SIS) for emergency pump dry-run prevention, core cooling loops, and nitrogen blanket monitoring.

Related Instrumentation Insights

To build an optimized process monitoring hub or explore alternative technologies, read our deep-dives:

• Understanding Ceramic Liners: Why the KROHNE OPTIFLUX 5400 Outlasts Standard EMFs in Abrasive Slurries
• Synergizing Flow & Pressure: Integrating the Rosemount 3051S Pressure Transmitter with Metal Tube Rotameters

Get a Quick Quote on KROHNE H250 M40

As a professional instrumentation supplier, HYZL Professional Instrumentation delivers custom-calibrated KROHNE flow solutions tailored to your pipeline's pressure, temperature, and media characteristics. Need a spring-loaded vertical layout or high-pressure 1000 barg certification?

👉 Contact Our Engineering Team Today to get a direct technical review and a competitive price quotation within 24 hours.
