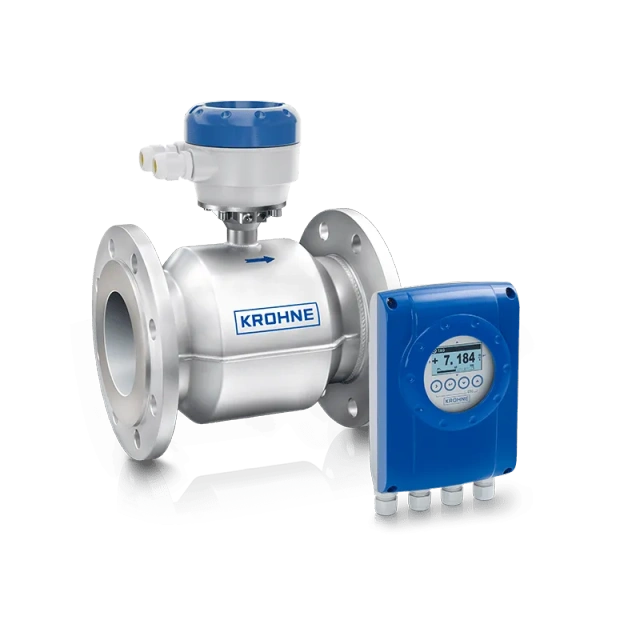

KROHNE WATERFLUX 3070 Battery-Powered Electromagnetic Water Meter

The KROHNE WATERFLUX 3070 is the premier autonomous, battery-powered electromagnetic water meter designed to solve the toughest off-grid fluid audit challenges in municipal District Metered Areas (DMAs), remote abstraction wells, and fiscal custody transfer lines. Engineered with a patented reduced rectangular bore design that conditions fluid turbulence internally, this high-performance solid-state meter delivers an exceptional 1000:1 turndown ratio with absolute 0D/0D installation technology—requiring zero diameters of straight upstream or downstream pipe runs. It completely eliminates data gaps caused by grid power failure, utilizing multi-power source scaling (internal lithium packs, PowerBlock, or solar arrays) to provide up to 15 years of uninterrupted service. Natively certified for commercial billing under MID MI-001 and OIML R49, and featuring optional integrated pressure and temperature monitoring, the KROHNE WATERFLUX 3070 transforms isolated raw water lines into ultra-reliable, maintenance-free smart diagnostic hubs.

Overview: What You Will Learn in This Technical Guide

As a seasoned B2B industrial instrumentation supplier, we understand that battery longevity, installation footprint, and verification data stability are non-negotiable for remote water grids. This expert engineering overview provides everything required for complete procurement evaluation:

• Comprehensive Technical Specifications – Full engineering parameters across mechanical, electrical, and telemetry systems.
• Application Decision Tree – A functional logic flow path to confirm if this autonomous model fits your physical environment.
• Pros, Cons & Practical Limits – Transparent engineering boundaries to ensure flawless on-site performance.
• Portfolio Differentiation Matrix – A direct comparison isolating the 3070 from mains-powered or safety-critical chemical flowmeters.
• Real-World Retrofit Checklist – Critical field variables (flange metrics, potting requirements, and alignment protocols) to verify prior to ordering.
• In-Situ Diagnostics & FAQ – Field-proven solutions for non-revenue water (NRW) management without stopping your process loops.

Comprehensive Technical Specifications

Application Decision Tree: Is the WATERFLUX 3070 the Correct Specification?

Utilize this engineering logic track to establish if this battery-operated instrument aligns with your pipeline design parameters:

1. Is continuous grid-mains power completely unavailable or prohibitively expensive to trench to the site?
   • Yes: Proceed to Step 2.
   • No: Stop. If standard AC/DC grid power is readily available and ultra-fast 1-second continuous telemetry sampling is required, you should specify the mains-powered alternative: the KROHNE WATERFLUX 3400.
2. Is your piping layout constrained by tight valve vaults or compact chambers with no room for 5D/10D straight runs?
   • Yes: Proceed to Step 3. The KROHNE WATERFLUX 3070 is highly optimized for this space limitation due to its 0D/0D rectangular geometry.
   • No: Proceed to Step 3 (Layout will accommodate standard straight runs).
3. Does the medium involve aggressive dosing chemicals, heavy slurries, or safety-instrumented emergency shutdown (ESD) loops?
   • Yes: Stop. The WATERFLUX series is exclusively designed for water distribution. For hazardous or safety-critical industrial loops, you must select the safety-certified KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter or switch to mass-flow tracking via KROHNE OPTIMASS Coriolis Flowmeters.
   • No: Proceed with complete confidence. The KROHNE WATERFLUX 3070 is the perfect fit for your remote application.

Pros, Cons & Recommended Fields of Application

Advantages (Pros)

• Total Autonomy in Deep Wilds: Operates completely off-grid for up to 15 years with the PowerBlock pack, removing the recurring cost of running power infrastructure.
• Multi-Parameter Network Diagnostics: The optional internal integrated pressure and temperature sensors allow the meter to double as a real-time leak detection and pipeline pressure management hub.
• Zero Flange Grounding Accessories: KROHNE's patented reference electrode interpretation passes signal grounding directly through the fluid medium, saving major procurement costs on grounding rings or straps.
• Solid-State Billing Security: Free from mechanical impellers or moving rotors, ensuring no calibration drift, no maintenance wear, and absolute MID custody transfer billing reliability over time.

Limitations (Cons)

• Pressure Limits: Maximum pressure is strictly capped at 16 barg / 230 psig, making it unsuitable for high-pressure industrial injection lines.
• Sampling Constraints on Basic Battery: To preserve a 15-year battery life, standard configurations utilize lower pulse sampling frequencies compared to continuously powered line-powered meters.

Recommended Fields of Application

• Remote District Metered Areas (DMAs) for non-revenue water (NRW) audit tracking.
• Deepwater subsoil water abstraction wells and environmental extraction sites.
• Subterranean concrete valve pits subject to seasonal flooding or high humidity.
• Agricultural irrigation management grids requiring robust, solid-state flow data.

Technology Comparison: Delineating the KROHNE Flowmeter Portfolio

To avoid internal traffic cross-contamination on your website and secure correct layout specification, use this table to map out operational borders across our instrument series:

Real-World Procurement Checklist: Retrofitting Remote Mechanical Water Meters

Expert Supplier Field Advice: When water authorities attempt to swap out old, failing mechanical Woltman turbine meters for the solid-state WATERFLUX 3070 in remote areas, field crews often run into baseline issues during emergency midnight cut-ins. To ensure complete out-of-the-box success, explicitly confirm these four variables prior to checkout:

1. Data Transmission Interval vs. Battery Life: If you plan to utilize the integrated GPRS / 3G cellular remote modules for real-time SCADA tracking, remember that 1-minute data transmission intervals will rapidly drain standard internal batteries. If fast data tracking is required, always add the heavy-duty external PowerBlock accessory or pair the device with a solar panel array using the FlexPower module.
2. Concentric Gasket Flange Alignment: Even though the 0D/0D installation footprint completely shields the meter from pipe bends and valve turbulence, physical installation execution is critical. Ensure your piping flanges are mounted flush and aligned concentrically. If a rubber gasket or flange lip slips inside the rectangular sensor bore, it creates internal eddy currents that alter the microvolt readings on the electrodes.
3. Subterranean Chamber Potting (IP68): If the installation zone is a deep underground valve vault vulnerable to heavy rainfall flooding, ordering the IP68 remote sensor configuration is only half the battle. Your installation crew must fully pot the terminal junction box on-site using KROHNE’s two-part silicone resin kit. Failure to pot correctly allows seasonal ambient moisture to breathe into the terminal block, causing signal shorts within 3 to 5 years.
4. Flow Orientation for Silt Suspension: When pulling water directly from raw subsoil abstraction wells, the fluid often carries heavy sand or silt particles. Never install the meter horizontally at the lowest point of a line where sand can drop out of suspension and coat the bottom electrodes. Always install the meter vertically with an upward flow path to ensure a full tube and continuous self-cleaning action.

Frequently Asked Questions (FAQ)

Q: What makes the WATERFLUX 3070 suitable for remote leak detection and pressure management?

A: The WATERFLUX 3070 can be equipped with optional internal integrated pressure and temperature sensors directly inside the flow tube. By acquiring volumetric flow, line pressure, and process temperature simultaneously, the meter feeds synchronized multi-parameter diagnostics to your SCADA via GPRS/3G for rapid leak mapping and pressure network control.

Q: Can the battery-powered version of the WATERFLUX 3070 handle remote data transmission without draining?

A: Yes. The meter features a unique low-power Modbus RTU interface and high-efficiency GPRS/3G cellular modes designed specifically for battery preservation. When paired with the high-capacity external "PowerBlock" or a solar panel via the FlexPower module, it operates autonomously for up to 15 years while transmitting data regularly.

Q: Does the WATERFLUX 3070 require upstream and downstream straight pipe runs?

A: No. Thanks to the unique rectangular reduced cross-section sensor geometry, the internal flow profile is optimized and conditioned natively. This shields the meter from fluid turbulences, allowing for a true 0D upstream and 0D downstream straight run installation behind pipe elbows or valves without accuracy degradation.

Q: Why does the WATERFLUX 3070 eliminate the need for grounding rings during installation?

A: The WATERFLUX 3070 features KROHNE’s patented reference electrode technology. The signal converter interprets the electrical potentials directly through the process fluid instead of using physical grounding rings or straps. This substantially cuts procurement costs and eliminates potential gasket leak paths at your connection flanges.
