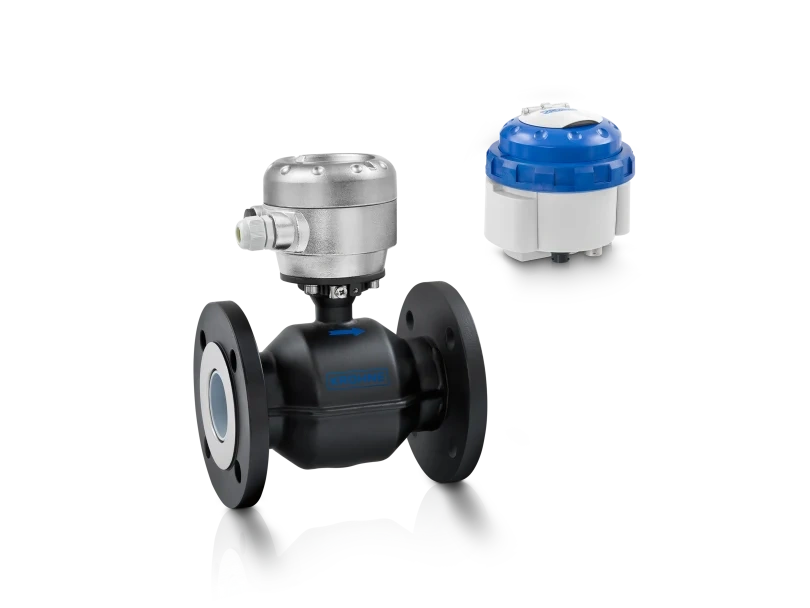

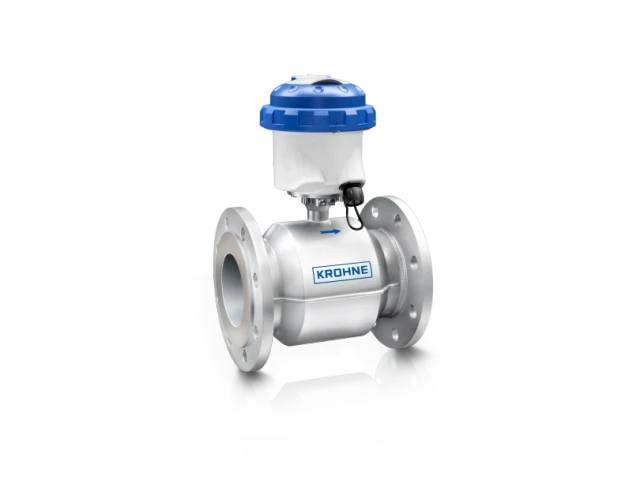

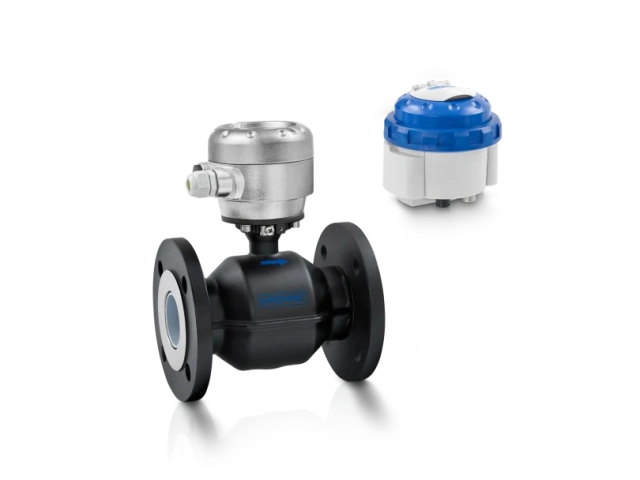

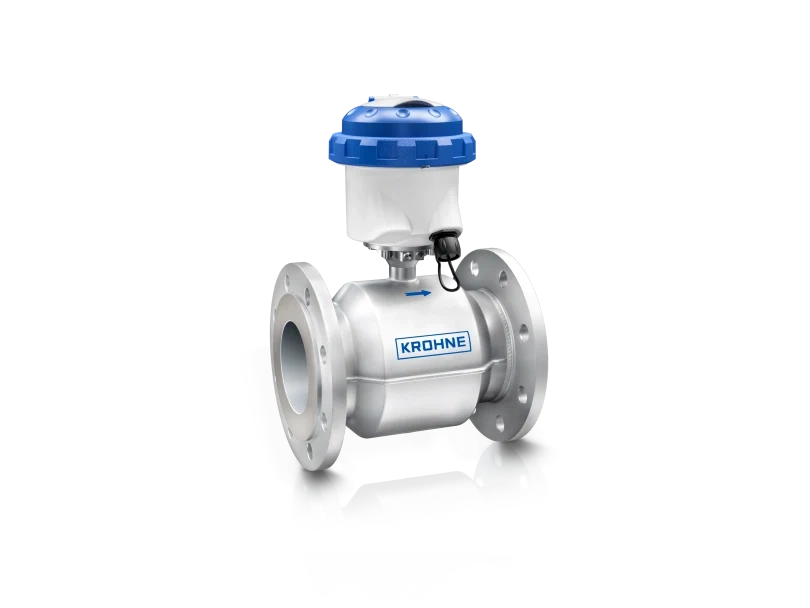

KROHNE WATERFLUX 3070: Battery-Powered Custody Transfer Electromagnetic Water Meter

Battery-Operated Custody Transfer Flow Measurement for Remote Infrastructure

In district metering areas (DMA) and deep water abstraction wells, drawing reliable utility data where grid power is non-existent is a frequent operational roadblock. The KROHNE WATERFLUX 3070 is a highly autonomous, battery-powered electromagnetic water meter engineered to eliminate data gaps in off-grid water networks.

Unlike mechanical bulk water meters that suffer from impeller wear, calcification, and continuous accuracy loss, this solid-state device delivers a maintenance-free 1000:1 turndown ratio. It is natively certified for commercial billing and fiscal monitoring under MID MI-001 and OIML R49 parameters. By transitioning your infrastructure to this inline configuration, your utility network gains high-precision volumetric auditing that captures both peak daytime flow surges and minimal midnight leak rates.

For complex plant boundaries where secondary thermal energy monitoring or high-pressure headers run parallel to gravity feeds, pairing your network infrastructure with compact multivariable platforms like the [Rosemount 3051SFC Conditioning Orifice Flow Meter] maintains complete system efficiency.

Advanced Multi-Parameter Sensing and Flexible Off-Grid Power Engineering

Rectangular Sensor Geometry for Active Leak Detection and Pressure Management

Managing modern water security requires tracking more than just basic volume. The WATERFLUX 3070 bridges this gap by transforming into a full network diagnostic hub:

• Multi-Parameter Data Acquisition: The meter can be configured with optional internal integrated pressure and temperature sensors. This eliminates the need to cut pipes to install separate process transmitters, feeding synchronized multi-parameter telemetry back to your SCADA architecture for real-time leak detection and active pressure management.

• 0D/0D Installation Footprint: The unique rectangular cross-section conditions the velocity profile natively. This layout makes the meter immune to upstream turbulence, allowing a true 0D inlet / 0D outlet straight run installation directly behind pipe bends, valves, or reducers.

• Burial Installation in Flooded Chambers: Featuring an ultra-robust housing design, the flow tube is fully qualified for direct burial installation or permanent immersion in high-humidity subterranean valve pits. For high-salinity maritime configurations or master pump lines, adding a [Rosemount 3051S In-Line Pressure Transmitter] into the core line guarantees complete network baseline stability.

FlexPower Architecture and Remote Cellular Telemetry

To accommodate any field environment, the converter utilizes multiple standalone power paths. Next to its high-capacity internal battery pack or heavy-duty external "PowerBlock" (guaranteeing up to 15 years of autonomous runtime), operators can deploy the FlexPower unit. This module bridges the meter to 110–230V AC or 10–30V DC sources, drawing active green energy from local solar panels or small windmills on site.

Data is transmitted seamlessly over long distances via low-power Modbus RTU or integrated GPRS / 3G cellular remote modules, ensuring continuous telemetry from the most isolated abstraction wells.

📊 KROHNE WATERFLUX 3070 Comprehensive Specifications

1. Measurement, Custody Transfer & Sensor Performance

2. Mechanical, Material & Environmental Boundaries

3. Transmitter Power Options & SCADA Interfaces

🛠 Expert Engineering Guide: Selection, Installation, and Maintenance

How to Correctly Select Your WATERFLUX 3070 Configuration?

1. Power Infrastructure Matching: Specify internal batteries for standard 5-to-10-year district monitoring cycles. For rapid 1-minute telemetry transmission intervals via GPRS/3G, upgrade your site to include the external PowerBlock or a solar-panel array paired with the FlexPower module.

2. Safety Loop Alert: The WATERFLUX 3070 is the gold standard for off-grid water networks and custody transfer distribution. However, if your utility design involves high-pressure hazardous chemicals or safety-instrumented emergency shutdown loops (ESD), you must select the safety-certified [KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter] instead.

Installation Best Practices for Off-Grid and Buried Environments

• Patented Reference Electrode Grounding: Take full advantage of KROHNE’s built-in reference electrode. This technology grounds the measurement path electronically through the liquid medium itself, completely eliminating the need to purchase, haul, and install heavy grounding rings or grounding straps. This lowers installation weight and eliminates a major leakage risk from your flange seals.

• Concentric Flange Alignment: While 0D/0D engineering removes straight pipe constraints, ensure your pipe flanges are mounted flush and aligned concentrically. If a gasket or flange lip protrudes into the rectangular sensor bore, it can generate internal vortex currents that distort the microvolt electrode readings.

• Orientation Against Silt Settling: When drawing raw water directly from subsoil abstraction wells, install the meter vertically with an upward flow path. This preserves a completely full tube and prevents heavy sand particles from settling out of suspension onto the sensing electrodes.

Zero-Interruption Field Upkeep and Diagnostic Verification

Because the full-bore rectangular tube is entirely free of moving mechanical parts, turbines, or internal restrictions, the WATERFLUX 3070 suffers no hardware friction and requires no routine wear-and-tear replacement.

To satisfy annual environmental water authority billing audits or compliance checks, field technicians do not need to interrupt pumping loops or disconnect the GPRS module. Simply interface the handheld OPTICHECK service tool with the converter module. The system performs an in-situ electronic health validation, checking coil resistance, reference electrode insulation, and internal amplifier drift against original factory data. It generates an audit-ready compliance PDF instantly, keeping your network active and your revenue loop verified. For low-flow secondary chemical dosing lines where an electromagnetic meter exceeds space or budget limits, the mechanical [KROHNE H250 M40 Rotameter] remains the ideal choice.

KROHNE WATERFLUX 3070: Battery-Powered Water Meter FAQ

• Q: What makes the WATERFLUX 3070 suitable for remote leak detection and pressure management?

  • A: The WATERFLUX 3070 can be equipped with optional internal pressure and temperature sensors directly inside the flow tube. By acquiring volumetric flow, line pressure, and process temperature simultaneously, the meter feeds synchronized multi-parameter diagnostics to your SCADA via GPRS/3G for rapid leak mapping and pressure network control.

• Q: Can the battery-powered version of the WATERFLUX 3070 handle remote data transmission without draining?

  • A: Yes. The meter features a unique low-power Modbus RTU interface and high-efficiency GPRS/3G cellular modes designed specifically for battery preservation. When paired with the high-capacity external "PowerBlock" or a solar panel via the FlexPower module, it operates autonomously for up to 15 years while transmitting data regularly.

• Q: Does the WATERFLUX 3070 require upstream and downstream straight pipe runs?

  • A: No. Thanks to the unique rectangular reduced cross-section sensor geometry, the internal flow profile is optimized and conditioned natively. This shields the meter from fluid turbulences, allowing for a true 0D upstream and 0D downstream straight run installation behind pipe elbows or valves without accuracy degradation.

• Q: Why does the WATERFLUX 3070 eliminate the need for grounding rings during installation?

  • A: The WATERFLUX 3070 features KROHNE’s patented reference electrode technology. The signal converter interprets the electrical potentials directly through the process fluid instead of using physical grounding rings or straps. This substantially cuts procurement costs and eliminates potential gasket leak paths at your connection flanges.
