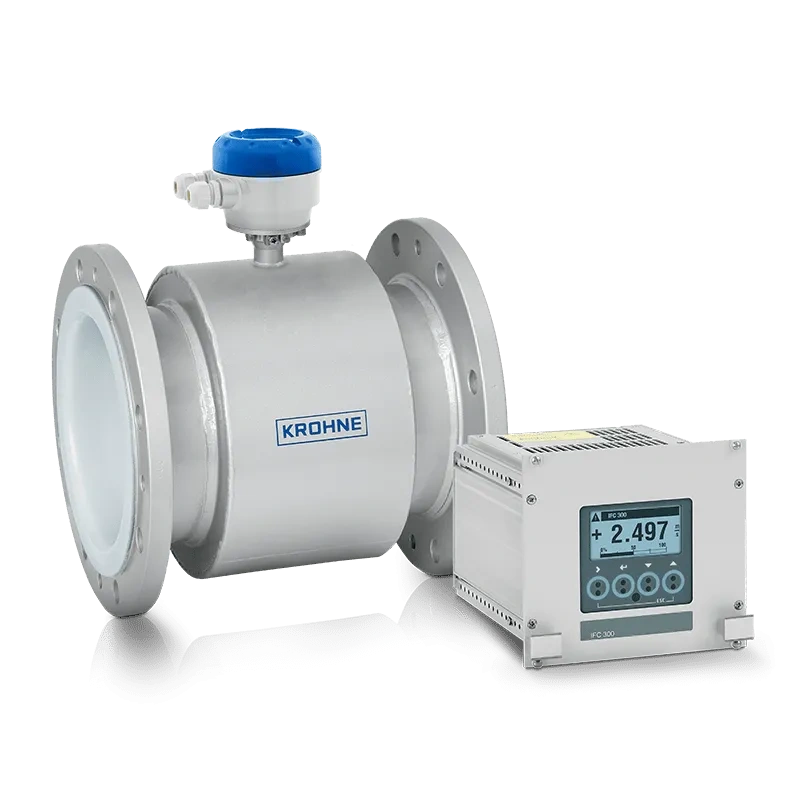

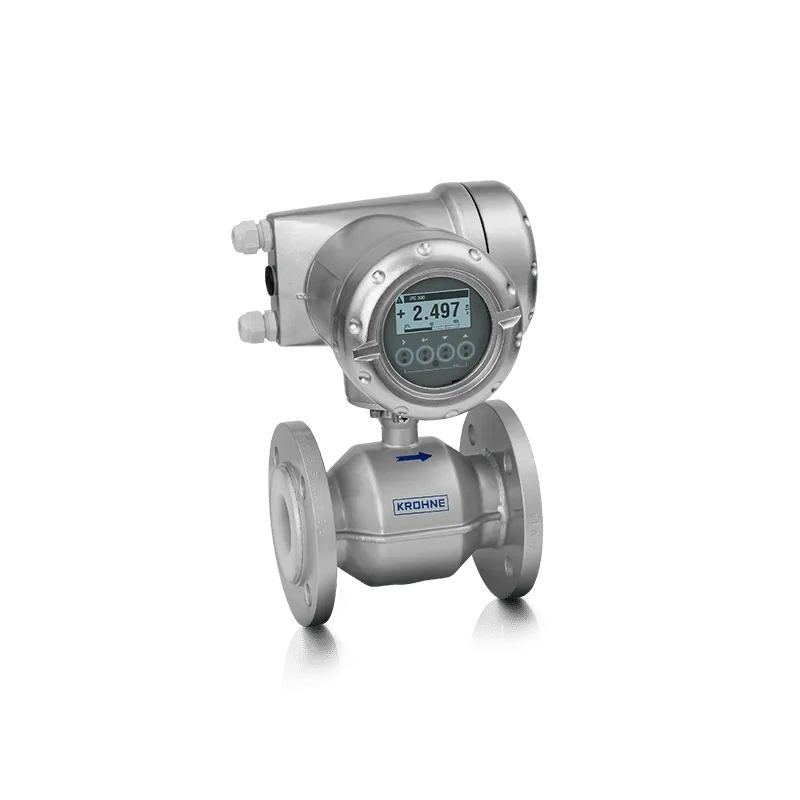

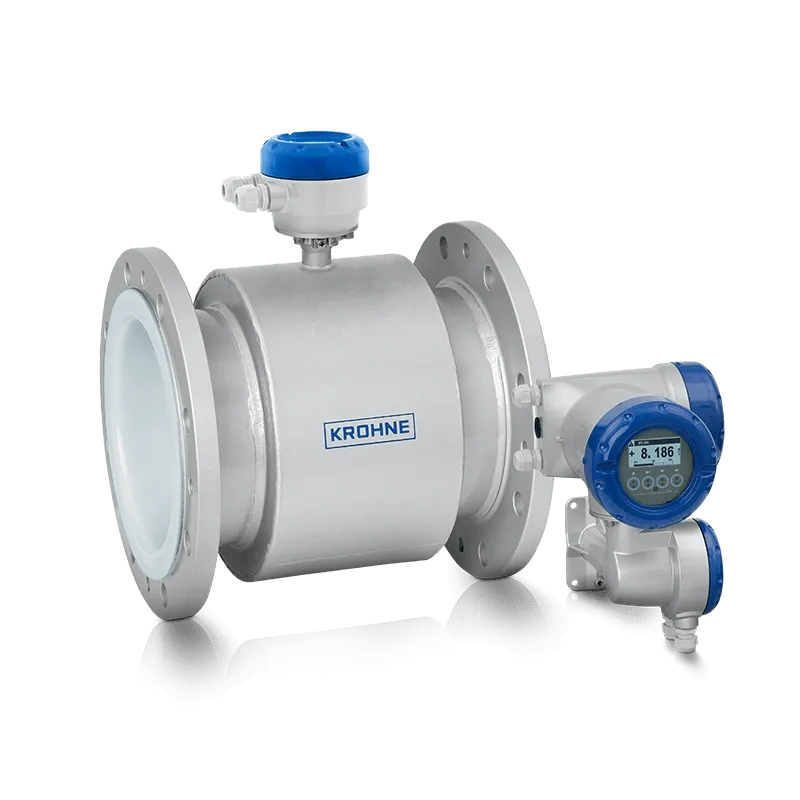

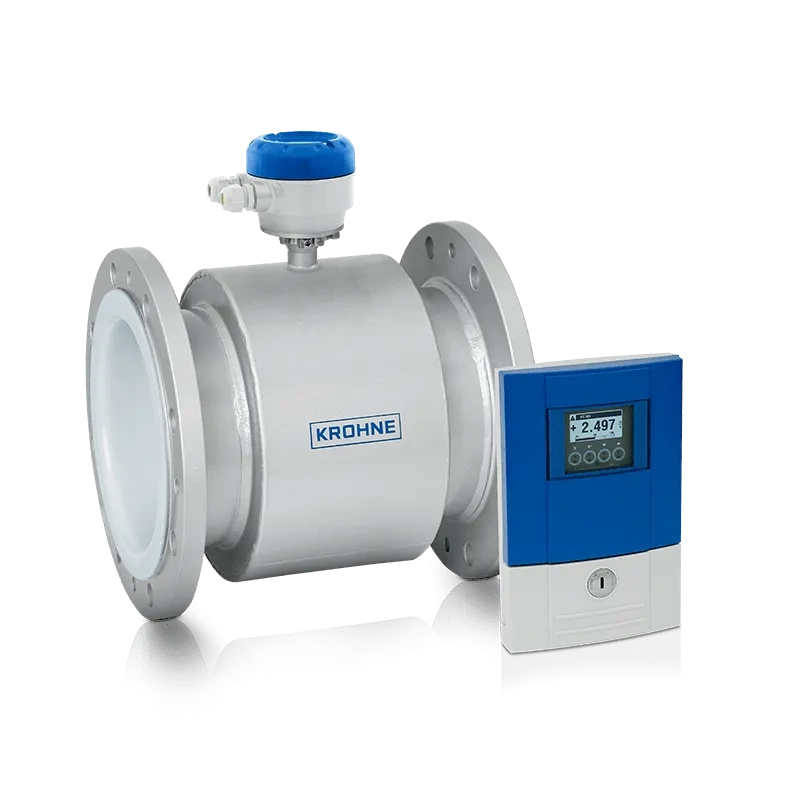

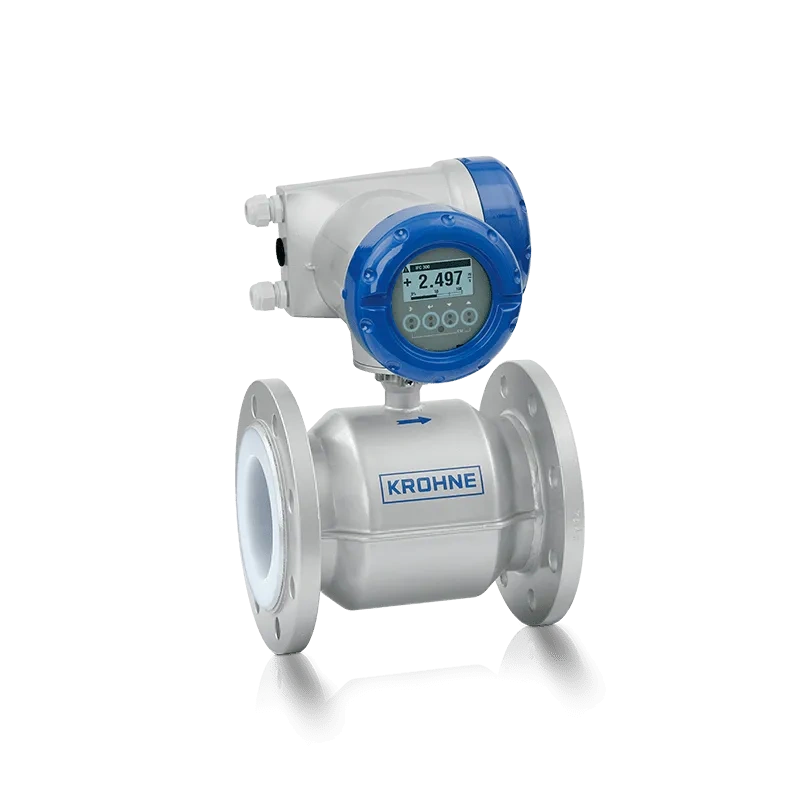

Managing volumetric measurement in harsh chemical streams or highly corrosive mining fluids often accelerates instrument failure. The KROHNE OPTIFLUX 4300 eliminates these operational constraints. As an industry-leading KROHNE electromagnetic flowmeter, this full-bore sensor design features no moving parts or flow restrictions, delivering zero pressure loss across municipal networks, district heating grids, and heavy industrial headers while maintaining unmatched long-term baseline stability.
This premium instrument functions seamlessly as a heavy-duty slurry electromagnetic flowmeter, capable of handling solid concentrations up to 70% without erosive degradation. With a wide dynamic turndown ratio of 1000:1 and support for low conductivity thresholds down to 1 µS/cm, it stands out as a highly versatile high pressure electromagnetic flow meter engineered to withstand continuous line ratings up to 1500 bar (21,751 psi) on specialized technical request.
| Technical Parameter | Design & Configuration Boundaries | Operational Benefit |
|---|---|---|
| Diameter Options | EN (1092-1): DN2.5 to DN3000 ASME (B 16.5): 1/10″ to 120″ |
Scalable across micro-dosing to municipal water mains |
| Process Tolerance | Temperature: -40°C to +180°C (-40°F to +356°F) Pressure: Standard 40 barg (up to 1500 bar on request) |
Prevents sensor casing rupture during extreme thermal shocks |
| Measurement Accuracy | Standard: ±0.2% or ±1mm/s of Measured Value (MV) | High-tier accuracy reduces unaccounted fluid losses |
| Hygienic & Liner Options | PFA, PTFE, ETFE, PUR, Hard/Soft Rubber (FDA approved) | Maximum chemical resistance against abrasive media |
| Digital Communication | HART®, Profibus-PA/DP, Modbus RTU, FOUNDATION™ Fieldbus, PROFINET | Seamless infrastructure integration with DCS & PLC networks |
Traditional inline electromagnetic flowmeter installations in non-conductive glass, plastic, or lined piping networks demand expensive grounding rings or fluid contact gaskets. The OPTIFLUX 4300 circumvents this mechanical vulnerability by operating as a specialized virtual reference grounding flowmeter. The converter software evaluates the fluid potential through the measuring electrodes themselves, achieving full grounding compliance without physical rings. This layout lowers engineering costs significantly in large pipe sizes up to DN3000 / 120″ where standard rings drastically increase weight and potential leak paths.
For fiscal billing, terminal storage loading, and custody transfer applications, instrument verification must meet strict international standards. The OPTIFLUX 4300 acts as an elite custody transfer flow meter, carrying global approvals such as OIML R49, MI-001, and MI-005. Furthermore, as a certified OIML R117 flowmeter, it is fully approved for the high-accuracy fiscal measurement of liquids other than water, including liquid chemicals and hydrocarbons. If your utility architecture standardizes on multi-vendor instrumentation networks, our inventory also includes premium complementary alternatives like the Endress+Hauser Promag H Hygienic Electromagnetic Flowmeter to complete your process block.
When deploying meters in municipal distribution networks, the system can be configured as a high-durability inline industrial water meter MI-001 for cold water billing, or with MI-004 approval for district heating energy tracking. For measurement chambers subject to constant flooding or underground valve pits, specifying the IP68 / NEMA 6P rated remote sensor version guarantees uncompromised performance during prolonged submersion. The transmitter carries worldwide hazardous area certifications (ATEX, IECEx, NEPSI, FM, CSA), ensuring reliable telemetry from volatile areas.
Q: Can the OPTIFLUX 4300 handle flow tracking in media with high solid concentrations?
A: Yes. Thanks to the robust PFA or hard rubber liner thicknesses and a diverse range of alloy electrode materials, the OPTIFLUX 4300 reliably tracks liquids loaded with solid content up to 70%, such as mining tailing slurries, paper pulp, and industrial wastewater sludge, without erosion damage.
Q: Is it possible to verify the flowmeter's accuracy without breaking the process seal or halting production?
A: Yes. Field technicians can utilize the KROHNE OPTICHECK service tool to perform an on-site, comprehensive diagnostics and verification check. This non-invasive diagnostic protocol tests the internal coils, magnetic circuit, and amplifier integrity without removing the meter from the active process pipeline.
Q: What is the benefit of using the OPTIFLUX 4300 compared to differential pressure mass flow devices?
A: Differential pressure devices introduce localized flow restrictions that cause permanent pressure drop and clog in slurry lines. The OPTIFLUX 4300 features a completely obstructionless full-bore profile. However, if your application changes from conductive liquids to steam or non-conductive gases where electromagnetic principles cannot function, we advise checking our alternative mass flow solutions such as the compact Rosemount 3051CFC Compact Orifice Flow Meter with embedded SIL 2/3 and Bluetooth diagnostics.
