π§ The Skid Builder's Dilemma: Bulk vs. Biocompatibility
If you design processing skids for modern dairy setups, filling machines, or pharmaceutical purification modules, you face a relentless floor space crisis. Standard sanitary flowmeters are often too bulky, forcing engineering teams to extend pipe loops or widen skid frames. Worse yet, conventional meters only track volume flow, leaving plants blind to fluid changes during CIP sequences. This lack of data visibility causes high-value raw milk, juice, or medical batches to slide down the waste line before the valves can react.

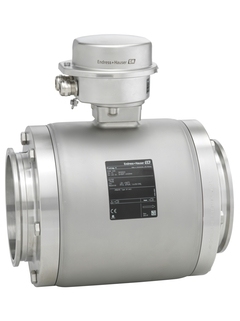

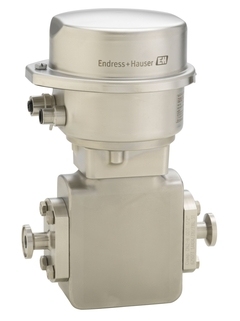

The Proline Promag H 100 Hygienic Flowmeter resolves these engineering bottlenecks. It merges multi-variable fluid diagnostics—tracking flow, temperature, and electrical conductivity simultaneously—into a compact, weight-optimized stainless steel body that inserts seamlessly into tight layouts without sacrificing standard processing speed.
As an elite stocking partner for global processing infrastructure, Hanyu Zhilian International guarantees factory-original validation paperwork for all Endress+Hauser instrumentation runs. To inspect our live regional depot networks, analyze cross-border documentation protocols, or review client references, view our official About Us profile to discover our real status and internal logistics assets.
| Operational Feature | Certified Factory Specification |
|---|---|
| Measuring Principle | Electromagnetic (Inductive measurement technology) |
| Multivariable Datastream | Simultaneous tracking of Volume Flow, Temperature, Conductivity, and calculated Mass Flow |
| Maximum Deviation Limits | Premium option calibrates down to ±0.2% o.r. ± 2 mm/s (of reading baseline) |
| Diameter Size Range | Scales from DN 2 clear up to DN 150 (1/12" to 6" process line sizes) |
| Ingress Defense Certification | Standard IP66/67; Upgradable to certified IP69 heavy washdown defense |
| Sensor Lining Matrix | Injection-molded PFA material (fully compliant with FDA, cGMP criteria) |
| Industrial Bus Interfaces | Native deployment for PROFINET, EtherNet/IP, HART, and Modbus RS485 systems |
π Case Performance Metrics: Dairy Filling Lines
The Problem: A high-throughput yogurt processing plant needed to integrate an additional cooling block onto an existing steel skid, but standard sanitary flowmeters consumed too much space.
The Solution: The facility replaced their legacy infrastructure with the compact Promag H 100 layout, minimizing straight-run constraints.
The Result: The move freed up 45% of available skid installation volume. Furthermore, leveraging the integrated real-time conductivity tracking allowed managers to pin down fluid phase boundaries (separating flush water from product) instantly, cutting down high-value dairy waste by 12% across every CIP cycle.
Q: How does the Promag H 100 reduce product loss during CIP cycles?
A: The transmitter features native multivariable tracking, recording both flow velocity and fluid conductivity simultaneously. This enables the automation matrix to instantly detect the sharp phase boundary between expensive raw product and rinse water, closing return valves faster to prevent raw ingredient flushing.
Q: Does the Promag H 100 housing support harsh chemical washdowns?
A: Yes, when configured with the ultra-rugged IP69 stainless steel transmitter housing, the device fully resists high-pressure, high-temperature caustic water jets and aggressive sanitizing foams standard in dairy and bio-pharma cleanrooms.
