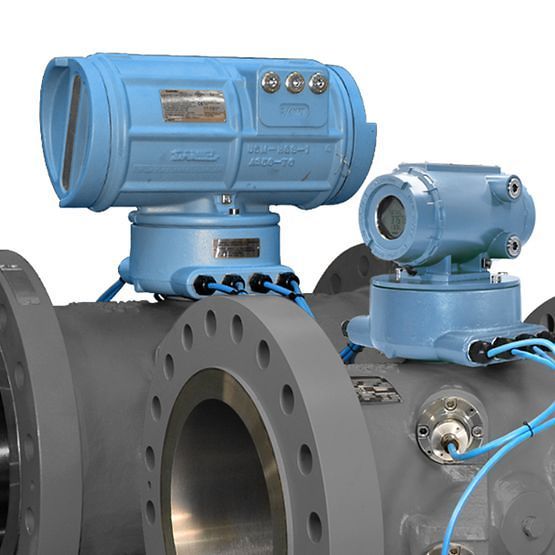

Rosemount™ 3410 Series Electronics for Gas Ultrasonic Flow Meters
Executive Summary: The Rosemount™ 3410 Series Electronics is a next-generation computational platform engineered for gas ultrasonic flow meters in fiscal custody transfer and critical pipeline applications. Designed to replace legacy transmitters or empower new installations, the 3410 platform delivers real-time calculation of dynamic flow transients, automated AGA 10 Speed of Sound diagnostic tracking, and IIoT connectivity via true 100Base-T Ethernet. Equipped with Smart Meter Verification (SMV) Basic, it enables in-situ health monitoring without process interruption. Its modular architecture—featuring field-replaceable CPU, I/O, and power boards—ensures long-term operational reliability and 100% backward compatibility across existing Rosemount gas meter bodies.
⚡ Quick Answer: What is the Primary Function of the Rosemount 3410 Series Electronics?
The Rosemount 3410 Series Electronics serves as the advanced computational brain for gas ultrasonic flow meters, enabling real-time transient capture and simplified fiscal compliance.
- IIoT Native Connectivity: Native 100Base-T Ethernet connects directly to enterprise SCADA and flow computers.
- In-Situ Diagnostics: Smart Meter Verification (SMV) validates transducer health without shutting down gas flow.
- Hydrogen Ready: Automates real-time AGA 10 Speed of Sound calculations for changing gas composition and hydrogen blending.
- Cost-Effective Capital Retrofit: Fully backward-compatible with legacy Rosemount meter bodies, avoiding expensive piping modifications.
- Estimated Price Range: $3,500.00 – $8,500.00 USD (Depending on I/O board configuration, hazardous approvals, and enclosure material).
📌 Overview: What You Will Learn in This Technical Guide
1. Technical Specifications Summary
The following table details the key electrical, environmental, and physical specifications for the Rosemount 3410 Series Electronics platform:
| Specification Parameter | Rosemount 3410 Engineering Limits |
|---|---|
| Estimated Price Range | $3,500.00 – $8,500.00 USD (Subject to configuration & I/O scope) |
| Power Supply Input | 10.4 VDC to 36 VDC (8W typical; 15W maximum) |
| Communications & Ports | True 100Base-T Ethernet, Serial RS-232/RS-485, Modbus RTU/TCP |
| I/O Expansion Capacity | Type 4 CPU supporting up to 6 Frequency/Digital/Pulse outputs |
| Diagnostic Software Suite | Smart Meter Verification (SMV) Basic & MeterLink™ Diagnostic Software |
| Field Modularity | Individually replaceable CPU, I/O, Transducer, and Power supply boards |
| Operating Ambient Temp. | -40°C to +60°C (-40°F to +140°F) |
| Enclosure Construction | Copper-free Aluminum or 316 Stainless Steel (IP66 / NEMA 4X) |
2. Platform Comparison Matrix
Compare the Rosemount 3410 Gas Ultrasonic Electronics with other industry transmitter platforms to evaluate processing capability and application fit:
| Feature / Metric | Rosemount 3410 Series | Rosemount 3810 Series | Legacy Gas Electronics |
|---|---|---|---|
| Primary Fluid Medium | Natural Gas / Hydrogen Blends | Liquid Hydrocarbons | Natural Gas Only |
| Ethernet Connectivity | Native 100Base-T (Dual Port) | Native 100Base-T | Serial Only (External Converter) |
| In-Situ Diagnostics | Smart Meter Verification (SMV) | Smart Meter Verification (SMV) | Basic Baseline Diagnostic Graphs |
| AGA 10 Speed of Sound | Automated Real-Time | N/A (Liquid Equations) | Manual Calculation Offline |
| Transient Surge Protection | Superior Surge Isolation Built-In | Superior Surge Isolation Built-In | Standard Internal Fuses |
3. Gas Electronics Upgrade & Selection Decision Tree
Use this flowchart logic to evaluate whether updating your field installation with the Rosemount 3410 platform is the optimal engineering decision:
│
├──► Is the fluid application Gas (Natural Gas, Hydrogen Blends, Syngas)?
│ ├── NO (Liquid Application): ➔ Select Rosemount 3810 Series Liquid Electronics
│ └── YES: Proceed to interface requirements.
│
├──► Do you require direct Ethernet SCADA integration or real-time AGA 10 tracking?
│ ├── YES: ➔ SELECT ROSEMOUNT 3410 SERIES ELECTRONICS
│ └── NO: Check existing spool condition.
│
└──► Are you servicing an existing Rosemount gas meter spool body?
├── YES (Retrofit): ➔ UPGRADE TO 3410 ELECTRONICS (100% Backward Compatible)
└── NO (Severe Slurry/Wetted Gas): ➔ Consider Rosemount 9195 Wedge Flow Meter
4. Engineering Pros, Cons & Recommended Applications
✅ Key Advantages (Pros)
- Capital Expenditure Savings: Full backward compatibility permits upgrading electronics without purchasing new meter spools.
- High Transient Capture: Rapid DSP processing communicates fast gas flow fluctuations in seconds.
- Regulatory Compliance: Automated Smart Meter Verification logs provide audit trails for fiscal dispute resolution.
- Modular Maintenance: Swap CPU, I/O, or Power modules independently in the field to minimize downtime.
❌ Limitations & Considerations (Cons)
- Gas Phase Specific: Optimized strictly for gas ultrasonic transit-time calculations; not intended for pure liquid lines.
- Thermal Mount Restrictions: Process temperatures exceeding +60°C (+140°F) require a remote mounting kit.
💡 Recommended Engineering Applications:
- Fiscal Custody Transfer: High-sampling precision for continuous natural gas pipeline billing.
- Hydrogen Blending Pipelines: Dynamically tracking Speed of Sound (AGA 10) in variable H2/natural gas mixtures.
- Turbine & Compressor Stations: Rapid response processing to monitor rapid load changes without loss of pulse accuracy.
5. Field Retrofit & Procurement Verification Checklist
Field Maintenance Tip: If you are purchasing the Rosemount 3410 Series Electronics to perform an overhaul on an existing field installation, verify these 5 critical parameters prior to finalizing your order:
📋 Pre-Purchase Retrofit Audit Checklist
- Mounting Configuration: Determine whether process temperatures require an Integral Mount or a Remote Mount (4.6m / 15 ft cable bundle).
- Hazardous Location Certification: Match exact local requirements (ATEX, IECEx, Zone 1, or Class 1 Div 1).
- I/O Board Requirement: Verify if your flow computer requires the Type 4 CPU to support up to 6 frequency/pulse channels.
- Transducer Frequency Compatibility: Ensure transducer type (e.g., T-200 titanium) matches the internal transducer driver settings.
- Local Display Option: Specify the optional multi-variable scrolling LED display if field technicians require local data visibility without laptops.
6. Frequently Asked Questions (Procurement & Technical FAQ)
Q1: Can the Rosemount 3410 electronics be used to upgrade older ultrasonic flow meters?
A: Yes. The 3410 Series platform is engineered for complete backward compatibility. It acts as an upgrade module for almost all prior Rosemount gas ultrasonic meter bodies, allowing operators to acquire IIoT Ethernet connectivity and Smart Meter Verification without replacing the physical spool.
Q2: How does the 3410 Series handle hydrogen blending in natural gas pipelines?
A: With its high-speed processing architecture, the 3410 platform automates real-time AGA 10 Speed of Sound calculations. This enables precise flow profile adjustment as gas density and composition change due to hydrogen injection.
Q3: What operational benefits does the Type 4 CPU board provide?
A: The Type 4 CPU module significantly expands overall I/O capacity, supporting up to six frequency or digital outputs for simultaneous connection to primary and secondary flow computers or SCADA systems.
Q4: Is a laptop mandatory for local diagnostic checks?
A: No. While MeterLink™ software provides full diagnostic visualization, ordering the optional local LED display allows technicians to view up to 10 scrolling operational parameters (speed of sound, velocity, pressure, and gain) directly in hazardous field areas.
Planning an Electronics Overhaul or Custom Gas RFQ?
Consult with our technical sales engineers to verify board compatibility, hazardous certifications, and custom pricing before issuing purchase orders.
Request Technical Sizing & Formal Quotation
