The Rosemount 9195 is a robust wedge flow meter designed to excel where other meters fail. Its unique wedge-shaped element provides exceptional abrasion resistance because it lacks critically sharp edges that erode over time. This design ensures a linear response and accurate measurement even for highly viscous fluids and applications with a low Reynolds Number.

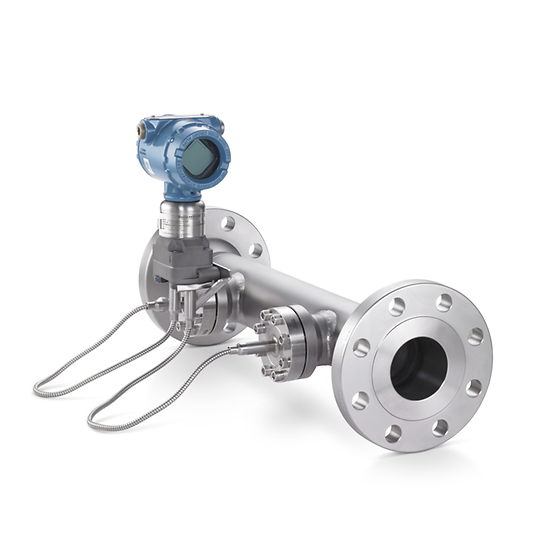

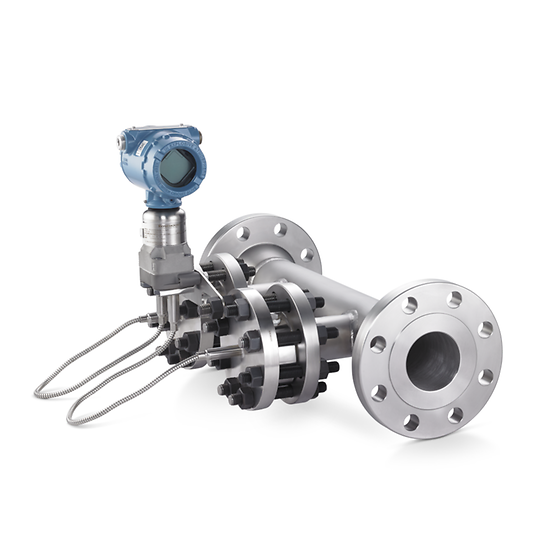

As a fully integrated flow meter, the 9195 offers optional Application Packages to simplify the selection of remote seal systems. Whether you need Saddle-style remote seals to reduce meter weight by 50% and minimize plugging, or flanged models for flushing rings, this device supports a wide variety of slurry measurement and high-temperature applications.
Supporting line sizes from 2 to 8 inches, the Rosemount 9195 handles process temperatures up to 1000 °F. The 316 SST wetted material and ANSI B16.5 600# pressure rating make it ideal for abrasive fluids and dirty fluids in harsh industrial environments. With calibrated 1.0% accuracy and three transmitter connection styles—including 1/2" NPT tubed and compact saddle seals—the 9195 delivers a fully assembled design that reduces on-site installation time and ensures compatibility with your process.
| Feature | Specification Details |
| Line Size | 2 to 8 in (50 - 200 mm) |
| Accuracy | Calibrated: 1.0%; Standard: 3% |
| Max Temperature | 1000 °F (538 °C) |
| Max Pressure | ANSI B16.5 600# / PN100 |
| Wetted Material | 316 SST |
| Fluid Types | Slurries, viscous, abrasive, high-temp fluids |
| Connections | 150# - 600# RF ASME; PN16 - PN100 EN |
| Warranty | Up to 5-year limited warranty |
When selecting a Rosemount 9195, first evaluate your fluid's characteristics. For abrasive fluids that typically erode orifice plates, the wedge element’s triangle-shaped design is the superior choice. If your application involves highly viscous fluids, the 9195’s ability to maintain a linear response at low Reynolds numbers is critical. For piping constraints, our Saddle-style remote seal is recommended to reduce weight and footprint, whereas the flanged model is ideal if your process requires periodic flushing via valve assemblies.

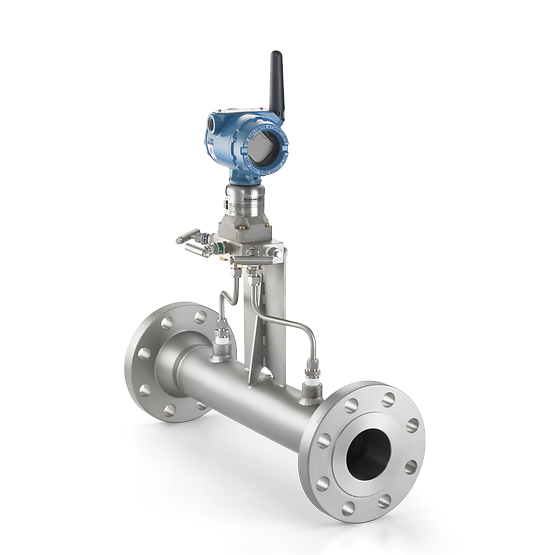

The Rosemount 9195 arrives as a complete, integrated package, ensuring the remote seal system is correctly matched to the transmitter. During installation, verify that the flow direction aligns with the wedge orientation to maintain specified accuracy. For applications where cabling is a challenge, consider pairing the 9195 with a [Rosemount 3051S Wireless MultiVariable Flow Transmitter] to eliminate wiring costs while maintaining >99% data reliability.
Maintenance for the 9195 is minimal due to its wear-resistant design. Unlike standard DP meters, the wedge does not have sharp edges that degrade, ensuring long-term calibration stability. If you are dealing with smaller pipe sizes below 1.5 inches, you may also want to explore the [Rosemount 2051CFP] for low-flow precision. For the 9195, we recommend regular diagnostic checks through the transmitter to monitor for any significant build-up, especially in dirty fluid applications, though the saddle-style seals are specifically designed to reduce pipe stand-off and plugging.
Q: Why is the Rosemount 9195 better for measuring slurries and abrasive fluids?
A: The wedge-shaped primary element is specifically built to measure fluids that erode or plug other designs. Its triangular shape is strong and lacks critical sharp edges that would wear down over time, ensuring long-term durability.
Q: Can this wedge meter accurately measure highly viscous liquids?
A: Yes, the 9195 provides a linear response even at low Reynolds Numbers, making it an ideal solution for highly viscous media that traditional meters struggle to measure accurately.
Q: How do the remote seal packages simplify installation?
A: The fully integrated design and optional Application Packages ensure the correct remote seal system is specified. For instance, saddle-style remote seals can reduce the meter's weight by 50% while addressing plugging and cleaning concerns.
