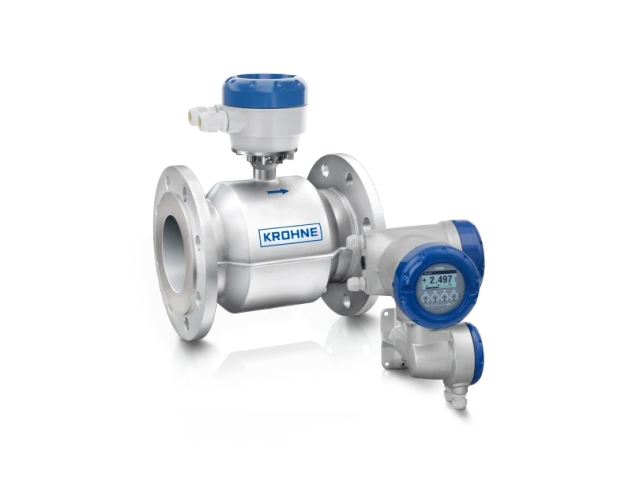

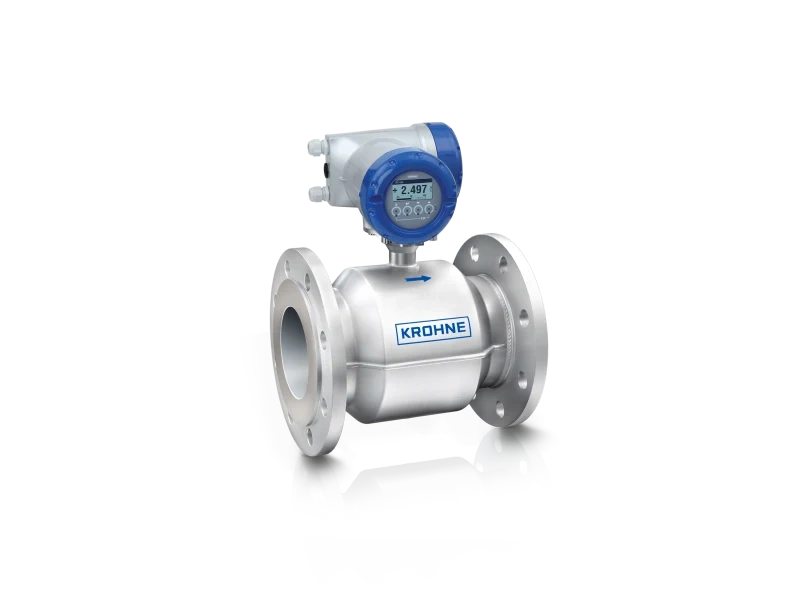

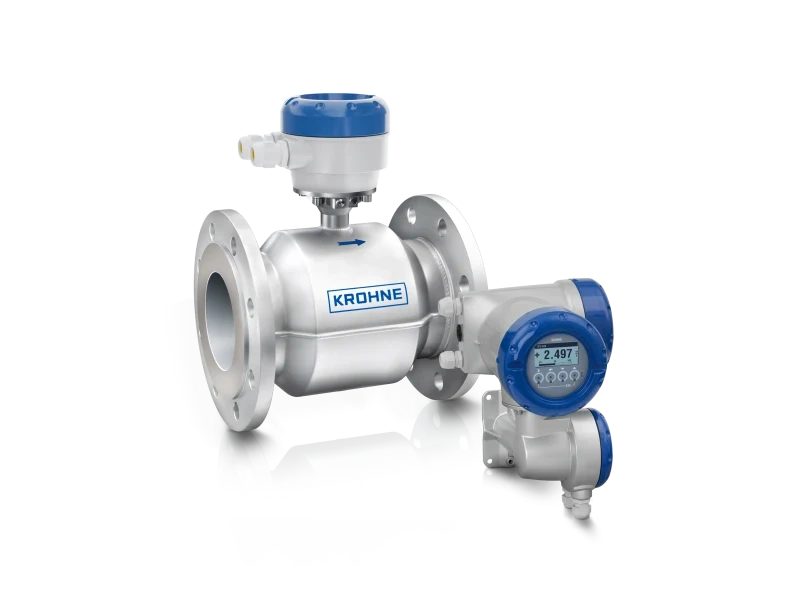

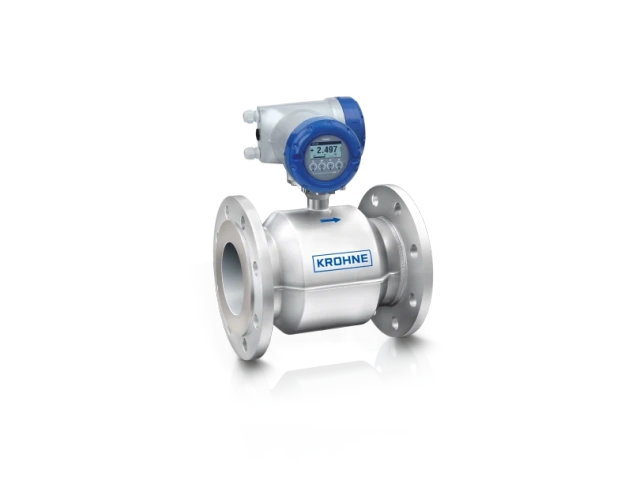

KROHNE WATERFLUX 3400 Electromagnetic Water Meter

The KROHNE WATERFLUX 3400 is the ultimate high-end electromagnetic water meter engineered specifically to eliminate layout restrictions in municipal drinking water networks and District Metered Areas (DMAs). Featuring a patented rectangular bore design that structurally conditions fluid profiles, this premier meter achieves an exceptional ±0.2% measurement accuracy with absolute 0D/0D installation technology—requiring zero diameters of straight upstream or downstream pipe runs. It can be bolted directly adjacent to 90° elbows, T-junctions, or control valves without losing calibration stability. Clad in a bio-sourced Rilsan® liner to prevent biofilm buildup and equipped with Multi-Phase Operation (MPO) noise-filtering algorithms, it ensures reliable billing and leak detection even during heavy line aeration. For water authorities demanding maintenance-free performance, direct soil burial capability, and effortless Bluetooth diagnostic verification, the KROHNE WATERFLUX 3400 stands as the industry benchmark.

Overview: What You Will Learn in This Technical Guide

As an experienced industrial instrumentation supplier, we know that spatial optimization and long-term calibration drift are critical considerations for water utility grids. This engineering overview covers everything required for successful integration:

• Full Technical Specifications – Comprehensive mechanical, electrical, and international certificate data.
• Application Decision Tree – A step-by-step logic gate to determine if a rectangular bore meter is necessary.
• Pros, Cons & Practical Limits – A transparent technical evaluation of its performance thresholds.
• Portfolio Differentiation Matrix – A clear comparison defining the operational boundaries between water, hygienic, and slurry models.
• Real-World Retrofit Checklist – Hard field parameters (flanges, static pressure, earthing) to confirm before procurement.
• Diagnostic FAQs & Schema – Real field answers regarding soil burial, air pocket handling, and wireless auditing.

Comprehensive Technical Specifications

Application Decision Tree: Is the KROHNE WATERFLUX 3400 Right for Your Skid?

Follow this structural flow framework to determine if this specialized water meter fits your deployment requirements:

1. Is your installation site constrained by a tight physical footprint (e.g., small valve chambers or compact urban utility pits)?
   • Yes: The KROHNE WATERFLUX 3400 is highly recommended. Its rectangular bore permits direct installation against bends without requiring 5D/10D upstream piping.
   • No: Proceed to Step 2.
2. Is the device intended for continuous underwater submersion or direct underground soil burial?
   • Yes: Deploy the KROHNE WATERFLUX 3400 in the Remote IP68 configuration. Its rugged external subsea protective coating is explicitly certified for direct burial.
   • No: Proceed to Step 3.
3. Does your utility site completely lack access to consistent mains line electrical power?
   • Yes: Stop. While the 3400 series handles standard power grids, you should switch your specification to the battery-powered standalone alternative: the KROHNE WATERFLUX 3070.
   • No: You can proceed with standard WATERFLUX 3400 specification.

Pros, Cons & Recommended Applications

Advantages (Pros)

• Massive Civil CAPEX Savings: Eliminating straight pipe runs allows designers to reduce concrete meter vault footprints by up to 40%, saving major construction costs.
• Biofilm Resistance: The mirror-smooth Rilsan® polymer lining presents no crevices, completely preventing algae, mineral deposits, and bacterial colonization.
• Zero Grounding Rings: The integrated third reference electrode grounds the liquid internally, cutting down hardware expense and potential leak paths in PVC or PE piping systems.
• Aeration Filtering (MPO): High-frequency MPO signal sampling dampens the electrical noise caused by transient air bubbles, ensuring highly stable billing metrics.

Limitations (Cons)

• Temperature Boundaries: Capped at +70°C, making it strictly unsuited for industrial steam lines or high-temperature chemical reactions.
• Conductivity Floor: Requires a minimum fluid conductivity of 20 μS/cm, meaning it cannot monitor ultra-pure demineralized industrial water loops.

Recommended Fields of Application

• Municipal District Metered Areas (DMAs) for non-revenue water (NRW) monitoring.
• Subsurface valve pits subject to seasonal flooding or water stagnation.
• Compact pump station outlets and bulk potable water transfer skids.
• Agricultural irrigation lines requiring robust, abrasion-resistant internal liners.

Technology Comparison: Delineating the KROHNE Flowmeter Portfolio

To preserve your layout budget and prevent overlapping traffic between distinct product lines, map out how the WATERFLUX compares to our other specialized instruments:

Real-World Procurement Checklist: Retrofitting Existing Water Pipes

Expert Supplier Field Advice: When plant managers seek to replace an older, bulky mechanical turbine meter with the solid-state WATERFLUX 3400, they often make layout assumptions based purely on line size. To ensure your field team avoids costly piping alignment mistakes during a midnight shutdown, confirm these four metrics beforehand:

1. Face-to-Face Installation Dimensions: Do not assume the 3400 matches the physical length of old mechanical Woltman meters. The unique rectangular design means the casing dimensions differ. Always pull the factory dimensional submittals to check if spool adaptors are required.
2. Soil Burial & Cable Potting (IP68): If you plan to bury the sensor directly in dirt, buying an IP68 unit isn't enough on its own. The junction box must be fully potted with KROHNE-supplied two-part silicone resin on-site. Skipping this step leads to ambient groundwater breathing into the electronics terminal over a 5-year cycle.
3. Static Flange Pressures: Ensure your line pressure calculations match the physical flange ratings. Standard utility meters come rated for PN10 or PN16; if your pump station experiences hydraulic water hammer spikes approaching 25 bar, you must specify a heavier PN40 or Class 300 flange face.
4. Cathodic Protection Systems: If your pipeline features active external cathodic protection, the internal reference electrode may pick up voltage offsets. In these highly specialized scenarios, grounding straps or traditional physical grounding rings must still be deployed to isolate the signal circuit.

Frequently Asked Questions (FAQ)

Q: Can the WATERFLUX 3400 be installed directly after a 90-degree elbow?

A: Yes, absolutely. Because the internal bore narrows into a precise rectangular shape, it naturally re-profiles turbulent fluid velocities before they reach the measuring electrodes. You can bolt it directly to a bend without any upstream straight run, maintaining full ±0.2% precision.

Q: Is this water meter safe for direct deep underground burial?

A: Yes, provided you opt for the remote transmitter package where the sensor is rated IP68 / NEMA 6P. The external chassis is coated in a special protective subsea paint system that resists aggressive moisture and acidic soil oxidation over decades of service.

Q: How does MPO technology improve accuracy during line repairs?

A: Pipe alterations frequently trap air pockets, which cause standard circular magmeters to experience signal spikes or lose tracking completely. KROHNE's Multi-Phase Operation (MPO) uses advanced high-frequency sampling to separate air-bubble noise from the liquid flow data, avoiding false leak alarms in your SCADA setup.

Related Instrumentation for Comprehensive Fluid Skids

Optimizing a large-scale municipal intake hub or an automated booster pump skid? Review our deeply detailed hardware analysis:

• Rosemount 3051S In-Line Pressure Transmitter Configuration Guide

Request a Configured KROHNE WATERFLUX 3400 Commercial Quotation

As an established B2B industrial instrumentation partner, HYZL Professional Instrumentation delivers fully calibrated, custom-specified water flow packages built exactly around your pipeline layout. Whether you require a compact DN25 unit for a pilot utility chamber or a massive DN600 flanged unit for a regional drinking water distribution artery:

👉 Contact Our Application Engineering Team Today to verify size availability, review regional clean-water certs, and secure a custom commercial quotation within 24 hours.
