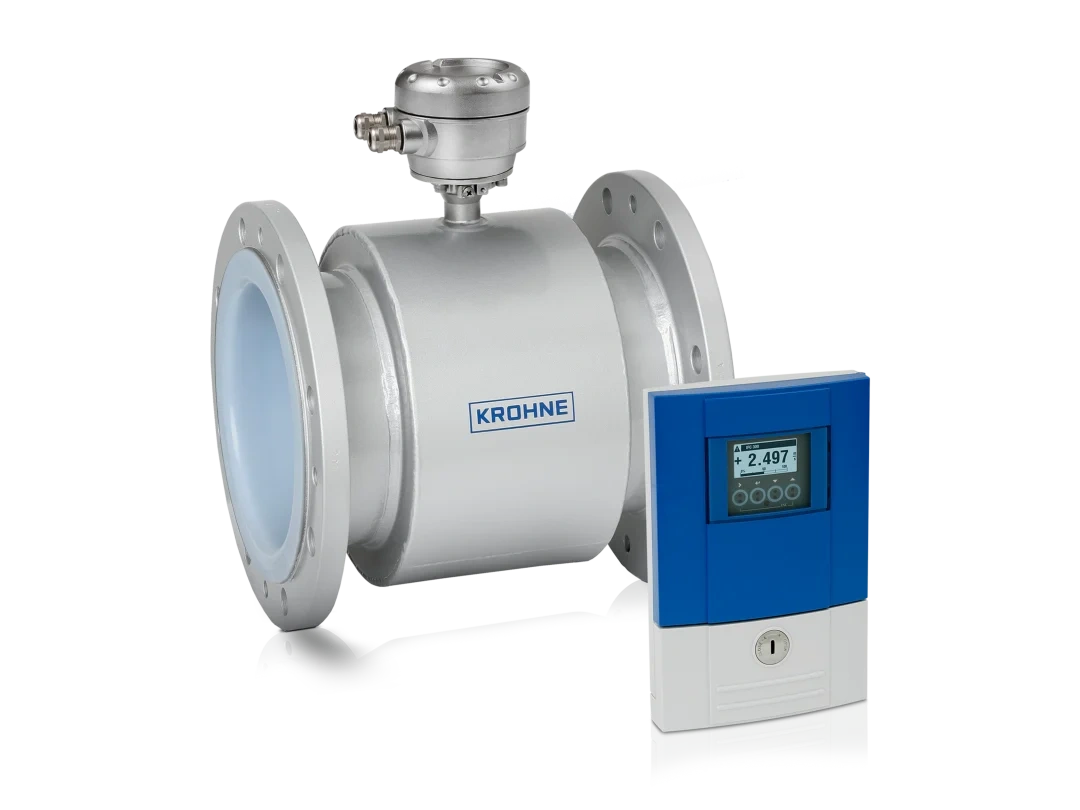

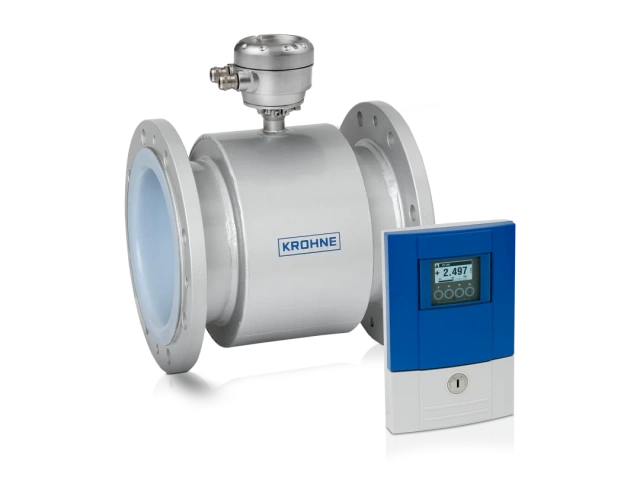

In nuclear power plants, containment facilities, and radioactive waste treatment processing zones, standard electronic microprocessors are highly vulnerable to progressive ionization damage. High-exposure environments cause critical memory corruption and systematic component drift in programmable devices. The KROHNE POWERFLUX 4030 addresses this nuclear environmental risk through its signature non-programmable electronic components (PEC-free architecture).
The flowmeter’s wall-mounted analogue converter contains absolutely no programmable software chips, processors, or digital firmware configurations. By relying exclusively on hard-wired, high-grade analogue circuitry, the system provides ultimate immunity to radiation-induced bit-flips and logic failures. It maintains permanent operational stability when monitoring radioactive process liquids and heavy borated water loops. The primary flow throughput is continuously calculated and transmitted via an isolated, real-time 4…20 mA analogue output loop and a highly visible integrated front-panel LED bar indication.
For plant instrumentation managers balancing macro-facility operations—where rugged, solid-state radiation-zone flow tracking must link back to high-density, compact chemical dosing lines outside the radiation shield—integrating this non-programmable unit alongside a high-density, multi-protocol device like the Endress+Hauser Proline Promag E 100 Magmeter ensures an expertly balanced, multi-tier industrial plant profile.
System piping loops routing active nuclear cooling water or corrosive chemical reagents demand total structural containment. The mechanical design of the POWERFLUX 4030 is precision-crafted to eliminate the risk of external leakage:
Zero Leak-Path Design: Built with a robust, fully welded construction, the full-bore structural sensor pipe contains zero internal moving components, impellers, or mechanical obstructions, ensuring zero added system pressure drop.
Extreme Mechanical Boundaries: The rugged body safely withstands high-pressure process surges up to max. 40 barg / 580 psig, operating continuously across an extreme thermal scale of -40°C to +180°C (-40°F to +356°F).
Cross-Functional Hydraulic Analytics: For nuclear auxiliary skids where volumetric liquid flow rates must be cross-analyzed against exact pipeline hydraulic pressure drop markers or filter blocking curves, pairing the flowmeter array with a high-accuracy pressure cell like the [Endress+Hauser Deltabar PMD75B Smart Differential Pressure Transmitter] yields deep, multi-variable analytical data.
The interior measuring tube of the POWERFLUX 4030 utilizes specialized polymer liners tested to withstand both chemical corrosion and intensive ionization degradation:
Perfluoroalkoxy Alkane (PFA Liner): Specified for higher temperature thresholds up to +180°C, providing exceptional non-stick properties and absolute chemical resistance against concentrated acids and oxidation agents.
Ethylene Tetrafluoroethylene (ETFE Liner): Provides superior structural toughness and mechanical abrasion resistance, ideal for slurries or high-velocity water loops within industrial nuclear fuel cycle infrastructures.
Nuclear Qualification Certifications: Built to adhere to rigid international nuclear industry standards, specialized product documentation and structural qualifications are available on request in strict accordance with ASME Section III, RCC-M, and RCC-E compliance parameters.
| Technical Metric Feature | Engineering Operational Threshold |
| Measurement Principle | Electromagnetic (Inductive Signal Tracking) |
| Product Positioning Strategy | Specialized inline safety & non-safety nuclear applications |
| Converter Electronic Matrix | PEC-Free Design (No Programmable Electronic Components) |
| Primary Analogue Telemetry | Fully isolated, hard-wired 4…20 mA analogue outputs |
| On-Site Flow Indication | Integrated bright LED bar displaying flow percentage of maximum scale |
| Safety System Scaling Array: | The POWERFLUX 4030 is specialized for harsh radiation environments and hard-wired analogue loops. For downstream non-radiation dosing loops or safety-instrumented systems (SIS) that require comprehensive digital fieldbus communications paired with SIL-rated certifications, upgrading to the KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter offers complete multi-protocol process defense. |
| Operational Limit Component | Technical Data Values |
| Structural Sensor Housing | Robust, fully welded carbon steel or stainless steel alloy shell |
| Internal Sensing Liners | Premium Perfluoroalkoxy Alkane (PFA) / Ethylene Tetrafluoroethylene (ETFE) |
| Maximum Rated Process Pressure | max. 40 barg / 580 psig |
| Process Liquid Temperature Scales | From -40°C to +180°C (-40°F to +356°F) |
| Nuclear Industry Compliance | Qualifications on request supporting ASME III, RCC-M, and RCC-E |
Liner Selection Criteria: Specify the PFA liner for high-temperature clean loops or concentrated acid dosing feeds where thermal stability is paramount. Select the ETFE liner for auxiliary lines handling mild abrasives or high fluid velocities to ensure premium mechanical resistance against scouring.
Alternative Grid Sizing Cross-Reference: For secondary plant water transport networks, cooling loops outside the radiation barrier, or municipal inlet lines where large-diameter full-bore circular geometries require certified zero straight pipe run footprints, deploying a [Siemens SITRANS FM MAG 5100W sensor] offers high-volume versatility.
Remote Wall-Mounted Converter Placement: Always install the PEC-free analogue converter outside the high-radiation core zone using low-capacitance, heavily shielded signal cables to link it to the field-side sensor. This minimizes the thermal and ionization load on the terminal amplifier block.
Concentric Gasket Centering: During flange bolt torquing on PFA/ETFE lined bodies, follow strict crisscross patterns with a calibrated torque wrench. Ensure gaskets are perfectly aligned with the inner bore; any protrusion into the flow path creates vortex currents that degrade the analogue microvolt electrode signal.
Vertical Line Orientation: To eliminate empty pipe false alarms, mount the flowmeter vertically with an upward flow direction. This guarantees the sensor tube remains entirely full under variable pumping rates and prevents entrained air bubbles from gathering on the measuring electrodes.
Because the full-bore, obstacle-free design contains absolutely no internal moving parts, the POWERFLUX 4030 generates no additional system pressure drop and requires zero mechanical maintenance.
To comply with regular nuclear regulatory safety audits or system balance protocols, field technicians do not need to reprogram or update software drivers. System verification is performed entirely by checking the hardware loop resistance, evaluating analogue loop outputs, and testing coil impedance profiles using calibrated multimeters and physical validation simulators against original factory reference records. This hard-wired architecture guarantees traceable verification without risking the data vulnerabilities of software-driven test kits.
Q: Why is a PEC-free architecture critical for electromagnetic flowmeters deployed in nuclear radiation areas?
A: High-exposure environments emit heavy gamma and beta radiation that can quickly corrupt microprocessors, causing software memory corruption or systematic logic drift in programmable components. The POWERFLUX 4030 features a unique PEC-free (No Programmable Electronic Components) analogue converter. Built entirely with hard-wired, high-grade analogue circuitry, it provides native radiation immunity to prevent data failure when monitoring radioactive fluids and borated water loops.
Q: What are the pressure and temperature limits for the fully welded sensor construction?
A: The POWERFLUX 4030 features an ultra-rugged, fully welded full-bore design optimized to maintain structural containment in hostile nuclear loops. It safely withstands aggressive process pressures up to max. 40 barg (580 psig) and operates continuously across an extreme thermal fluid scale ranging from -40°C to +180°C (-40°F to +356°F).
Q: How do I select between the PFA and ETFE liner options for this nuclear flowmeter?
A: Liner selection depends on your thermal load and chemical composition. Specify the premium Perfluoroalkoxy alkane (PFA) liner for high-temperature clean loops up to +180°C where absolute non-stick performance and intense chemical resistance are required. Select the Ethylene tetrafluoroethylene (ETFE) liner for loops carrying high fluid velocities or light slurry traces where superior mechanical toughness and abrasion resistance are necessary.
Q: How is field calibration and safety verification conducted without digital software or configuration tools?
A: Because the hard-wired converter contains no programmable software, field verification does not risk digital firmware exposure or require software updates. Annual safety and compliance audits are completed seamlessly by testing core magnetic coil impedance, checking loop electrical resistance, and evaluating the 4…20 mA analogue output lines using calibrated multimeters and physical signal simulators against original factory reference baselines.
Q: Can the POWERFLUX 4030 be used for non-radiation chemical skids requiring multi-protocol digital fieldbus networks?
A: While the POWERFLUX 4030 is designed for hard-wired analogue tracking in radiation core zones, its PEC-free platform does not support digital fieldbus protocols. For downstream chemical dosing lines outside the radiation shield that require advanced digital communications (like PROFINET or EtherNet/IP) paired with SIL-rated certifications, upgrading to the [KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter] or the compact [Endress+Hauser Proline Promag E 100 Magmeter] provides an engineered, multi-protocol solution.
