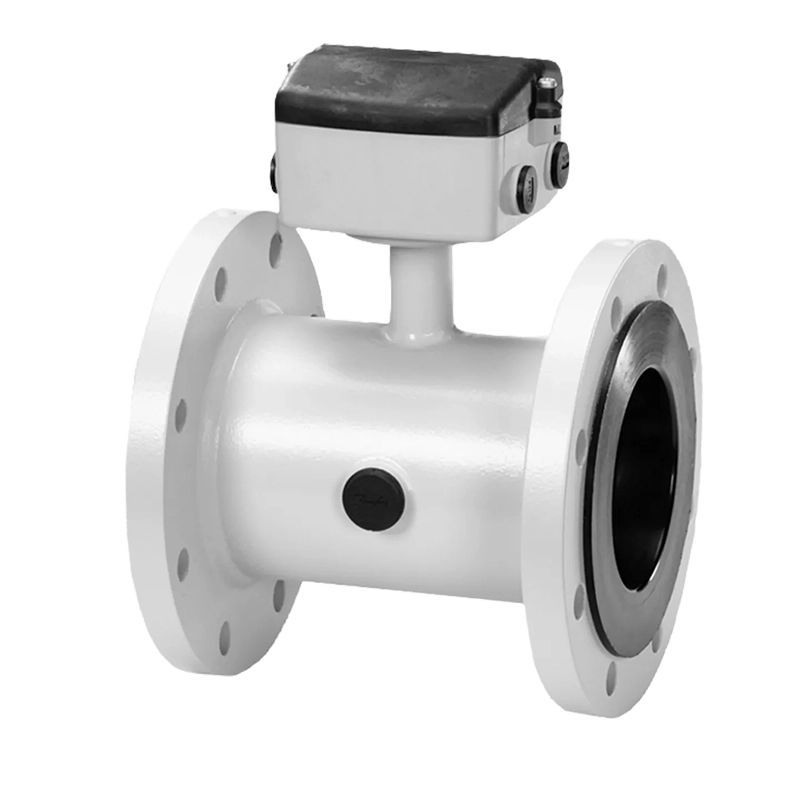

In municipal water distribution, leak detection networks, and district metering areas (DMA), spatial limits within subterranean valve vaults frequently compromise measurement profile integrity. Standard full-bore magmeters require significant straight pipe diameters to clear fluid swirling and kinetic turbulence. The Siemens SITRANS FM MAG 5100W sensor eliminates these architectural spatial bottlenecks entirely through its optimized magnetic field geometry.
Supporting an elite Zero Up and Zero Down installation capability, the MAG 5100W maintains its core calibration curve accuracy without straight inlet or outlet stabilizer runs. It can be bolted directly adjacent to 90-degree elbows, throttling valves, or pipe reducers without introducing velocity profile skewing or unmetered flow drift.
For water network engineers executing multi-tier infrastructure configurations where standard industrial water mains run alongside ultra-compact, high-density chemical dosing skids, coordinating this flexible sensor in the main loop while routing chemical channels through a specialized [Endress+Hauser Proline Promag E 100 Magmeter] establishes a perfectly scaled, space-efficient plant architecture.
Subterranean pipe chambers and outdoor distribution mains are routinely exposed to flash flooding, rising water tables, and harsh environmental exposure. The structural framework of the MAG 5100W addresses these harsh environments through an ultra-rugged design matrix:
Subterranean and Submerged Reliability: Built with a heavy-duty carbon steel casing and a corrosion-resistant two-component epoxy coating, the sensor features an IP68 permanent immersion enclosure. It is fully rated for direct underground installation or continuous underwater deployment without signal degradation.
Aggressive Leak Detection Accuracy: Sized with premium EPDM or NBR lining variants, the flowmeter provides increased low-flow sensitivity down to near-zero velocities, allowing network operators to identify minor overnight pipeline micro-leaks early.
Global Potable Water Certifications: The internal liner materials satisfy strict global drinking water criteria. EPDM models hold WRAS, NSF/ANSI Standard 61, DVGW 270, ACS, and BelgAqua certifications, guaranteeing zero chemical leaching.
Process Boundary Pressure Optimization: While the MAG 5100W manages high-volume bulk utility mains with immense structural integrity, if your network links downstream to specialized process loops tracking highly localized kinetic line drops or real-time filter clogging indexes, pairing the array with an [Endress+Hauser Deltabar PMD75B Smart Differential Pressure Transmitter] provides absolute multi-variable telemetry control.
Traditional electromagnetic installations require the separate procurement and mounting of physical grounding rings or grounding straps when installed in plastic or non-conductive lined pipelines. The MAG 5100W simplifies this installation step via its integrated design layout:
Built-in Grounding Electrodes: The sensor includes pre-installed grounding electrodes natively embedded in its construction. This configuration completely eliminates the need for external grounding rings in most standard applications, reducing flange leak paths and lowering procurement costs.
Hastelloy C-276 Electrodes: The measurement and grounding electrode array is built from premium Hastelloy C-276, providing robust resistance against chemical oxidation and chemical galvanic pitting.
The cornerstone of the Siemens SITRANS FM portfolio is its unified, interchangeable instrumentation platform. The MAG 5100W sensor interfaces seamlessly with both the MAG 5000 (standard) and MAG 6000 (high-performance) transmitters, allowing operations teams to scale up digital fieldbus communication protocols without removing the primary flow sensor from the line.
At the core of this cross-platform integration is Siemens' unique SensorProm technology. This embedded memory chip is factory-programmed with all sensor-specific calibration parameters, nominal dimensions, and tracking characteristics. Upon field startup, the SensorProm automatically transfers this critical profile data to the attached transmitter. This plug-and-play framework enables a complete transmitter replacement or upgrade in just minutes via hot-swappable field servicing, ensuring zero system down-time.
| Technical Metric Feature | Engineering Operational Value |
| Measurement Principle | Electromagnetic (Inductive Tracking) |
| Measuring Velocity Range | 0 to 10 m/s |
| Volumetric Accuracy Scale | 0.2 % ±2.5 mm/s of measured value |
| Fiscal Custody Approvals | OIML R 49, MID MI-001, PTB K7.2, BEV OE12/C040 |
| Straight Pipe Requirement | True Zero Up / Zero Down (0D/0D capabilities) |
| Environmental Safety Upgrade: | The MAG 5100W is optimized for high-volume clean water utility transport and fiscal custody billing. For specialized plant locations running chemical dosing skids or volatile lines requiring native functional safety compliance, moving up to a dedicated safety-rated alternative like the [KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter] provides complete hazardous area defense. |
| Operational Component | Technical Specification Detail |
| Nominal Sizes & Diameters | From DN 15 to DN 2000 (1″ to 78″) |
| Internal Lining Selections | EPDM, NBR hard rubber, Ebonite hard rubber |
| Sensing Electrode Metallurgy | Hastelloy C-276 (Integrated Grounding & Measuring Array) |
| Maximum Operating Pressure | Max. 16 bar (Max. 150 psi) |
| Ambient Temperature Boundaries | From -40 to 70 °C (-40 to 158 °F) |
| Medium Temperature Boundaries | From -10 to 70 °C (14 to 158 °F) |
| Enclosure Protection Rating | IP68 (Suitable for permanent immersion & underground burial) |
| Environmental Certification | MCERTS Sira Certificate No. MC080136/09 |
Liner Matching: Select the EPDM liner for public drinking water grids requiring extensive global certifications (WRAS, NSF, DVGW). Choose the NBR liner for raw intake lines, groundwater abstraction, or networks handling minimal oil or hydrocarbon traces. For heavy-volume treatment plants and larger diameters handling light abrasives, utilize the Ebonite hard rubber liner.
Alternative Rectangular Monitoring Matrix: For compact vaults where maximum low-flow tracking is required at a certified 0D/0D profile without full-bore circular geometries, comparing the system against a rectangular alternative like the [KROHNE WATERFLUX 3300 Flowmeter] provides advanced geometric optimization.
IP68 Potting Verification: When installing the MAG 5100W for permanent immersion or underground burial, the remote terminal box must be packed with a factory-approved two-part silicone gel compound. Failure to fully pot the junction box will lead to condensation build-up from thermal cycling, resulting in signal drift between the electrodes.
Concentric Gasket Fitting: While the Zero Up/Zero Down layout removes standard pipe run requirements, take care during bolt torque steps to center the gaskets perfectly. A gasket edge protruding into the flow bore generates localized vortex currents that interfere with the low-flow sensor reading.
Air Pocket Prevention: Mount the meter on a low point of your pipeline layout or vertically with an upward flow path. Avoid installing the device at the high point of a piping loop, as entrained air bubbles accumulating inside the sensor tube will cause electrode signal clipping and trigger empty-pipe fault diagnostics.
Because the MAG 5100W features an open, full-bore flow profile with zero impellers, paddles, or internal moving parts, it generates no added pressure drop and requires no mechanical wear-and-tear maintenance.
To satisfy annual regulatory water authority audits or grid balance reports, field technicians do not need to pull the meter from the active line. By connecting the handheld SITRANS FM Verificator tool directly to the field setup, technicians can run an automated in-situ electronics check. The verificator tests magnetic coil insulation, electrode circuit integrity, and amplifier drift against factory baselines, generating a traceable verification certificate to maintain compliance without interrupting water delivery.
Q: How does the Zero Up and Zero Down capability affect pipeline design and installation costs?
A: Traditional electromagnetic sensors require long, straight pipe runs to clear internal fluid turbulence. The MAG 5100W features an optimized internal magnetic field geometry that supports true Zero Up and Zero Down (0D/0D) placement. It can be bolted directly behind 90-degree elbows, valves, or pipe reducers without introducing velocity profile skewing, eliminating spatial bottlenecks and saving expensive piping overhead.
Q: What is the technical advantage of having integrated grounding electrodes?
A: The MAG 5100W features built-in grounding electrodes natively embedded within the liner body, manufactured from premium Hastelloy C-276. This configuration completely eliminates the requirement to purchase and install separate physical grounding rings or grounding straps when deploying the meter in non-conductive plastic lines, successfully lowering installation weight and removing a major leakage risk from your flange seals.
: What is Siemens SensorProm technology and how does it protect field operation data?
A: SensorProm is an embedded, factory-programmed memory chip located right inside the sensor housing. It automatically stores all critical sensor-specific calibration factors, nominal data parameters, and factory setups. Upon startup or field transmitter replacement (supporting hot-swappable plug-and-play swapping with the MAG 5000/6000), it instantly passes this structural data profile to the transmitter, allowing hassle-free configuration within minutes without software tools.
Q: Is the SITRANS FM MAG 5100W safe for direct underground burial or permanent submersion?
A: Yes. The sensor housing is built from rugged carbon steel and finished with a heavy-duty, corrosion-resistant two-component epoxy coating. Rated natively at an IP68 protection level, the MAG 5100W is structurally engineered for permanent underwater immersion, shallow water deployment, or direct subterranean burial—provided the remote junction box is properly potted with silicone gel compound.
Q: Can the MAG 5100W be used in chemical dosing loops requiring high functional safety certification?
A: No. The MAG 5100W is specifically optimized for advanced high-volume clean water utilities, district leakage networks, and fiscal custody billing. If your layout manages highly corrosive hazardous chemical injection lines or functional safety emergency shutdown circuits (ESD) requiring certified loop integrity, you must select a safety-instrumented heavy-duty alternative such as the [KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter].
