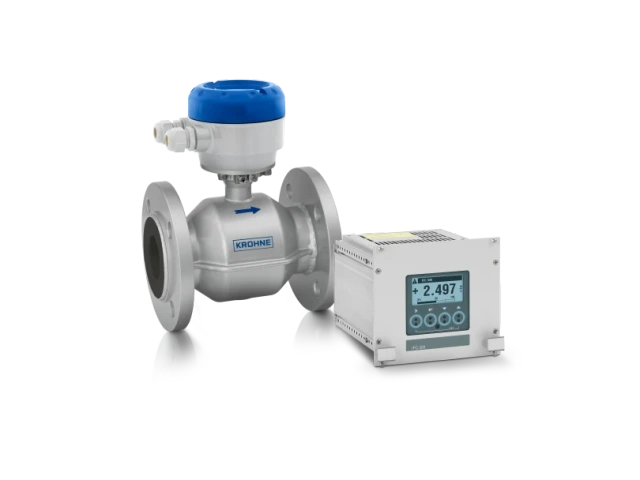

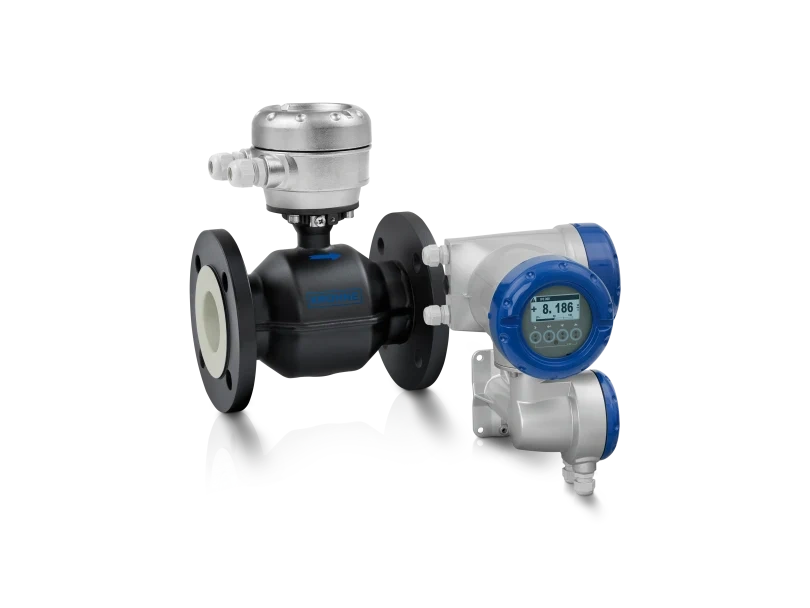

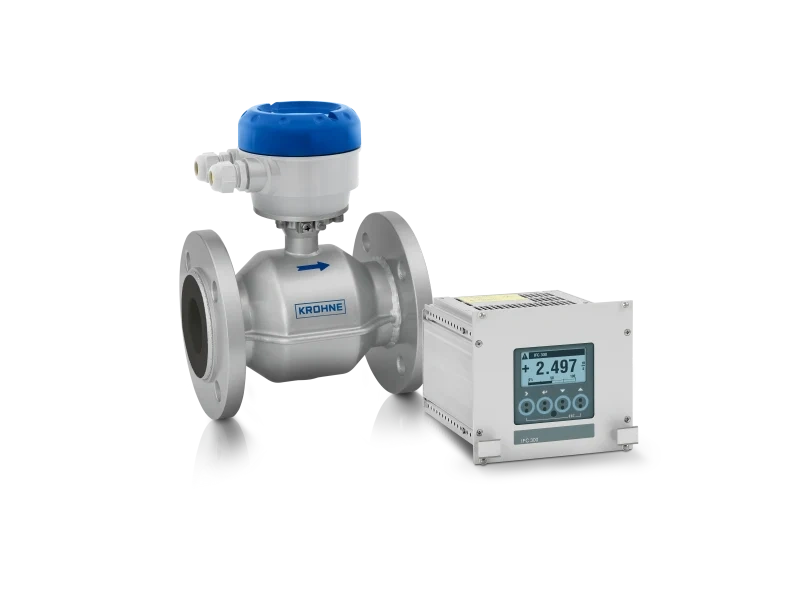

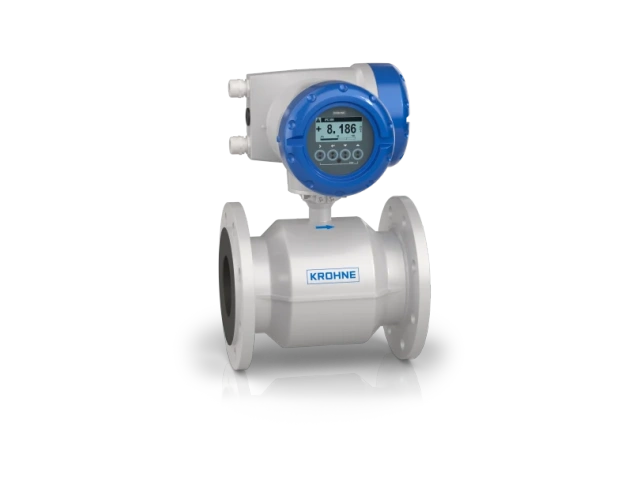

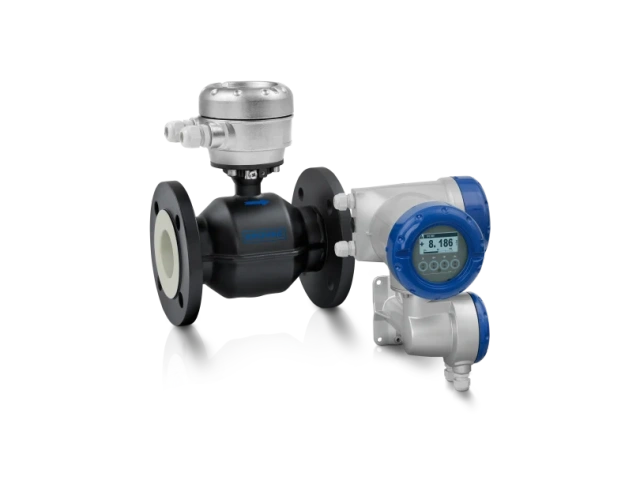

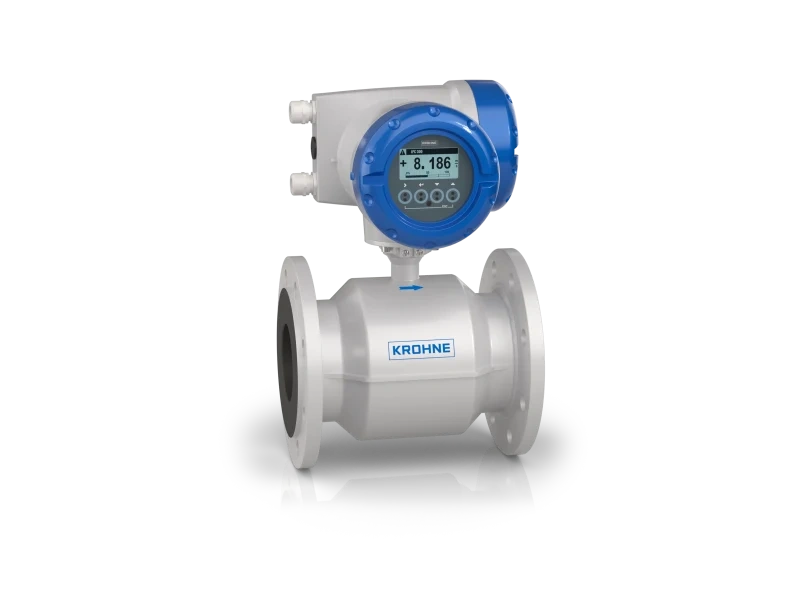

In high-volume municipal utilities, district distribution networks, and large-scale industrial utility loops, fiscal metering accuracy directly dictates revenue security. The KROHNE OPTIFLUX 2300 is a premier, high-end custody transfer electromagnetic flowmeter purposely engineered to handle the most demanding commercial water allocations. While lower-tier flow tubes suffer performance drops and severe signal noise when velocity profiles distort, this advanced EMF maintains an elite standard measurement accuracy of plus or minus 0.2% of the measured value. It stands out as the ultimate mechanical water meter replacement for bulk water distribution networks, raw water abstraction, and storm water overflows where mechanical moving parts would quickly clog, wear out, or cause excessive pressure drops. With its completely full bore design, fluid passages remain entirely unrestricted, eliminating process pressure loss and preventing bacterial accumulation points.
As a global premier industrial control asset supplier, Hanyu Zhilian (International) Supply Chain secures your critical project timelines by balancing strict international safety manufacturing standards with flexible cross-border logistics deployment.
In congested pumping stations, crowded water treatment plants, or retrofitted desalination skids, dedicating long sections of straight pipe to instrumentation is rarely feasible. The OPTIFLUX 2300 solves this spatial bottleneck through proprietary sensor physics:
Public health parameters demand absolute material non-toxicity. The OPTIFLUX 2300 meets all global potable water standards, holding a comprehensive certification portfolio including ACS, DVGW, NSF, TZW, KTW, and WRAS. Simultaneously, the converter provides continuous compliance assurance via advanced process diagnostics matching the NAMUR NE 107 standard. The transmitter automatically alerts operators to empty pipe conditions, liquid conductivity drops, electrode coating development, or excessive ambient and process temperature swings. This real-time data stream shifts your operations from arbitrary scheduled downtime to intelligent, predictive maintenance intervals.
| Parameter | Specification Detail |
|---|---|
| Measurement Principle | Electromagnetic (Inductive Inductions) |
| Product Positioning | High-end custody transfer meters for advanced water, wastewater, and fiscal metering |
| Standard Accuracy | Plus or minus 0.2% or plus or minus 1 mm/s of Measured Value (MV) |
| Custody Transfer Certifications | MID MI-001, OIML R49 Accuracy Class 1 Certified |
| Straight Pipe Requirements | True 0D Upstream / 0D Downstream runs required for OIML R49 Class 1 compliance |
| Turndown Ratio Range | Dynamic bi-directional tracking up to 1000:1 scale |
*Direct Mass Flow Upgrade: For advanced process chemicals or high-value custody transfer lines requiring direct mass tracking instead of volumetric data, consider deploying premium Coriolis mass flowmeters to achieve absolute mass verification.
| Component / Condition | Technical Data Specifications |
|---|---|
| Nominal Diameter Range | DN25 to DN3000 (1 Inch to 120 Inches Bulk Pipelines) |
| Liner Materials Available | Polypropylene (PP) or Hard Rubber (Excellent chemical and wear resistance) |
| Flange Connections Supported | EN 1092-1 (DN25-3000), ASME B16.5 (1" to 120"), JIS B2220 (25-1000A) |
| Maximum Process Pressure | Up to 40 barg / 580 psig (Depending on flange rating and diameter) |
| Process Temperature Window | -5 to +90 deg C (+23 to +194 deg F) |
| Accepted Payment Currencies | USD, EUR, RMB Direct Corporate Bank Transfer (Full support for RU market) |
| Logistics Readiness | Ex-stock Reserves (Expedited international air cargo dispatch available) |
Because the full-bore flanged sensor contains no impellers, gears, or bearings, the OPTIFLUX 2300 exhibits zero internal mechanical wear and creates no fluid obstructions. To satisfy regulatory municipal utility audits or commercial fiscal reviews, technicians never need to pull the meter from the active line or shut down delivery pumps. Simply attach a handheld service tool to the transmitter interface. The diagnostic system runs an inline, in-situ baseline health check, validating core magnetic coil resistance, electrode insulation layers, and converter calibration drift against factory-stored fingerprints, printing an official, audit-compliant validation document without interrupting your water distribution.

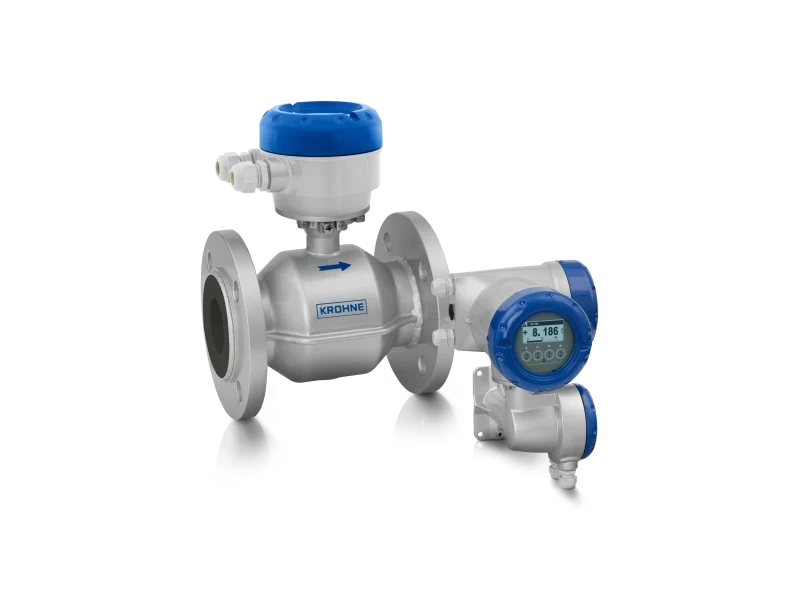

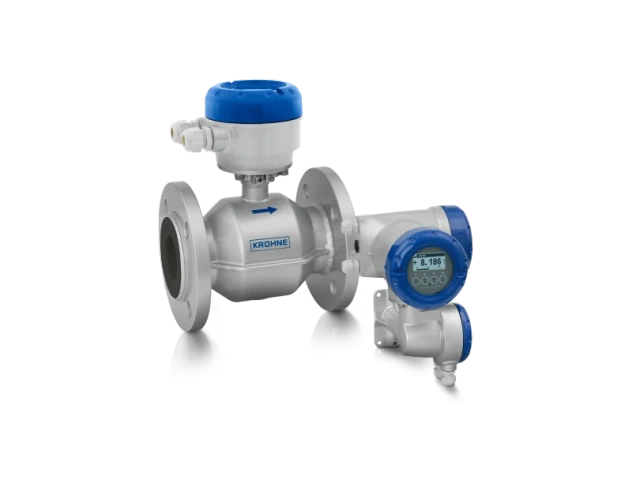

A: Certified under MID MI-001 and OIML R49 accuracy class 1, the OPTIFLUX 2300 allows for true 0D upstream and 0D downstream straight pipe runs. This means you can install this high-accuracy meter directly next to elbows, reducers, or valves without requiring long straight runs, significantly saving footprint and installation costs in dense pumping stations.
A: To bypass international cross-border clearance delays and ensure uninterrupted maintenance supply chains for critical municipal infrastructure in the Russian market, we accept direct RMB (Yuan) corporate bank transfers. This direct settlement path enables immediate order clearance, fully compliant customs documentation, and rapid logistics release from our dedicated ex-stock inventory.
A: Virtual Reference allows the flowmeter converter to ground the measurement loop electronically by evaluating electrode potentials. This completely eliminates the need for expensive grounding rings or grounding straps. On large pipelines up to 120 inches, this technology provides substantial cost savings in terms of procurement, reduces installation weight, and removes potential flange leak points.
A: If your process scales up to require direct mass flow tracking or high-pressure fiscal custody transfer of chemical/hydrocarbon mixtures, we recommend transferring your technical specifications to a heavy-duty system such as the Micro Motion ELITE CMF350P Coriolis mass flow matrix, which handles high-pressure bulk flow with premium fiscal-grade mass accuracy.
