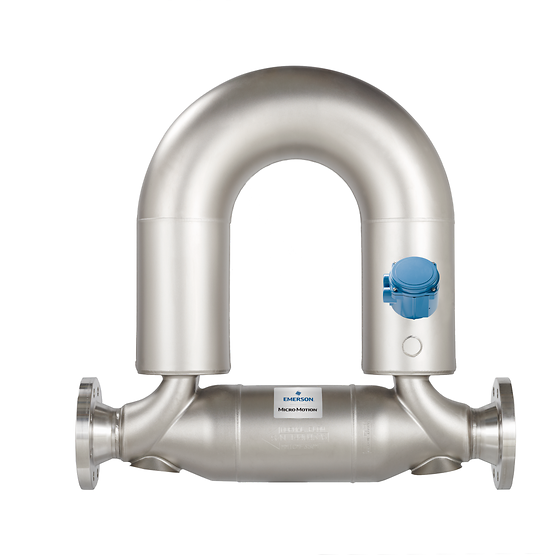

The Micro Motion ELITE CMF350P (4-inch / DN100) is the ultimate industrial powerhouse engineered for large-scale, high-pressure bulk fluid and gas measurement. Featuring a premium hybrid construction of Nickel Alloy C22 measuring tubes and robust 316L Stainless Steel process connections, this heavy-duty 4-inch Coriolis sensor is designed to effortlessly handle extreme process pressures up to 2,250 psig (155 barg). It stands as the premier choice for offshore oil production, high-pressure chemical transfer, and refinery custody transfer bulk measurement.
As a specialized global heavy-industry instrumentation distributor, Hanyu Zhilian (International) Supply Chain provides fully certified, original CMF350P sensors with significant procurement, compliance, and settlement benefits tailored for global operators.
To support critical safety-instrumented infrastructure across the Middle East (Saudi Arabia, UAE, Oman), Europe, and Central Asia, our supply chain ensures full international compliance:
Hanyu Zhilian optimizes your plant's MRO procurement funnel by eliminating standard global factory lead-time bottlenecks:
| Engineering Parameter | Detailed Technical Specifications |
|---|---|
| Nominal Line Size | 4 Inch / DN100 / 100mm Pipeline Connection |
| Wetted Material Architecture | Nickel Alloy C22 (Measuring Tubes) with 316L Stainless Steel Flanges |
| Liquid Mass Flow Accuracy | Standard: +/-0.10% | Optional Premium Fiscal Class: +/-0.05% |
| Liquid Density Accuracy | Standard: +/-0.0005 g/cm3 (+/-0.5 kg/m3) |
| Maximum Working Pressure | Up to 2,250 psig (155 barg) Extreme Pressure Rating |
| Gas Mass Flow Accuracy | +/-0.35% of rate (Ideal for high-pressure gas headers) |
| Safety & Marine Approvals | SIL2/SIL3, ATEX, IECEx, NEPSI, CSA, Marine Vessel Class Approvals |
| Logistics Status | Ex-stock / Ready-to-ship (Fast shipping to Middle East oil fields, Europe, RU) |
| Accepted Currencies | USD, EUR, RMB (Direct Bank Transfer Support for RU & Central Asia) |
The Challenge: An offshore production platform required a 4-inch flow meter to monitor produced water for high-pressure re-injection at 140 bar. Competitor stainless steel meters consistently suffered premature structural failure due to pressure-cycle fatigue and intense chloride-induced pitting corrosion.
The Hanyu Solution: The engineering team upgraded the facility to the Micro Motion ELITE CMF350P supplied by hanyuzl.com.
The Result & Impact: The specialized Nickel Alloy C22 tubes handled the corrosive high-pressure brine effortlessly. Operating with continuous +/-0.05% accuracy, pump efficiency was fully optimized, and the plant completely eliminated its previous 80,000 USD annual budget for unplanned meter maintenance and catastrophic replacements.
A: The CMF350P is purpose-built for extreme high-pressure services up to 155 bar (2,250 psig) and incorporates a Nickel Alloy C22 core tube matrix. This provides superior fatigue resistance and defense against stress corrosion cracking compared to the 102 bar limitation of the standard 316L stainless steel CMF350M model.
A: To maintain zero-delay procurement for the Russian industrial market, we accept direct RMB (Yuan) bank transfers. This ensures fully compliant, swift clearing for heavy industrial assets and original equipment replacements without reliance on traditional Western banking networks.
A: No. Like all high-end Micro Motion Coriolis sensors, the measurement mechanism is inherently independent of the flow velocity profile. It requires zero straight pipe runs (0D upstream, 0D downstream), allowing for compact, space-saving installation inside offshore skids and mobile bulk-loading modules.
A: Every Micro Motion ELITE CMF350P flow meter in our ready-to-ship inventory is 100% factory original. All units are supplied with official factory calibration data, unique serial numbers for global traceability, and complete Material Traceability Reports (MTRs) to verify chemical composition compliance.
