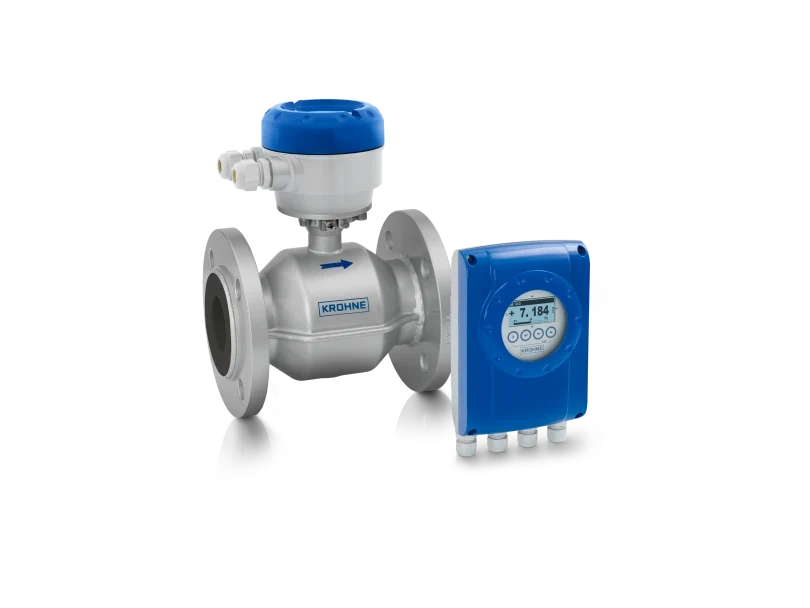

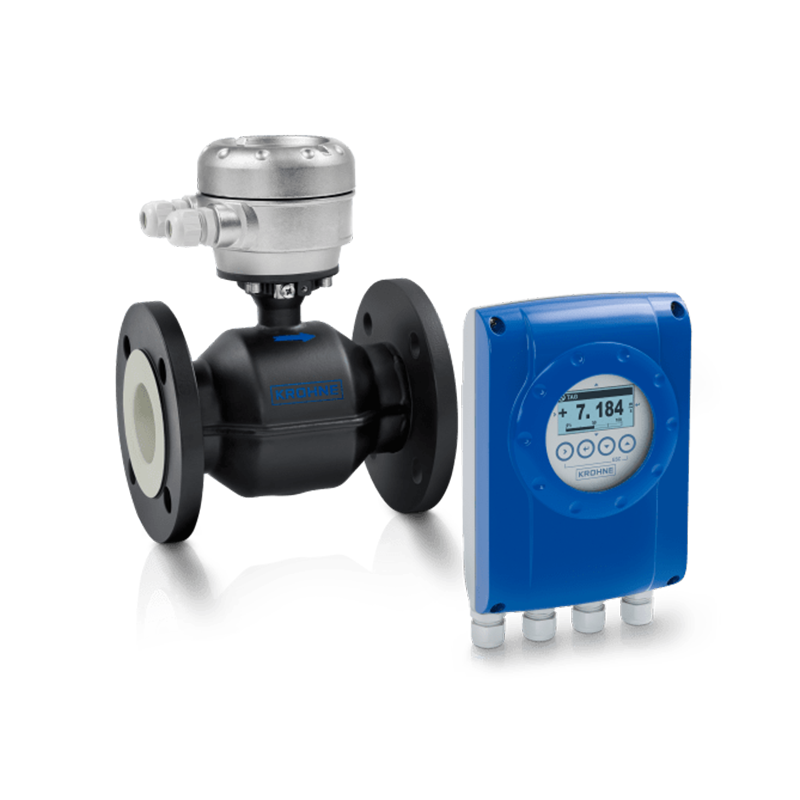

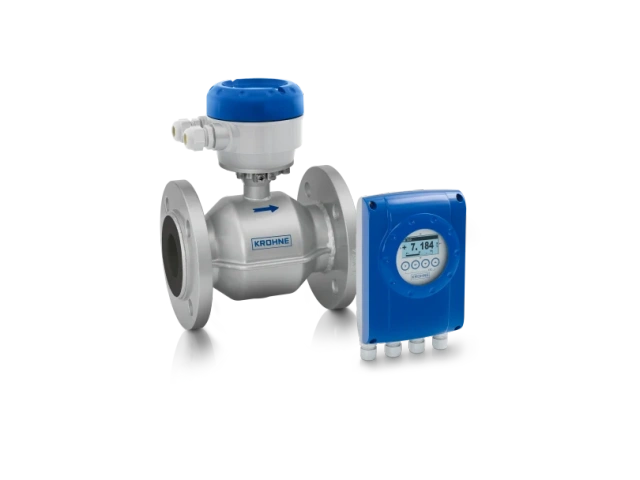

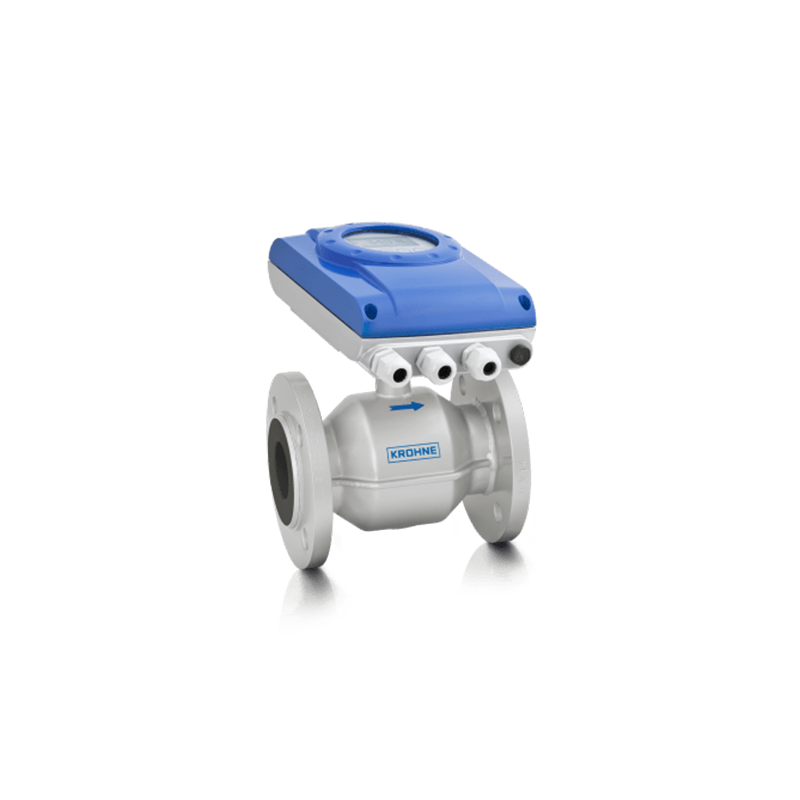

KROHNE OPTIFLUX 2050 Flanged Electromagnetic Flowmeter

In municipal engineering, district water networks, and basic industrial utility loops, selecting a flowmeter that balances economic constraints with long-term field survivability is vital. The KROHNE OPTIFLUX 2050 is a highly reliable flanged electromagnetic flowmeter purposely designed for standard water distribution network monitoring, commercial effluent lines, and bulk water management. Unlike premium analytical meters that burden operational budgets with unused, overly complex features, this robust EMF focuses strictly on essential volumetric accuracy. It is built for operations where budget-friendly pricing is critical, yet mechanical integrity cannot be sacrificed. Featuring a wide nominal size availability from DN25 to DN1200, it easily monitors raw sewage, extracted groundwater, and high-volume irrigation supplies.

For advanced utility configurations with severe piping layouts where maintaining standard straight runs is impossible, combining this meter with a specialized Rosemount 3051SFC conditioning orifice flow meter delivers an engineered differential-pressure alternative to ensure continuous accuracy.

Tropicalized Engineering Built for Extreme Humidity & Submersion

Field instruments in municipal water sectors are regularly subjected to hostile environmental conditions. The OPTIFLUX 2050 addresses this vulnerability through proprietary tropicalized electronics protection:

• Flooding Survivability (IP68): When configured with the remote IP68 / NEMA 6P enclosure rating, the sensor can be safely installed in underground pits and deep measurement chambers subject to permanent or periodic submersion without suffering water ingress.
• Extreme Humidity Mitigation: The internal electronic boards receive specialized isolation coatings, mitigating the risk of condensation, moisture accumulation, and component short-circuiting in hot, high-humidity tropical climates.
• Marine Infrastructure Approvals: Backed by global maritime standards, including DNV, ABS, LR, and CCS, it is fully prepared for shipboard ballast systems or coastal desalination plants. For high-salinity offshore environments, pairing this with a high-precision pressure transmitter helps maintain holistic pipe integrity monitoring.

Global Drinking Water Certifications for Potable Networks

Public health compliance requires strict material purity. The OPTIFLUX 2050 holds an extensive portfolio of prominent international potable water approvals, ensuring that no hazardous chemicals leach into municipal drinking supplies. Certified testing compliance includes ACS, DVGW, NSF, TZW, KTW, and WRAS. The full bore design contains no moving internal parts, ensuring that fluid flow remains entirely unrestricted. This prevents any bacterial accumulation points and completely eliminates process pressure drop across the device.

KROHNE OPTIFLUX 2050 Comprehensive Specifications

1. Measurement & Fluid Performance

*Mass Tracking Upgrade: For advanced chemical dosing or industrial process systems requiring raw mass data or continuous custody transfer instead of standard volumetric readings, consider upgrading to premium Coriolis mass flowmeters for legal-for-trade tracking.

2. Mechanical, Material & Process Limits

Expert Engineering Guide: Selection, Installation, and Maintenance

How to Correctly Select Your OPTIFLUX 2050 Configuration?

• Liner Selection Rules: Choose the Polypropylene (PP) liner for standard ambient drinking water and mild commercial effluents up to +60 deg C. For raw river water with moderate sediment content or wastewater lines carrying abrasive soil particles, upgrade to the Hard Rubber liner, which features superior elastic wear resistance up to +90 deg C.
• Safety Loop Alert: The OPTIFLUX 2050 is engineered exclusively for basic water utilities. If your site layout involves high-risk chemicals or safety instrumented loops requiring functional safety compliance, upgrading to a specialized KROHNE flowmeter matrix with SIL2/SIL3 capabilities is mandatory.

Installation Best Practices for Flooded Environments

• Cable Gland Sealing: If you plan to utilize the IP68 configuration in a subterranean chamber prone to constant flooding, ensure that the signal cables are run through heavy-duty conduit and the liquid-tight cable glands are sealed with protective potting compound.
• Avoiding Air Pockets: Install the flowmeter on a lower pipe section or an upward-sloping run. Never place the device at the highest point of a piping network, as air pockets will accumulate in the sensor tube, causing significant measurement errors or dry-pipe alarms.
• Straight Pipe Run Metrics: To preserve uniform velocity distribution and ensure stable readings, maintain a clear run of at least 5D upstream and 2D downstream from control valves, pumps, or tees.

Zero-Maintenance Upkeep and Field Verification

Because the full-bore tube is free of obstacles, turbines, or bearings, the OPTIFLUX 2050 does not suffer mechanical wear and requires zero routine hardware overhaul. To satisfy municipal performance audits or calibration checks, plant technicians do not need to cut the pipe or shut down distribution pumps. Simply connect a handheld field service tool to the signal converter interface. The diagnostic system conducts an on-site, in-situ health verification of core coil resistance, electrode integrity, and internal amplifier drift, providing an audit-ready compliance document without disrupting the municipal water supply. For small auxiliary dosing lines where an electronic flowmeter exceeds technical needs, a purely mechanical rotameter serves as an ideal alternative.

KROHNE OPTIFLUX 2050: Basic Water & Utility FAQ

Q: Is the OPTIFLUX 2050 suitable for underground installation where flooding occurs?

A: Yes. When ordered with the optional remote IP68 / NEMA 6P rated housing, the OPTIFLUX 2050 sensor is fully protected against permanent or periodic submersion. This allows it to be safely installed in deep underground pits and flooded measurement chambers without risking water ingress or short-circuiting.

Q: How can Russian municipal water authorities or contractors purchase the OPTIFLUX 2050?

A: To bypass modern cross-border banking friction and guarantee uninterrupted project deployment, we accept direct RMB (Yuan) bank transfers. This allows for smooth, swift clearing and rapid dispatch from our active ex-stock inventory for the Russian industrial and utility market.

Q: Does the full bore design of the OPTIFLUX 2050 cause any pressure drop in the system?

A: No. The OPTIFLUX 2050 features a completely unrestricted full bore design with no internal moving parts, turbines, or bearings. This ensures that fluid flows smoothly without creating bacterial accumulation points and completely eliminates process pressure drop across the device.

Q: What should I choose if my process upgrades from volumetric wastewater to high-pressure custody transfer?

A: If your process scales up to require direct mass flow tracking or high-pressure fiscal custody transfer, we highly recommend transferring your specification to a heavy-duty system such as the Micro Motion ELITE CMF350P, which handles high-pressure bulk flow with premium fiscal-grade accuracy.
