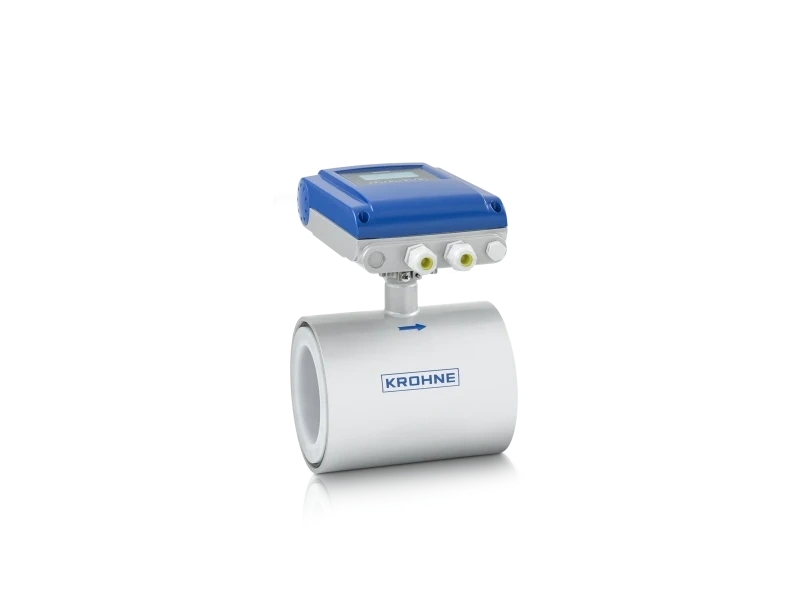

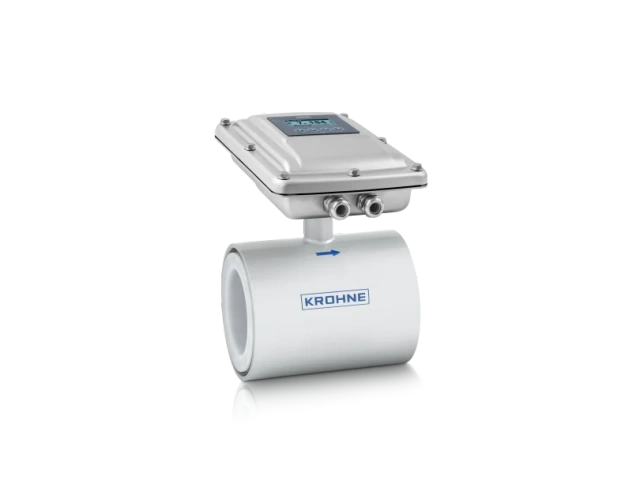

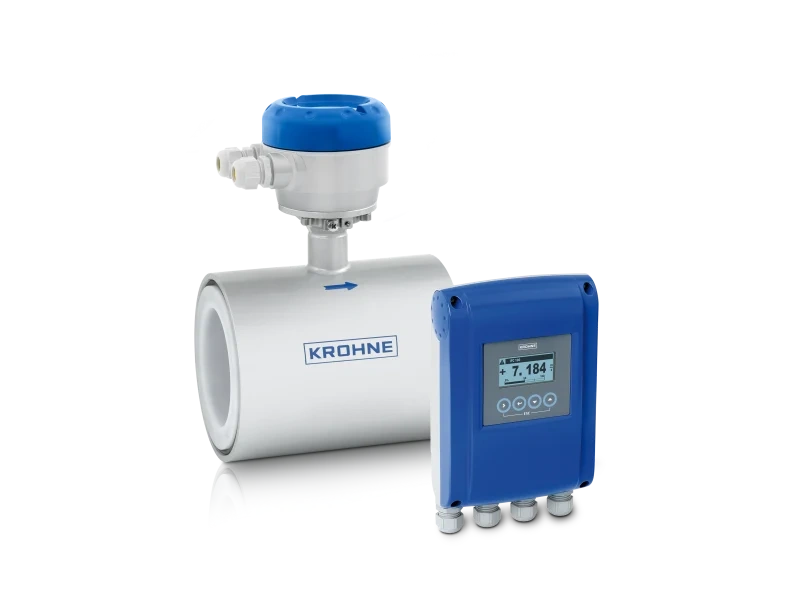

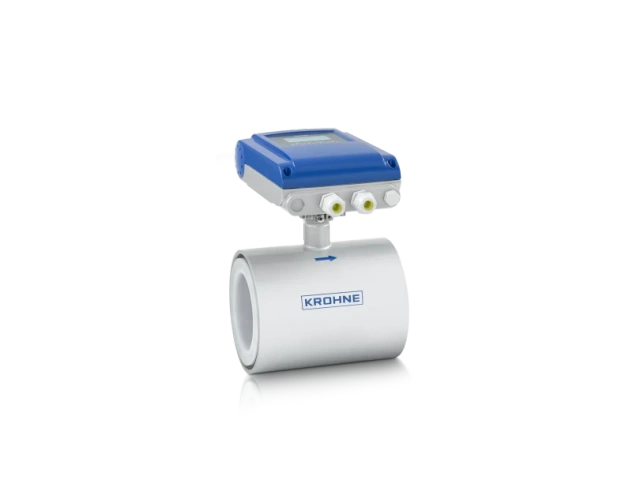

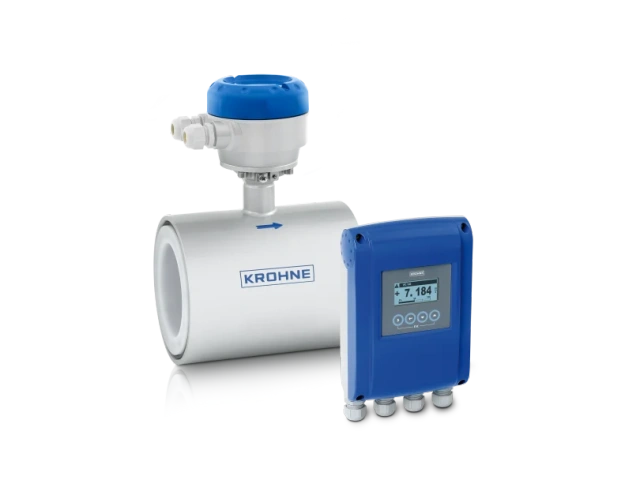

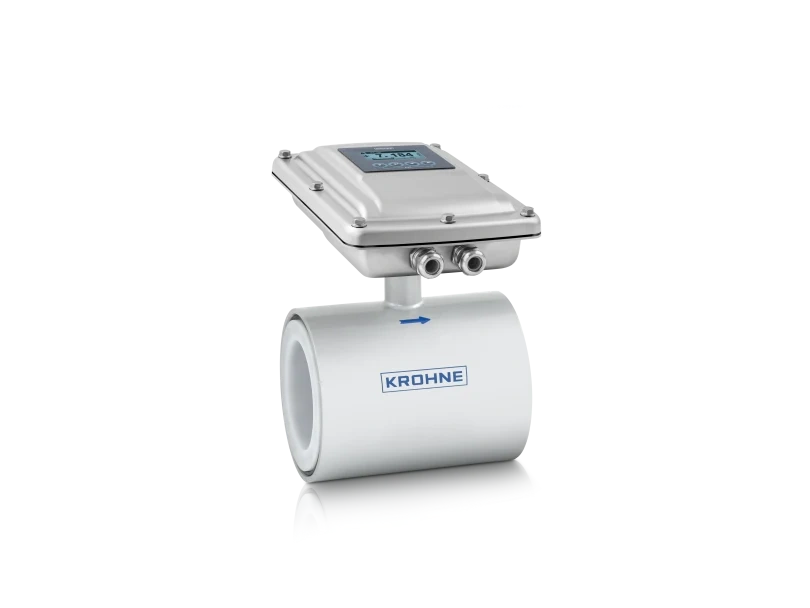

KROHNE OPTIFLUX 1100 Wafer Electromagnetic Flowmeter (±0.3% Accuracy, DN10-DN150)

Comprehensive Hub: KROHNE OPTIFLUX 1100 Wafer-Style Flowmeter Technical Guide

The KROHNE OPTIFLUX 1100 stands out as the premium "economical" choice for high-precision liquid flow measurement in compact spaces. Maintaining a lightweight wafer-style (sandwich) design for space-constrained installations, it offers an enhanced accuracy class of ±0.3% of Measured Value, making it the go-to solution for machine building (OEM) and high-standard utility monitoring.

For installations with tight piping constraints where required straight inlet runs are impossible, process engineers can evaluate our specialized alternative, the Rosemount 3051SFC Conditioning Orifice Flow Meter, to maintain flow measurement integrity.

🛠 Expert Procurement Guide: Retrofitting & Replacing with KROHNE OPTIFLUX 1100

When replacing an existing magnetic flowmeter or legacy site instrumentation with a new KROHNE OPTIFLUX 1100, site engineers and purchasing specialists must systematically verify the following four critical parameters to avoid costly process downtime or mechanical incompatibility:

• 1. Flange Rating & Face-to-Face Dimension: Verify that pipeline pressure aligns with the KROHNE OPTIFLUX 1100 wafer standard (compatible with EN 1092-1 PN10–PN40, ASME B16.5 150–300 lb, and JIS 10K–20K). Ensure face-to-face spatial clearance matches the compact wafer housing.
• 2. Static & Operating Pressure: Confirm that standard operating line pressure does not exceed 16 barg (232 psig) for standard models or 40 barg for specialized high-pressure OEM configurations.
• 3. Signal & Communication Protocols: Align your control system requirements (DCS/PLC) with the correct converter option—whether 4–20 mA HART® 7, pulse/frequency output, or Modbus RS485.
• 4. Hazardous Area Approvals: Confirm whether the installation site requires Zone 1 / Div 1 explosion protection (ATEX, IECEx, FM, CSA) or standard non-hazardous general utility ratings.

Unrivaled Reliability for Marine and Industrial Utilities

The KROHNE OPTIFLUX 1100 is recognized not just as a meter, but as a robust asset for global maritime compliance and uninterrupted industrial utility management. Its reliability is built upon high-grade materials and a rigorous suite of international certifications.

Global Marine Type Approvals for Offshore Excellence

The KROHNE OPTIFLUX 1100 is specifically engineered to withstand the unique rigors of life at sea, holding certifications from all major classification societies, including DNV, ABS, LR, BV, CCS, RINA, and KR.

• Vibration and Shock Resistance: Marine engine rooms feature constant high-frequency vibration. The KROHNE OPTIFLUX 1100's fully welded, compact wafer construction prevents zero-point drift, ensuring accurate readings despite mechanical propulsion stress.
• Corrosion-Proof Seawater Handling: In Ballast Water Treatment Systems (BWTS) and scrubbers, instruments face aggressive saline spray and chemical additives. The reinforced PFA liner in the KROHNE OPTIFLUX 1100 features exceptionally low permeability, protecting internal components from salt-air ingress and chemical erosion.
• Standardized Global Integration: Compatible with EN, ASME, and JIS flange standards, the KROHNE OPTIFLUX 1100 ensures rapid "plug-and-play" replacement in international ports, minimizing vessel downtime. Pair it with a Rosemount 3051S In-Line Pressure Transmitter for complete pressure and flow monitoring in marine ballast systems.

Industrial Utility Compliance and Long-Term Stability

• NAMUR NE 107 Smart Diagnostics: Adhering to NAMUR NE 107, the KROHNE OPTIFLUX 1100 provides real-time health status (maintenance required, out of specification, or failure alerts), helping plant managers transition to predictive maintenance.
• Hastelloy® C Chemical Integrity: Equipped with high-grade Hastelloy® C electrodes, the meter maintains excellent electrical contact when measuring untreated industrial wastewater or agricultural runoff containing trace fertilizers and abrasive particles.
• IP68 / NEMA 6P Protection for Flood Zones: For installations in underground pits or outdoor utilities prone to flooding, an optional fully potted IP68 version is available for continuous submersion.

📊 Marine Certification Reference Matrix

📊 Comprehensive Technical Specifications

1. Measurement Performance Core

2. Process & Material Specifications

3. Standards & Communication Options

🛠 Expert Engineering Guide: Selection & Installation

How to Select Between KROHNE OPTIFLUX 1100 and 1050?

1. Accuracy Requirements: If your process demands a tighter tolerance than ±0.5%, the KROHNE OPTIFLUX 1100 (±0.3%) is the necessary upgrade.
2. Marine Use: For any maritime or offshore installation, the KROHNE OPTIFLUX 1100 is mandatory due to its full suite of Marine Type Approvals.
3. OEM Skid Applications: Its compact design is specifically optimized for integrated skids. Note: For Safety Instrumented Systems (SIS) requiring SIL 2/3, select the KROHNE OPTIFLUX 4400.

Installation Best Practices for Compact Piping

• Centering the Wafer: In a sandwich installation, proper alignment between flanges is vital. Misalignment creates turbulence, affecting the ±0.3% accuracy reading.
• Grounding for Stability: Utilize the Virtual Reference option to eliminate grounding rings, reducing physical footprint and potential leak paths.
• Straight Run Requirements: Maintain a minimum of 5D upstream and 2D downstream straight pipe sections for peak performance.

Frequently Asked Questions: KROHNE OPTIFLUX 1100 Integration

• Q: What makes the KROHNE OPTIFLUX 1100 suitable for marine engine rooms and ballast water systems?
  A: The KROHNE OPTIFLUX 1100 holds type approvals from major classification societies including DNV, ABS, LR, and CCS. Its fully welded compact wafer construction resists heavy vibrations, while its reinforced PFA liner handles aggressive saline environments.
• Q: How does Virtual Reference technology reduce overall footprint and installation cost?
  A: KROHNE's Virtual Reference eliminates the need for additional grounding rings or straps. The converter interprets electrode potentials directly, which dramatically reduces procurement costs and installation space in tight OEM skids.
• Q: Can the KROHNE OPTIFLUX 1100 handle vacuum conditions in industrial pipelines?
  A: Yes. The KROHNE OPTIFLUX 1100 features an embedded stainless steel mesh within its PFA liner, preventing the liner from collapsing or peeling away during severe vacuum conditions or thermal cycles.
• Q: What should I do if my piping configuration cannot meet the 5D upstream and 2D downstream straight runs?
  A: If installation space is too confined to maintain standard straight runs, turbulence may affect accuracy. For such spatial constraints, consider integrating a specialized conditioning solution like the Rosemount 3051SFC Conditioning Orifice Flow Meter.
• Q: What is the lead time and RFQ response for KROHNE OPTIFLUX 1100 inquiries?
  A: We maintain active inventory for standard DN10–DN150 units and guarantee an official technical quotation response within 24 hours.
