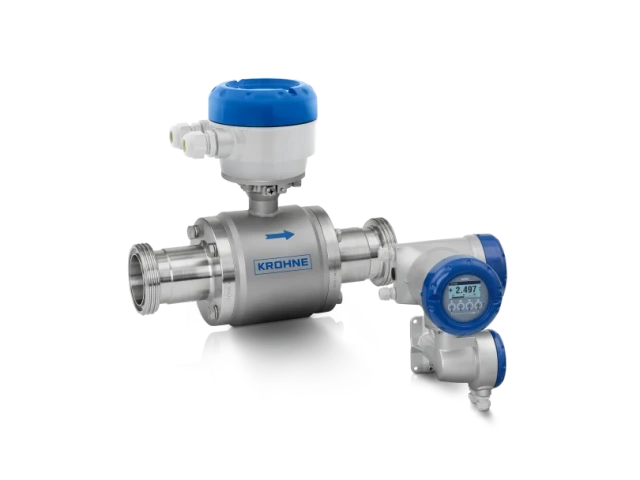

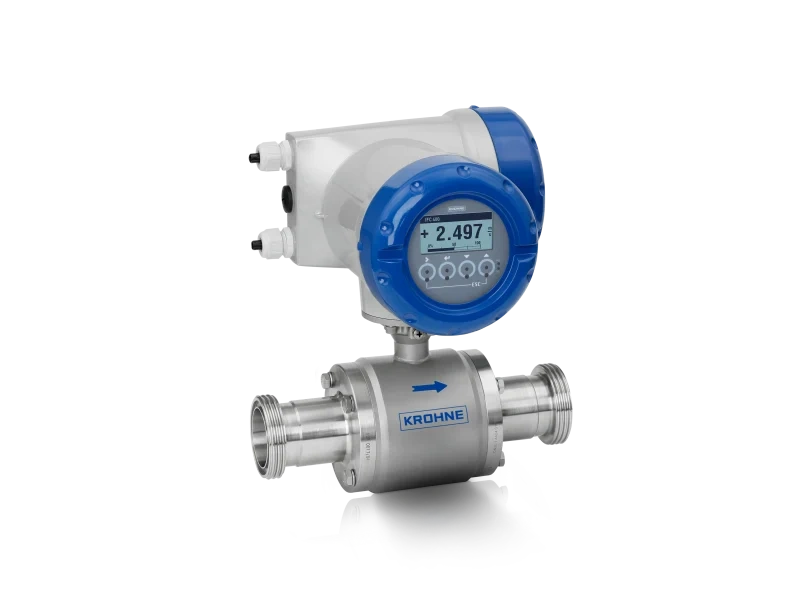

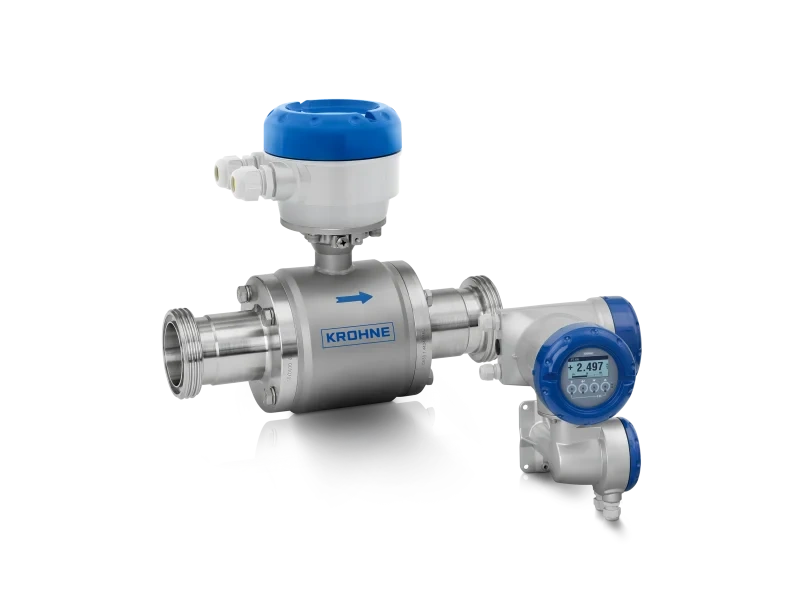

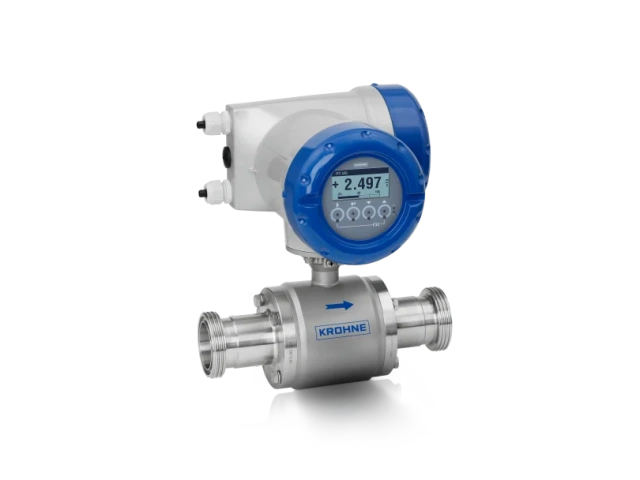

KROHNE OPTIFLUX 6400 Hygienic Electromagnetic Flowmeter

The KROHNE OPTIFLUX 6400 is the definitive high-precision hygienic electromagnetic flowmeter designed for demanding food, beverage, and pharmaceutical applications where absolute sanitation and absolute batching repeatability are mandatory. Delivering an industry-leading accuracy of ±0.2%, it solves the classic industry headache of liner collapse during high-temperature SIP/CIP vacuum phases by utilizing a unique PFA liner reinforced with an embedded stainless-steel grid. Furthermore, its integrated Multi-Phase Operation (MPO) technology ensures rock-solid signal stability even when measuring challenging multi-phase media like aerated soft drinks, pulpy fruit concentrates, or yogurt with fruit chunks. If your process requires uncompromised FDA, 3A, and EHEDG compliance combined with zero-downtime wireless health verification, the KROHNE OPTIFLUX 6400 is the exact engineered solution you need.

Overview: What You Will Learn in This Guide

As a specialized industrial instrumentation supplier, we know that selecting a hygienic flowmeter involves more than just picking a line size. To help your engineering team make an informed decision, this expert field guide covers:

• Comprehensive Technical Specifications – Full details on performance, process limits, and communication.
• Application Decision Tree – A step-by-step logic path to confirm if this meter fits your line.
• Pros, Cons & Recommended Applications – An honest look at the capabilities and limitations of this instrument.
• Alternative Selection Table – How the 6400 compares to ceramic or water-specific alternatives to prevent internal traffic cannibalization.
• Real-World Procurement Checklist – Critical physical and electrical criteria to verify before requesting a quote.
• HACCP/Audit FAQs – Frequently asked questions regarding food safety compliance and field verification.

Comprehensive Technical Specifications

Application Decision Tree: Is the KROHNE OPTIFLUX 6400 Right for You?

Follow this quick engineering logic path to verify your deployment selection:

1. Is your medium fluidly conductive (≥20 μS/cm)?
   • No: Stop. Electromagnetic meters will not work. You need a Coriolis mass flowmeter.
   • Yes: Proceed to Step 2.
2. Does your process involve aggressive CIP/SIP cycles with fast temperature drops that create a vacuum?
   • Yes: The KROHNE OPTIFLUX 6400 is highly recommended. Its reinforced PFA liner will not pull away or collapse under vacuum.
   • No: Proceed to Step 3.
3. Does the product contain entrained air bubbles, high fibers, or solid fruit chunks?
   • Yes: Select the KROHNE OPTIFLUX 6400 with MPO (Multi-Phase Operation) enabled. It filters particle noise that blinds standard EMFs.
   • No: You can safely proceed with standard hygienic configurations.

Pros, Cons & Recommended Applications

Advantages (Pros)

• Immune to Vacuum Failures: The stainless-steel grid mechanically locks the PFA liner to the flow tube body. It cannot balloon or tear during vacuum spikes.
• Zero Gasket Intrusion: The proprietary L-shaped seal ensures there are no expansion lip gaps or crevices for organic matter to lodge and fester.
• No Grounding Hardware: Virtual Reference grounding saves significant space on tight valve matrices and reduces hardware costs in plastic piping systems.
• Paperless Audits: Generate NAMUR NE 107 health reports via the OPTICHECK Flow Mobile App over Bluetooth without breaking the sterile process seal.

Limitations (Cons)

• Conductivity Threshold: Requires the fluid to have at least a 20 μS/cm conductivity level (Will not read pure demineralized water or oils).
• Extreme Abrasions: While PFA is incredibly tough for food items, for continuous high-concentration abrasive industrial crystalline slurries, a pure ceramic tube is structurally superior.

Recommended Applications

• High-speed milk and dairy batching lines.
• Fruit pulp, juice concentrate, and syrup blending skids.
• Aseptic pharmaceutical dosing and filtration modules.
• Carbonated soft drink and beer production loops.

Technology Comparison: Delineating the KROHNE Electromagnetic Line

To ensure you don't compromise your process or over-spec your budget, understand how the 6400 sits alongside other specialist meters in our inventory:

Real-World Procurement Checklist: Replacing or Specifying Your Meter

Expert Advice from the Field: If you are planning to swap out an older, failing hygienic flowmeter or updating an existing process skid, do not simply order based on nominal line size. To guarantee a drop-in mechanical replacement and immediate SCADA integration, you must verify the following four critical criteria before confirming your order:

1. Hygienic Process Fittings & Standards: Confirm if your existing pipe uses Tri-Clamp (ISO 2852), DIN 11851 threads, or Aseptic Weld Ends (DIN 11850). Face-to-face installation lengths vary drastically between these connection types.
2. Static System Pressure & SIP Temp Limits: Ensure your line pressure doesn't exceed the rating of the hygienic clamps (often lower than the 40 barg meter body limit) and that your steam temperature maxes out below 140°C.
3. Bus Communication Protocol: Verify your PLC card requirements. Do you need standard 4-20mA with HART 7 emulation, or a native digital backbone like Modbus RTU or PROFINET?
4. Hazardous Area Permitting: If you are measuring high-proof alcohol in a distillery or spirit blending plant, you must specify an ATEX/IECEx Zone 1 or Zone 2 explosion-proof transmitter housing.

Frequently Asked Questions (FAQ)

Q: Can the OPTIFLUX 6400 handle a full vacuum during hot cleaning cycles?

A: Yes. Traditional PFA liners can pull away or blister under sudden vacuum conditions (like when cold rinse water immediately follows 130°C steam). The OPTIFLUX 6400 solves this completely by embedding a stainless-steel reinforcing mesh into the PFA liner, mechanically anchoring it to the steel body case to ensure it remains 100% vacuum-proof.

Q: Does this meter require upstream and downstream grounding rings in plastic piping?

A: No. Thanks to KROHNE's proprietary Virtual Reference grounding technology, the converter's input amplifier continuously measures and balances the internal potentials. You do not need to purchase or install expensive, high-maintenance grounding rings, even when installing the meter into non-conductive plastic or lined pipe networks.

Q: How do we verify the meter's calibration health for strict food safety audits?

A: You can perform complete, traceable verification checks without removing the flowmeter from the pipe or breaking the sterile process seal. By utilizing the built-in Bluetooth 5.0 connection and the KROHNE OPTICHECK Flow Mobile App, your quality control team can run a wireless diagnostic health check that tests over 80 internal points, generating a downloadable report that fully complies with HACCP and NAMUR NE 107 auditing standards.

Related Instrumentation for Advanced Process Skids

Building an automated dosing, mixing, or separation skid? Review our complementary technical analyses:

• System Safety First: Integrating the Rosemount 3051S Pressure Transmitter for Real-Time Line Monitoring

Get a Customized KROHNE OPTIFLUX 6400 Quote

As an experienced industrial supplier, HYZL Professional Instrumentation delivers fully configured, factory-calibrated flow solutions tailored to your specific process parameters. Whether you need a tiny DN2.5 dosing meter with Tri-Clamps or a DN150 master collection line unit with PROFINET communication:

👉 Contact Our Sanitary Application Engineers Today to verify your piping dimensions and receive an official commercial proposal within 24 hours.
