KROHNE AF-E 400 Ultra-Compact Electromagnetic Flowmeter with IO-Link

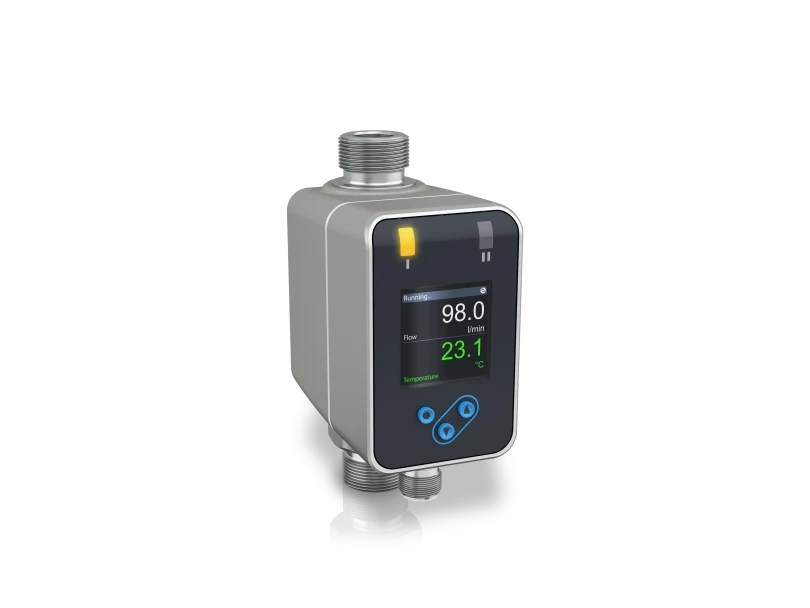

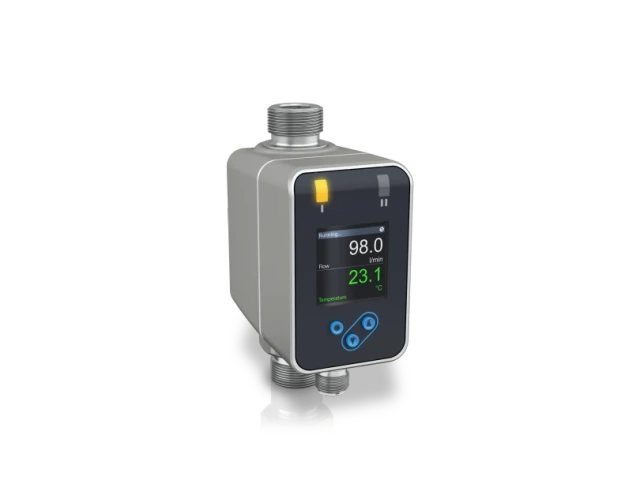

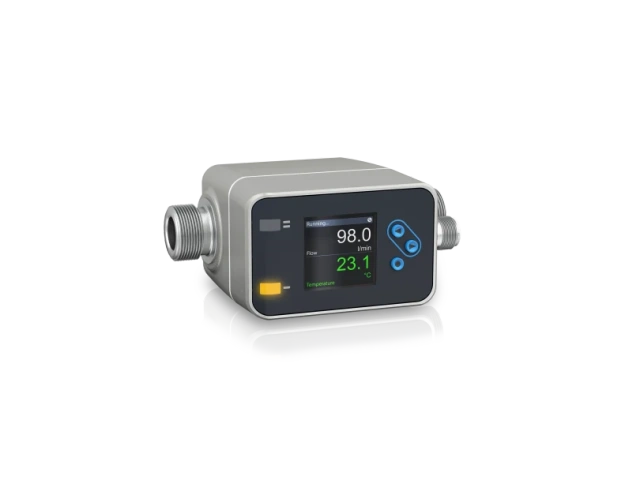

In modern automated production facilities and modular machinery, plant floor space is at an absolute premium. The KROHNE AF-E 400 is an ultra-compact, wafer-style electromagnetic flowmeter specifically engineered to thrive in tightly packed industrial environments and high-density tooling manifolds. Unlike traditional, bulky inline meters that require long straight pipe runs and wide installation spacing to avoid magnetic interference, this advanced mag meter features a revolutionary magnetic circuit design. This technical breakthrough allows multiple units to be mounted in parallel almost touching each other—with a clearance as close as 2 mm—with absolutely no cross-talk or signal distortion. It serves as the definitive choice for monitoring cooling water lines on welding equipment, bending machines, robotic arms, and compact chemical dosing skids.

For applications requiring secondary, ultra-precise differential pressure mapping across a complex pipeline manifold, pairing your automation system with compact differential instrumentation delivers an uncompromised engineering layout.

High-Resilience Engineering for Intelligent Utility Monitoring

Operating under fluctuating process pressures can quickly degrade standard industrial instrumentation. The AF-E 400 overcomes these hostile stress factors through its specialized, compact internal architecture:

• Cavitation & Pressure Resilience: The unique round bore tube configuration is molded from high-grade Polyetheretherketone (PEEK). This reduction design enables a high turndown ratio and minimizes pressure loss while remaining highly resilient against sudden hydraulic pressure shocks up to 16 barg.
• Dual-Sensor Multi-Variable Efficiency: The flowmeter features integrated temperature measurement alongside volumetric flow tracking, completely eliminating the need to drill, tap, or install a separate temperature sensor in your crowded piping manifold.
• Robust Stainless Steel Protection: The entire internal architecture is wrapped in a heavy-duty, 2 mm thick casted stainless steel housing, making it highly resistant to external mechanical impacts and harsh chemical washdowns.

Next-Generation IO-Link Architecture for Smarter Factory SCADA Integration

To meet modern smart-factory requirements, the AF-E 400 converter provides elite digital flexibility. By incorporating IO-Link and Modbus RTU capabilities, the device transmits rich multi-variable datasets (including flow rate, totalized flow, temperature, and device status) directly to your PLC. IO-Link completely eliminates the need for manual programming during commissioning. If a unit ever needs to be replaced, the master controller automatically pushes the stored parameters to the new sensor, cutting device swap-out times from hours to seconds.

KROHNE AF-E 400 Comprehensive Specifications

1. Measurement & Digital Automation Performance

2. Mechanical, Material & Process Boundaries

Expert Engineering Guide: Selection, Installation, and Maintenance

How to Correctly Size Your AF-E 400 Manifold?

• Flow Velocity Optimization: Do not simply match your existing pipe size. Select a nominal size where your average operational flow sits comfortably within the upper 50% of the meter's scale. For larger utility headers running up to 500 l/min, utilize our dedicated adapter sets.
• Safety Circuit Evaluation: The AF-E 400 is highly optimized for fast-acting factory automation. However, if your skid configuration forms part of a dedicated safety-instrumented loop requiring absolute functional safety, you should explore our specialized safety-certified KROHNE flowmeter matrix supporting SIL2/SIL3 protocols instead.

Installation Best Practices for High-Density Tooling Layouts

• Parallel Bracket Mounting: When mounting multiple AF-E 400 meters side-by-side to feed cooling water to multi-axis robotic welders, you can clamp them together with a minimal 2 mm gap. Ensure your piping manifold is securely bracketed to isolate the PEEK flow tubes from excessive piping torque.
• Thread Sealing Precautions: When applying PTFE thread tape or sealing compound, ensure no excess material extends past the thread edge into the fluid stream, as stray tape fibers can disrupt the electromagnetic fields inside the PEEK tube.
• Orientation Versatility: Thanks to the rotatable full-color display, the meter can be mounted horizontally, vertically, or upside-down. For horizontal runs, ensure the electrode axis remains horizontal to prevent air bubbles from insulating the sensing elements.

Zero-Maintenance Upkeep and Field Verification

Because the full-bore PEEK tube contains absolutely zero impellers, bearings, or restrictions, the AF-E 400 suffers no internal mechanical wear and creates negligible pressure drop. To maintain compliance with annual factory quality audits, technicians do not need to dismantle your dense automated skids. By deploying a field verification tool, engineers can perform an inline health check of coil resistance and transmitter electronics drift against original factory fingerprints without shutting down production. For tiny, non-critical auxiliary lines where a digital electronic meter exceeds tighter budget constraints, a purely mechanical low-flow rotameter serves as an ideal budget alternative.

KROHNE AF-E 400: Smart Automation & IO-Link FAQ

Q: How close can multiple AF-E 400 mag meters be installed to one another without signal interference?

A: Thanks to the specialized design of its magnetic circuit, field strength, and advanced electronics, the AF-E 400 guarantees zero cross-talk. This allows multiple meters to be mounted in parallel almost touching each other—as close as 2 mm (0.08 inches) apart. It is ideal for high-density manifolds feeding cooling lines or chemical dosing skids.
