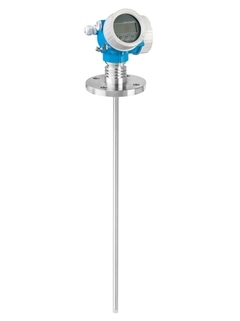

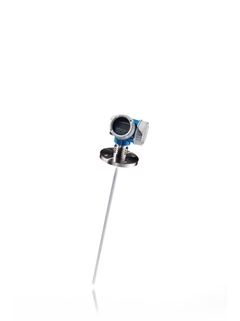

Guided Wave Radar Level Transmitter for Corrosive & High-Pressure Processes

In aggressive chemical processing, oil-water separation matrixes, and sterile pharmaceutical blending, continuous volumetric assurance demands absolute sensor isolation. This premium Guided Wave Radar (GWR) Level Transmitter represents the apex of industrial time-of-flight microwave technology, engineered specifically to operate where non-contact non-guided sensors fail. By propagating high-frequency electromagnetic pulses along a rigid or flexible wave element, the system completely bypasses the typical measurement errors caused by dense industrial steam blankets, boiling surface foam, aggressive turbulent topographies, and rapid fluid density fluctuations. It delivers a certified reference accuracy of +/-2 mm (+/-0.08 Inch) for both continuous total volume tracking and multi-strata liquid-liquid interface mapping.

As a global premier industrial control asset supplier, Hanyu Zhilian (International) Supply Chain secures your critical project timelines by balancing strict European safety manufacturing standards with flexible cross-border logistics deployment.

Advanced Structural Architectures & Internal Sensor Intelligence

Hostile process matrices like hot oxidizing acids, localized chlorides, and pressurized volatile organic compounds (VOCs) easily compromise basic level probes. This guided wave radar mitigates mechanical fatigue through advanced material and firmware configurations:

• Dual-Ceramic Graphite Pressure Seal Matrix: Utilizing gas-tight ceramic-to-metal feedthrough seals with secondary graphite backings, the transmitter head establishes an impenetrable barrier, preventing hazardous process vapors from leaking into the electronics housing under high pressure.
• Seamless PFA-Extruded Probe Passivation: Unlike basic sprayed coatings that flake under thermal cycling, our heavy-duty rod and cable wave elements feature fully extruded, non-porous PFA insulation, guaranteeing long-term corrosion isolation in hot sulfuric, hydrochloric, and nitric acid concentrations.
• Dynamic Gas Phase Compensation (Coaxial Probes): For high-pressure steam boilers and saturated gas applications, an integrated mechanical reference distance allows the transmitter's internal microprocessors to automatically calculate and correct for velocity shifts in gas phases, eliminating up to 30% of traditional high-temperature measurement drift.
• In-Situ Heartbeat Technology Validation: Compliant with strict NAMUR NE 107 diagnostic architectures, the system executes automated internal clock, reference voltage, and microwave crystalline oscillator health checks in under 90 seconds, printing an audit-ready, ISO 9001-compliant verification PDF directly through the digital interface without breaking active pipeline seals.

Global Safety Redundant & Modern SCADA Interoperability

To safely merge with the distributed control architectures of automated petrochemical complexes across Europe, the Middle East, and Central Asia, the device supports comprehensive hazardous loop redundancy:

• IEC 61508 Certified Functional Safety: Rigorously evaluated for high-reliability loops, supporting single-device SIL2 and redundant 1oo2 architectures up to SIL3 Safety Integrity Levels.
• Intrinsically Safe & Flameproof Isolation: Fully certified under international regulatory frameworks including ATEX, IECEx, CSA, and NEPSI for unrestricted deployment in Zone 0, Zone 1, and Zone 2 explosive environments.
• Multi-Variable Telemetry Streaming: Directly transmits simultaneous continuous level and upper-layer oil-water interface coordinates over a single loop. For high-density tank farms requiring concurrent hydrostatic head calculations, integrating this device alongside a specialized high-precision pressure transmitter provides complete multi-dimensional safety.

Differentiating Technical Specifications Matrix

Guided Wave Radar Technology: Selection, Field Installation, & Maintenance FAQ

Q: How does this Guided Wave Radar eliminate measurement drift caused by extreme boiling foam and steam?

A: Conventional non-contact top-mounted radars emit free-space waves that scatter or become absorbed when encountering heavy steam molecules or thick industrial foam layers. Guided Wave Radar completely neutralizes this attenuation by focusing low-energy, high-frequency microwave pulses along a rigid rod or coaxial pipe guide. The pulse remains tightly contained within this physical boundary, allowing it to cut through dense surface foam and heavy hydrocarbon vapors without loss of energy, striking the true liquid surface with maximum signal-to-noise ratio.

Q: What financial procurement channels are available for entities operating under SWIFT transaction friction in Russia?

A: To bypass international cross-border clearance delays and ensure uninterrupted maintenance supply chains for critical industrial infrastructure in the Russian market, we accept direct RMB (Yuan) corporate bank transfers. This direct settlement path enables immediate order clearance, fully compliant customs documentation, and rapid logistics release from our dedicated ex-stock reserves.

Q: What are the installation boundary rules regarding upper and lower probe dead zones (blocking distances)?

A: To ensure highly linear measurement across the entire tank height, operators must account for the mechanical transition zones. For standard single rod configurations running a medium with a dielectric constant of DC > 10, the typical upper dead zone is 200 mm (7.87") measured from the bottom of the process flange, and the lower dead zone is 50 mm (1.96") at the end of the probe tip. If the target fluid drops below DC 5, these blocking distances expand slightly, and a coaxial probe layout should be selected to fully preserve accuracy at the absolute top and bottom of the vessel.

Q: What is the recommended technical upgrade path if my plant loop scales from static level monitoring to high-pressure corrosive chemical injection?

A: If your manufacturing skids advance from passive chemical storage monitoring to active, high-pressure hazardous fluid dosing or legal-for-trade custody transfer piping, we recommend migrating your hardware specification to a dedicated heavy-duty mass flow network such as the Micro Motion ELITE CMF350P Coriolis mass flow matrix, which delivers premier fiscal-grade +/-0.05% mass accuracy under process pressures reaching 2,250 psig.
