⚡ Quick Procurement Summary:

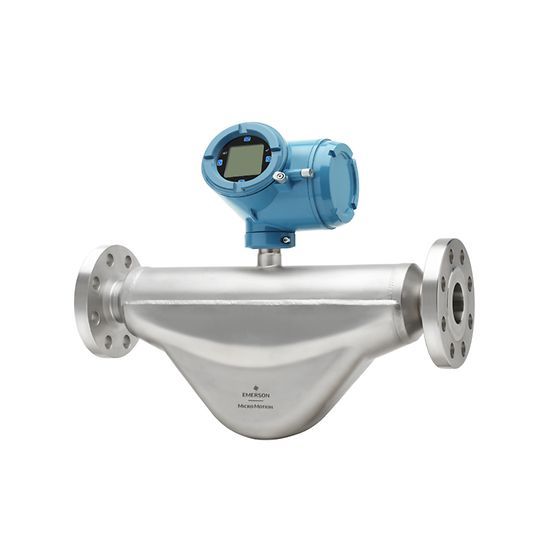

The Micro Motion G200M eliminates the traditional trade-offs between installation weight, footprint constraints, and true mass flow precision in 2-inch (DN50) process lines. Weighing a lean 18.1 kg (40 lbs) with a face-to-face dimension of exactly 52.6 cm (20.73"), this 316L stainless steel instrumentation package bypasses the need for structural piping dead-weight supports while securing high-tier fiscal billing accuracy. Unlike bulky older-generation Coriolis meters, this streamlined architecture allows engineers to pack multi-brand loop components tightly into modular skids without compromising pipeline structural integrity.

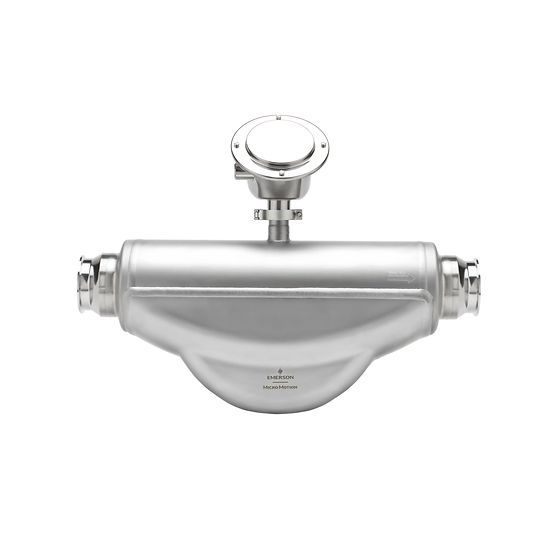

For life sciences and food/beverage MRO supply chains, the G200M features a unique dual-bent tube geometry optimized for gravity-driven self-drainage, guaranteeing zero fluid holdup whether deployed in vertical risers or horizontal headers. To permanently eliminate batch contamination vectors during Clean-in-Place (CIP) and Sterilize-in-Place (SIP) thermal shocks, the internal fluid-wetted contact zone complies strictly with ASME BPE, EHEDG, and 3-A certifications. For ultra-pure biopharma processing, Hanyu Zhilian supplies this model with an optional electropolished internal surface finish down to 15 Ra (0.4 μm) to prevent bio-film attachment.
Selecting the right instrumentation requires balancing technical performance against lifecycle budgets. Below is an engineering comparison for skid designers:
| ✅ Strengths (Pros) | ⚠️ Limitations & Trade-offs (Cons) |
|---|---|
|
|
| Feature | Engineered Performance Details |
|---|---|
| Mass Flow Uncertainty | Standard: ±0.25% | Elite Calibration: ±0.10% of rate |
| Liquid Repeatability | Ultra-tight 0.05% for critical blending loops |
| Pressure Limits | Continuous operating rating up to 1,450 psig (100 barg) |
| Density Tracking | Real-time continuous tracking at ±0.005 g/cm³ |
| Wetted Material Options | Standard 316L SS | Optional Electropolished 15 Ra (0.4 μm) |
When replacing older Coriolis meters (such as legacy Micro Motion F-Series, CMF200, or third-party equivalents) with a new G200M, our field engineering team recommends verifying the following 5 critical parameters prior to issuing an RFQ:
💡 Application Cost-Optimization Tip: The G200M is engineered for high-value mass flow precision. If your line is a general water, conductive utility, or basic drainage loop where Coriolis accuracy is unneeded, consider deploying an Endress+Hauser Promag H Hygienic Electromagnetic Flowmeter for a more cost-effective solution.
To keep process lines operational without shutting down production for regulatory audits, the G200M integrates Smart Meter Verification (SMV). Field technicians can initiate a comprehensive digital structural diagnostic via the transmitter interface and receive a traceable compliance report in less than 90 seconds. This tool analyzes tube integrity, alignment, and core drive-gain changes without breaking the process seal, saving labor costs and eliminating production downtime.
A: Under optimal field configurations with the advanced accuracy calibration package, the G200M achieves a liquid mass flow error margin of ±0.10% of rate, alongside a repeatability threshold of 0.05%. For differential pressure gas or steam lines where Coriolis is not required, explore our Rosemount 3051CFC Compact Orifice Flow Meter.
A: Yes. The advanced core processing electronics dynamically adapt to two-phase flow fluctuations, preventing transmitter saturation and 0% signal dropouts when entrained gas pockets pass through the line.
A: Standard 316L housing suits general sanitary lines. However, pharmaceutical cleanrooms require the optional electropolished 15 Ra (0.4 μm) surface finish to comply fully with ASME BPE sterile manufacturing protocols.
Need exact model code cross-referencing, custom flange sizing, or expedited stock delivery?
