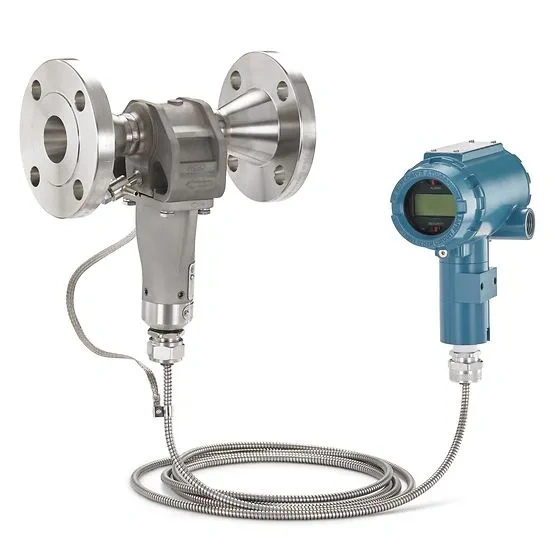

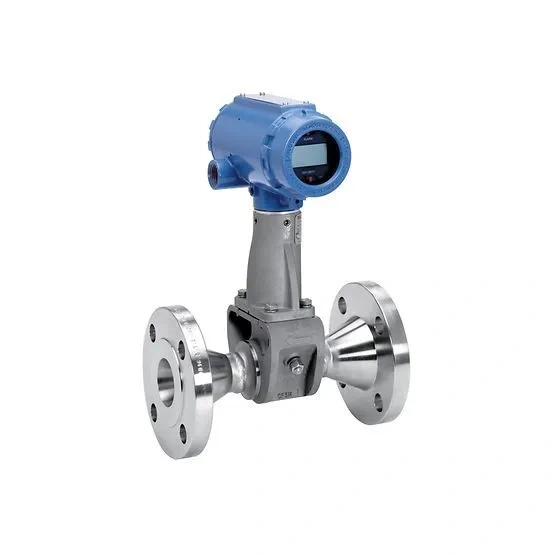

Rosemount 8800 Reducer Vortex Flow Meter: Fix Low Steam Velocity Without Pipe Modifications
If your steam lines suffer from low-flow drop-outs during off-peak shifts, or if your engineering budget cannot absorb the field welding and NDT inspection costs of installing external pipe reducers, the Rosemount 8800 Reducer Vortex Flow Meter provides an all-in-one solution. Designed with an integral cast reducer inside a standard 8800 body footprint, this meter doubles lower-limit flow measurement sensitivity across pipe sizes from 1" to 14" (DN25 to DN350). Operating safely in extreme process temperatures from -330°F to 800°F (-200°C to 427°C), it allows you to downsize meter throat velocity without altering face-to-face piping dimensions or creating additional flange leak points.
How the Rosemount 8800 Reducer Solves Real-World Steam & Gas Metering Challenges
1. Double Low-Flow Rangeability Without Changing Face-to-Face Dimensions
In oversized boiler headers, low fluid velocity often falls below standard vortex shedding limits, causing standard flowmeters to read zero and resulting in unmetered steam loss. The integral reducer design accelerates fluid velocity over the shedder bar, extending lower-limit measuring sensitivity by 2x. Best of all, because its face-to-face dimension is identical to standard line-size 8800 flanged meters, instrument technicians can drop it straight into existing line spaces without cutting pipes or welding expanders.
2. Eliminate Leak Points with a Gasket-Free Solid Cast Body & CPA Option
High-temperature thermal cycling in steam lines frequently destroys internal O-rings and gaskets, leading to fugitive emissions and unscheduled shutdown maintenance. The 8800 Reducer features a solid, gasket-free welded body with zero internal ports or seals to degrade. For hazardous chemical or high-pressure steam applications, the optional CriticalProcess™ Valve (CPA option) provides a double-containment safety barrier, letting operators check seal integrity without stopping production.
3. Service Sensors Online Under Full Operating Line Pressure
Shutting down a main header just to replace a damaged flow sensor costs thousands of dollars per hour in lost plant throughput. The 8800 Reducer utilizes a non-wetted, mass-balanced sensor isolated from the process stream. Technicians can replace sensor elements or internal RTDs under full operating line pressure without opening primary process seals or draining impulse lines.
4. ADSP Vibration Filtering & Built-In Signal Calibration
Nearby compressors and pipe line vibration often create false pulse counts in conventional vortex meters. Emerson’s Adaptive Digital Signal Processing (ADSP) with visual filtering dynamically isolates vortex shedding frequencies from mechanical plant noise. Furthermore, every 8800 Reducer features an internal signal generator, allowing instrument engineers to verify transmitter electronics in the field without carrying bulky signal calibrators.
Rosemount 8800 Reducer Metrological & Hardware Specifications
| Technical Index | Verified Specification Limits | Practical Engineering Benefit |
|---|---|---|
| MultiVariable Steam Accuracy | • Steam (MPA option): ±1.3% of rate (30 to 2,000 psia) • Steam (MCA option): ±1.2% (150 psia), ±1.3% (300 psia), ±1.6% (800 psia), ±2.5% (2,000 psia) • Steam (MTA/MCA option): ±2.0% of mass flow |
Direct mass flow calculations eliminate density errors during boiler pressure fluctuations |
| Volumetric Accuracy | • Liquid Volumetric: ±0.65% of rate • Gas & Steam Volumetric: ±1.0% of rate • Water Mass (MTA/MCA option): ±0.70% of mass flow |
High-precision utility tracking for custody transfer and internal plant balance |
| Turndown Ratio | 38:1 wide dynamic range | Maintains flow tracking during low-demand night shifts without dropout |
| Line Sizes & Footprint | 1" to 14" (DN25 to DN350) | Matches standard 8800 face-to-face length | Saves space on tight skids and avoids cutting or altering existing pipework |
| Flange Pressure Ratings | • ANSI Class 150 to 1500 • DIN PN 10 to PN 160 • JIS 10K to 40K |
Fully compatible with high-pressure utility steam and chemical pipe headers |
| Wetted Materials | • Stainless Steel: 316 / 316L and CF3M • Nickel Alloy: C-22 and CW2M • High Temp Carbon Steel: A105 and WCB • Low Temp Carbon Steel: LF2 and LCC • Duplex: UNS S32760 and 6A |
NACE MR0175 compliant metallurgy protects against aggressive sour gas and condensate erosion |
| Digital Protocols | • 4-20 mA with HART® 5 / 7 (optional pulse) • FOUNDATION Fieldbus ITK6 (2 AI, 1 LAS, 1 Integrator, 1 PID) • Modbus RS-485 (4 dynamic process variables) |
Seamless connection to Emerson DeltaV, Yokogawa DCS, and PLC energy systems |
Field Cost Comparison: Rosemount 8800 Reducer vs. Standard Flowmeter + External Reducers
| Project Cost & Execution Factor | Rosemount 8800 Reducer Vortex | Standard Vortex + External Reducers |
|---|---|---|
| Field Installation Expenses | $0 Extra (Direct drop-in installation) | $2,500 – $4,500 (Pipe cutting, welding, extra flanges, & NDT tests) |
| Required Straight Pipe Run | Shorter (Integral reducer acts as a flow conditioner) | Longer (Needs 20D–35D after external reducer fittings) |
| Potential Leak Paths | Zero Internal Leaks (Gasket-free cast body) | High (Multiple extra welded joints and flange gaskets) |
| Low-Velocity Sensitivity | Doubled (Maintains signal at half velocity) | Standard (Drops out during low winter/night loads) |
| Sensor Serviceability | Online replacement without opening containment | Requires line shutdown and depressurization |
Complementary Flow Measurement Solutions
To set up full density compensation on superheated steam headers using HART protocol, pair this meter with the high-accuracy Rosemount 3051S In-Line Pressure Transmitter.
If your installation space is tight and requires a lightweight wafer body, review the Rosemount 8800 Wafer Vortex Flow Meter. For conductive cooling water lines where zero pressure drop is required, explore the Endress+Hauser Proline Promag W 400 Flowmeter.
Frequently Asked Engineering Questions: Rosemount 8800 Reducer
Q1: Why choose the Rosemount 8800 Reducer over adding field pipe reducers?
A1: The Rosemount 8800 Reducer integrates cast reducers directly into the meter body. This eliminates field welding, extra flanges, and costly NDT radiograph inspections while maintaining standard line face-to-face dimensions and doubling lower-limit flow sensitivity.
Q2: Does the 8800 Reducer reduce upstream straight pipe requirements?
A2: Yes. Because the reducer is built into the meter body, it conditions the flow profile internally, reducing required straight pipe runs compared to field-assembled reducers and saving valuable skid/pipe rack space.
Q3: What do the MultiVariable MTA, MCA, and MPA options mean for steam measurement?
A3: MTA integrates a RTD temperature sensor for saturated steam mass flow. MPA accepts a pressure input via HART for superheated steam compensation. MCA combines temperature and density algorithms for maximum mass accuracy up to ±1.2% in steam.
