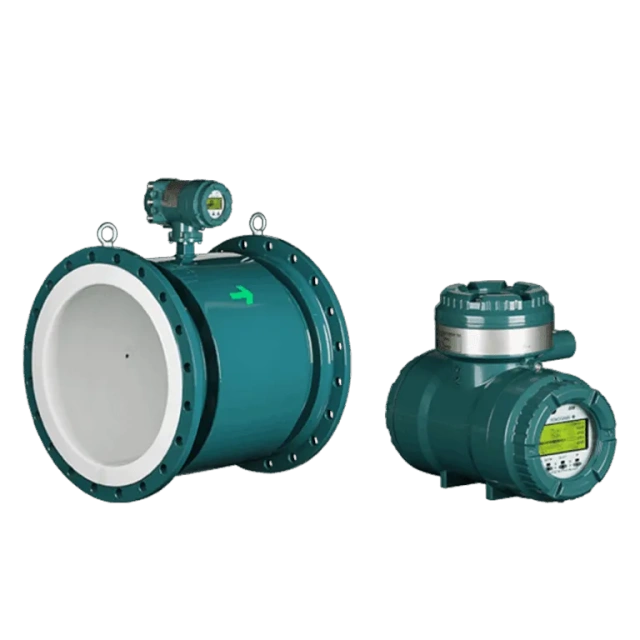

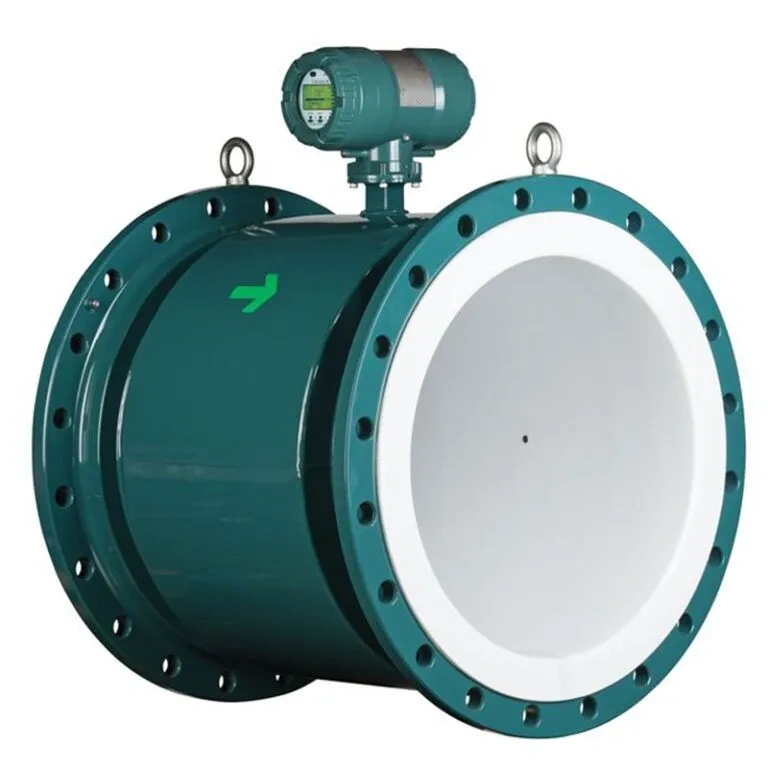

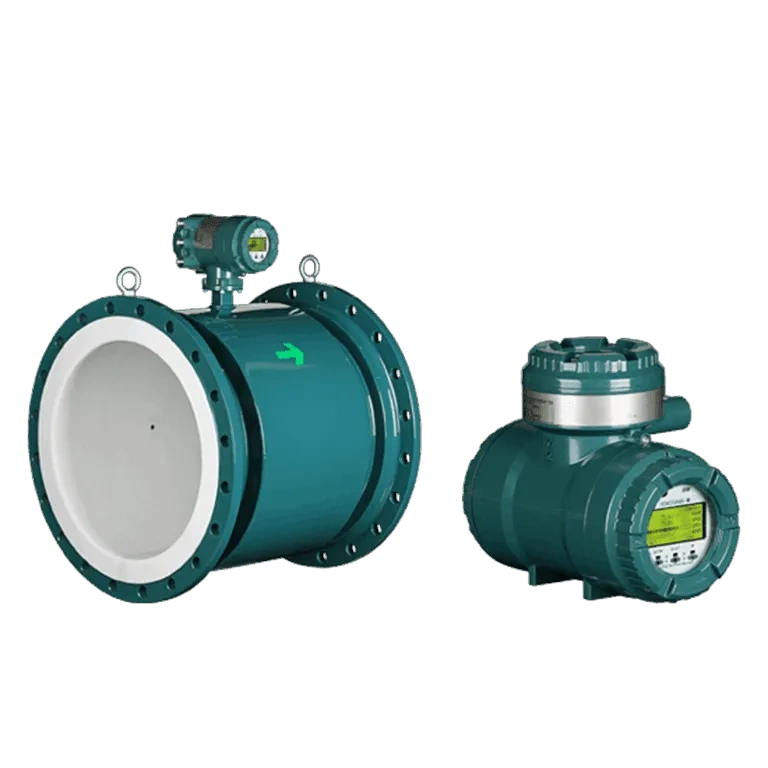

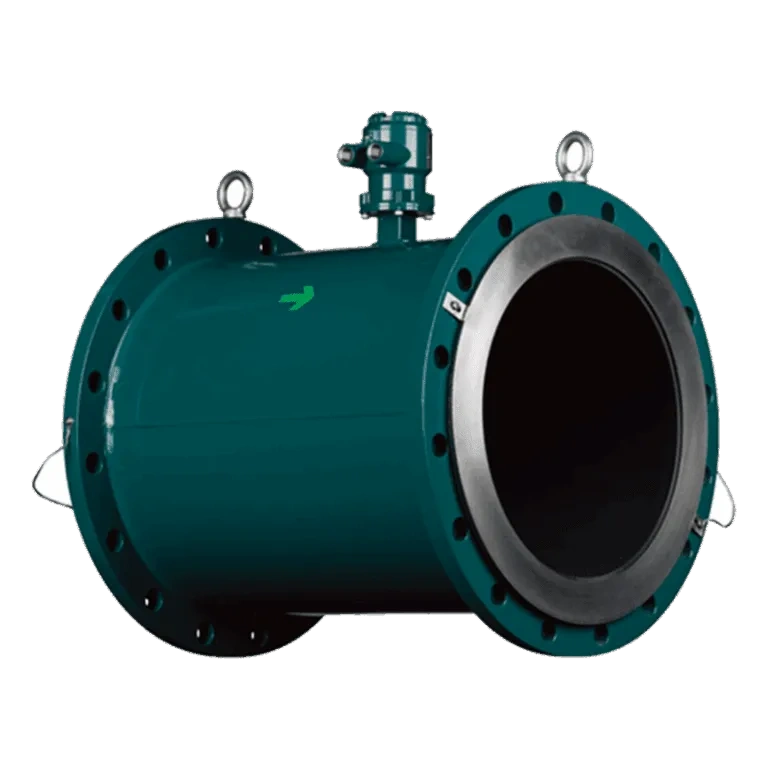

The ADMAG AXW is a high-quality, reliable magnetic flowmeter.
Certified to SIL2 complied with functional safety standard IEC 61508, it can be used in safety instrumented systems up to SIL2 in simplex configuration and SIL3 in a redundant configuration. In addition, the AXW is certified in the Water industry with the NSF61 approval for drinking water.
Product Details
Description
The ADMAG Total Insight (TI) AXW is an electromagnetic flow meter featuring enhanced settings for customized setups, pre-defined trend views, and multiple configuration sets for fast changeover through microSD card. The ADMAG TI AXW comes standard with built-in verification, reducing total cost of ownership.
Some of the highlights of the ADMAG TI AXW include:
ADMAG Converters & Related Products:

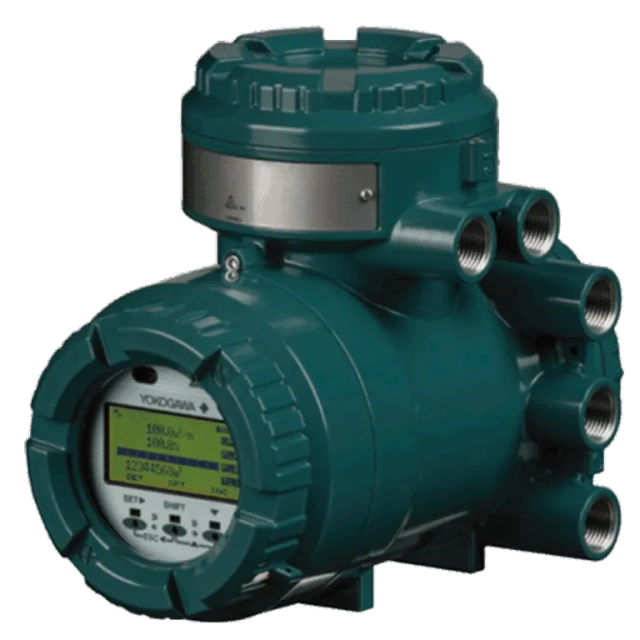

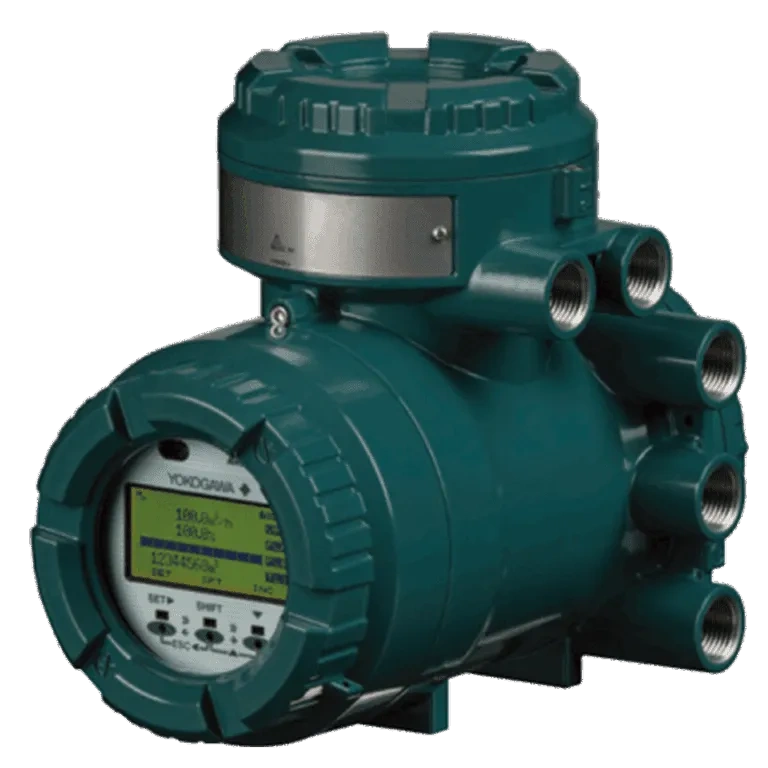

AXW4A ADMAG TI Remote Converter
AXF11 Magnetic Flow Converter
FieldMate
Specifications
|
Nominal Pipe Size |
500 to 1800 mm (20 to 72 inch) (General-purpose / Submersible) |
|
Power Supply |
100 to 240 V AC or 100 to 120 V DC, 24 V AC / DC [ combined with AXFA11 ] |
|
Output Signals |
One current output, One pulse output, One alarm output, Two status outputs [ combined with AXFA11 ] |
|
Fluid Temperature |
-10 to +120 deg.C (+14 to +248 deg.F) [ depends on model type ] |
|
Ambient Temperature |
-10 to +60 deg.C (+14 to +140 deg.F) [ depends on model type ] |
|
Accuracy |
±0.35% of rate |
|
Fluid Conductivity |
20 μS /cm or larger [ depends on model type ] |
|
Lining Material |
Fluorocarbon PTFE |
|
Electrode Material |
JIS SUS316L (AISI 316L SS Equivalent) Hastelloy C276 Equivalent |
|
Process Connection |
ASME, AWWA, EN, JIS and AS |
