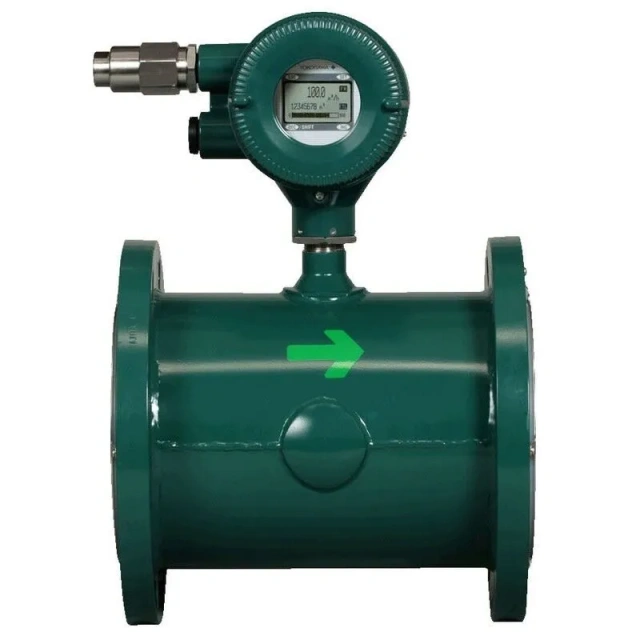

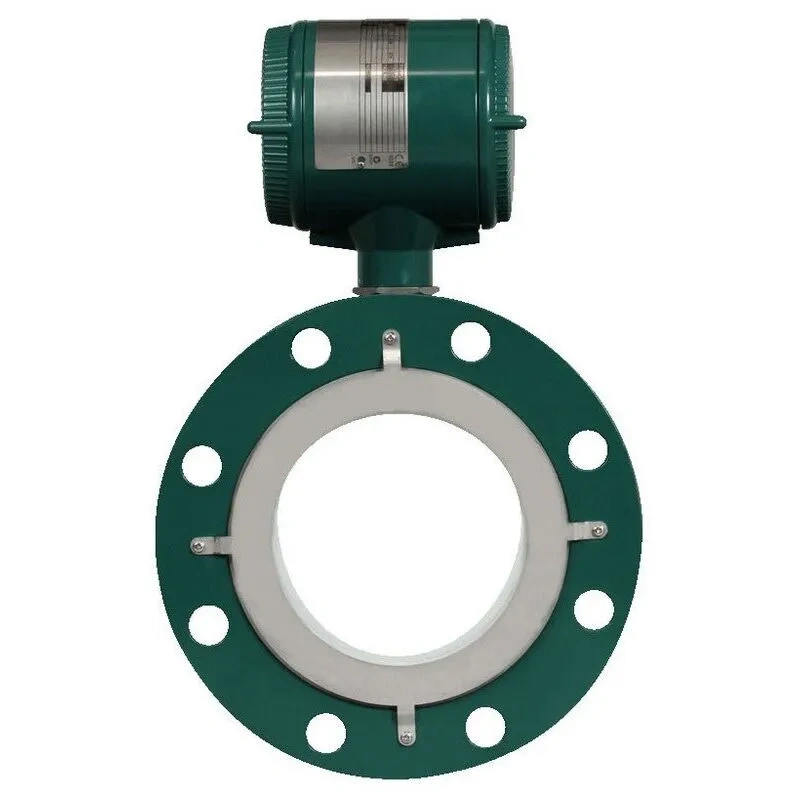

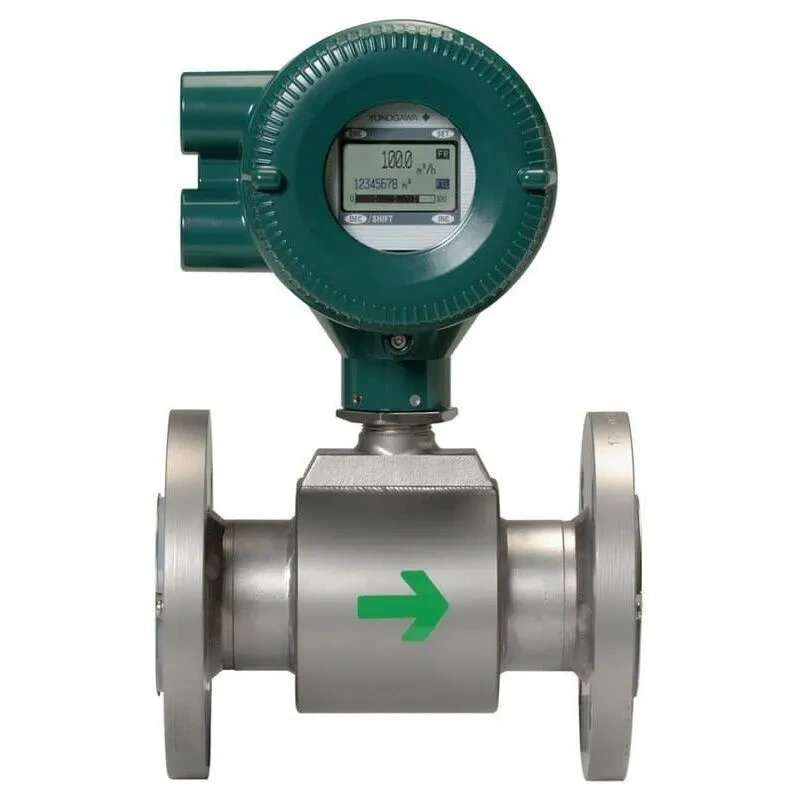

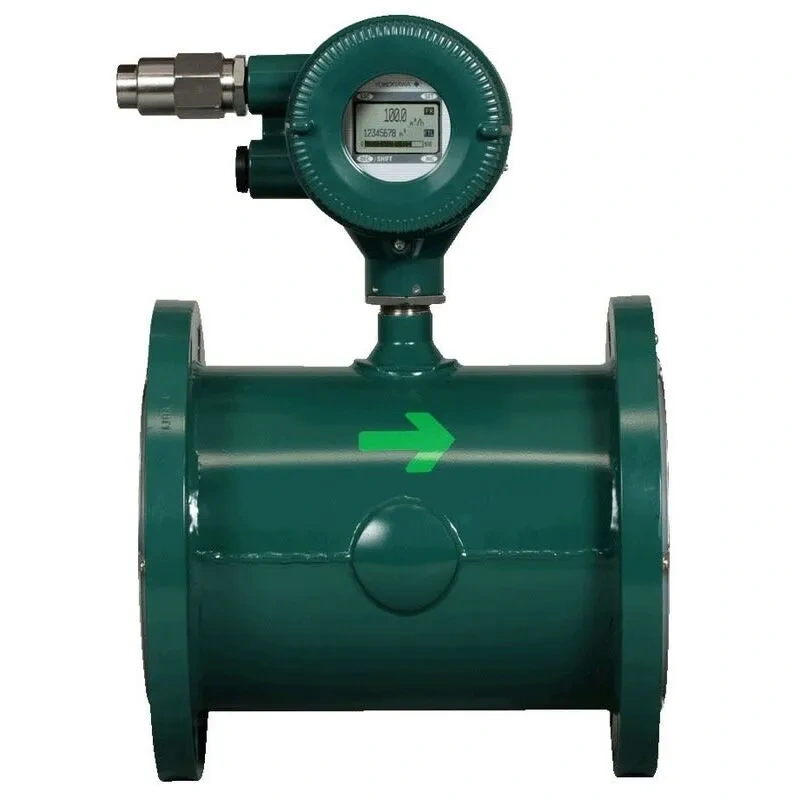

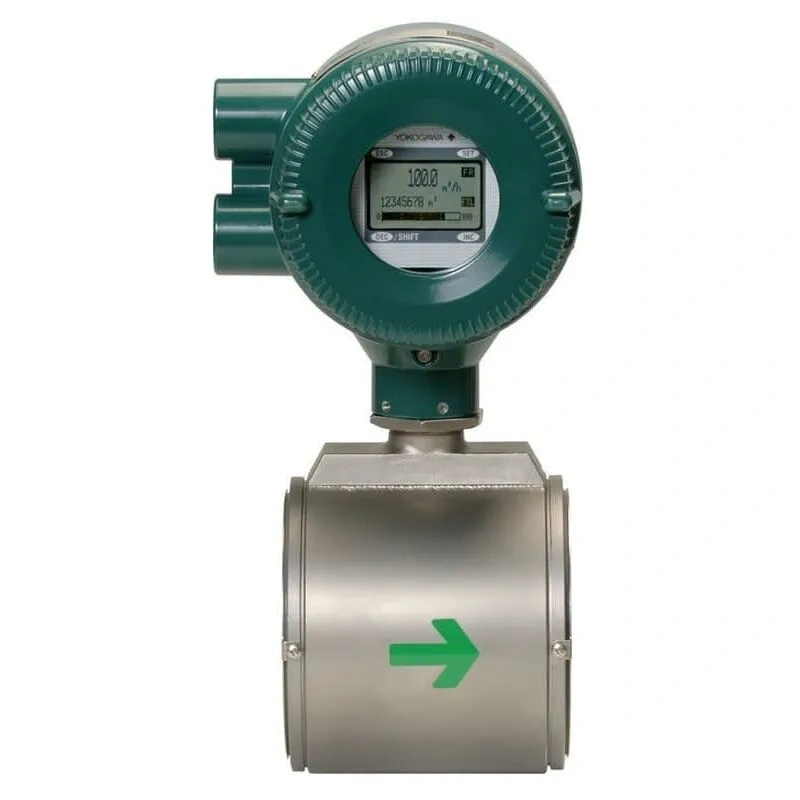

The ADMAG AXR two-wire, loop-powered magnetic flow meter can be installed in a two-wire system. The maximum power consumption of the AXR is 0.3W, 40 times less power draw than a traditional magnetic flow meter, resulting in CAPEX and OPEX savings.
The ADMAG AXR is the world’s first two-wire magnetic flow meter that employs the fluid noise-free “Dual Frequency Excitation Method” for excellent stability for instrumentation.
Product Details
Description
An extra AC power supply is not necessary. 2-wire loop powered performance allows direct connection to DCS I/O card possible, allowing for real cost reductions.
Yokogawa’s unique and advanced excitation method, “Dual Frequency Excitation,” achieves stable measurement, zero stability and quick response times. The exclusive technology for stable and reliable measurement on your site.
Flow noise reduction is further achieved by incorporating smooth mirror finished PFA liners and special surface finished electrodes. This is further enhanced with aligned super high density coils that generate a stronger magnetic field.
Yokogawa believes safety should not be an option; it should be standard in all modern products. AXR is the first 2-wire magmeter of SIL2 Safety Integrity Level (IEC 61508) certified. AXR is capable of SIL2 single use and SIL3 redundant use, as standard.
AXR has magnet switches for parameter setting. Users can access the functions without removing the case cover in hazardous, humid, and dusty environments.
The electrode is one of the most important parts of a magnetic flow meter. Only ADMAG flow meters have “Adhesion Diagnostic Level Function”. It diagnoses the condition of electrode surface and indicates the adhesion/coating in 4 levels. Users can change the detection level (threshold) depending on each individual process condition. This allows for predictive maintenance and reduced operating costs.
ADMAG AXR employs a full-dot matrix LCD indicator. It can display up to 3 lines as required by the user and is available in multiple languages. If an alarm is triggered, a clear message is displayed along with a solution.
The ADMAG AXR performs 0.5% of rate under normal flow rate conditions.
Specifications
|
Structure |
Integral flow meter |
|
Excitation Method |
Dual frequency excitation |
|
Nominal Pipe Size |
General-purpose use: 25 (1.0) to 200 (8.0) |
|
Supply Voltage |
Operating voltage range 14.7 to 35 V DC Two-wire system |
|
Output Signals |
Current output |
|
Electrode Material |
Stainless steel-JIS SUS316L (AISI 316L SS/EN 1.4404 equivalent), Hastelloy C276 equivalent, Tantalum, Platinum-iridium |
|
Fluid Temp. |
– 40 to 130 deg.C (-40 to 266 deg.F) [ depends on model type ] |
|
Ambient Temp. |
– 40 to 55 deg.C (-40 to 131 deg.F) |
|
Accuracy |
0.5% of rate (Note 1) |
|
Fluid Conductivity |
10 micro-S/cm or larger |
|
Lining |
Fluorocarbon PFA (Mirror-finished lining surface) (Note 2) |
|
Lay Length |
Lay length code 1: Wafer ; size 80 (3.0) to 200 (8.0), Flange ; size 25 (1.0) to 200 (8.0) |
|
Indicator |
Full dot-matrix LCD |
|
Operational Switch |
4 magnet switches (including push switches) |
|
Self Diagnosis |
Electrode adhesion diagnosis, Coil open, etc. |
|
Alarm Message |
Alarm message with countermeasure is indicated |
|
Options |
Direction change of the electrical connection, Special Gaskets, |
