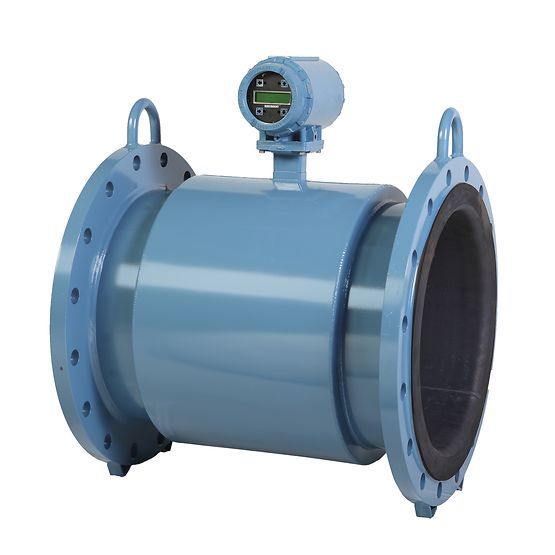

The Rosemount 8750W is an industry-standard utility water electromagnetic flowmeter engineered specifically to minimize lifecycle maintenance and prevent costly unplanned downtime in municipal water distribution, industrial wastewater, and utility cooling loops. Featuring a rugged, fully welded sensor body that creates a permanent hermetic seal against moisture ingress and harsh vibration, the 8750W completely eliminates internal sealing failures common in lower-tier utility meters. Supporting line sizes from 0.5" to 48" (15 mm to 1200 mm) with standard 0.5% accuracy (upgradable to 0.25%), it integrates onboard Smart Meter Verification (SMV) to simplify compliance audits without stopping your process flow.
When selecting your Rosemount 8750W flow meter configuration, matching the liner and electrode material to your process fluid is critical to achieving maximum sensor service life. Review the technical parameters below:
| Engineering Feature | Rosemount 8750W Technical Details |
|---|---|
| Line Sizes Available | 0.5" to 48" (15 mm to 1200 mm / DN15 – DN1200) |
| Base Flow Accuracy | Standard: ±0.5% of rate; High Accuracy Option: ±0.25% of rate |

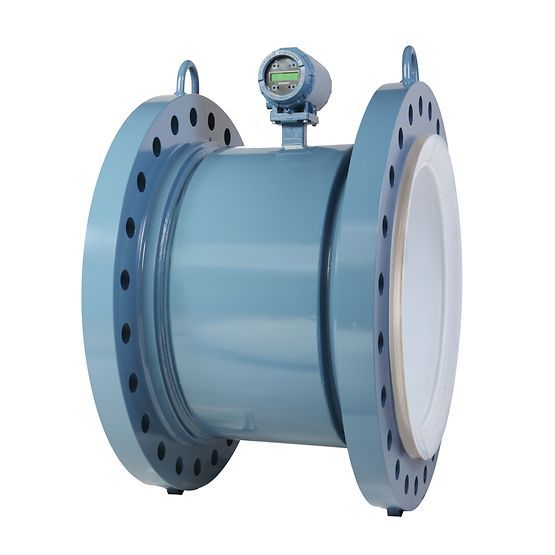

| Liner Material Options | PTFE, Polyurethane, Neoprene, PEX (Selected based on chemical toxicity or slurry abrasion) |
| Electrode Metallurgy | 316L Stainless Steel, Nickel Alloy C-276 (Hastelloy C-276) |

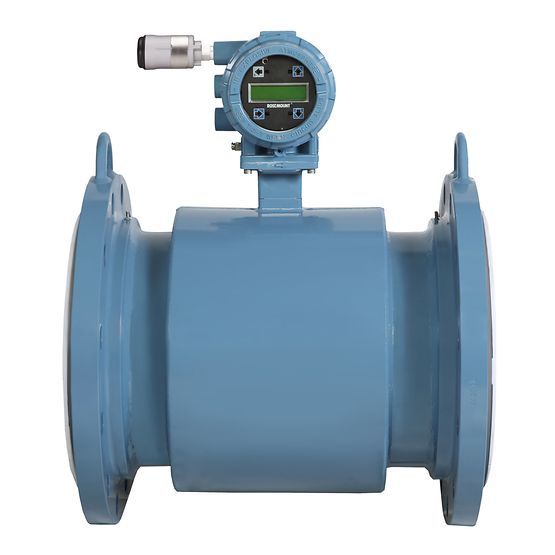

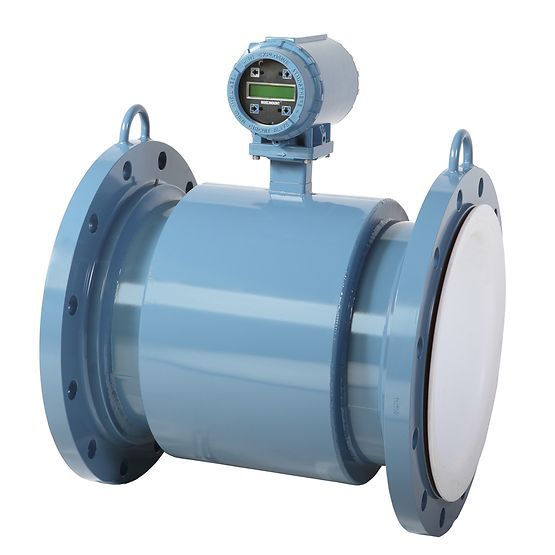

| Sensor Body Construction | Fully welded carbon steel (Hermetic IP67/NEMA 4X; Optional IP68 submersible) |
| Transmitter Mounting | Integral (Direct sensor mount) or Remote Mount (For high-vibration/submerged pits) |
| Output Protocols | 4-20 mA HART®, Modbus® RS485 (Seamless connection to plant SCADA/DCS) |
| Advanced Diagnostics | Smart Meter Verification (SMV), Coated Electrode Detection, Grounding Fault Alarms |
To avoid costly mis-specifications during procurement, follow this quick 4-step engineering verification logic used by our field application specialists:
🛠️ Hanyuzl Supplier Field Insights: Swapping out an obsolete turbine meter or an older magmeter? Before placing your purchase order, double-check these four critical installation parameters to ensure a smooth, plug-and-play retrofit:
A: Yes. When specified with a Neoprene or Polyurethane liner, the Rosemount 8750W excels in high-abrasion environments like sand, silt, and sludge. The built-in Coated Electrode Detection diagnostic alerts operators if grease coating begins to form, enabling proactive maintenance.
A: SMV allows plant engineers to verify the meter's electrical calibration, coil integrity, and transmitter health in-situ (on-site) in under 2 minutes without shutting down process pumps or removing the meter from the pipe.
A: For plastic or lined pipelines, you must install stainless steel or Hastelloy grounding rings on both upstream and downstream flanges (or order the sensor with an internal grounding electrode) to establish a stable reference ground.
A: Yes. For submerged pits, high-vibration lines, or high-ambient-temperature locations, the 8750W can be configured with a remote junction box and interconnecting cable, allowing the transmitter to be mounted in a comfortable, accessible location.
