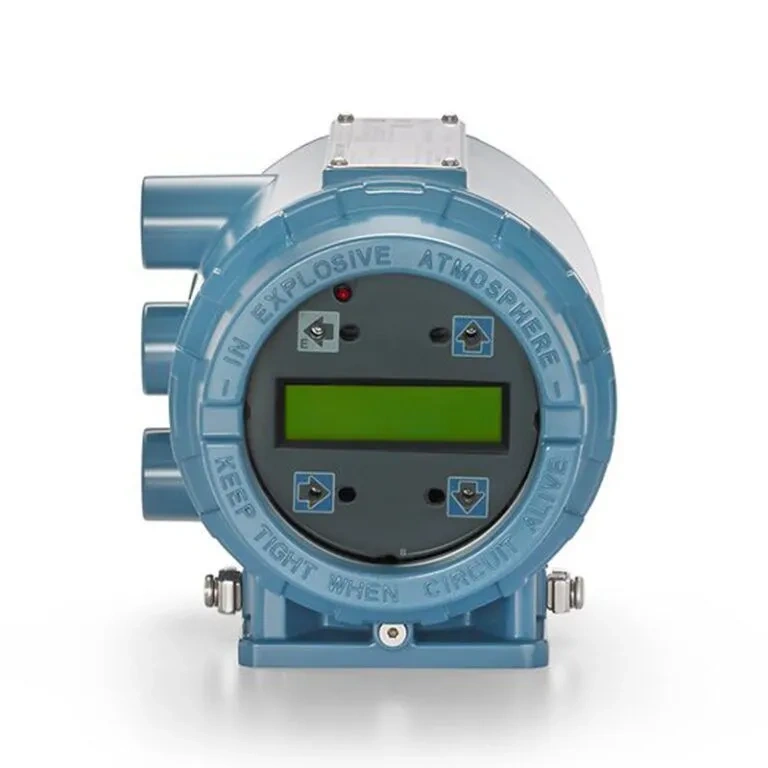

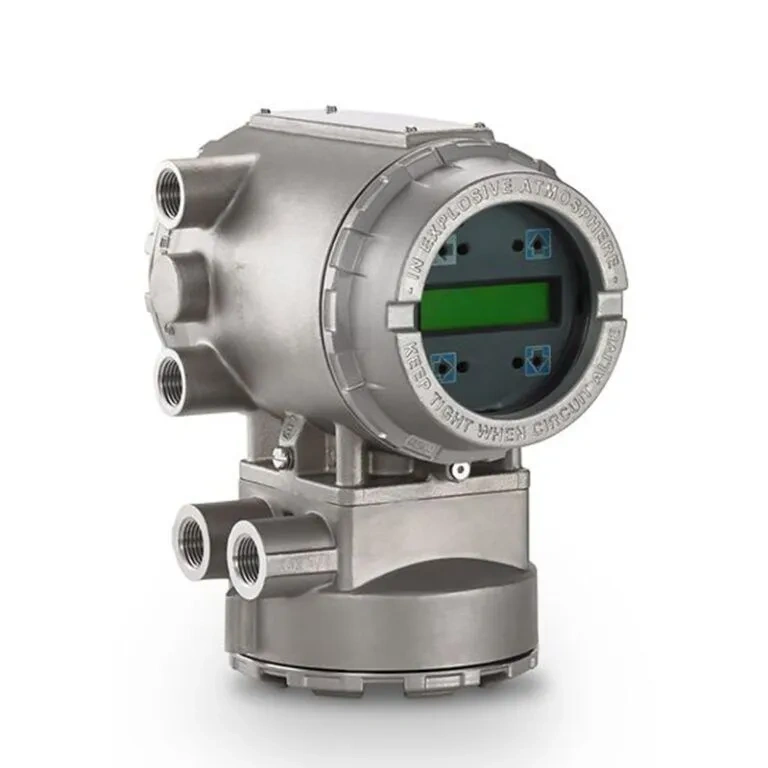

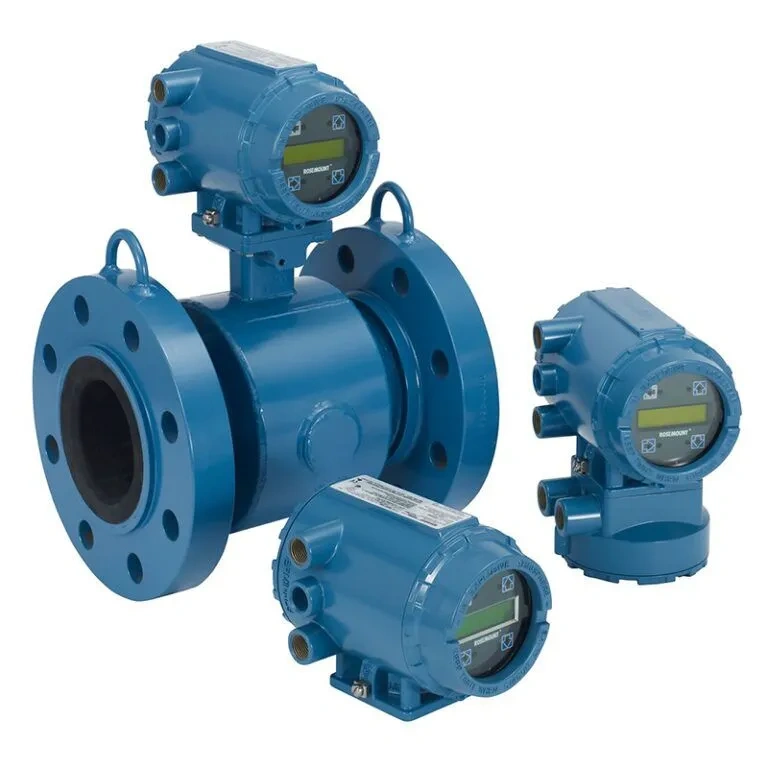

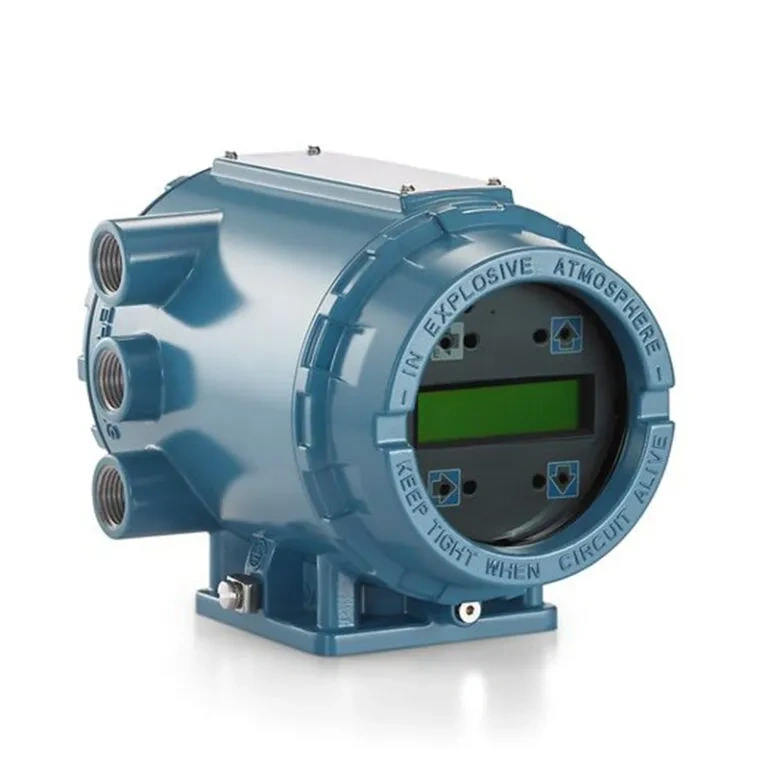

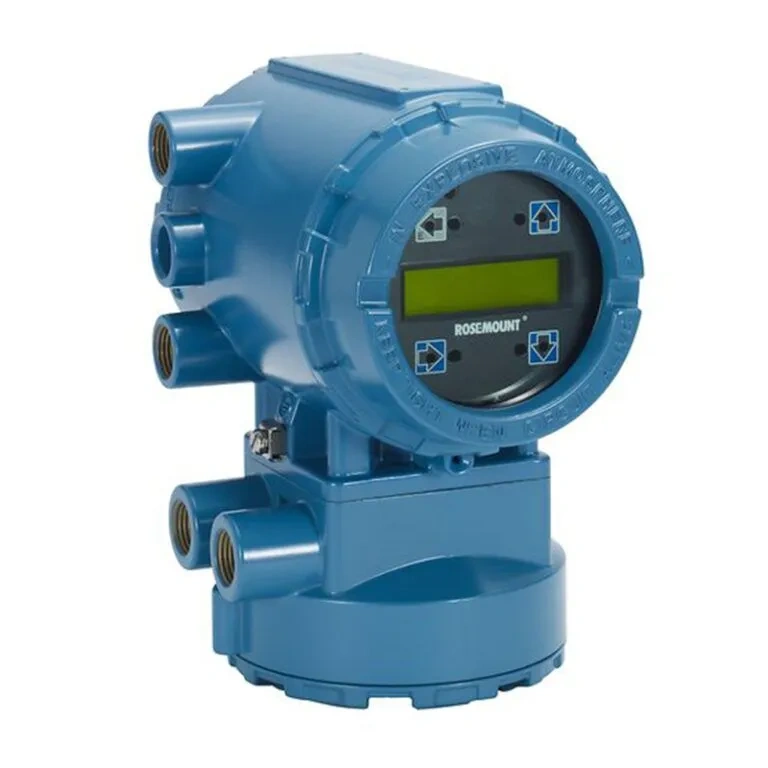

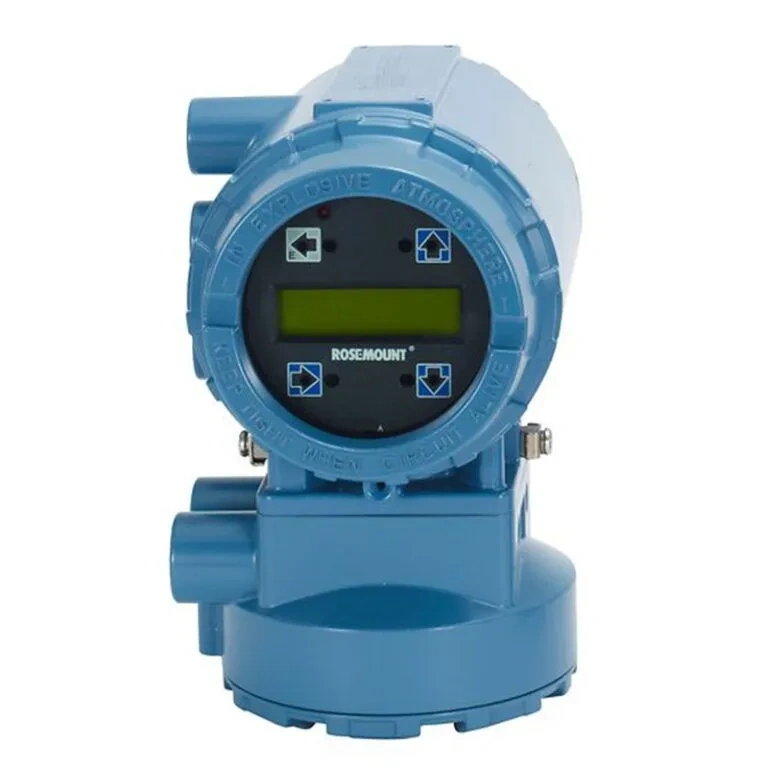

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitter

• Continually monitor meter health and performance without stopping the process with Smart Meter Verification
• Prevent moisture ingress with dual-compartment transmitter housing
• Improve process management with advanced Digital Signal Processing
• Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
• Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
• Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
• Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
• Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor

Specifications

• Sensor compatibility
• Compatible with Rosemount 8705, 8711, and 8721sensors. Compatible with AC and DC powered sensors ofother manufacturers.
• Transmitter coil drive current
• 500mA
• Flow rate range
• Capable of processing signals from fluids that are travelingbetween 0.04 and 39 ft/s (0.01 to 12 m/s) for both forwardand reverse flow in all sensor sizes. Full scale continuouslyadjustable between –39 and 39 ft/s (–12 to 12 m/s).
• Conductivity limits
• Process liquid must have a conductivity of5 microSiemens/cm (5 micromhos/cm) or greater.
• Power supply
• 90 – 250VAC, 50/60Hz or 12 – 42VDC
• Line power fuses
• 90-250VAC systems
  1A, 250V, I2t, 1.5 A2s Rating, Fast ActingBussman AGC-1, Littlefuse 31201.5HXP
  12-42VDC systems
  3 Amp, 250V, I2t, 14 A2s Rating, Fast ActingBel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135
• Line power fuses
• 15W maximum – DC
  40VA maximum – AC
• Switch-on current
• AC: Maximum 35.7A (< 5ms) at 250VAC
  DC: Maximum 42A (< 5ms) at 42VDC
