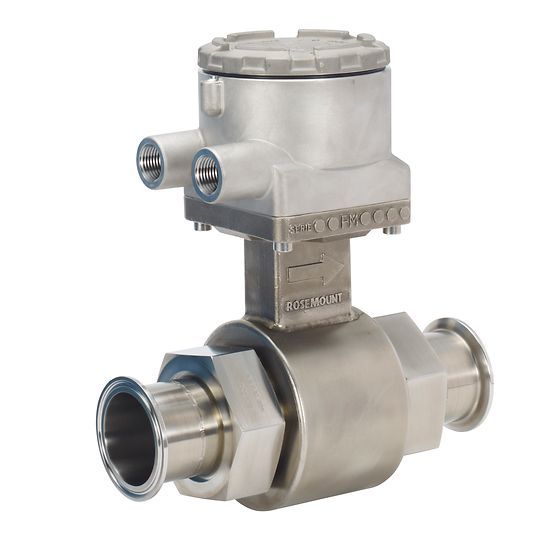

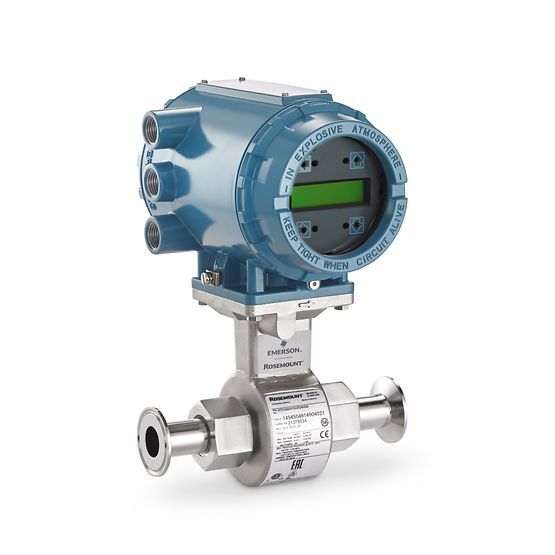

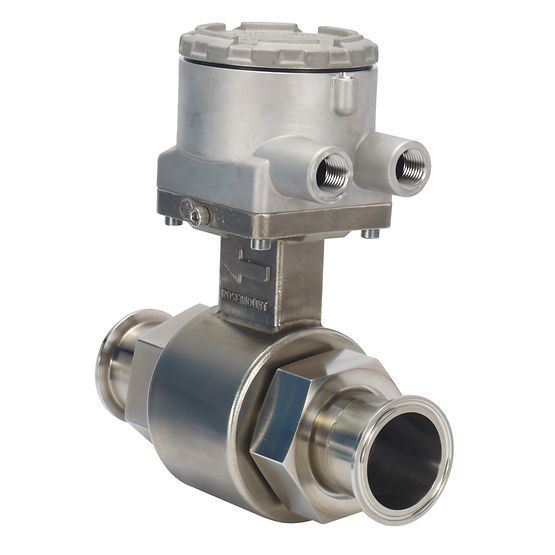

Rosemount 8721 Hygienic Magnetic Flow Meter Sensor
The Rosemount 8721 is a premier hygienic electromagnetic flowmeter sensor designed specifically for sanitary processes where contamination is unacceptable and fluid purity is paramount. Engineered with an obstructionless, all-welded stainless steel body, the Rosemount 8721 features an FDA-approved PFA liner and 316L Stainless Steel (or optional Platinum) electrodes that perfectly align with your process piping to eliminate dead zones, steps, or crevices where bacteria could accumulate. Holding full 3-A, EHEDG Type EL, and PMO (Pasteurized Milk Ordinance) certifications, this sanitary sensor is fully optimized to withstand the thermal and chemical rigors of aggressive Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization cycles. Designed for maximum versatility, the 8721 is backward compatible with all Rosemount 8700 series transmitters (such as the 8732 or 8712) as well as legacy systems, allowing plant managers to upgrade their food, beverage, dairy, or pharmaceutical lines without discarding existing electronics.
Overview: Your Engineering and Procurement Guide
To help you confidently specify, procure, and deploy the Rosemount 8721 sensor in highly regulated sanitary loops, we have organized this deep-value guide into the following practical sections:
- Hygienic Technical Specifications – Critical sizing, materials, pressure limits, and regulatory certifications.
- Application Decision Tree – A quick step-by-step logic map to verify if the 8721 matches your specific process conditions.
- Pros, Cons & Recommended Use-Cases – Transparent analysis of the sensor's outstanding capabilities and layout boundaries.
- Cross-Brand & Portfolio Delineation Matrix – Ensuring you select the right sanitary or industrial model without internal site traffic overlap.
- On-Site Retrofit & Replacement Checklist (EEAT) – Crucial physical and electrical checks when swapping out legacy sanitary meters.
- Sanitary Integration & Maintenance FAQ – Getting the most out of your high-purity measurement investment.
Rosemount 8721 Technical Specifications
| Engineering Feature |
Sanitary Specification Details |
| Line Sizes |
½" to 4" (15 to 100 mm) standard hygienic line sizes |
| Measurement Accuracy |
Up to ±0.25% of rate (13:1 flow turndown); ±0.5% of rate (40:1 flow turndown) |
| Liner Material |
PFA (FDA-Approved) – smooth surface finish, high vacuum and thermal resistance |
| Electrode Materials |
316L Stainless Steel (Standard); Optional: Nickel Alloy, Platinum-Symmetrical |
| Process Connections |
Tri-Clamp®, IDF, DIN 11851, SMS 1145, Cherry-Burrell, Weld Nipple (butt-weld / pipe-weld) |
| Sanitary Certifications |
3-A Sanitary Standards, EHEDG Type EL, PMO (Pasteurized Milk Ordinance M-b-350) |
| Housing Material |
All-welded, sealed 304 Stainless Steel housing (fully potted, IP67 rating; optional IP68) |
| Process Temp. Limits |
-20°F to 350°F (-29°C to 177°C) depending on gasket material selection |
| Max. Process Pressure |
Limited by the sanitary connection fitting rating (typically up to 300 psi / 20.7 bar for Tri-Clamp®) |
| Transmitter Compatibility |
Interchangeable with all Rosemount 8700 transmitters (8732E, 8712EM) and legacy electronics (8712D, 8732C, 8742C) |
Application Decision Tree: Is the Rosemount 8721 the Best Fit?
Use this technical decision tree to quickly determine if the Rosemount 8721 matches your sanitary design criteria:
- Does your process medium directly contact food, dairy, beverages, or sterile pharmaceutical formulations?
- Yes: Proceed to Step 2. (The 8721 is custom-built with 3-A, EHEDG, and PMO approvals to meet these specific regulations).
- No: Stop. If you are handling standard industrial wastewater, utility water, or aggressive mining slurries, choose the flanged, rugged Rosemount 8705 Industrial Flow Sensor instead.
- Do your pipeline connections require rapid, tool-free disassembly for manual inspection, or permanent high-purity butt-welding?
- Yes (Tri-Clamp® or sanitary couplings): Proceed to Step 3. (The 8721 supports extensive FDA-compliant process connections).
- No: Proceed to Step 3.
- Is your line size between ½ inch and 4 inches (DN15 to DN100)?
- Yes: Proceed to Step 4.
- No: Stop. If your line exceeds 4 inches, the 8721 is not manufactured in that range. For larger sanitary pipes, you will need to reduce the pipe diameter at the meter or look into custom sanitary flanged options.
- Will the sensor undergo frequent high-temperature cleanings (such as CIP or SIP cycles up to 350°F / 177°C)?
- Yes: Proceed with full confidence. The Rosemount 8721 with FDA-approved PFA liner and welded design is highly rated for high-temp thermal shock.
Pros, Cons & Recommended Use-Cases
Advantages (Pros)
- Zero Crevices: Obstructionless design means the sensor's inner diameter precisely matches the process pipe, preventing product buildup, flow restrictions, or pressure drop.
- Unmatched Regulatory Pedigree: Fully certified under 3-A, EHEDG, and PMO standards, making it easy to pass strict FDA and third-party food-safety audits.
- Incredible Electronic Backward Compatibility: Fully interchangeable across the entire Rosemount 8700 family, protecting your capital expenditure when upgrading older lines.
- Rugged Construction: PFA liner is locked with an integrated stainless steel reinforcement mesh, ensuring high vacuum resistance and mechanical stability during sudden temperature spikes.
- Moisture-Proof Protection: All-welded sensor body prevents washdown moisture ingress, which typically causes electrode drift in competing non-welded sanitary meters.
Limitations (Cons)
- Line Size Restrictions: Limited strictly to DN15 to DN100 (½" to 4" lines). Larger lines require specialized process adapters.
- Requires External Grounding in Non-Metal Lines: Unlike meters with internal "Virtual Reference" grounding, the 8721 requires sanitary grounding rings or a third electrode when installed on PVC/plastic pipes to prevent process noise.
Recommended Use-Cases
- Dairy Pasteurization Loops (fully compliant with Pasteurized Milk Ordinance standards).
- Soft drink, craft beer, and fruit juice dosing/filling stations.
- CIP/SIP automated chemical dosing manifolds.
- Purified Water (PW) and Water-for-Injection (WFI) loops in pharmaceutical manufacturing.
Flowmeter Sourcing Comparison: Finding the Right Sensor
To ensure your plant operates optimally and to maintain separate search engine optimization footprints, refer to this application matrix:
| Sensor Model |
Primary Target Application |
Piping Connection Type |
Primary Advantage |
Sanitary Certification |
| Rosemount 8721 |
Food, Beverage & Life Sciences |
Tri-Clamp®, SMS, IDF, Weld Nipple |
Zero dead-zones, CIP/SIP resilient, backward compatible |
3-A, EHEDG, PMO |
| Rosemount 8705 |
Chemical, Utilities, Wastewater |
Flanged (ASME B16.5, EN 1092-1) |
High pressure, extreme slurry resistance, large line sizes |
None (Industrial Standard) |
| KROHNE OPTIFLUX 1400 |
Compact Skids, Chemical Dosing |
Wafer (Sandwich style) |
MPO gas-bubble filtering, Virtual Grounding (no grounding rings) |
FDA Liner / ATEX Ex |
Expert Sourcing Guide: Retrofitting Legacy Sanitary Flowmeters
Supplier Field Notes: Retrofitting a sanitary line is rarely as simple as ordering the same line size. Over years of supplying high-purity instrumentation, we’ve seen small oversights lead to expensive installation delays. If you are replacing an older magnetic meter, a turbine meter, or an alternate brand with the Rosemount 8721, please verify these four engineering checkpoints before placing your order:
- Face-to-Face Dimensions (Lay Length): Hygienic flow sensors are extremely compact, but different brands use different proprietary lengths. Ensure that the lay length of the Rosemount 8721 (plus the thickness of your chosen gaskets and couplings) matches the pipe gap exactly. If you are converting from a flanged meter, you will need to weld new sanitary adapters to the pipe headers.
- Transmitter Signal Compatibility: The 8721 sensor can connect to older Rosemount transmitters (like the 8712D or 8732C). However, to utilize advanced diagnostics like continuous electrode coating detection or empty pipe alerts, you must pair it with the modern Rosemount 8732E Field-Mount Transmitter. When buying, let us know if you require a remote-mounted or integral transmitter setup.
- Piping Grounding Requirements: Standard magmeters require a solid ground path to the fluid. If the 8721 is installed in non-metallic (such as PVDF or plastic sanitary tubing), you must use either a sensor configuration with a third grounding electrode, or buy sanitary 316L grounding rings. Failure to provide a proper electrical ground will result in erratic, jumping flow readings.
- Process Gasket Material Selection: The sensor’s PFA liner is incredibly resilient, but the gaskets at the Tri-Clamp® or union connection must be matched to your cleaning chemicals. If your CIP/SIP process uses high-temperature steam or aggressive caustic soda, standard EPDM gaskets may degrade rapidly. We recommend specifying premium **Viton (FKM) or Kalrez (FFKM)** process gaskets to ensure an airtight, leak-free seal.
Frequently Asked Questions (FAQ)
- Q: Is the Rosemount 8721 suitable for SIP and CIP cleaning?
- A: Absolutely. The Rosemount 8721 is specifically designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) processes. Its obstructionless design and FDA-approved PFA liner are built to withstand high-temperature sterilization (up to 350°F / 177°C) and aggressive washdown chemical agents.
- Q: What sanitary certifications does the Rosemount 8721 hold?
- A: The 8721 sensor is fully compliant with the most stringent global standards, including 3-A and EHEDG Type EL. It also meets Pasteurized Milk Ordinance (PMO) requirements, making it safe for Grade A milk production and pharmaceutical dosing loops.
- Q: Can I use the Rosemount 8721 with older Rosemount transmitters?
- A: Yes. One of the key benefits of the 8721 is its backward compatibility. It works seamlessly with all modern 8700 Series electronics and legacy transmitters such as the 8712D, 8732C, and 8742C, protecting your capital expenditure.
- Q: What is the benefit of the all-welded housing?
- A: Many competing sanitary meters use a two-piece housing design sealed with gaskets. Over time, high-pressure washdowns can force moisture past these housing gaskets, causing the internal electrodes to fail. The Rosemount 8721's all-welded, fully potted hermetic 304 Stainless Steel housing prevents any moisture ingress, ensuring long-term reliability.
