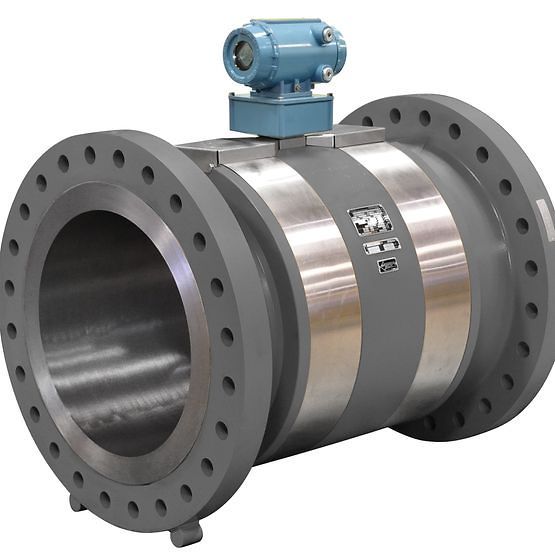

The Rosemount 3812 is the premier industrial solution for allocation check metering and internal plant balancing where both infrastructure cost and tracking precision are operational priorities. Featuring two mid-radius, parallel-plane measurement paths, this two-path ultrasonic meter effectively minimizes velocity uncertainty caused by asymmetric or disturbed flow profiles. As an experienced Rosemount portfolio supplier, Hanyu Zhilian International delivers this system utilizing ultra-fast 3810 Series Electronics, dramatically enhancing measurement stability even when facing abrupt changes in fluid solids or entrained gas layers.
To slash operational downtime and eliminate arbitrary field checks, the Rosemount 3812 integrates advanced MeterLink™ Software, giving control room operators an intuitive, real-time visualization of holistic meter health and pipeline profile disturbances. The inherent bi-directional flow logic and wide turndown rangeability simplify modern facility piping design. At the same time, the field-replaceable, non-wetted ultrasonic transducers ensure maintenance routines are fast and cost-effective, leveraging a rugged flowtube body with absolutely zero moving parts to wear, tear, or drift over time.
| Technical Parameter | Specification Details |
|---|---|
| Line Sizes | DN100 to DN900 (4-inch to 36-inch nominal pipeline size) |
| Linearity Accuracy | plus or minus 0.3% of measured velocity rate (1.2 to 12.2 m/s range) |
| Repeatability Performance | plus or minus 0.10% of total measured volumetric value |
| Operating Pressure Boundaries | 0 to 155 Bar (0 to 2,250 psig maximum working pressure) |
| Process Temperature Range | Standard configuration: -50°C to +150°C (-58°F to +302°F) |
| Flowtube & Flange Materials | Premium Carbon Steel and Stainless Steel options |
| Signal Processing Transmitter | Rosemount 3410 / 3810 Series Transmitter (Type 4 CPU architecture) |
| Metrological Calibration | Wet calibrated at ISO 17025 certified laboratory facilities |
When engineering your plant loops, consider the Rosemount 3812 as a highly reliable yet economical alternative to multi-path fiscal custody transfer meters. It is perfect for internal refinery balancing, wastewater discharge tracking, or secondary storage points. For specialized gas applications requiring multi-path fiscal redundancy, the Rosemount 3417 Dual-Configuration Meter should be evaluated. However, for standard liquid processes where bi-directional logging and low sensitivity to swirl profiles are required, the 3812 remains the superior economic selection.
To preserve uniform fluid profiles and secure the rated plus or minus 0.3% linearity, ensure the meter body is installed with the recommended upstream and downstream straight pipe runs to settle fluid turbulence. Because the 3812 utilizes non-wetted acoustic transducers, field engineers never need to de-pressurize or drain the process line during future sensor element maintenance. If you are upgrading legacy infrastructure, consider integrating the newer Rosemount 3810 Series Electronics to unlock the Type 4 CPU module featuring up to six configurable digital output channels.
Regular diagnostic checks should be performed via the MeterLink™ software interface to monitor for cross-section solids coating or severe entrained gas alarms. If your facility processing environment also deals with highly abrasive slurries, dense bottom sediments, or extremely viscous fluids, pairing your plant-wide ultrasonic fleet with a robust Rosemount 9195 Wedge Flow Meter can provide a comprehensive, zero-drift measurement infrastructure.
As a trusted international industrial automation supplier, Hanyu Zhilian International bypasses manufacturing lead times and distribution bottlenecks. We maintain deep ex-stock reserves of premium Rosemount process instruments to fulfill urgent MRO and EPC project requirements. We offer rapid international logistics serving Europe, the Middle East, SE Asia, and the Russian market, fully backed by flexible direct corporate RMB (Yuan) bank transfer handling to ensure friction-free cross-border clearings.
Q: Why is the Rosemount 3812 ideal for allocation and check metering?
A: The Rosemount 3812 features an economical parallel-path acoustic design that provides reliable, repeatable measurement with plus or minus 0.3% linearity. It offers a perfect balance of asset cost and high-precision performance for internal process balancing and secondary tracking points where expensive fiscal-grade (Class 0.5) custody transfer certification is not mandatory.
Q: Can the transducers be serviced without shutting down the process?
A: Yes. The Rosemount 3812 is equipped with specialized field-replaceable, non-wetted transducers. Since the ultrasonic sensors do not come into contact with the process fluid, they can be maintained, inspected, or replaced without depressurizing the pipe spool or stopping the industrial flow, significantly reducing maintenance overhead.
Q: How does the meter handle flow profile disturbances and entrained air?
A: The meter utilizes two mid-radius, parallel-plane acoustic measurement paths combined with ultra-fast 3810 Series Electronics. This configuration minimizes data sensitivity to disrupted velocity profiles, entrained micro-air bubbles, and suspended solids, ensuring stable readings even in less-than-ideal industrial piping configurations.
