Rosemount™ 3415 4+1 Dual-Configuration Gas Ultrasonic Flow Meter: Fiscal Sourcing & Sizing Guide

Q: What is the primary operational advantage of the 4+1 dual-configuration in Rosemount 3415?

The 4+1 design integrates a 4-path British Gas-design fiscal meter and an independent 1-path reflective check meter in a single body. This provides continuous verification of primary flow data and enables real-time detection of internal pipeline wall buildup (fouling) without installing a costly second meter run.

Q: How does the Rosemount 3415 detect pipeline wall buildup in real time?

It utilizes a sensitive 30-degree single reflective acoustic path tuned to scan the internal pipe wall. When liquid hydrocarbon condensation, wax, or oil carryover forms on the wall, path travel-time ratios alter, triggering predictive alerts in MeterLink™ Software before fiscal accuracy degrades.

Q: What engineering parameters must be verified when replacing an existing meter with a Rosemount 3415?

Engineers must verify: 1) Flange rating and face-to-face dimensions, 2) Design pressure vs actual maximum static operating pressure, 3) Transducer frequency based on gas composition/attenuation, 4) Hazardous location certifications (Class I Div 1 / ATEX Zone 1), and 5) Digital communication protocols (Modbus RTU/TCP or HART).

Summary: The Rosemount™ 3415 Gas Ultrasonic Flow Meter is an industry-standard 4+1 dual-configuration flow meter designed for natural gas custody transfer and shale gas processing. Combining a 4-path OIML R137 Class 0.5 chordal fiscal meter with a 1-path reflective check meter, it delivers continuous flow data verification and real-time pipe wall buildup (fouling) detection in a single body. This guide provides technical specifications, a technology comparison table, selection decision trees, field engineering checklists, procurement FAQs, and sourcing support for EPC engineers and plant operators.

⚡ Quick Answer: What Is the Rosemount 3415 Flow Meter Used For?

The Rosemount™ 3415 is a 4+1 dual-configuration gas ultrasonic flow meter engineered for high-accuracy custody transfer and dirty/shale gas applications where pipeline wall buildup (fouling) is a critical risk.

Core Architecture: Integrated 4-path chordal fiscal meter (OIML R137 Class 0.5) + 1-path 30° reflective check meter in a single spool body.
Primary Function: Measures gas volume with ±0.1% fiscal accuracy while continuously monitoring internal pipe wall fouling, lube oil carryover, and condensate film formation.
Key Advantage: Eliminates the need for a redundant secondary meter run, saving up to 50% in piping footprint and installation costs for natural gas custody transfer stations.

📖 Article Content Overview

Navigate through this technical reference guide:

1. Product Overview & Key Features
2. Technical Specifications Matrix
3. Technology Comparison Table (3415 vs 3416 vs Standard 4-Path)
4. Engineering Pros, Cons & Application Suitability
5. Flow Meter Selection Decision Tree
6. Field Replacement & Engineering Checklist (EEAT Sourcing Guide)
7. Procurement & Field Application FAQs

1. Product Overview & Key Features

In high-volume natural gas custody transfer, even a 0.1% measurement drift caused by internal pipe wall buildup (fouling) can result in millions of dollars in unidentified lost-and-unaccounted-for (LAUF) gas annually. Standard single-body ultrasonic meters cannot detect internal wall fouling until the primary fiscal paths begin failing calibration audits.

The Rosemount™ 3415 solves this by integrating two independent meters into a single compact housing:

Primary Fiscal Meter (4-Path): Based on the field-proven British Gas chordal design, delivering OIML R137 Class 0.5 accuracy (±0.1%).
Reflective Check Meter (1-Path): A dedicated 30° single-reflective path that constantly monitors acoustic signal reflection from the internal pipe wall.
Real-Time Buildup Detection: When compressor oil carryover, hydrates, or liquid hydrocarbon films accumulate on the wall, the reflective path immediately detects changes in acoustic attenuation and path ratio.
3410 Series Electronics: Features high-speed digital signal processing, automated AGA 8 (compressibility) and AGA 10 (speed of sound) calculations, and 3D flow profile generation via MeterLink™ software.

2. Technical Specifications Matrix

Below are the official technical parameters for the Rosemount™ 3415 Series:

Technical Parameter	Rosemount™ 3415 Specification Standard
Line Sizes	DN100 to DN600 (4-inch to 24-inch nominal pipe sizes)
Accuracy (4-Path Fiscal)	±0.1% of reading across full calibrated velocity range (OIML R137 Class 0.5)
Accuracy (1-Path Check)	±0.2% (Calibrated); ±1.5% (Uncalibrated field state)
Path Configuration	4-Path Chordal (Fiscal) + 1-Path 30° Reflective (Check / Buildup)
Process Gas Types	Natural Gas, Fuel Gas, Wet/Shale Gas, Coal Bed Methane (CBM), Nitrogen
Maximum Operating Pressure	Up to 27,579 kPag (4,000 psig) / ASME Class 150 to 1500
Transducer Operating Range	T-21 (Standard); T-22 / T-41 Low Temperature (-50°C to +100°C)
Transmitter Electronics	Rosemount 3410 Series with Type 4 CPU (Supports up to 6 digital/frequency outputs)
Hazardous Area Approval	ATEX, IECEx Class I Div 1 / Zone 1 flameproof enclosures

3. Technology Comparison Table

To help instrumentation engineers select the correct model for their piping configuration, compare the Rosemount 3415 against alternative gas ultrasonic configurations:

Flow Meter Model	Acoustic Path Setup	Primary Diagnostic Capability	Best Application Environment
Rosemount™ 3415	4-Path Chordal + 1-Path Reflective	Pipe Wall Buildup / Fouling Detection	Shale gas, compressor discharge lines, dirty gas pipelines
Rosemount™ 3416	4-Path Chordal + 2-Path Reflective	Entrained Liquid / Condensate Pool Detection	Wet gas, separator outlets, hydrocarbon liquid mist lines
Rosemount™ 3414	4-Path Chordal Only	Standard Velocity & Turbulence Profiling	Clean dry natural gas transmission, city gate custody transfer

4. Engineering Pros, Cons & Application Suitability

✅ Advantages (Pros)

Space & Cost Savings: Provides primary meter and check meter redundancy in a single spool piece, cutting piping cost by ~50%.
Early Fouling Alerts: Warns operators to schedule pigging/cleaning before fiscal error limits are breached.
Zero Pressure Drop: Full-bore spool design imposes no obstruction to gas flow velocity.
Automated Compliance: On-board AGA 8 / AGA 10 compressibility calculations reduce flow computer loads.

⚠️ Limitations (Cons)

Higher Initial CAPEX: Higher initial investment than standard 2-path or orifice flow meters.
Acoustic Attenuation in High CO2: Gases with extreme carbon dioxide or heavy hydrocarbon concentrations require specific transducer frequency selection (T-22/T-41).
Requires Straight Run: Requires standard upstream flow conditioning or straight piping runs to maintain ±0.1% accuracy.

Recommended Application Scenarios:

Shale Gas Gathering Interconnects: Where raw gas contains compressor lube oil carryover and fine particulates.
Offshore Gas Pipelines: Early detection of hydrate formation along inner pipe walls.
High-Value Custody Transfer Gates: Where continuous cross-verification of flow data is contractually required by buyer and seller.

5. Flow Meter Selection Decision Tree

Follow this step-by-step engineering decision path to confirm if the Rosemount 3415 is the right choice for your process:

START: Gas Flow Meter Sourcing Evaluation
│
├── Step 1: Is the application Fiscal / Custody Transfer?
│ ├── NO ──► Consider Thermal Mass or Vortex Meters for utility gases.
│ └── YES ──► Proceed to Step 2
│
├── Step 2: Is internal pipe wall buildup (oil, wax, hydrates) expected?
│ ├── NO (Clean Dry Gas) ──► Select Rosemount™ 3414 (Standard 4-Path Fiscal).
│ └── YES (Dirty / Shale Gas) ──► Proceed to Step 3
│
└── Step 3: What type of contamination is dominant?
├── Liquid pooling at the bottom of the pipe ──► Select Rosemount™ 3416 (4+2 Liquid Detection).
└── Uniform wall fouling / oil film buildup ──► SELECT ROSEMOUNT™ 3415 (4+1 BUILDUP DETECTION) ✅

6. Field Replacement & Engineering Checklist

💡 Expert Sourcing Note for Site Engineers:
When replacing an legacy turbine, orifice, or competitor ultrasonic meter with a Rosemount 3415, double-check the following 5 field parameters to avoid costly installation delays:

☑️ 1. Flange Pressure Rating & Facing: Verify exact ASME flange rating (Class 150/300/600/900) and facing type (RF Raised Face vs RTJ Ring Type Joint).
☑️ 2. Static Line Pressure vs Transducer Selection: Ensure minimum operating pressure meets transducer excitation thresholds. For extremely low gas densities (< 5 bar), verify path signal strength.
☑️ 3. Communication Protocol & CPU Output: Confirm if your Flow Computer requires pulse/frequency, HART 7, or Modbus RS485/TCP. Specify the Type 4 CPU module accordingly.
☑️ 4. Hazardous Zone Certification: Cross-check plant safety ratings. Ensure ATEX/IECEx Zone 1 or Class I Div 1 approvals are explicitly specified on the datasheet.
☑️ 5. Upstream Pressure Compensation Integration: To output compensated mass flow, integrate the 3415 with a dedicated in-line transmitter such as the Rosemount 3051S Pressure Transmitter.

7. Procurement & Field Application FAQs

Q1: What is the primary operational advantage of the 4+1 dual-configuration in Rosemount 3415?

A: The 4+1 design integrates a 4-path British Gas-design fiscal meter and an independent 1-path reflective check meter in a single body. This provides continuous verification of primary flow data and enables real-time detection of internal pipeline wall buildup (fouling) without installing a costly second meter run.

Q2: How does the Rosemount 3415 detect pipeline wall buildup in real time?

A: It utilizes a sensitive 30-degree single reflective acoustic path tuned to scan the internal pipe wall. When liquid hydrocarbon condensation, wax, or oil carryover forms on the wall, path travel-time ratios alter, triggering predictive alerts in MeterLink™ Software before fiscal accuracy degrades.

Q3: What engineering parameters must be verified when replacing an existing meter with a Rosemount 3415?

A: Engineers must verify: 1) Flange rating and face-to-face dimensions, 2) Design pressure vs actual maximum static operating pressure, 3) Transducer frequency based on gas composition/attenuation, 4) Hazardous location certifications (Class I Div 1 / ATEX Zone 1), and 5) Digital communication protocols (Modbus RTU/TCP or HART).

Q4: Can the Rosemount 3415 be calibrated on air, or is natural gas calibration required?

A: While factory dry-air tests verify acoustic path integrity, high-accuracy custody transfer applications require high-pressure natural gas calibration at an accredited flow laboratory (e.g., CEESI, pigsar, or TransCanada) prior to field commissioning.

Related Industrial Instrumentation Resources (Topical Hub)

Build a fully compliant process instrumentation ecosystem by exploring our expert technical hubs and product collections:

📘 Instrumentation Master Hub: The Complete Industrial Flow Meter Selection Guide
📙 Ultrasonic Category Hub: Explore Our Industrial Ultrasonic Flow Meter Collection
📗 Alternative Dual-Configuration Model: Rosemount™ 3416 4+2 Ultrasonic Flow Meter (Liquid Detection)
📕 Pressure Compensation Transmitters: Rosemount 3051S In-Line Pressure Transmitter Sourcing Guide
📓 Mass Flow Category: High-Precision Coriolis Mass Flow Meters for Custody Transfer

Need Technical Sourcing or Datasheet Sizing Verification?

Our field application engineers assist EPC contractors, OEMs, and plant operators with cross-brand replacements, pressure drop calculations, and fast-track factory direct quotations.

Request Technical Review & Instant Quote

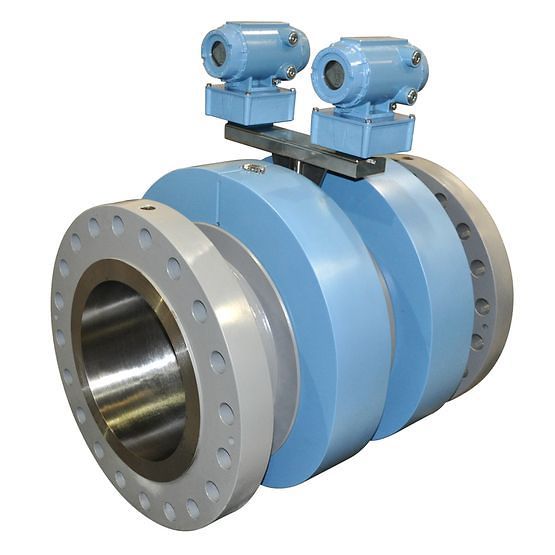

Rosemount™ 3415 4+1 Gas Ultrasonic Flow Meter (Pipe Buildup Detection)
