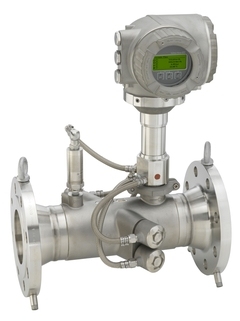

The Prosonic Flow G 300 is the industry’s "problem solver" for demanding gas applications where gas properties and process conditions are in constant flux. It stands out as a multivariable device, providing real-time pressure and temperature compensation directly within a single unit. This eliminates the need for separate sensors, reduces leak points, and significantly slashes installation costs.
Available via
|
Feature |
Technical Data |
|
Measuring Range |
Gas: 0.3 m/s to 40 m/s |
|
Max. Error (Optional) |
±0.5% o.r. (Volume flow) / ±0.8% o.r. (Corrected) |
|
Wetted Materials |
Titanium Grade 2 / 316L Stainless Steel |
|
Process Pressure |
Up to 101 bar a (1464 psi) |
|
Operating Temp |
-50 to +150 °C (Wide thermal range) |
|
Connectivity |
WLAN access, Touch control, Up to 3 I/Os |
Integrated Multivariable Power: Unlike standard ultrasonic meters that require external P&T transmitters and a flow computer, the G 300 calculates mass and corrected volume internally, simplifying your data chain.
Wet Gas Excellence: The sensor design is highly resistant to condensate and liquid slugs, making it ideal for raw natural gas or moist chemical process gases.
Heartbeat Technology™: Benefit from permanent self-monitoring and ISO-compliant verification while the process is running. This reduces the need for manual inspections and extends calibration cycles.
Next-Gen Operation: Features a built-in web server and WLAN for wireless configuration. Technicians can perform full diagnostics via tablet or smartphone without physical contact or specialized tools.
Hanyu Logistics & Support: We provide rapid deployment and technical consultation to ensure the G 300 is perfectly configured for your specific gas composition.
The Challenge: A chemical facility struggled with inaccurate readings in a moisture-heavy process gas line. Fluctuating pressures meant they needed three separate sensors, which led to frequent maintenance and data mismatches.
The Hanyu Solution: The plant installed the Prosonic Flow G 300 from
The Result: The integrated P&T cells provided instantaneous, corrected volume flow data without external calculation.
The Impact: The wet-gas robust sensors maintained signal integrity during heavy condensation periods. By using the WLAN access, the maintenance team now monitors diagnostics remotely, saving over 40 man-hours per year in site visits.
Q1: Does the G 300 require a separate flow computer for volume correction?
A: No. Because it is a multivariable device with integrated pressure and temperature sensors, it can calculate corrected volume and energy flow directly according to standard gas laws.
Q2: How does Heartbeat Technology help with regulatory compliance?
A: It provides a continuous, traceable self-verification of the sensor and electronics. You can generate a verification report at any time, which is widely accepted for documented proof of meter performance without removal.
Q3: Can it be used for offshore or corrosive environments?
A: Yes. With its Titanium Grade 2 wetted parts and rugged 300-series housing, the Prosonic Flow G 300 is perfectly suited for corrosive maritime and chemical atmospheres.
Q4: Is my project data protected at Hanyu Zhilian?
A: Absolutely. Per our Privacy Policy, all information shared via
