Product Details
Description

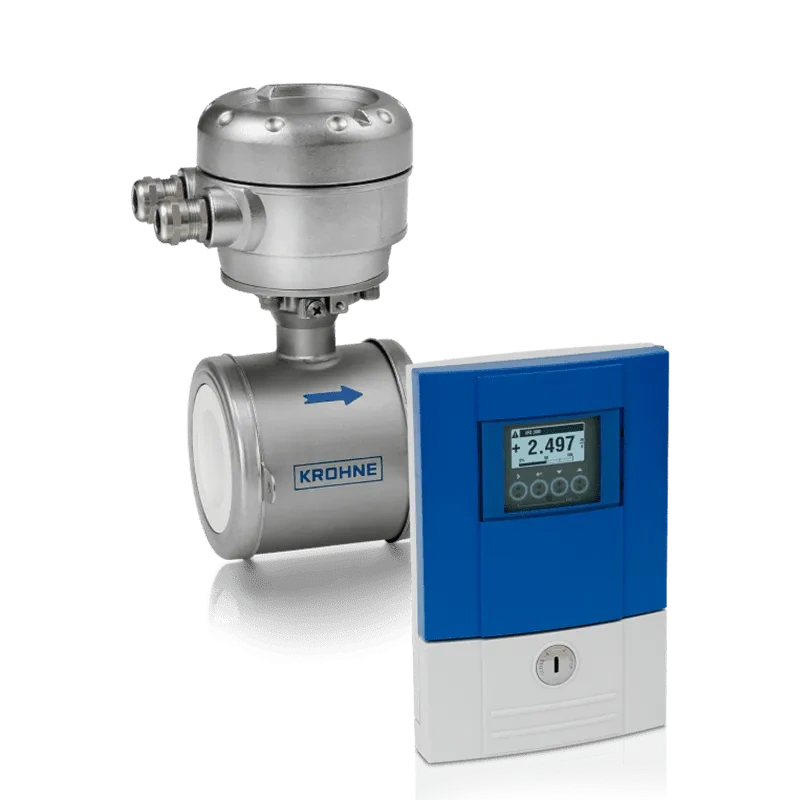

The POWERFLUX 5030 is an electromagnetic flowmeter specifically designed for safety and non-safety applications with electrically conductive liquids in radiation areas. The flowmeter comes with a high-tech ceramic measuring tube for very aggressive and abrasive fluids, even with high solid content (up to 70%). All construction materials are selected and tested to meet the high demands of the nuclear industry. This way, it withstands the most hostile and demanding environments of nuclear applications.
For maximum reliability and long-term stability the OPTIFLUX 5030 features an analogue, wall-mounted converter that does not contain any programmable electronic components (PEC). The flowmeter has an adjustable flow range. The flow is indicated as a percentage of the maximum flow with the LED bar or with a 4…20 mA output.
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
Depending on selected device configuration
|
Product type |
Flowmeter |
|
Product family name |
POWERFLUX |
|
Product positioning |
For nuclear applications |
|
Measurement principle |
Electromagnetic |
|
Measured media |
Liquids |
|
Process pressure |
max. 40 barg/ |
|
Process temperature |
-40…+180°C/ |
|
Measuring tube |
Ceramic (ZrO2 or Al2O3) |
|
Certificates/Approvals Nuclear |
Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.) |
|
Analogue outputs |
4…20 mA |
