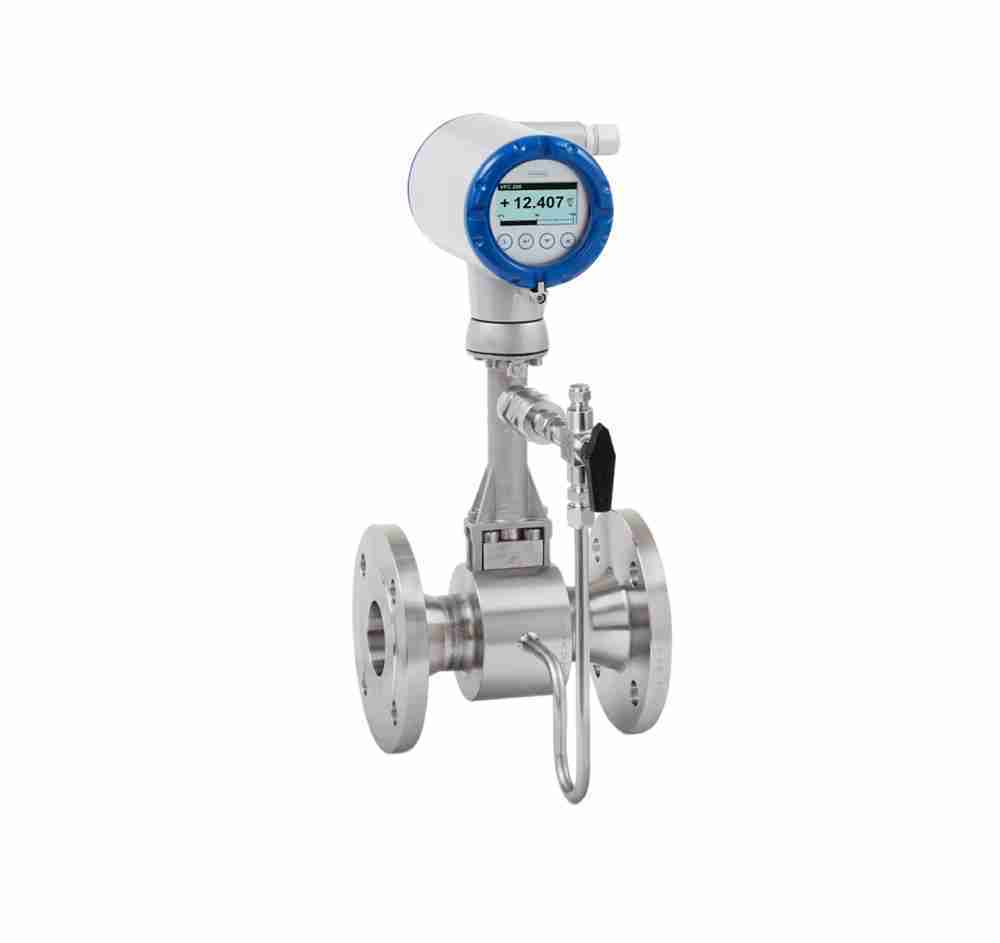

The KROHNE OPTISWIRL 4200 is a high-performance multivariable vortex flowmeter designed for accurate measurement of saturated steam, superheated steam, gases, and liquids up to PN 100 / ASME Class 600.
If your plant is dealing with unmeasured condensate loss, steam energy billing discrepancies, or high maintenance costs from leaking impulse lines, the KROHNE OPTISWIRL 4200 Vortex Flowmeter is engineered specifically for your process line. Built for auxiliary steam, compressed gas, and liquid distribution, this 2-wire vortex meter combines dynamic pressure and temperature compensation into a single spool piece. If you are comparing multiple flow technologies, consult our comprehensive industrial flow meter selection guide to evaluate vortex against electromagnetic or Coriolis meters before finalizing your specification.
Before issuing an RFQ or specifying an instrument spool size, review the core operating envelope and mechanical parameters of the OPTISWIRL 4200:
| Technical Parameter | Standard Specification | Optional / High-Pressure Grade | Engineering & Maintenance Impact |
|---|---|---|---|
| Measured Media | Saturated Steam, Superheated Steam, Dry/Wet Gases, Conductive Liquids | Integrated P+T Mass Flow Density Compensation | Prevents 10%–15% mass metering errors caused by line pressure drops. |
| Process Pressure Limit | Max. 100 barg / 1450 psig | Flange ratings up to ASME Class 600 / PN 100 / JIS 40K | Handles high-pressure main steam headers directly without isolation manifolds. |
| Process Temperature | -40°C to +240°C (-40°F to +464°F) | High-temperature insulation extension neck | Protects electronics from thermal degradation in high-temp steam loops. |
| Nominal Sizes (Flanged) | DN15 to DN300 (1/2" to 12") | EN 1092-1, ASME B16.5, JIS B2220 flanges | Direct drop-in replacement for standard DIN/ANSI orifice plate spools. |
| Nominal Sizes (Wafer) | DN15 to DN100 (1/2" to 4") | Sandwich design with alignment rings | Ideal for tight skid installations where straight pipe run is restricted. |
| Wetted Materials | Stainless Steel 1.4404 / 316L | Hastelloy® C-22 (2.4602 / Alloy 22) | Resists severe erosion from wet steam velocity and corrosive condensate. |
| Communication Protocols | 4…20 mA HART® 7 (2-Wire) | FOUNDATION™ Fieldbus, PROFIBUS-PA | Integrates seamlessly into existing DCS, PLC, or SCADA architectures. |
| Safety & Hazardous Approvals | ATEX, IECEx, cQPSus, NEPSI, INMETRO | SIL 2/3 Certified (IEC 61508) | Fully compliant for installation in Zone 1/2 hazardous chemical environments. |
Traditional steam metering requires four separate penetration points on your pipe: a volumetric flowmeter, a differential pressure transmitter, a temperature sensor (RTD), and wiring back to a central flow computer. Every extra fitting introduces potential leak points, thermal heat loss, and high installation costs.
The OPTISWIRL 4200 solves this headache by housing a piezoresistive pressure sensor and a Pt1000 temperature sensor inside the meter body. The transmitter calculates real-time fluid enthalpy using standard IAPWS-IF97 steam tables. Instead of outputting raw volumetric numbers that skew your energy balance sheets, it directly transmits mass flow, normalized volume, and gross/net heat energy over a single 2-wire loop.
When steam drops below 100% dry vapor, entrained water droplets cause standard vortex meters to over-read volume, tricking your energy accounting system. Worse, slug flow and water hammer can destroy expensive steam turbines and control valves.
With its integrated steam quality calculation, the OPTISWIRL 4200 monitors steam dryness down to 80%. If condensation builds up in the line, the transmitter triggers an alarm output to your DCS. This gives operators immediate feedback to check steam traps, boiler blowdown systems, or pipe insulation before mechanical damage occurs.
While high-accuracy applications like liquid custody transfer may require a Coriolis flowmeter, the OPTISWIRL 4200 provides the most cost-effective balance of rangeability, low pressure drop, and multivariable mass measurement for high-velocity steam headers. If you are considering replacing aging differential pressure (DP) orifice plates, the table below highlights the operational trade-offs during daily plant operations:
| Evaluation Feature | KROHNE OPTISWIRL 4200 | Differential Pressure (Orifice Plate) | Standard 2-Wire Volumetric Vortex |
|---|---|---|---|
| Turndown Ratio (Rangeability) | Up to 45:1 | 4:1 to 5:1 (Poor low-flow accuracy) | 15:1 |
| Integrated P+T Mass Compensation | Standard built-in option | Requires 3 external devices + computer | Requires external RTD wiring |
| Impulse Line Maintenance | Zero (No impulse lines to freeze or clog) | High (Frequent blowdown & leak checks) | Zero |
| Permanent Pressure Loss | Low (Optimized bluff body shape) | High (Orifice restriction creates head loss) | Moderate |
| Steam Mass Metering Accuracy | ±0.9% of reading | ±1.5% to ±2.5% of full scale | ±1.5% (Uncompensated volume) |
A specialty chemical processing facility was experiencing a persistent 12% unaccounted steam loss between its main utility boiler house (20 barg, +215°C) and three downstream batch reactors. During night shifts, when reactor demand slowed down, steam flow dropped below the 4:1 turndown limit of the existing orifice plate meters, rendering night-shift steam usage completely unmetered.
By swapping the main headers with DN80 (3") OPTISWIRL 4200 flanged vortex flowmeters with integrated P+T sensors, the plant expanded its measurable flow range down to a 45:1 turndown ratio. The facility recovered $18,400 in previously unbilled thermal energy within the first 8 months, while cutting maintenance labor by eliminating monthly impulse line flushing.
Answer: Yes. The OPTISWIRL 4200 holds global intrinsically safe and explosion-proof approvals including ATEX, IECEx, cQPSus, NEPSI, and INMETRO for Zone 1 and Zone 2 environments. It is also SIL 2/3 certified according to IEC 61508 for safety instrumented systems (SIS).
Answer: For standard upstream disturbance (such as a single elbow), the recommended inlet run is 15D to 20D (pipe diameters) and an outlet run of 5D. If installed downstream of a reduction pipe, the integrated option on models like reduced-bore configurations helps shorten straight pipe requirements.
Answer: The optional pressure sensor is isolated from direct steam contact via an internal siphon tube structure filled with condensate, protecting the pressure cell from thermal overstress while maintaining rapid dynamic pressure response up to +240°C (+464°F).
