Product Details
Description

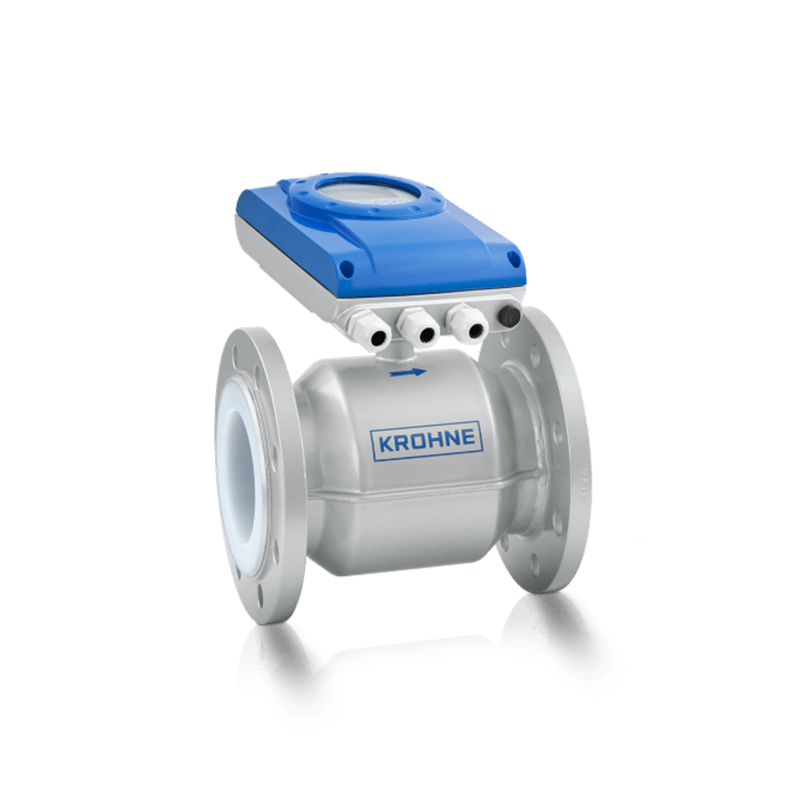

The OPTIFLUX 4050 is an electromagnetic flowmeter (EMF) for chemical applications in non-hazardous areas. It provides cost-effective measurements with good accuracy and standard diagnostics and communication options. The extra isolation of the electronic device and housing makes this EMF particularly suitable for use in areas with extreme humidity and chances of flooding.
The OPTIFLUX 4050 features a selection of chemically resistant liners and electrodes. Due to its full bore design without moving or intruding parts, there is no pressure loss and no maintenance required. The EMF comes with current output (incl. HART®) or active pulse/frequency output and Modbus. A full on-site verification of the EMF without process interruption can be carried out using the OPTICHECK service tool.
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
Depending on selected device configuration
|
Product type |
Flowmeter |
|
Product family name |
OPTIFLUX |
|
Product positioning |
For basic applications with abrasive and aggressive liquids |
|
Measurement principle |
Electromagnetic |
|
Measured media |
Liquids |
|
Process pressure |
max. 40 barg/ |
|
Process temperature |
-40…+180°C/ |
|
Liner |
Perfluoroalkoxy alkane (PFA), Polytetrafluoroethylene (PTFE), Polyuretane (PUR), Hard rubber, Ethylene tetrafluoroethylene (ETFE), Soft rubber |
|
Flange connections |
EN (1092-1): DN2.5…1200 |
|
Certificates/Approvals Hygienic |
FDA |
|
Certificates/Approvals Marine |
ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
|
Analogue outputs |
4…20 mA |
|
Discrete outputs |
Pulse, Frequency, Status |
|
Digital outputs |
HART®, Modbus RTU |
