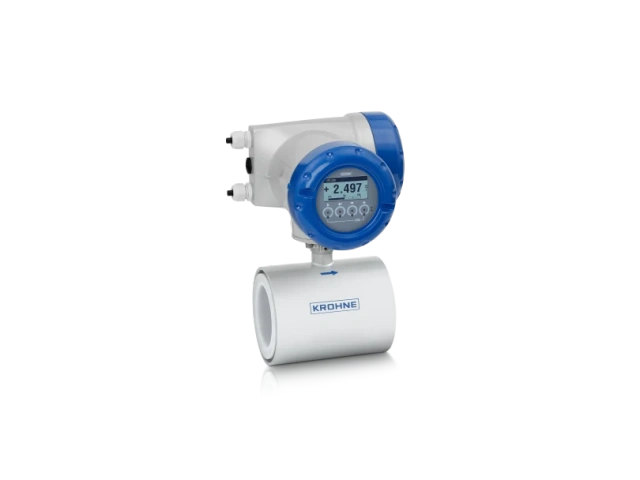

KROHNE OPTIFLUX 1400 Electromagnetic Flowmeter

The KROHNE OPTIFLUX 1400 is a high-precision, wafer-style (sandwich) electromagnetic flowmeter specifically engineered for space-constrained OEM dosing skids, chemical process packages, and slurry monitoring applications. Featuring KROHNE’s revolutionary Multi-Phase Operation (MPO) technology, this solid-state instrument maintains an outstanding accuracy of ±0.3% and guarantees stable, repeatable measurements under severe process noise, such as entrained air bubbles, high solid slurry, or turbulent flows where traditional electromagnetic meters suffer from signal jumping. By incorporating a standard reinforced PFA liner and Hastelloy® C22 electrodes within an ultra-compact body, it offers class-leading chemical resistance and reduces the physical footprint in modular skids by up to 30%. Furthermore, with its patented Virtual Reference grounding technology, the OPTIFLUX 1400 completely eliminates the need for expensive grounding rings or grounding gaskets in non-conductive plastic piping networks, drastically lowering your hardware procurement costs and removing potential leak paths.

Overview: What You Will Learn in This Engineering Guide

As your dedicated B2B process instrumentation partner, we have structured this guide to give you a complete, transparent evaluation of the OPTIFLUX 1400 before making an investment. Inside, you will find:

• Detailed Specifications Table – Full physical, electrical, and certification parameters.
• Application Decision Tree – A logical flowchart to instantly confirm if this wafer model fits your exact pipe and media constraints.
• Pros, Cons & Practical Limits – Honest boundaries to avoid misapplication in the field.
• Portfolio Delineation Matrix – Understanding how the 1400 differs from the 3400 and 3070 to prevent internal site traffic competition.
• Real-World Retrofit & Replacement Checklist – Crucial verification parameters (flange spacing, virtual reference, chemical compatibility, and hazardous areas) when swapping out older meters.
• In-Situ Mobile Verification & FAQ – Maximizing smart diagnostics to lower your plant’s Total Cost of Ownership (TCO).

KROHNE OPTIFLUX 1400 Comprehensive Specifications

Application Decision Tree: Is the OPTIFLUX 1400 Right for Your Skid?

Run through this quick logical flow path to confirm if this compact wafer-style meter is the ideal choice for your engineering layout:

1. Is your installation space highly restricted, such as a compact chemical dosing skid, mobile water treatment trailer, or containerized OEM system?
   • Yes: Proceed to Step 2. (The wafer design of the OPTIFLUX 1400 is specifically optimized for these layouts).
   • No: Proceed to Step 2 (Flanged models are also viable, but the 1400 remains highly cost-effective).
2. Does your process medium carry entrained air bubbles (above 5%), high-solid agricultural slurry, or sudden process noise?
   • Yes: Proceed to Step 3. The OPTIFLUX 1400 with MPO (Multi-Phase Operation) technology is the correct choice to prevent signal dropout.
   • No: Proceed to Step 3.
3. Are you piping the system using non-conductive materials (such as PVC, PP, PVDF, or glass-lined pipes)?
   • Yes: Select the OPTIFLUX 1400 with Virtual Reference. This will save you $200–$500 per installation point by completely eliminating the need for grounding rings.
   • No (Metal piping): Proceed to Step 4.
4. Do you require SIL 2/3 functional safety loops or have process line sizes larger than DN150 (6")?
   • Yes: Stop. The OPTIFLUX 1400 maxes out at DN150 and is not SIL-rated. You must specify the full-bore flanged KROHNE OPTIFLUX 4400 SIL 2/3 Flowmeter.
   • No: Proceed with complete confidence. The KROHNE OPTIFLUX 1400 is the perfect fit for your application.

Pros, Cons & Recommended Applications

Advantages (Pros)

• OEM-Friendly Form Factor: Wafer-style sandwich design is incredibly light and short, significantly reducing piping stress and layout sizing inside standard skids.
• Virtual Grounding Economy: Virtual Reference eliminates physical grounding rings or grounding gaskets on plastic pipes. This reduces costs, installation time, and potential flange leak points.
• Excellent Slurry and Bubble Filtering: MPO digital filtering stabilizes the raw electrode signal during gas-bubble entrainment, mud pumping, or chemical dosing disturbances.
• FDA-Approved Vacuum Protection: The high-grade PFA liner is reinforced with an integrated stainless steel mesh, preventing liner collapse under high-temperature vacuum cycles.
• Confined Space Safety: In-situ calibration/health checks can be run wirelessly from up to 10 meters away using the OPTICHECK Flow Mobile App via Bluetooth.

Limitations (Cons)

• Sizing Boundary: Standard production is limited to DN10 to DN150 (3/8" to 6"). For main trunk lines, a flanged meter like the OPTIFLUX 4300/4400 is required.
• Wafer Centering Rigor: Unlike flanged meters with fixed bolt holes, wafer meters require meticulous mechanical alignment during installation to prevent the gaskets from protruding into the flow path.

Recommended Applications

• Chemical dosing skids (acids, bases, coagulants, flocculants).
• Water and wastewater treatment plants (municipal and industrial).
• Agricultural slurry, liquid manure, and high-solid waste lines.
• OEM containerized filtration, reverse osmosis (RO), and neutralization packages.

Portfolio Matrix: Choosing Between KROHNE Electromagnetic Flowmeters

To keep your search engine footprint clean and ensure you do not compete against your own product pages, use this functional boundary guide to select the right model:

Real-World Procurement Guide: Swapping or Retrofitting Existing Flowmeters

Expert Supplier Field Advice: When plant engineers decide to swap out failing, bulky flanged meters or older-generation mechanical instruments for the compact, wafer-style KROHNE OPTIFLUX 1400, they frequently overlook a few critical layout details that can lead to on-site installation delays. To guarantee a flawless commissioning process, always run through this 4-step checklist before finalizing your procurement:

1. Piping Face-to-Face Distance (Take-out Length): The wafer-style OPTIFLUX 1400 has an ultra-short face-to-face dimension compared to standard flanged meters (like the OPTIFLUX 4000). If you are retrofitting an existing line, you will need to add spool pieces or adjust the pipe headers to account for the shorter distance. Always double-check our dimension drawing against your current gap.
2. Virtual Reference Compatibility (Conductivity & Materials): While the Virtual Reference feature is a massive cost-saver by eliminating grounding rings on plastic pipelines, it requires a minimum fluid conductivity of 20 μS/cm. If you are measuring ultra-pure demineralized water (which often hovers below 20 μS/cm), the Virtual Reference cannot function accurately. In those rare pure-water cases, physical grounding rings are still mandatory.
3. Hazardous Area Classifications (Ex Zones): If you are installing the meter in chemical dosing setups that handle flammable solvents, ensure you specify the correct transmitter rating. The OPTIFLUX 1400 is available with ATEX/IECEx Zone 1 approvals, but you must select the **remote version (1400 F)** to keep the signal converter mounted in a safe zone while the wafer sensor operates in the hazardous field area.
4. Wafer Gasket Centering Protocol: Because wafer-style meters are sandwiched between standard flanges using long threaded rods, there are no integrated bolt flanges on the meter itself. During installation, field crews must use the centering sleeves provided by KROHNE. If the meter is slightly off-center, or if the gasket slips and protrudes into the flow path, it will generate small vortex currents that directly distort the microvolt readings on the Hastelloy electrodes.

Frequently Asked Questions (FAQ)

Q: How does MPO technology improve measurement in slurry or gas-entrained liquids?

A: Multi-Phase Operation (MPO) technology uses optimized, high-frequency signal processing and filtering algorithms to separate the true flow velocity from the electrical noise generated by gas bubbles or solid particles rubbing against the electrodes. This allows the OPTIFLUX 1400 to maintain stable, repeatable readings where standard electromagnetic flowmeters typically fail.

Q: Can the KROHNE OPTIFLUX 1400 be installed in plastic piping without grounding rings?

A: Yes. By selecting the Virtual Reference option on the converter, the meter balances the electrical potentials electronically within the signal amplifier. This completely eliminates the need for grounding rings or straps, which drastically simplifies installation on non-conductive plastic or lined piping systems and removes potential leak points.

Q: How does the Bluetooth® verification benefit on-site maintenance?

A: Using the OPTICHECK Flow Mobile App, maintenance teams can perform a comprehensive, non-intrusive device health check from up to 10 meters away. It verifies coil resistance, electrode insulation, and amplifier status, instantly generating an audit-ready PDF verification report without interrupting your active process loops or requiring technicians to enter confined/hazardous spaces.

Q: Does the OPTIFLUX 1400 require straight pipe runs during installation?

A: Yes. To maintain its rated ±0.3% accuracy, the OPTIFLUX 1400 requires a minimum of 5 diameters (5D) of straight pipe upstream and 2 diameters (2D) downstream. If your layout is extremely tight and cannot accommodate this, consider utilizing a flow straightener or review our 0D/0D-certified WATERFLUX series for non-dosing water applications.
