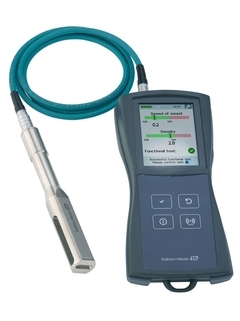

The Teqwave T is a smart, portable ultrasonic measuring device designed for ultimate flexibility in liquid analysis. Stop waiting hours for laboratory results; the Teqwave T allows you to monitor concentrations, acoustic density, and temperature across multiple measuring points using a single, robust handheld unit.
Available through
| Feature | Specification Details |
| Max. Measurement Error | Density: ±0.01g/cm³; Temp: ±0.5K; Sound Velocity: ±2m/s |
| Measuring Range | Concentration: 0 to 100%; Temperature: 0 to +100 °C |
| Acoustic Density | 0.7 to 1.5 g/cm³ |
| Sound Velocity Range | 600 to 2000 m/s |
| Wetted Materials | Stainless Steel 316 Ti (1.4571) – Corrosion Resistant |
| Battery Life | Up to 8 hours of continuous mobile operation |
| Data Storage | Integrated memory for up to 3000 measured values |
Instant "Plug & Play" Analysis: With pre-configured measuring points and an intuitive touch interface, the Teqwave T requires zero metrology expertise. Just insert the 180mm probe and read the results.
Exceptional Mobile Endurance: Powered by a high-capacity 2300 mAh Li-ion battery, it provides a full 8-hour shift of mobile testing without needing a recharge.
Maintenance-Free Stability: Built with high-grade 316 Ti stainless steel wetted parts and no moving components, the device offers long-term stability and is immune to mechanical wear.
Digital Traceability: Don't just measure—record. The integrated data logger stores up to 3,000 values, which can be easily exported for quality documentation and ISO compliance.
Versatile Application Packages: Using the innovative "App" concept, a single Teqwave T can be updated with data sets for different media, allowing you to switch between chemicals, fuels, or food products in seconds.
The Challenge: A chemical blending facility needed to verify the concentration of various additives across 12 different mixing stations. Traditional lab sampling was causing a bottleneck, with batches sitting idle while waiting for approval.
The Hanyu Solution: The facility equipped its QC team with the Teqwave T portable analyzer from
The Result: Technicians performed in-situ checks at each station in under 60 seconds.
The Impact: The facility eliminated 90% of lab wait times, allowing batches to move to the next stage immediately. This streamlined workflow increased overall production throughput by 15% and ensured 100% batch-to-batch consistency.
Q1: Can Teqwave T measure different types of liquids with one device?
A: Yes! Thanks to the flexible Application Package system, you can load data sheets for various media into the device. This makes it a truly versatile tool that adapts to your changing production needs.
Q2: Does the flow rate or turbulence affect the measurement?
A: No. One of the core technical strengths of the Teqwave series is that the ultrasonic measurement is accurate and independent of the flow profile, ensuring stable readings even in agitated tanks.
Q3: How do I export the measured data for reports?
A: The Teqwave T features a simple data export function. The stored values (up to 3,000) can be transferred to a PC for further analysis, archiving, and generating quality certificates.
Q4: How does Hanyu Zhilian ensure I get the right "App" for my liquid?
A: Our technical team works with you before purchase to define your specific liquid profiles. Per our Privacy Policy, your proprietary chemical data remains strictly confidential throughout the consulting process.
