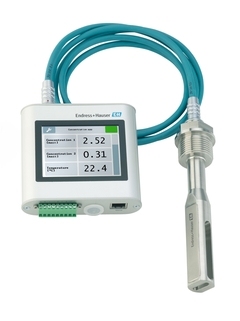

The Teqwave I is a smart, flexible insertion measuring device designed for accurate, real-time liquid analysis in vessels, storage tanks, and large-diameter pipelines. While maintaining the signature precision of the Teqwave series, the "I" (Insertion) model allows for in-situ concentration measurement at the most critical points of your process, regardless of the flow profile or pipe complexity.
Available through
| Feature | Technical Details |
| Insertion Lengths | 180 mm (7") or 500 mm (20") |
| Measuring Principle | Surface Acoustic Wave (SAW) / Ultrasonic |
| Concentration Range | 0 to 100% (via pre-loaded Application Packages) |
| Acoustic Density | 0.7 to 1.5 g/cm³ (Error: ±0.01 g/cm³) |
| Sound Velocity | 600 to 2000 m/s (Error: ±2 m/s) |
| Wetted Materials | Stainless Steel 316 Ti (1.4571) – High Corrosion Resistance |
| Control Interface | 3.5" TFT Color Touch Screen, Modbus TCP, 4-20 mA |
| Data Integrity | Integrated storage for up to 7.5 years of process history |
Deep-Reach Monitoring: With insertion lengths up to 500 mm, the Teqwave I reaches past the "dead zones" near vessel walls to measure the true heart of your process.
Flow Profile Independence: Unlike inline sensors that require long straight runs, the insertion design ensures high accuracy even in turbulent blending tanks or near pipe bends.
Real-Time Blending Control: Gain instant feedback on concentration during mixing or dilution processes. No more waiting for lab results while a batch sits in the tank.
Maintenance-Free Durability: The robust 316 Ti stainless steel construction and ultrasonic principle mean there are no moving parts to fail or membranes to replace.
App-Based Versatility: Swap between measurement profiles (e.g., from sugar content to acid concentration) simply by selecting a different software "App" within the device.
The Challenge: A chemical manufacturer needed to monitor sulfuric acid concentration inside a 50,000-liter blending tank. Manual sampling required operators to wear full PPE and led to significant delays in batch approval.
The Hanyu Solution: The plant installed a Teqwave I with a 500 mm insertion length via a top-mounted flange, purchased through
The Result: The Teqwave I provided a continuous digital feed of acid concentration directly to the control room.
The Impact: The plant achieved precise real-time blending control, reducing batch cycle times by 25% and ensuring 100% consistency. More importantly, they eliminated the safety risks associated with manual chemical sampling.
Q1: What is the benefit of the 500 mm insertion length?
A: The longer probe is essential for large tanks or thick-walled vessels with insulation. It ensures the measuring head is positioned in the active flow or mixing zone for representative data.
Q2: Can Teqwave I be used in pressurized tanks?
A: Yes. The Teqwave I is designed for industrial process environments. When matched with the correct flange or compression fitting, it maintains a secure seal in pressurized vessels.
Q3: How do I manage the data from a remote tank?
A: The device features Modbus TCP and 4-20 mA outputs for easy integration into your existing PLC or SCADA. Additionally, the integrated 7.5-year data logger ensures you have a local backup of all quality records.
Q4: How does Hanyu Zhilian ensure the quality of my order?
A: We provide full technical validation before shipment to ensure the "Application Package" matches your specific liquid. All project data is protected under our strict Privacy Policy.
