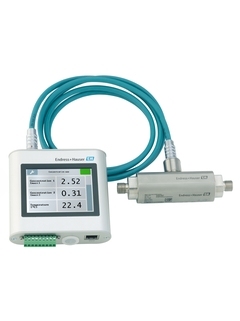

The Teqwave F is a smart, flexible inline measuring device designed for precise, real-time liquid analysis directly within the process pipe. Traditionally, monitoring liquid concentration required frequent manual sampling and lab delays; Teqwave F eliminates these gaps by providing constant monitoring of product quality.
Available through
| Feature | Technical Details |
| Measuring Principle | Surface Acoustic Wave (SAW) / Ultrasonic |
| Concentration Range | 0 to 100% (Application-specific) |
| Acoustic Density | 0.7 to 1.5 g/cm³ (Precision: ±0.01 g/cm³) |
| Sound Velocity | 600 to 2000 m/s (Precision: ±2 m/s) |
| Nominal Diameter | DN 8 to 25 (3/8" to 1") – Ideal for skids |
| Process Pressure | Max. 16 bar @ 20 °C (232 psi) |
| Digital Interface | 4-20 mA, Modbus TCP, EtherNet/IP |
| Local Display | 3.5" TFT Color Touch Screen for instant diagnostics |
Zero Pressure Loss: The full-bore design features no obstructions, ensuring that the device does not interfere with fluid dynamics or cause energy loss.
Multivariable Insights: Replace multiple measuring points. One Teqwave F provides concentration, density, and temperature data in a single integrated output.
Maintenance-Free Reliability: Constructed from robust 316 Ti stainless steel with no moving parts, the sensor is immune to wear and tear, significantly lowering TCO.
App-Based Versatility: The device is "future-proof." Easily extend or switch the measurement range for different liquids (e.g., switching from acid to base) via simple software application updates.
Long-Term Data Integrity: Features integrated data logging with backup storage capacity for up to 7.5 years, ensuring full traceability for audits.
The Challenge: A beverage bottling plant needed to monitor the concentration of sugar syrups and CIP (Clean-in-Place) cleaning agents in real-time. Manual sampling was slow, leading to inconsistent batches and excessive chemical use.
The Hanyu Solution: The plant integrated the Teqwave F via
The Result: The plant eliminated hourly manual sampling. The Teqwave F provided instant feedback on sugar concentration and ensured cleaning agents reached the exact required strength.
The Impact: They achieved a 12% improvement in batch consistency and a 20% reduction in chemical waste, drastically improving the plant’s sustainability and profitability.
Q1: Can Teqwave F measure multiple types of liquids?
A: Yes. The device uses "Application Packages" (Apps). You can load different liquid profiles into the device, allowing it to accurately measure various concentrations such as sugar, alcohol, acids, or cleaning agents.
Q2: How is "Acoustic Density" different from standard density?
A: Acoustic density is calculated based on the propagation of sound waves through the liquid. It provides an extremely sensitive measurement of concentration changes that traditional density meters might miss.
Q3: Is it suitable for sanitary applications?
A: Absolutely. With its stainless steel 316 Ti wetted parts and smooth full-bore design, it is designed to meet the hygiene and durability standards of the food, beverage, and chemical industries.
Q4: How does Hanyu Zhilian support international clients?
A: We offer expert technical consulting for application matching and global shipping. All transactions are protected under our strict Privacy Policy.
