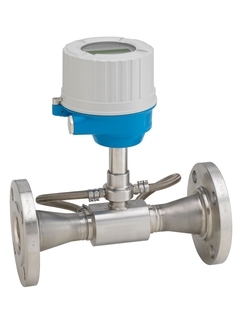

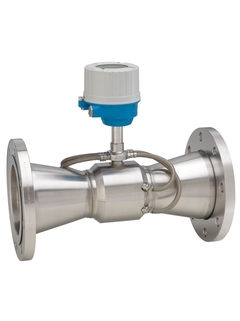

Endress+Hauser Prosonic Flow E 100 | Ultrasonic Meter for Condensate & Demin Water

The High-Efficiency Specialist for Industrial Water

Precision Utility Measurement Without the Premium Price Tag

The Proline Prosonic Flow E 100 is specifically engineered to bridge the gap between high-end process instruments and basic utility meters. It is the premier solution for measuring demineralized water and boiler condensate in the utility sector, where long-term reliability and cost-effectiveness are equally critical.

Available through Hanyu Zhilian, the E 100 is a multivariable powerhouse. By integrating temperature measurement directly into the flow sensor, it provides critical process insights without the added expense of extra measuring points or pipe penetrations. With an exceptional 200:1 turndown ratio and a rugged, full-stainless steel construction, it delivers stable, maintenance-free accuracy—regardless of the fluid’s conductivity or density.

Technical Specifications at a Glance

Key Advantages for Your Utility Plant

• Multivariable Efficiency: Why pay for two sensors? The E 100 measures both flow and temperature, allowing for simple heat quantity calculations and energy balancing in a single device.

• Conductivity Independent: Unlike electromagnetic meters (Magmeters) that fail in pure, demineralized water, the E 100’s ultrasonic technology thrives in non-conductive media.

• Zero Maintenance Design: With no moving parts to wear, clog, or leak, the E 100 eliminates the frequent repair cycles associated with mechanical turbine or vortex meters.

• Heartbeat Technology™: Perform ISO-compliant device verification without interrupting your boiler operations. Generate automated health reports to ensure continuous accuracy.

• Unrivaled Low-Flow Sensitivity: The 200:1 turndown ensures that every liter of water is accounted for, even during low-load boiler periods or standby modes.

Application Case: Boiler Condensate Recovery Optimization

The Challenge: A power plant’s utility department needed to monitor demineralized water in a high-temperature (130 °C) condensate return line. Their electromagnetic meters couldn't read the pure water, and mechanical meters suffered from frequent bearing failures and leaks.

The Hanyu Solution: The plant retrofitted the line with the Prosonic Flow E 100 from hanyuzl.com.

• The Result: The E 100 provided rock-solid readings despite the zero-conductivity of the water.

• The Impact: The integrated temperature sensor allowed the plant to calculate energy recovery efficiency instantly. This saved 30% in initial hardware costs and reduced unplanned maintenance downtime to zero, significantly improving the plant's overall energy ROI.

Frequently Asked Questions (FAQ)

Q1: Can the E 100 handle "pure" water?
A: Yes. Unlike Magmeters, the E 100 does not require the liquid to be conductive. It is specifically designed for demineralized, deionized, and ultra-pure water systems.

Q2: Does it require a separate temperature transmitter?
A: No. The temperature sensor is built directly into the flow body. The data is available via the display, web server, or your control system (HART/Modbus), simplifying your piping layout.

Q3: How do I verify the meter's accuracy over time?
A: You can use the built-in Heartbeat Technology™. It allows you to perform a full device health check and generate a verification certificate without ever removing the meter from the pipe.
