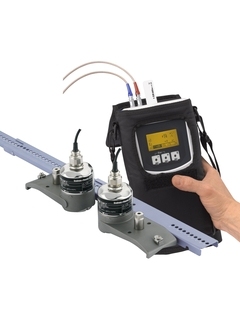

Need to verify a flow point without stopping production? The Proline Prosonic Flow 93T is the professional's choice for temporary monitoring and field verification. As a battery-powered, non-invasive system, it utilizes clamp-on sensor technology to measure flow from the outside of the pipe. This ensures zero pressure loss, zero contamination, and zero leakage risk—making it ideal for chemical, water, and industrial utility audits.
Available via
| Feature | Specification Details |
| Pipe Diameter Range | DN 15 to 4000 (1/2" to 160") |
| Max. Measurement Error | ±2.0% of reading (Standard field verification) |
| Medium Temperature | -40 to +170 °C (-40 to +338 °F) |
| Mobility | Integrated rechargeable battery (Full shift capacity) |
| Data Handling | Direct USB Data Logging (No proprietary software) |
| Max. Flow Rate | Up to 452,389 $m^3/h$ |
| Housing | Rugged field housing for industrial environments |
Effortless Data Management: Forget complex drivers or proprietary software. The 93T allows you to save measured data directly to a standard USB stick. Just plug it into your laptop and open your CSV/Excel files immediately.
Universal Pipe Compatibility: One kit covers everything from small 1/2" laboratory tubing to massive 160" municipal water mains. It works on all metal and plastic pipes, including lined pipes.
Smart Signal Optimization: The built-in "Quick Setup" menu and automatic frequency scan find the optimal acoustic path, ensuring reliability even on older or composite pipes where signals might otherwise be weak.
Non-Invasive Safety: Since the sensors never touch the process fluid, the 93T is perfect for measuring corrosive acids, ultra-pure water, or high-pressure liquids without any safety risks.
| Benefit | Prosonic Flow 93T (Portable) | Traditional Inline Flowmeters |
| Installation Cost | Zero (Clamp-on in minutes) | High (Pipe cutting/welding) |
| Process Impact | None (Live installation) | Shutdown & pipe drainage required |
| Flexibility | Infinite (One device for 100 pipes) | Permanent (Fixed to one spot) |
| Risk of Leakage | Zero (No seals/gaskets needed) | Potential at flange/weld points |
| Verification | Ideal for "Check Metering" | Requires secondary verification |
The Challenge: A power plant suspected a drop in efficiency in their DN 2000 cooling water loop. They needed to verify the flow rate, but stopping the pumps would result in a significant loss of electricity generation.
The Hanyu Solution: The plant deployed the Prosonic Flow 93T from
The Result: Technicians clamped the sensors onto the massive DN 2000 pipe while it was fully operational. The automatic scan locked onto a strong signal through the carbon steel wall.
The Impact: Within 30 minutes, they identified a faulty valve causing the restriction. The plant avoided a costly unplanned shutdown and used the USB-logged data to justify a targeted maintenance plan.
Q: Can the 93T measure through pipe liners?
A: Yes, it can measure through common liners (like rubber or epoxy), provided the liner is well-bonded to the pipe wall without any air gaps.
Q: How long does the battery last in the field?
A: The integrated battery is designed to last a full working shift. For longer-term logging, the device can be plugged into a standard power outlet while still operating in mobile mode.
Q: Is it difficult to set up the sensors?
A: Not at all. The 93T provides a "Mounting Distance" calculation on the screen. You simply slide the sensors to the indicated position, and the device confirms the signal strength with a visual bar.
Q4: Does Hanyu Zhilian provide support for international logistics?
A: Yes. We specialize in global supply for high-end instrumentation. All technical data and client project locations are protected under our strict Privacy Policy.
