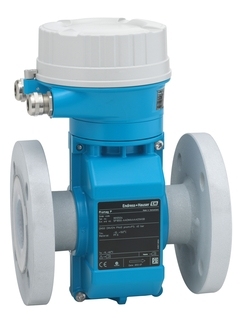

The Endress+Hauser Promag P 100 is engineered for chemical process equipment manufacturers and skid builders who need high-temperature (+180°C) and corrosive-fluid measurement in tight cabinet spaces. Featuring an ultra-compact transmitter housing, it delivers full fieldbus integration without requiring large mechanical installation clearance.
Hanyu Zhilian provides original sourcing, active inventory dispatch, technical verification, and 24-hour RFQ support for industrial projects.
Review the verified mechanical parameters, wetted material configurations, and thermal limits for the Promag P 100 sensor architecture:
| Measurement Principle | Electromagnetic Induction (Faraday's Law) |
|---|---|
| Nominal Diameter Range | DN 15 to DN 600 (1/2" to 24") |
| Liner Material & Temp. Scope | • High-Temp PFA: -20 to +180 °C (-4 to +356 °F) • Standard PFA: -20 to +150 °C (-4 to +302 °F) • PTFE: -40 to +130 °C (-40 to +266 °F) |
| Wetted Electrode Materials | 1.4435 (316L Stainless Steel), Alloy C22 (2.4602), Tantalum, Platinum, Titanium, Duplex 1.4462 |
| Min. Fluid Conductivity | ≥ 20 μS/cm (Optimized for conductive chemicals, acids, alkalis, and process water) |
| Measurement Error | Standard: ±0.5% o.r. ± 1 mm/s | High-Accuracy Option: ±0.2% o.r. ± 2 mm/s |
| Volumetric Flow Range | 4 dm³/min to 9,600 m³/h (1 to 44,000 gal/min) |
| Max. Process Pressure | PN 10 to PN 40 / ASME Class 150 to 300 / JIS 10K to 20K |
| Transmitter Housing | Ultra-compact aluminum coated enclosure (Proline 100 series) |
| Digital Communications | HART (Active), PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Ingress Protection & Power | IP66/67 (Type 4X) | Power Supply: DC 20 to 30 V |
| Safety & Hazardous Approvals | ATEX, IECEx, cCSAus, EAC, PED, CRN, ACS, NSF 61, WRAS |
For skid builders evaluating space and budget constraints, the table below highlights key functional differences between compact and standard transmitter architectures:
| Design Parameter | Promag P 100 (Compact) | Promag P 300 / P 500 (Standard) |
|---|---|---|
| Transmitter Footprint | Ultra-Compact (Fits inside tight cabinets) | Standard / Remote dual-compartment housing |
| System Operating Voltage | DC 20 to 30 V (Ideal for skid DC power lines) | AC 85-265 V or DC 18-30 V options |
| Local Display & Setup | Integrated Web Server (No special software) | Graphic display with touch control / optical keys |
| Primary Target Application | Skid builders, dosing modules, OEM equipment | Large standalone plant lines & central rack rooms |
The Proline 100 transmitter housing reduces total install dimensions by up to 40% compared to standard dual-chamber transmitters. This allows OEM equipment manufacturers to mount meters side-by-side inside compact cabinet racks and skid frames without sacrificing access clearance.
Standard PTFE liners degrade or expand under cyclic thermal stress. With the high-temperature PFA liner option, the Promag P 100 handles continuous process temperatures up to +180°C (+356°F), enabling reliable operation in hot acid dosing, organic synthesis, and steam injection utility lines.
Field technicians do not require specialized handheld terminals or proprietary software drivers. Connecting a standard laptop or tablet via Ethernet or Modbus enables full access to parameters, diagnostics, and data logging directly through a web browser.
Embedded diagnostic software continuously monitors sensor coil integrity, signal stability, and internal electronics. Heartbeat Technology generates ISO 9001:2015 Section 7.1.5.2 compliant verification reports attested by TÜV SÜD, allowing operators to safely extend physical recalibration intervals.
Answer: Promag P 100 is engineered for space-restricted chemical injection skids, corrosive acid and alkali dosing, hot chemical utility lines, and high-temperature process loops up to +180°C.
Answer: Submit your required pipe size, lining material (PFA/PTFE), electrode material, and protocol preferences to Hanyu Zhilian. Official commercial RFQs and technical datasheets are issued within 24 hours.
Answer: With the high-temperature PFA liner, it supports media temperatures up to +180°C (+356°F). Standard PFA liners handle up to +150°C (+302°F), and PTFE liners handle up to +130°C (+266°F).
Answer: No. The transmitter features an integrated web server. Field technicians can configure parameters, extract diagnostic logs, and perform calibration checks via standard web browsers on laptops or tablets.
