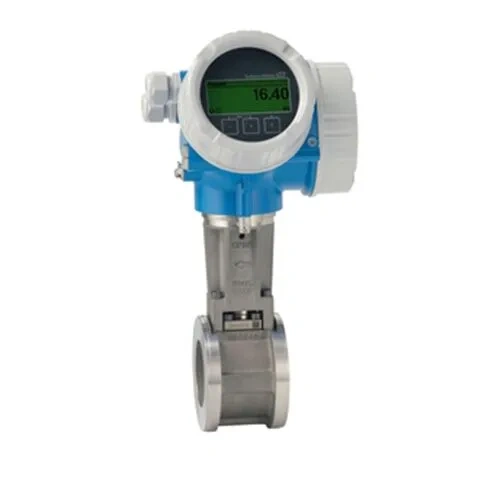

Endress+Hauser Proline Prowirl D 200 vortex flowmeter

Product Details

Description

Field of application

The Prowirl D sensor can be installed directly between flanges and thus serves as the functional device for applications in ancillary processes at little installation cost. With genuine loop-powered technology, Prowirl D 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology enables process safety at all times.

• Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
• For all basic applications and for 1-to-1 replacement of orifice plates.

Device properties

• Face-to-face length of 65 mm (2.56 in)
• No flanges
• Low weight
• Display module with data transfer function
• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)

Specifications

• Measuring principle

Vortex

• Product headline

Cost-effective wafer flowmeter, available as compact or remote version.
Integrated temperature measurement for mass/energy flow of saturated steam.
For all basic applications and for 1-to-1 replacement of orifice plates.

• Sensor features

Easy alignment of the sensor – included centering rings. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. Long-term stability – robust drift-free capacitive sensor.
Face-to-face length of 65 mm (2.56 in). No flanges. Low weight.

• Transmitter features

Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Display module with data transfer function. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

• Nominal diameter range

DN 15 to 150 (½ to 6″)

• Wetted materials

Measuring tube: 1.4408 (CF3M)
DSC sensor: 1.4435 (316/316L)

• Measured variables

Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature

• Max. measurement error

Volume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (liquid): ±0.85%
Mass flow (steam, gas): ±1.7 %

• Measuring range

Liquid: 0.25 to 625 m³/h (0.15 to 365 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 2.1 to 8335 m³/h (1.2 to 4906 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

• Max. process pressure

PN 40, Class 300, 20K

• Medium temperature range

Standard: –40 to +260 °C (–40 to +500 °F)
High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
High/low temperature (on request): –200 to +450 °C (–328 to +842 °F)

• Ambient temperature range

Compact version (standard): –40 to +80 °C (–40 to +176 °F)
Compact version (option): –50 to +80 °C (–58 to +176 °F)
Remote version (standard): –40 to +85 °C (–40 to +185 °F)
Remote version (option): –50 to +85 °C (–58 to +185 °F)

• Sensor housing material

Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M)

• Transmitter housing material

AlSi10Mg, coated; 1.4404 (316L)

• Degree of protection

Compact version: IP66/67, type 4X enclosure
Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, type 4X enclosure

• Display/Operation

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available

• Outputs

4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

• Inputs

Current input 4‐20 mA (passive)

• Digital communication

HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output)
DC 12 to 30 V (4‐20 mA HART, 4‐20 mA)
DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input)
DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)

• Hazardous area approvals

ATEX, IECEx, cCSAus, JPN, EAC, UK Ex

• Product safety

CE, C-TICK, EAC

• Functional safety

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Marine approvals and certificates

ABS, LR, BV, DNV

• Pressure approvals and certificates

PED, CRN

• Material certificates

3.1 material
NACE MR0175/MR0103, PMI (on request)
