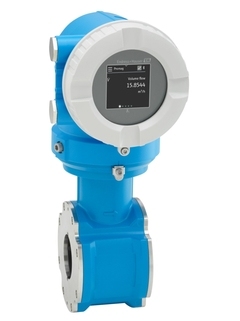

Promag D 10: The Compact & Cost-Effective Solution for Basic Water Applications
When installation space is at a premium and budget efficiency is key, the Proline Promag D 10 is the ultimate choice. As a wafer-style (short face-to-face length) electromagnetic flowmeter, it is specifically optimized for basic water applications, particularly in systems using plastic piping. Despite its lightweight and compact design, it doesn't compromise on intelligence—featuring wireless operation via the SmartBlue app and built-in Heartbeat Technology for simplified maintenance and verification.
| Feature | Technical Data |
| Nominal Diameter | DN 25 to 100 (1" to 4") |
| Measuring Principle | Electromagnetic (Wafer/Thin design) |
| Max. Error | ±0.5 % o.r. ± 1 mm/s |
| Process Pressure | Max. PN 16 / Class 150 |
| Wetted Materials | Polyamide liner; 1.4435 (316L) electrodes |
| Communication | HART, Modbus RS485, IO-Link |
Minimal Footprint: The wafer design and low weight make it perfect for tight skids and compact water treatment modules where flange-to-flange meters won't fit.
Plastic Pipe Friendly: Engineered specifically for easy centering and integration into plastic pipe systems, common in modern water utility setups.
Wireless Control: No need for expensive displays in every location. Use the SmartBlue app on your smartphone for guided parameterization and quick commissioning.
Integrated Grounding: Comes with built-in stainless steel ground disks, eliminating the need for extra grounding rings and reducing installation costs.
The Challenge: A manufacturer of compact reverse osmosis (RO) units needed to measure feed water but had less than 150mm of space between pipe bends.
The Solution: We supplied the Promag D 10 Wafer Meter.
The Result: Its short face-to-face length allowed it to fit perfectly. By using the SmartBlue app for setup, the client saved 30% on labor time and avoided the cost of high-end transmitter displays.
