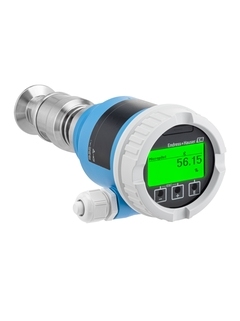

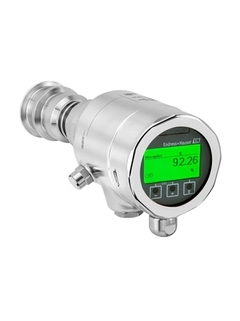

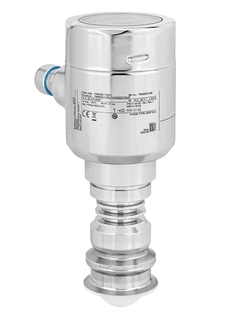

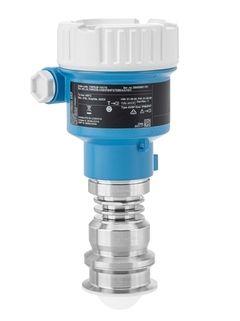

Micropilot FMR63B is a member of the new generation 80 GHz radar level transmitter family, featuring a special hygienic design tailored for hygienic applications. It enables continuous non-contact level measurement, fully complying with stringent hygienic standards such as ASME BPE and USP Class VI, making it the ideal choice for food, pharmaceutical, biopharmaceutical and other industries.
Equipped with a built-in operation wizard, it guides users to easily complete commissioning, functional safety and verification tests with convenient and efficient operation. It is equipped with Heartbeat Technology, supporting online self-calibration, self-monitoring and self-diagnosis, which can timely identify abnormal working conditions and check measurement accuracy, ensuring measurement stability and production safety.
With the advantage of 80GHz W-band high frequency and small beam angle design, the instrument has excellent beam focusing effect, and can achieve accurate measurement even in tanks with internal interference devices, with a maximum measurement range of 80 meters.
- Hygienic dedicated design, compliant with stringent hygienic standards such as ASME BPE, USP Class VI, 3-A and EHEDG, suitable for food, pharmaceutical and other hygienic applications
- 80GHz W-band high frequency radar with small beam angle, excellent beam focusing effect and strong anti-interference ability, suitable for tanks with internal interference devices
- Non-contact measurement, no hygiene dead ends, avoiding medium contamination, reducing maintenance costs, meeting the requirements of the hygiene industry
- Intuitive human-machine interface with built-in guided commissioning and verification wizard, simple operation and reduced risk of systematic errors
- Heartbeat Technology supports online self-monitoring, self-calibration and self-diagnosis, ensuring measurement accuracy and improving production efficiency
- The display screen real-time shows the instrument status, automatically switching from green to red in case of faults, facilitating quick troubleshooting
- Digital communication design, easily integrable into asset management systems for intelligent management
- Supports Bluetooth® wireless commissioning with SmartBlue App for more convenient operation and maintenance
- Integrated HistoROM intelligent data storage unit and RFID tag for easy instrument identification and maintenance
- Multiple communication methods available (HART, PROFIBUS PA, PROFINET), adapting to different industrial control systems
- Certified by multiple international authoritative certifications such as hygiene, Ex, SIL 2/3 and drinking water, supporting 5-point or 10-point linear calibration, no on-site additional calibration required
Applications
- Food industry: level measurement of hygienic tanks/reactors in dairy, beverage, baking, confectionery and food processing
- Pharmaceutical/biopharmaceutical industry: scenarios complying with ASME BPE and USP Class VI standards such as preparations, APIs and biological fermentation
- Level monitoring of drinking water and food-contact liquids
- Level measurement scenarios with stringent hygiene requirements and no hygiene dead ends
- Level measurement of hygienic tanks with internal interference devices
- Food, pharmaceutical and drinking water related scenarios requiring 3-A, EHEDG and SIL 2/3 certifications
- Hygienic level measurement in free space, requiring small beam angle and anti-interference performance
Specifications
- Measuring Principle：Radar Level Transmitter (80GHz W-band)
- Measuring Mode：Continuous non-contact level measurement
- Accuracy：±1 mm (0.04 in)
- Frequency：W-band (80 GHz)
- Beam Angle：Small beam angle
- Process Temperature：-40 … +200 °C (-40 … +392 °F)
- Ambient Temperature：-40 … +85 °C (-40 … +185 °F)
- Process Pressure：Vacuum … 25 bar (Vacuum … 363 psi)
- Max Measuring Distance：80 m (262 ft)
- Wetted Parts：PEEK, PTFE
- Process Connections：
-
- - Thread: M24 (with adapter)
-
- - Hygienic connections: NEUMO BioControl, Slotted nut DIN11851, Varivent, Tri-Clamp ISO2852
-
- Output / Communication：2-wire (HART, PROFIBUS PA), PROFINET based on Ethernet-APL, Bluetooth® wireless connection (optional)
- Certifications：
-
- - Ex: IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex
-
- - Safety: WHG overflow protection, SIL 2/3 (compliant with IEC 61508 standard)
-
- - Design: EN10204 3.1 material certificate, ASME B31.3 conformity declaration, cGMP compliance declaration, CoC ASME BPE, CRN certification
-
- - Hygienic: 3-A, EHEDG, CoC-ASME BPE, EU Food Contact Material (EC) 1935/2004, US Food Contact Material FDA CFR 21
-
- - Drinking Water: KTW W270, NSF/ANSI 61
-
- Options：Display screen, user-defined settings, SmartBlue App (Bluetooth commissioning), hermetic protection, overvoltage protection, PWIS degreasing cleaning
- Application Limitations：For process temperature >200°C (392°F), FMR62 is recommended; for severe foam levels, waveguide and bypass applications (>10m), FMR5x and FMP5x series are recommended
