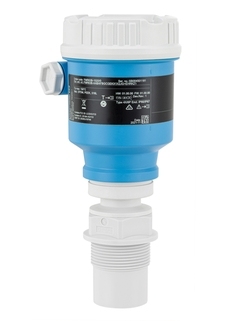

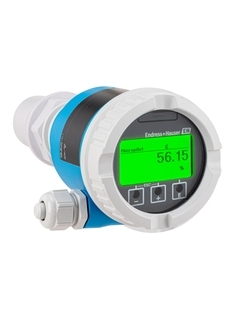

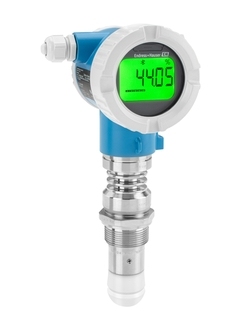

Micropilot FMR60B is a member of the new generation 80 GHz radar level transmitter family, specially designed for basic liquid applications. It adopts non-contact measurement method with small-size process connection, suitable for various free-space level measurement needs.
Equipped with a built-in operation wizard, it guides users to easily complete instrument commissioning, functional safety and verification tests with convenient and efficient operation. It is equipped with Heartbeat Technology, supporting online self-calibration, self-monitoring and self-diagnosis, which can timely identify abnormal working conditions and greatly improve process safety and production efficiency.
With the advantage of 80GHz W-band high frequency, the instrument has excellent beam focusing effect, and can achieve stable measurement even in tanks with internal interference devices, with a maximum measurement range of 50 meters. The product supports Bluetooth and SmartBlue App commissioning, integrates HistoROM intelligent data storage unit, can be seamlessly integrated into various control systems, and has passed a number of international authoritative certifications, providing an accurate, reliable and convenient solution for continuous level measurement of basic liquids, paste media and mud.
- New generation 80GHz W-band radar with excellent beam focusing effect and strong anti-interference ability, suitable for tanks with internal interference devices
- Non-contact measurement for liquids, paste media and mud, unaffected by medium changes, temperature fluctuations, gas or steam
- Small-size process connection, flexible installation, suitable for various basic liquid applications
- Built-in operation wizard for guided commissioning, verification and functional safety testing, simple operation and reduced risk of systematic errors
- Recommended operations displayed on the screen to help users easily troubleshoot and improve maintenance efficiency
- Heartbeat Technology supports online self-monitoring, self-calibration and self-diagnosis to ensure process safety and production efficiency
- Developed in accordance with IEC 61508 standard, reaching SIL 2 safety integrity level, meeting functional safety requirements
- Supports Bluetooth® wireless commissioning with SmartBlue App for more convenient operation and maintenance
- Integrated HistoROM intelligent data storage unit and RFID tag for easy instrument identification and maintenance
- Multiple communication methods available, seamlessly integrable into various control systems, adapting to different industrial scenarios
- Certified by multiple international authoritative certifications such as Ex, WHG, SIL and marine, with 5-point or 10-point factory calibration, no on-site additional calibration required
Applications
- Basic liquid applications: level measurement of clean water, sewage and ordinary chemical tanks
- Continuous level measurement of viscous media such as paste and mud
- Level monitoring of tanks with internal interference devices
- Free-space level measurement scenarios requiring small-size process connections
- Food industry: level measurement of liquids complying with food contact material standards
- Basic level measurement scenarios in chemical, water treatment and utility engineering
- Routine industrial level measurement scenarios requiring SIL 2, Ex and marine certifications
Specifications
- Measuring Principle：Radar Level Transmitter (80GHz W-band)
- Measuring Mode：Continuous non-contact level measurement
- Measuring Medium：Liquids, paste media, mud
- Accuracy：±1 mm (0.04 in)
- Frequency：W-band (80 GHz)
- Process Temperature：-40 … +200 °C (-40 … +392 °F)
- Ambient Temperature：-40 … +85 °C (-40 … +185 °F)
- Process Pressure：Vacuum … 20 bar (Vacuum … 290 psi)
- Max Measuring Distance：50 m (164 ft)
- Wetted Parts：PVDF, PTFE, PEEK
- Process Connections：
-
- - Thread: G3/4", G1 1/2"; MNPT 3/4", MNPT1 1/2"
-
- - Flange: UNI DN80...DN150
-
- - Mounting bracket
-
- Output / Communication：2-wire (HART, PROFIBUS PA), PROFINET based on Ethernet-APL, Bluetooth® wireless connection (optional)
- Certifications：
-
- - Ex: IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex
-
- - Safety: WHG overflow protection, SIL 2
-
- - Design: EN10204 3.1 material certificate, ASME B31.3 conformity declaration, AD2000, PMI test, CRN certification
-
- - Hygienic: EU Food Contact Materials (EC) 1935/2004, US Food Contact Materials FDA CFR 21
-
- - Marine: ABS, LR, BV, RINA, DNV
-
- Options：Display screen, user-defined settings, SmartBlue App (Bluetooth commissioning), hermetic protection, overvoltage protection, PWIS degreasing cleaning
- Application Limitations：For process temperature <-40°C or >200°C, highly corrosive media, disturbed liquid level/waveguide/bypass applications, severe foam and interface levels, FMR62B is recommended; for guided wave radar applications, FMP5x series is recommended
